6.

CHECK (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE WITH OCM C1
CONNECTOR DISCONNECTED

WARNING: If the Occupant Classification Module is dropped at
any time, it must be replaced. Failure to take the proper precau-
tions can result in accidental airbag deployment and personal
injury or death.
Disconnect the OCM C1 connector.

Measure the resistance of the (F201) Fused Ignition Switch Output
(Run-Start) circuit between ground and the Airbag Run-Start fuse termi-
nal (output side).

Is the resistance below 100.0 ohms?

Yes

>> Repair the (F201) Fused Ignition Switch Output (Run-Start)

circuit for a short to ground.

Replace the Airbag Run-Start Fuse.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1.

No

>> Replace the OCM in accordance with the Service Informa-

tion.

Replace the Airbag Run-Start Fuse.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1.

7.

CHECK (F201) IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

Turn the ignition on.

Measure the voltage of the (F20) Ignition Switch Output (Run-Start) cir-
cuit at the Airbag Run-Start fuse terminal (supply side).

Is the voltage above 6.0 volts?

Yes

>> Go To 8

No

>> Repair the open (F20) Ignition Switch Output (Run-Start)

circuit.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1.

8.

CHECK (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Reinstall the Airbag Run-Start Fuse.

Disconnect the both ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.
Install the Airbag Load tool ORC 8443-24 adaptor to the ORC C2 con-
nector.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.

8O - 290

RESTRAINTS - ELECTRICAL DIAGNOSTICS

LX

Measure the voltage of the (F201) Fused Ignition Switch Output (Run-Start) Circuit between the 8443-24 connector
and ground.

Is the voltage above 6.0 volts?

Yes

>> Replace the ORC in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1 if DTC B210C-IGNITION RUN/START INPUT CIRCUIT
OPEN was Active in the OCM.

No

>> Repair the open (F201) Fused Ignition Switch Output (Run-Start) circuit.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1 if DTC B210C-IGNITION RUN/START INPUT CIRCUIT
OPEN was Active in the OCM.

9.

CHECK (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN

WARNING: To avoid personal injury or death, turn the ignition off,
disconnect the battery and wait two minutes before proceeding.
Reinstall the Airbag Run-Start Fuse.

Disconnect the both Occupant Classification Module (OCM) connectors.

NOTE: Check connectors - Clean and repair as necessary.

WARNING: To avoid personal injury or death, turn the ignition on,
then reconnect the battery.

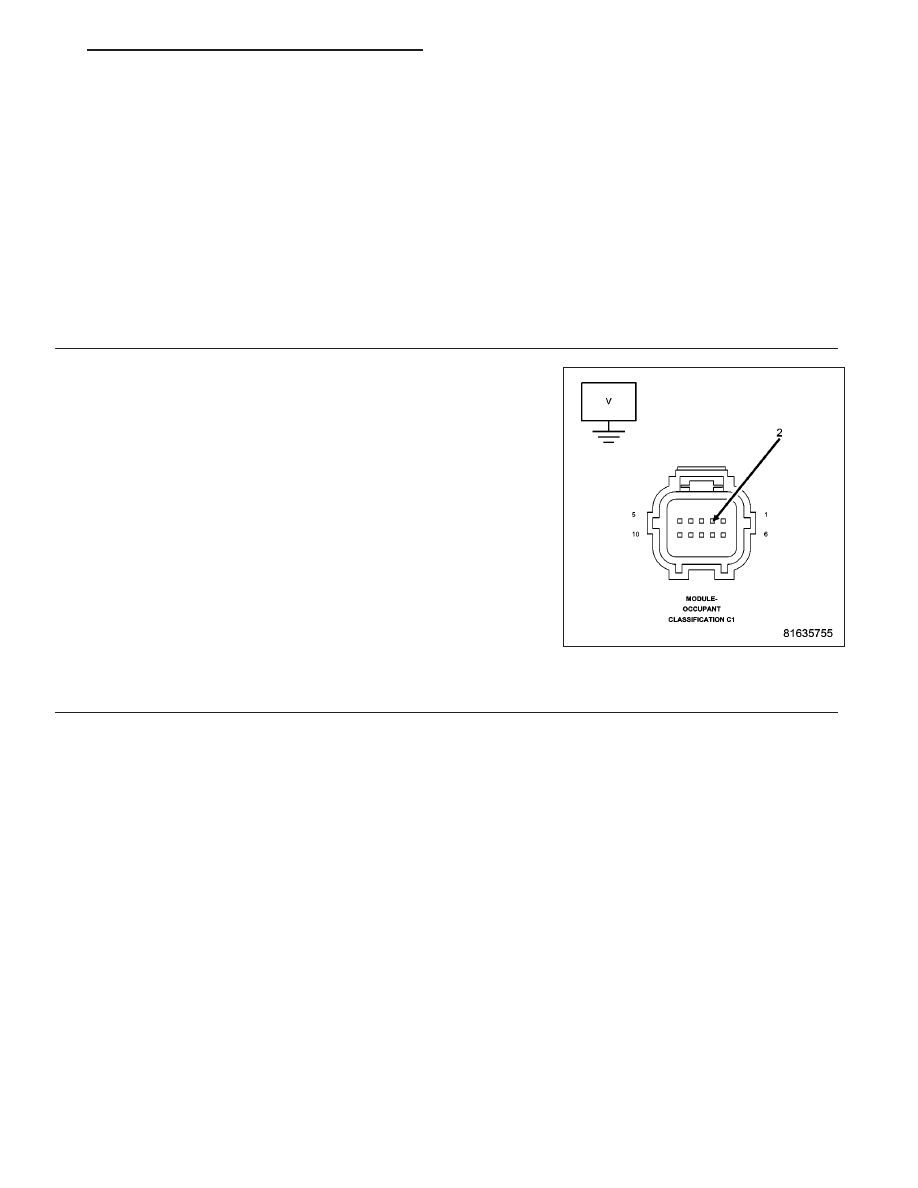

Measure the voltage of the (F201) Fused Ignition Switch Output (Run-
Start) Circuit between the OCM connector and ground.

Is the voltage above 6.0 volts?

Yes

>> Go To 10

No

>> Repair the open (F201) Fused Ignition Switch Output (Run-

Start) circuit between the OCM and the splice.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1.

10.

VERIFY THAT DTC B212C-IGNITION RUN/START INPUT CIRCUIT OPEN DTC IS ACTIVE.

Reconnect both Occupant Restraints Controller (ORC) connectors.

Reconnect both Occupant Classification Module (OCM) connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, read Occupant Restraint Controller (ORC) DTCs and Occupant Classification Module (OCM)
DTCs.

Select the module displaying the active: B212C-IGNITION RUN/START INPUT CIRCUIT OPEN?

Occupant Restraint Controller (ORC)

Replace the Occupant Restraint Controller (ORC) in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1 if DTC B212C-IGNITION RUN/START INPUT CIRCUIT
OPEN was Active in the OCM.

Occupant Classification Module (OCM)

Replace the Occupant Classification Module (OCM) in accordance with the Service Information.

Perform ORC VERIFICATION TEST - VER 1.

Perform OCS VERIFICATION TEST - VER 1 if DTC B212C-IGNITION RUN/START INPUT CIRCUIT
OPEN was Active in the OCM.

LX

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 291

11.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase all DTCs from all Airbag modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or con-
taminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return, continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the active DTC in ques-
tion.

Does the scan tool display any ACTIVE DTCs?

Yes

>> Select appropriate symptom from Symptom List.

No

>> No problem found Erase all codes before returning vehicle to customer.

8O - 292

RESTRAINTS - ELECTRICAL DIAGNOSTICS

LX

B212D-IGNITION RUN ONLY INPUT CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition in the Run position.

Set Condition:
If voltage on the (F214) Fused Run Relay Output circuit drops below 6.50 ± 0.25 volts.

Possible Causes

ACTIVE FCM RUN RELAY TROUBLE CODES

(F922) RUN RELAY CIRCUIT OPEN

FUSE 28 OPEN

(F214) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED TO GROUND

OCCUPANT RESTRAINT CONTROLLER (ORC)

Diagnostic Test

1.

VERIFY THAT DTC B212D-IGNITION RUN ONLY INPUT CIRCUIT OPEN IS ACTIVE

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must
be disconnected.
Turn the ignition on.

With the scan tool, read Occupant Restraint Controller (ORC) DTCs.

Does the scan tool display active: B212D-IGNITION RUN ONLY INPUT CIRCUIT OPEN?

Yes

>> Go To 2

No

>> Go To 8

2.

CHECK FOR ACTIVE FCM RUN RELAY CONTROL CIRCUIT DTC

With the scan tool, read Front Control Module (FCM) DTCs.

Does the scan tool display active: B2122, B2123, or B2124 DTCs?

Yes

>> (Refer to 8 - ELECTRICAL/IGNITION CONTROL - DIAGNOSIS AND TESTING - B2122), (Refer to 8 -

ELECTRICAL/IGNITION CONTROL - DIAGNOSIS AND TESTING - B2123), (Refer to 8 - ELECTRICAL/
IGNITION CONTROL - DIAGNOSIS AND TESTING - B2124).

No

>> Go To 3

3.

INSPECT AIRBAG RUN CIRCUIT FUSE

Turn the ignition off.

Remove the Airbag Run Circuit Fuse No. 28 from the Power Distribution Center and inspect the fuse.

NOTE: Check connectors - Clean and repair as necessary.

Is the fuse open?

Yes

>> Go To 4

No

>> Go To 6

LX

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 293
