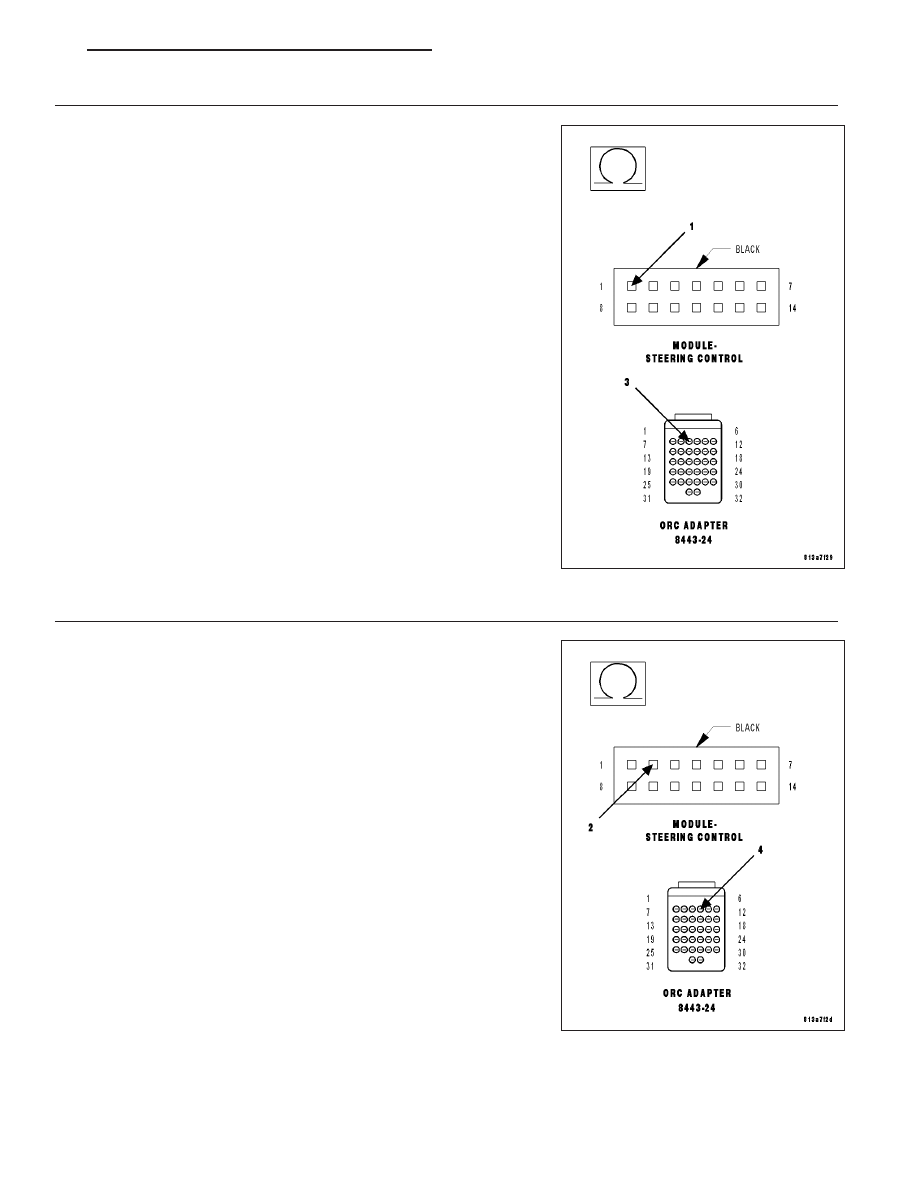

2. CHECK FOR OPEN SQUIB CIRCUITS IN DRIVER AIRBAG WARNING: To avoid personal injury or death, turn the ignition off, WARNING: To avoid personal injury or death, do not place an NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: B1B06 DRIVER AIRBAG SQUIB 2 Yes >> Go To 3 No >> Replace the Driver Airbag in accordance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 3. CHECK CLOCKSPRING SQUIB CIRCUITS FOR AN OPEN WARNING: To avoid personal injury or death, turn the ignition off, Remove the Steering Control Module from the steering column in accor- Disconnect the Steering Control Module connector. NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: B1B06 DRIVER AIRBAG SQUIB 2 Yes >> Go To 4 No >> Replace the Clockspring in accordance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 8O - 50 RESTRAINTS - ELECTRICAL DIAGNOSTICS LX |
