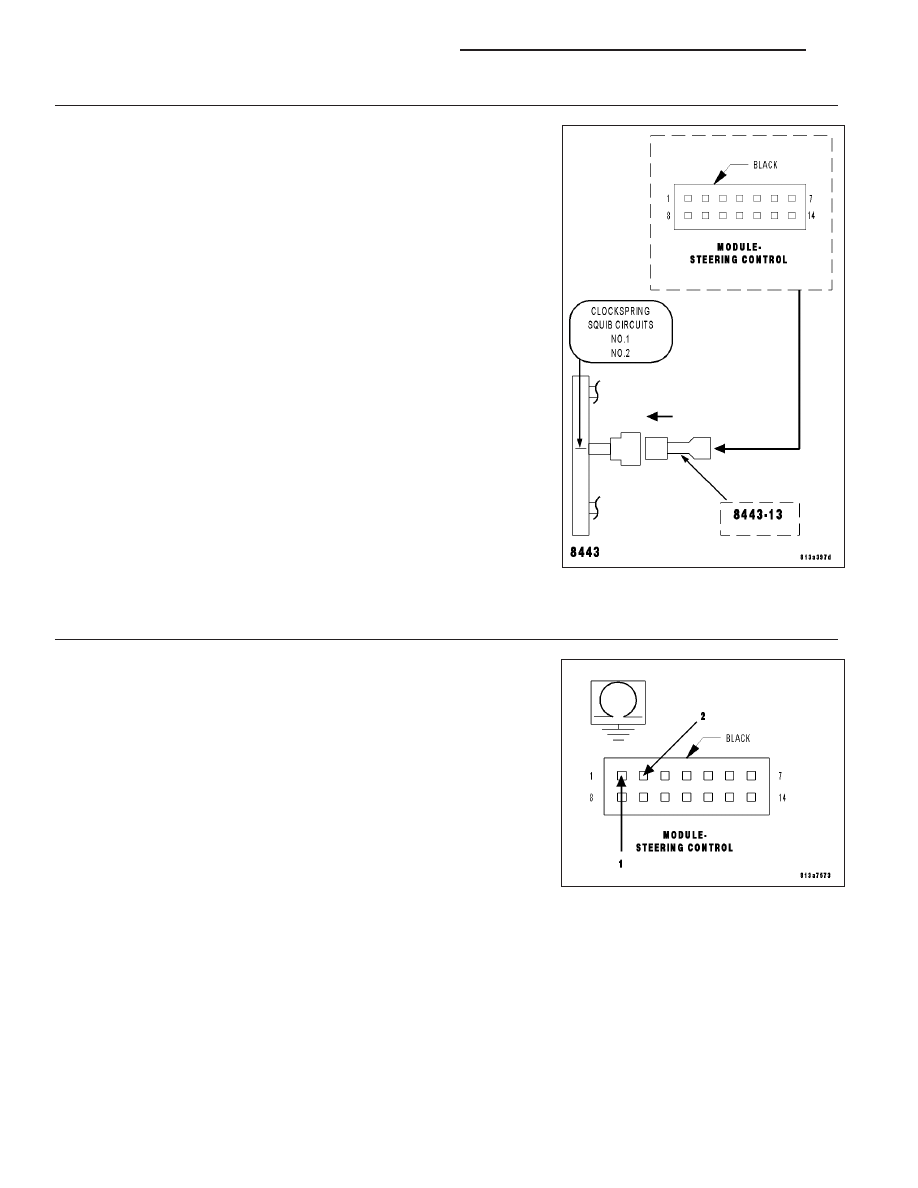

3. CHECK CLOCKSPRING SQUIB CIRCUITS FOR A SHORT TO GROUND WARNING: To avoid personal injury or death, turn the ignition off, Remove the Steering Control Module from the steering column in accor- Disconnect the Steering Control Module connector. NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: B1B04 DRIVER AIRBAG SQUIB 2 Yes >> Go To 4 No >> Replace the Clockspring in accordance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 4. CHECK (R63) DRIVER SQUIB 2 LINE 1 CIRCUIT AND (R61) DRIVER SQUIB 2 LINE 2 CIRCUIT FOR A WARNING: To avoid personal injury or death, turn the ignition off, Disconnect the ORC connectors. NOTE: Check connectors - Clean and repair as necessary. Measure the resistance of the (R63) Driver Squib 2 Line 1 circuit Measure the resistance of the (R61) Driver Squib 2 Line 2 circuit Is the resistance below 10K ohms for either measurement? Yes >> Repair the Driver Squib 2 circuits with a resistance below 10K ohms for a short to ground. Perform ORC VERIFICATION TEST - VER 1 No >> Go To 5 8O - 42 RESTRAINTS - ELECTRICAL DIAGNOSTICS LX |
