3.

FRONT CONTROL MODULE

Turn the ignition off.

Disconnect the Front Control Module from the PDC 49-way connector.

Measure the voltage between (L61) Front Left Turn Signal Control circuit and ground.

Is there any voltage present?

Yes

>> Replace the Power Distribution Center in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the Front Control Module in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1.

8L - 22

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

LX

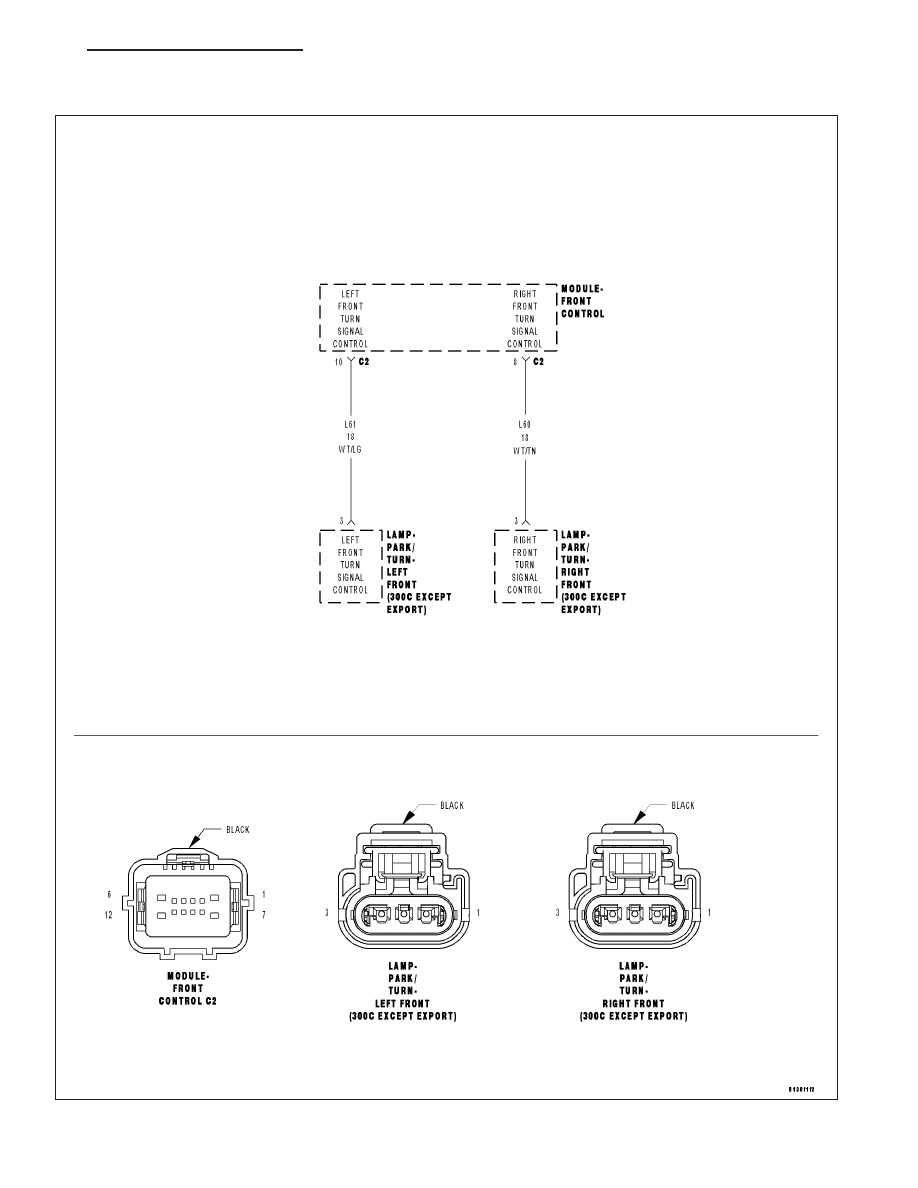

B163F-FRONT RIGHT TURN CONTROL CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

LX

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 23

Possible Causes

(L60) FRONT RIGHT TURN SIGNAL CONTROL CIRCUIT

FRONT CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC’s.

Turn the Right Turn Signals on.

With the Scan Tool read the DTC information.

Does the Scan Tool read: B163F-FRONT RIGHT TURN CONTROL CIRCUIT LOW?

Yes

>> Go To 2

No

>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible

intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Perform the BODY VERIFICATION TEST - VER 1.

2.

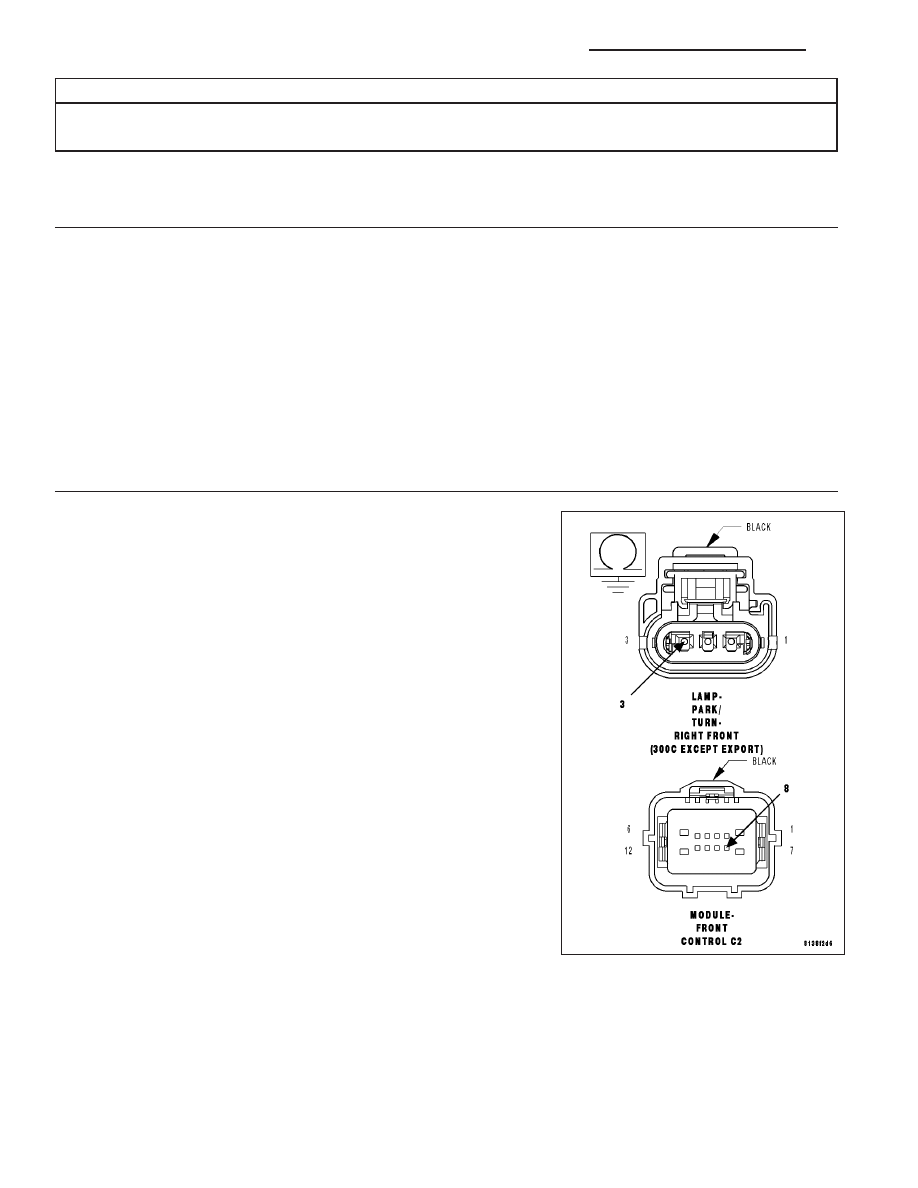

L60 FRONT RIGHT TURN SIGNAL CONTROL CIRCUIT

Turn the ignition off.

Disconnect the FCM C2 harness connector.

Measure the resistance between ground and the (L60) Front Right Turn
Signal Control circuit.

Is the resistance below 5.0 ohms?

Yes

>> Go To 3

No

>> Repair the (L60) Front Right Turn Signal Control circuit for

a short to ground.

Perform the BODY VERIFICATION TEST - VER 1.

8L - 24

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

LX

3.

FRONT CONTROL MODULE

Turn the ignition off.

Disconnect the FCM connector.

Measure the resistance between ground and the (L60) Front Right Turn Signal Control circuit in the FCM.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Power Distribution Center in accordance with the service information.

Perform the BODY VERIFICATION TEST - VER 1.

No

>> Replace the Front Control Module in accordance with the service information.

Perform the BODY VERIFICATION TEST - VER 1.

LX

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 25
