HORN

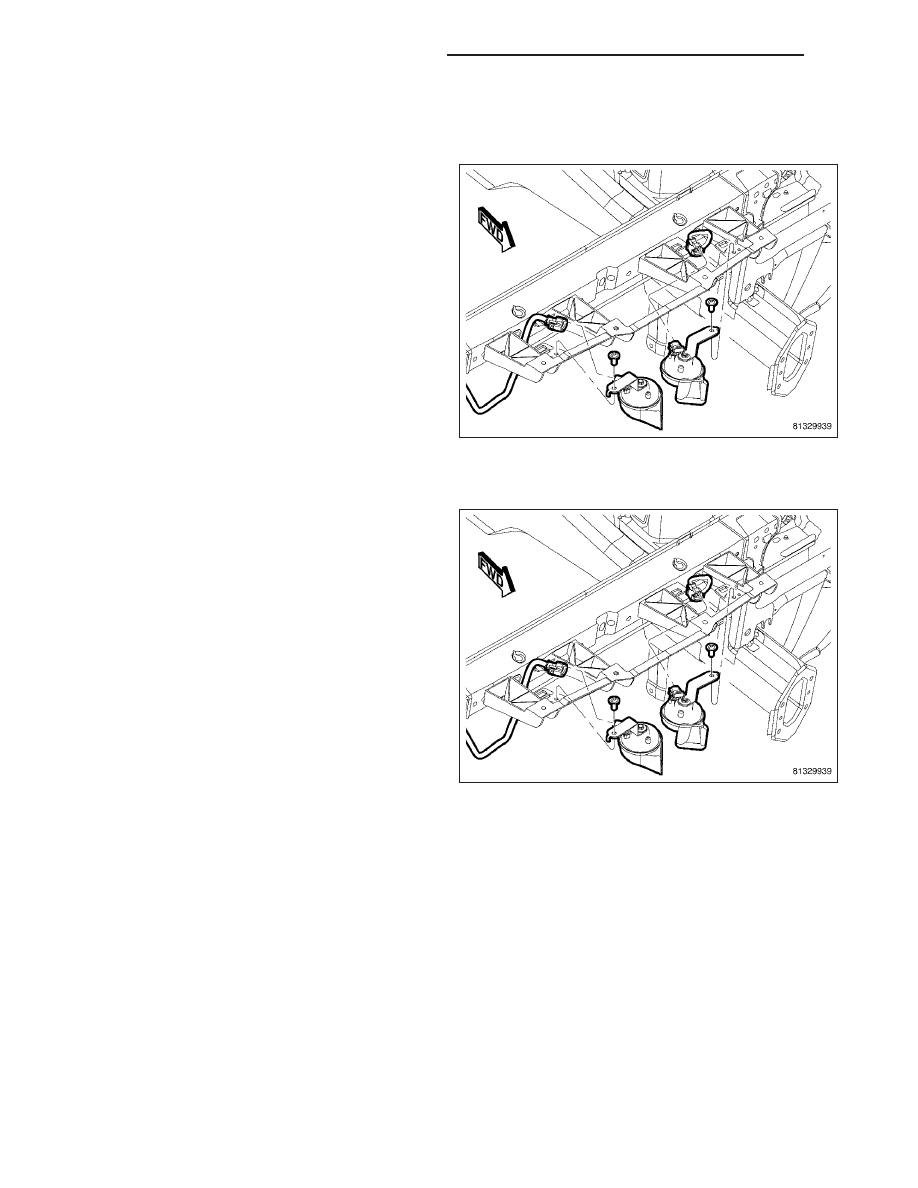

REMOVAL

NOTE: A battery reconnect procedure must be per-
formed anytime the battery has been discon-
nected.

(Refer

ELECTRICAL/BATTERY

SYSTEM - STANDARD PROCEDURE).

1. Disconnect and isolate the battery negative cable.

2. Remove cover above horn.

3. Disconnect electrical harness connector.

4. Remove mounting fastener and remove horn.

INSTALLATION

NOTE: A battery reconnect procedure must be per-
formed anytime the battery has been discon-
nected.

(Refer

ELECTRICAL/BATTERY

SYSTEM - STANDARD PROCEDURE).

1. Position horn. Install and tighten mounting fasten-

ers.

2. Connect electrical harness connector.

3. Install cover above horn.

4. Connect battery negative cable.

8H - 18

HORN SYSTEM- SERVICE INFORMATION

SWITCH-HORN

DESCRIPTION

The horn switch is molded into the driver airbag cover. The horn switch can not be serviced separately. (Refer to 8
- ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL).

DIAGNOSIS AND TESTING

HORN SWITCH

The most reliable, efficient, and accurate means to diagnose the horn system requires the use of a scan
tool and the proper Diagnostic Procedures information.

For complete circuit diagrams, refer to the appropriate wiring information.

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNO-
SIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE
THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY.
