5. Raise vehicle on hoist, (Refer to LUBRICATION &

MAINTENANCE/HOISTING - STANDARD PROCE-
DURE).

6. Remove the fastener securing the battery negative

cable to the transmission housing.

7. One at a time, remove the battery cable retaining pushpins, fasteners and routing clips until the cable is free

from the vehicle.

8. Remove the battery cable from the engine compartment.

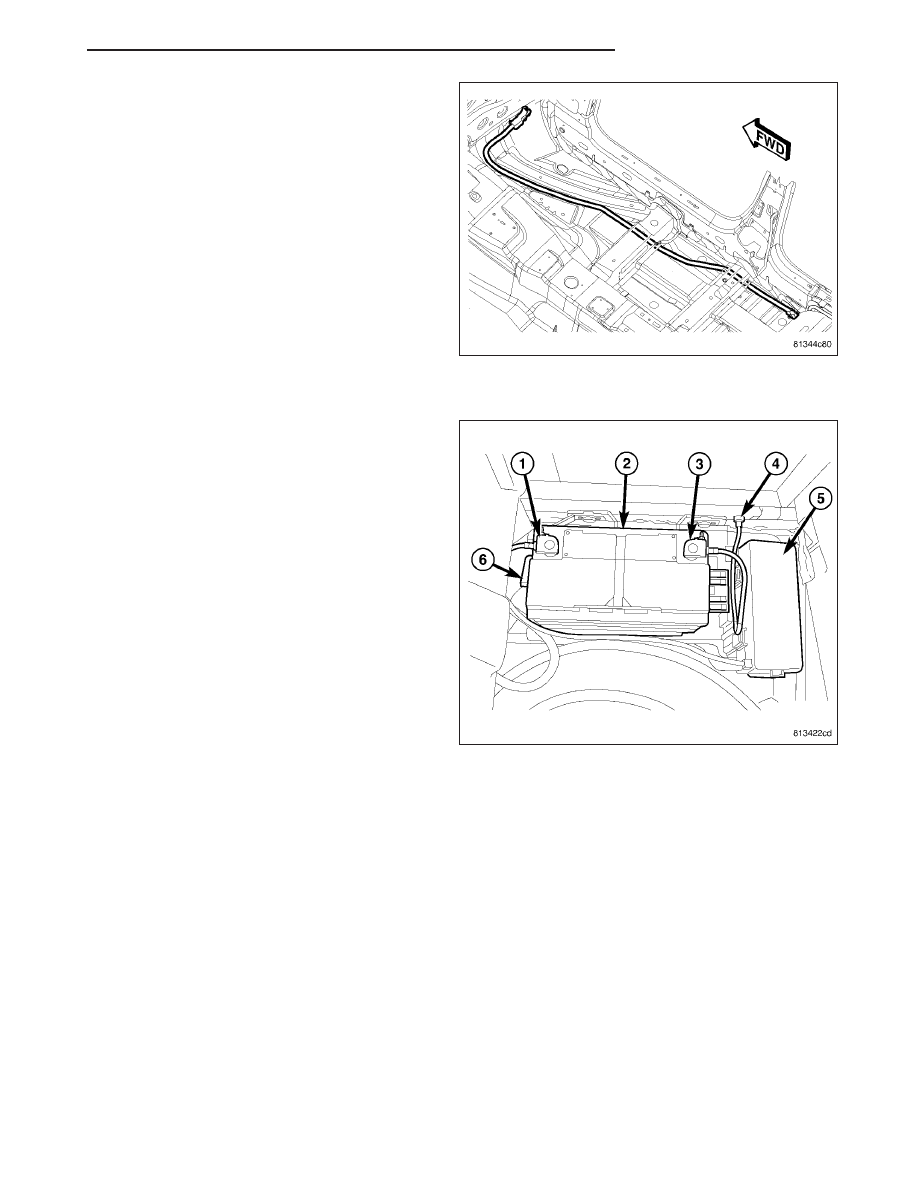

NEGATIVE - REAR COMPARTMENT

1. Turn the ignition switch to the Off position. Be cer-

tain that all electrical accessories are turned off.

2. Remove the spare tire cover to gain access to the

battery.

3. Disconnect and isolate the battery negative cable

(3).

4. Remove the fastener (4) securing the battery neg-

ative cable to the body.

5. Remove the cable from the vehicle.

8F - 26

BATTERY SYSTEM

LX

POSITIVE - BATTERY TO BULKHEAD

1. Turn the ignition switch to the Off position. Be cer-

tain that all electrical accessories are turned off.

2. Remove the spare tire cover to gain access to the

battery.

3. Disconnect and isolate the battery negative cable

(3).

4. Disconnect the battery positive cable (1).

5. Remove the Power Distribution Center (PDC) cover

(2).

6. Remove the battery positive cable to rear PDC fas-

tener (3).

LX

BATTERY SYSTEM

8F - 27

7. One at a time, free the battery positive cable from

the routing clips located in the rear compartment
area.

8. Remove the right, front seat, (Refer to 23 - BODY/SEATS/SEAT - REMOVAL).

9. Remove the right, rear seat cushion. Pull upward at forward edge of each retainer loop of the rear seat cushion

to disengage retainer loops from cups in floor.

10. Remove the right, front and rear door sill trim panels.

11. Remove the right, B - pillar lower trim panel, (Refer to 23 - BODY/INTERIOR/B-PILLAR TRIM - REMOVAL).

12. position carpet aside to gain access to the battery positive cable.

13. One at a time, free the battery positive cable from

the routing clips located in the rear seat area.

14. Position the bulkhead insulator aside to gain

access to the battery positive cable bulkhead fas-
tener.

15. Remove the battery positive cable to bulkhead

fastener.

8F - 28

BATTERY SYSTEM

LX

16. Remove the battery positive cable from the vehi-

cle making note of the cable routing under the
floor cross members.

POSITIVE - ENGINE COMPARTMENT

1. Turn the ignition switch to the Off position. Be cer-

tain that all electrical accessories are turned off.

2. Remove the spare tire cover to gain access to the

battery.

3. Disconnect and isolate the battery negative cable

(3).

4. Raise vehicle on hoist, (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE).

5. Remove the right front wheelhouse splash shield to gain access to the battery positive cable bulkhead outside

terminal, (Refer to 23 - BODY/EXTERIOR/RF WHEELHOUSE SPLASH SHIELD - REMOVAL).

LX

BATTERY SYSTEM

8F - 29
