Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 306

NOTE: A battery reconnect procedure must be per-
formed anytime the battery has been discon-
nected.

(Refer

ELECTRICAL/BATTERY

SYSTEM - STANDARD PROCEDURE).

1. Disconnect and isolate the battery negative cable.

2. Remove the left rear quarter trim panel.

3. Disconnect electrical harness connector.

4. Disconnect antenna harness connectors.

5. Remove mounting bracket fasteners

6. Remove module to mounting bracket fasteners (2).

8A - 150

AUDIO/VIDEO - SERVICE INFORMATION

INSTALLATION

SEDAN

NOTE:
If the owner’s satellite service was active before the satellite receiver was replaced the new satellite receiver
will have to be activated. The existing satellite receiver will have to be deactivated before the replacement
satellite receiver can be activated.
To activate Sirius satellite radio service, call Sirius at their toll-free number. Please have the following infor-
mation available when activating a system:

•

Electronic Serial Number / Sirius Identification Number (ESN/SID) of the unit to be replaced

•

ESN/SID of the replacement receiver

•

Vehicle Owner’s name and address

•

VIN
The ESN/SID number can be obtained through the radio display by following the steps in the satellite
radio owners manual.
The vehicle must be outside with the audio system powered on, in the satellite radio mode, to receive the
activation signal.

NOTE: A battery reconnect procedure must be per-
formed anytime the battery has been discon-
nected.

(Refer

ELECTRICAL/BATTERY

SYSTEM - STANDARD PROCEDURE).

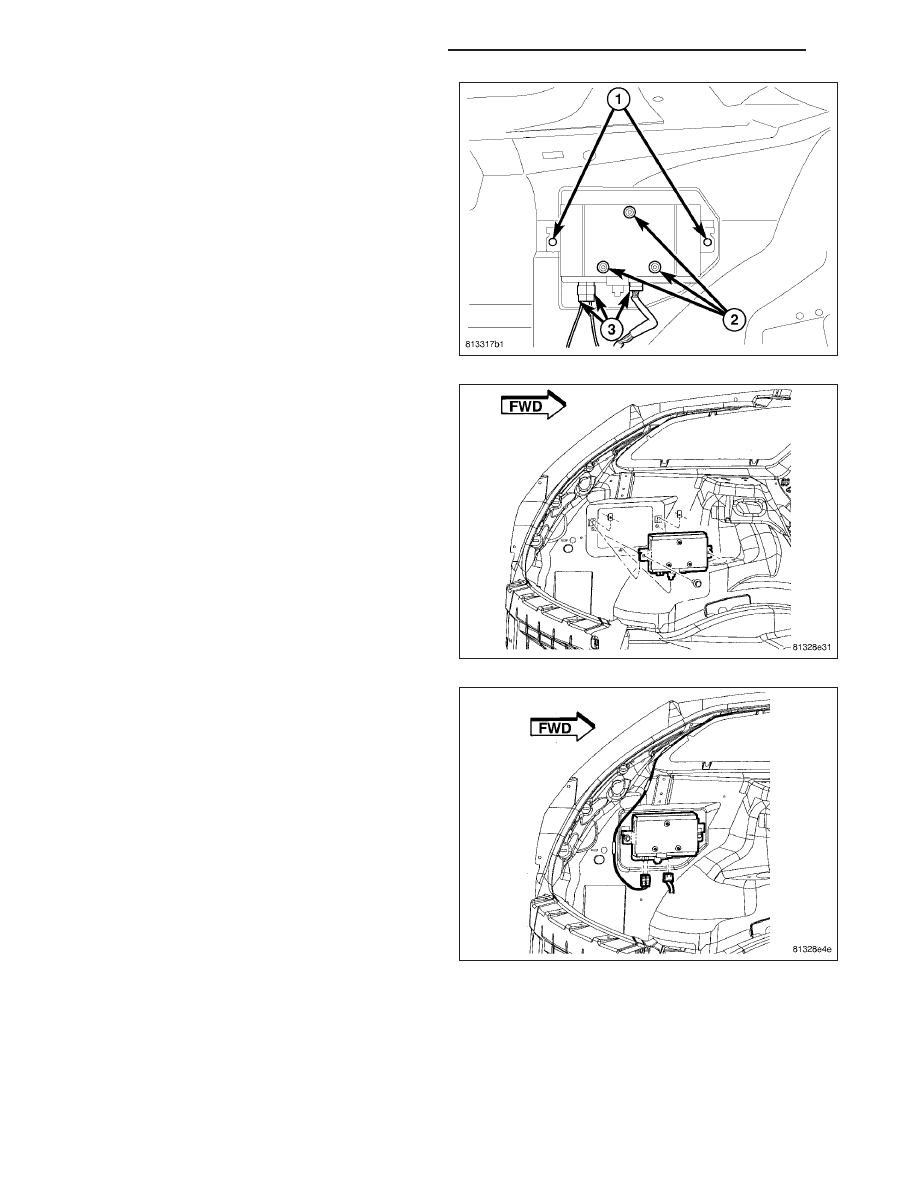

1. Install and tighten module to mounting bracket fas-

teners (2).

2. Position module into place.

3. Install and tighten mounting bracket fasteners (1).

4. Connect antenna harness connectors.

5. Connect electrical harness connectors (3).

6. Install left side trunk trim.

7. Connect battery negative cable.

WAGON

•

Electronic Serial Number / Sirius Identification Number (ESN/SID) of the unit to be replaced

•

ESN/SID of the replacement receiver

•

Vehicle Owner’s name and address

•

AUDIO/VIDEO - SERVICE INFORMATION

8A - 151

NOTE: A battery reconnect procedure must be per-
formed anytime the battery has been discon-
nected.

(Refer

ELECTRICAL/BATTERY

SYSTEM - STANDARD PROCEDURE).

1. Install and tighten module to mounting bracket fas-

teners (2).

2. Position module into place.

3. Install and tighten mounting bracket fasteners.

4. Connect antenna harness connectors.

5. Connect electrical harness connectors.

6. Install left rear quarter trim panel.

7. Connect battery negative cable.

8A - 152

AUDIO/VIDEO - SERVICE INFORMATION

SPEAKER

DESCRIPTION

FOUR SPEAKER

The four speaker system includes four speakers in four locations. One 15.2 X 23 centimeter (6 X 9 inch) diameter
speaker is located in each front door. There is also one 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located
on each side of the rear shelf.

SIX SPEAKER

The six speaker system features six speakers in six locations. One 15.2 X 23 centimeter (6 X 9 inch) diameter
speaker is located in each front door. One 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located on each side
of the rear shelf. Two 8.9 centimeter (3.5 inch) speakers are located on the top portion of the instrument panel.

SIX SPEAKER - BOSTON ACOUSTICS

EIGHT SPEAKER - BOSTON ACOUSTICS

The eight speaker system features eight speakers in eight locations. One 16.5 centimeter (6 X 9 inch) diameter
speaker is located in each front door. One 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located on each side
of the rear shelf. A subwoofer is located on the rear shelf (sedan only). Three 8.9 centimeter (3.5 inch) speakers are
located on the top portion of the instrument panel. This speaker system also includes an amplifier. The total avail-
able power of the speaker system is 380 watts.

DIAGNOSIS AND TESTING

SPEAKER

Any diagnosis of the Audio system should begin with the use of a scan tool and the appropriate Diagnostic
Service information.

Refer to the appropriate wiring information.

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MIN-
UTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNO-
SIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE
THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE
PERSONAL INJURY.

CAUTION: The speaker output of the radio is a “floating ground” system. Do not allow any speaker lead to
short to ground, as damage to the radio may result.

1. If all speakers are inoperative, check the radio fuses in the junction block. If OK, go to Step 2. If not OK, repair

the shorted circuit or component as required and replace the faulty fuse.

2. Check the amplifier fuse (if equipped) in the junction block. If OK, go to Step 3. If not OK, repair the shorted

circuit or component as required and replace the faulty fuse.

3. Turn the ignition switch to the ON position. Turn the radio receiver ON. Adjust the balance and fader control

controls to check the performance of each individual speaker. Note the speaker locations that are not performing
correctly. Go to Step 4.

4. Turn the radio OFF. Turn the ignition OFF. Disconnect and isolate the battery negative cable. If vehicle is not

equipped with a amplifier, remove the radio receiver. If the vehicle is equipped with an amplifier, disconnect the
wire harness connectors. There are two connectors. The one on the body harness has body speakers only. The

AUDIO/VIDEO - SERVICE INFORMATION

8A - 153
