NOISE SUPPRESSION COMPONENTS-RADIO

DESCRIPTION

Radio noise suppression devices are installed on this vehicle. Radio Frequency Interference (RFI) and ElectroMag-
netic Interference (EMI) can be produced by any on-board or external source of electromagnetic energy. These elec-
tromagnetic energy sources can radiate electromagnetic signals through the air, or conduct them through the vehicle
electrical system.

When the audio system converts RFI or EMI to an audible acoustic wave form, it is referred to as radio noise. This
undesirable radio noise is generally manifested in the form of “buzzing,” “hissing,” “popping,” “clicking,” “crackling,”
and/or “whirring” sounds. In most cases, RFI and EMI radio noise can be suppressed using a combination of vehicle
and component grounding, filtering and shielding techniques. This vehicle is equipped with radio noise suppression
devices that were designed to minimize exposure to typical sources of RFI and EMI; thereby, minimizing radio noise
complaints.

Radio noise suppression is accomplished primarily through circuitry or devices that are integral to the radios, audio
power amplifiers and other on-board electrical components such as generators, wiper motors, blower motors, and
fuel pumps that have been found to be potential sources of RFI or EMI. External radio noise suppression devices
that are used on this vehicle to control RFI or EMI, and can be serviced, include the following:

Engine-to-frame ground strap - This length of braided ground strap has an eyelet terminal connector crimped
to each end. One end is secured to the engine cylinder heads. The other is secured to the frame.

Resistor-type spark plugs - This type of spark plug has an internal resistor connected in series between the
spark plug terminal and the center electrode to help reduce the production of electromagnetic radiation that
can result in radio noise.

Exhaust-to-frame ground strap - This length of braided ground strap has an eyelet terminal connector
crimped to each end. One end is secured to the exhaust pipe. The other is secured to the frame.

OPERATION

There are two common strategies that can be used to suppress Radio Frequency Interference (RFI) and Electro-
Magnetic Interference (EMI) radio noise. The first suppression strategy involves preventing the production of RFI
and EMI electromagnetic signals at their sources. The second suppression strategy involves preventing the recep-
tion of RFI and EMI electromagnetic signals by the audio system components.

The use of braided ground straps in key locations is part of the RFI and EMI prevention strategy. These ground
straps ensure adequate ground paths, particularly for high current components such as many of those found in the
starting, charging, ignition, engine control and transmission control systems. An insufficient ground path for any of
these high current components may result in radio noise caused by induced voltages created as the high current
seeks alternative ground paths through components or circuits intended for use by, or in close proximity to the audio
system components or circuits.

Preventing the reception of RFI and EMI is accomplished by ensuring that the audio system components are cor-
rectly installed in the vehicle. Loose, corroded or improperly soldered wire harness connections, improperly routed
wiring and inadequate audio system component grounding can all contribute to the reception of RFI and EMI. A
properly grounded antenna body and radio chassis, as well as a shielded antenna coaxial cable with clean and tight
connections will each help reduce the potential for reception of RFI and EMI.

8A - 146

AUDIO/VIDEO - SERVICE INFORMATION

LX

RADIO

DESCRIPTION

Available radios include:

AM/FM/MP3/6 disc CD with full screen naviga-
tion (REC sales code)

AM/FM/MP3/6 disc CD (RAQ sales code)

AM/FM/cassette/6

disc

CD/MP3

(RAK

sales

code)

AM/FM/CD with changer control (REF sales
code)

AM/FM/6 disc CD/RDS (RAR sales code) -
export only

AM/FM/CD/RDS (REG sales code) - export only

AM/FM with integrated display (REJ sales code)
- export only

REMOVAL

NOTE: A battery reconnect procedure must be per-
formed anytime the battery has been discon-
nected.

(Refer

to

8

-

ELECTRICAL/BATTERY

SYSTEM - STANDARD PROCEDURE).

1. Disconnect and isolate the battery negative cable.

2. Remove instrument panel center bezel (Refer to 23

-

BODY/INSTRUMENT

PANEL/INSTRUMENT

PANEL CENTER BEZEL - REMOVAL).

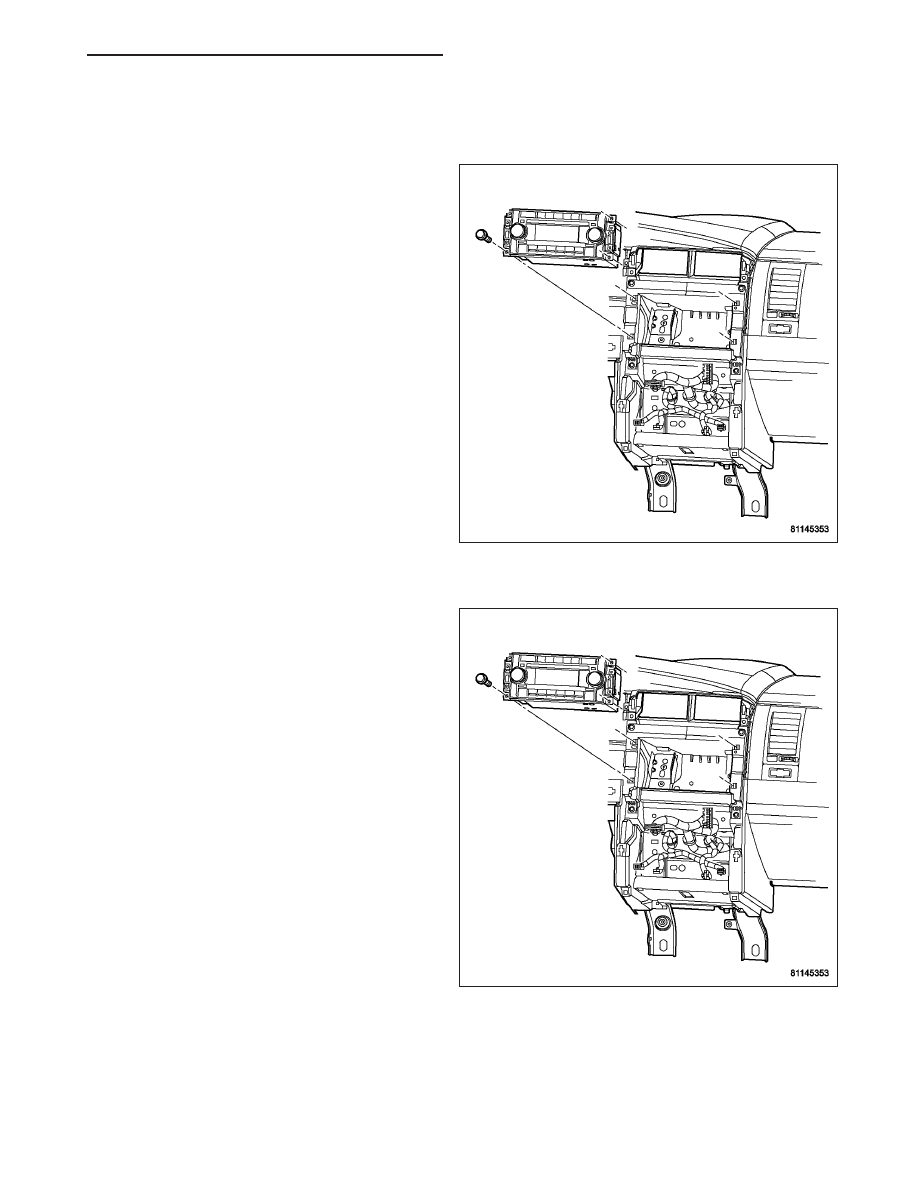

3. Remove mounting fasteners.

LX

AUDIO/VIDEO - SERVICE INFORMATION

8A - 147

CAUTION: Pulling the antenna cable straight out
of the radio without pulling on the locking antenna
connector could damage the cable or radio.

4. Disconnect the antenna cable (3) by pulling the

locking antenna connector (2) away from the radio
(1).

5. Disconnect the electrical harness connector and

remove radio.

INSTALLATION

NOTE: A battery reconnect procedure must be per-
formed anytime the battery has been discon-
nected.

(Refer

to

8

-

ELECTRICAL/BATTERY

SYSTEM - STANDARD PROCEDURE).

1. Connect the electrical harness and antenna cable

(3) to radio (1).

2. Position radio and install mounting fasteners.

3. Install instrument panel center bezel (Refer to 23 -

BODY/INSTRUMENT

PANEL/INSTRUMENT

PANEL CENTER BEZEL - INSTALLATION).

4. Connect battery negative cable.

8A - 148

AUDIO/VIDEO - SERVICE INFORMATION

LX

RECEIVER-SATELLITE

REMOVAL

NOTE:
If the owner’s satellite service was active before the satellite receiver was replaced the new satellite receiver
will have to be activated. The existing satellite receiver will have to be deactivated before the replacement
satellite receiver can be activated.
To activate Sirius satellite radio service, call Sirius at their toll-free number. Please have the following infor-
mation available when activating a system:

Electronic Serial Number / Sirius Identification Number (ESN/SID) of the unit to be replaced

ESN/SID of the replacement receiver

Vehicle Owner’s name and address

VIN
The ESN/SID number can be obtained through the radio display by following the steps in the satellite
radio owners manual.
The vehicle must be outside with the audio system powered on, in the satellite radio mode, to receive the
activation signal.

SEDAN

NOTE: A battery reconnect procedure must be per-
formed anytime the battery has been discon-
nected.

(Refer

to

8

-

ELECTRICAL/BATTERY

SYSTEM - STANDARD PROCEDURE).

1. Disconnect and isolate the battery negative cable.

2. Remove left side trunk trim.

3. Disconnect electrical harness connector (3).

4. Disconnect antenna harness connectors.

5. Remove mounting bracket fasteners (1).

6. Remove module to mounting bracket fasteners (2).

WAGON

NOTE:
If the owner’s satellite service was active before the satellite receiver was replaced the new satellite receiver
will have to be activated. The existing satellite receiver will have to be deactivated before the replacement
satellite receiver can be activated.
To activate Sirius satellite radio service, call Sirius at their toll-free number. Please have the following infor-
mation available when activating a system:

Electronic Serial Number / Sirius Identification Number (ESN/SID) of the unit to be replaced

ESN/SID of the replacement receiver

Vehicle Owner’s name and address

VIN
The ESN/SID number can be obtained through the radio display by following the steps in the satellite
radio owners manual.
The vehicle must be outside with the audio system powered on, in the satellite radio mode, to receive the
activation signal.

LX

AUDIO/VIDEO - SERVICE INFORMATION

8A - 149
