3. Connect wire harness connectors to antenna.

4. Install headliner.

5. Connect battery negative cable.

8A - 138

AUDIO/VIDEO - SERVICE INFORMATION

LX

ANTENNA - NAVIGATION

REMOVAL

1. Remove the radio (Refer to 8 - ELECTRICAL/AU-

DIO/RADIO - REMOVAL).

2. Remove the instrument cluster (Refer to 8 - ELEC-

TRICAL/INSTRUMENT CLUSTER - REMOVAL).

3. Remove the navigation antenna fasteners (1).

4. Remove the navigation antenna (2) from the vehi-

cle.

INSTALLATION

1. Install the navigation antenna (2) into the vehicle.

2. Install the navigation antenna fasteners (1).

3. Install the instrument cluster (Refer to 8 - ELEC-

TRICAL/INSTRUMENT

CLUSTER

-

INSTALLA-

TION).

4. Install the radio (Refer to 8 - ELECTRICAL/AUDIO/

RADIO - INSTALLATION).

LX

AUDIO/VIDEO - SERVICE INFORMATION

8A - 139

ANTENNA-REAR GLASS INTEGRAL

DESCRIPTION

The integral antenna element is bonded to the rear glass and is replaced with the glass assembly only.

OPERATION

The integral antenna receives radio frequencies and sends them to the antenna module for amplification.

DIAGNOSIS AND TESTING

REAR GLASS INTEGRAL ANTENNA

The antenna grid pattern is located above the EBL grid.

For circuit descriptions and diagrams, refer to the appropriate wiring information. To detect breaks in the integral
antenna elements, the following procedure is required:

1. Disconnect the antenna module connector from the antenna terminals on the glass.

2. Using an ohmmeter, place a lead on one of the terminals and check each end of the grid pattern connected to

this terminal for continuity. If continuity is present, move one lead through the grid in progression starting at the
terminal with the other lead on the terminal until continuity is lost. Repeat procedure for the other terminal. A
break in the antenna grid can be repaired using a Mopar Rear Window Defogger Repair Kit or equivalent.

8A - 140

AUDIO/VIDEO - SERVICE INFORMATION

LX

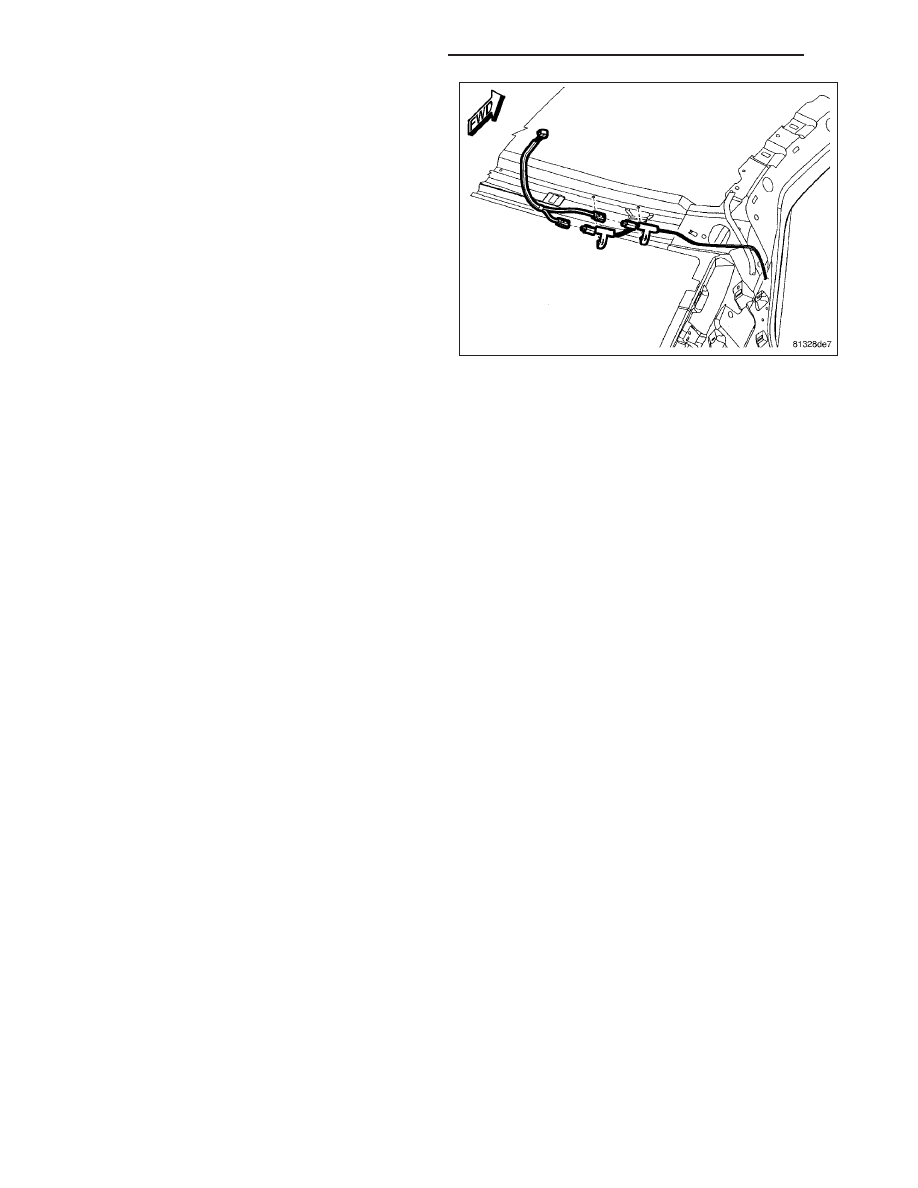

ANTENNA CABLE

REMOVAL

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer
to 8 - ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE).

1. Disconnect and isolate battery negative cable.

2. Remove right side cowl trim panel (Refer to 23 - BODY/INTERIOR/COWL TRIM COVER - REMOVAL).

3. Disconnect antenna cable from instrument panel antenna cable.

4. Remove right side front and rear door scuff plates (Refer to 23 - BODY/INTERIOR/DOOR SILL SCUFF PLATE

- REMOVAL).

5. Remove right side C-pillar trim panel (Refer to 23 - BODY/INTERIOR/C-PILLAR TRIM - REMOVAL).

6. Disconnect antenna cable from antenna module.

7. Move floor carpet aside.

8. Remove antenna cable.

INSTALLATION

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer
to 8 - ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE).

1. Position antenna cable and secure to wire harness.

2. Connect antenna cable to antenna module.

3. Connect antenna cable to instrument panel antenna cable.

4. Install right side C-pillar trim panel (Refer to 23 - BODY/INTERIOR/C-PILLAR TRIM - INSTALLATION).

5. Install right side front and rear door scuff plates (Refer to 23 - BODY/INTERIOR/DOOR SILL SCUFF PLATE -

INSTALLATION).

6. Install right side cowl trim panel (Refer to 23 - BODY/INTERIOR/COWL TRIM COVER - INSTALLATION).

7. Connect battery negative cable.

LX

AUDIO/VIDEO - SERVICE INFORMATION

8A - 141
