Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 2177





RISER-FRONT

REMOVAL

Manual Length Adjuster

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/SEATS - WARNING)

2. Remove the seat. (Refer to 23 - BODY/SEATS/

SEAT - REMOVAL)

3. Move the seat to the forward position on the tracks

and remove the seat adjuster bolts/nuts (3).

4. Move the seat to the reward position on the tracks

and remove the front seat adjuster bolts/nuts (3).

NOTE: Passenger seat with strain gauges shown,
drivers side seat similar.

5.

Disconnect strain gauge electrical connectors (1),

if equipped.

6. If equipped, remove the strain gauge bolts (2) and

remove the strain gauges as necessary.

Power Length Adjuster

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/SEATS - WARNING)

2. Unbolt the seat from the floor as necessary to gain

access to the riser bolts. (Refer to 23 - BODY/
SEATS/SEAT - REMOVAL)

3. Move the seat to the forward position on the tracks,

tip the seat backwards in vehicle and remove the
seat adjuster bolts/nuts (1).

4. Move the seat to the reward position on the tracks

and remove the front seat adjuster bolts/nuts (1).

NOTE: Manual seat length adjuster shown, power
similar.

5. If the seat cannot be moved forward or backward, remove the seat cushion. (Refer to 23 - BODY/SEATS/SEAT

CUSHION COVER - REMOVAL)

6. Remove the four bolts (1) and remove the motor and cable assembly (2) from the length adjuster assembly.

CAUTION: When the motor and cable assembly are removed from the tracks discard the length adjuster
assembly and replace with a new one.

23 - 256

SEATS

LX

7. Disconnect and isolate battery negative cable.

8. Remove the seat off of the risers and disconnect

the electrical connectors.

9.

Disconnect strain gauge electrical connectors (1),

if equipped.

10. If equipped, remove the strain gauge bolts (2) and

remove the strain gauges as necessary.

INSTALLATION

Manual Length Adjuster

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/SEATS - WARNING)

NOTE: Passenger seat with strain gauges shown,
drivers side seat similar.

2. If equipped, install the strain gauges and install the

bolts (2).

3. Tighten the bolts to 40 N·m (30 ft. lbs.).

4. If necessary, connect the electrical connections (1).

5. Move the seat to the forward position on the tracks

and install the rear seat adjuster bolts/nuts (3).

6. Tighten the bolts to 45 N·m (33 ft. lbs.).

7. Move the seat to the reward position on the tracks

and install the front seat adjuster bolts/nuts (3).

8. Tighten the bolts to 45 N·m (33 ft. lbs.).

9. Install the seat. (Refer to 23 - BODY/SEATS/SEAT

- INSTALLATION)

LX

SEATS

23 - 257

Power Length Adjuster

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/SEATS - WARNING)

2. If equipped, install the strain gauges and install the

bolts (2).

3. Tighten the bolts to 40 N·m (30 ft. lbs.).

4. Position the seat into the vehicle onto the risers

and connect the electrical connectors.

5. Move the seat to the forward position on the tracks

and install the seat adjuster bolts/nuts (3).

6. Tighten the bolts attaching the adjuster to the ris-

ers/strain gauges to 45 N·m (33 ft. lbs.).

7. Move the seat to the reward position on the tracks

and install the front seat adjuster bolts/nuts (3).

8. Tighten the bolts attaching the adjuster to the ris-

ers/strain gauges to 45 N·m (33 ft. lbs.).

9. If necessary, connect the strain gauge electrical

connections (1).

CAUTION: When the motor and cable assembly are removed from the tracks discard the length adjuster
assembly and replace with a new one.

10. Bolt the seat to the floor. (Refer to 23 - BODY/SEATS/SEAT - INSTALLATION)

23 - 258

SEATS

LX

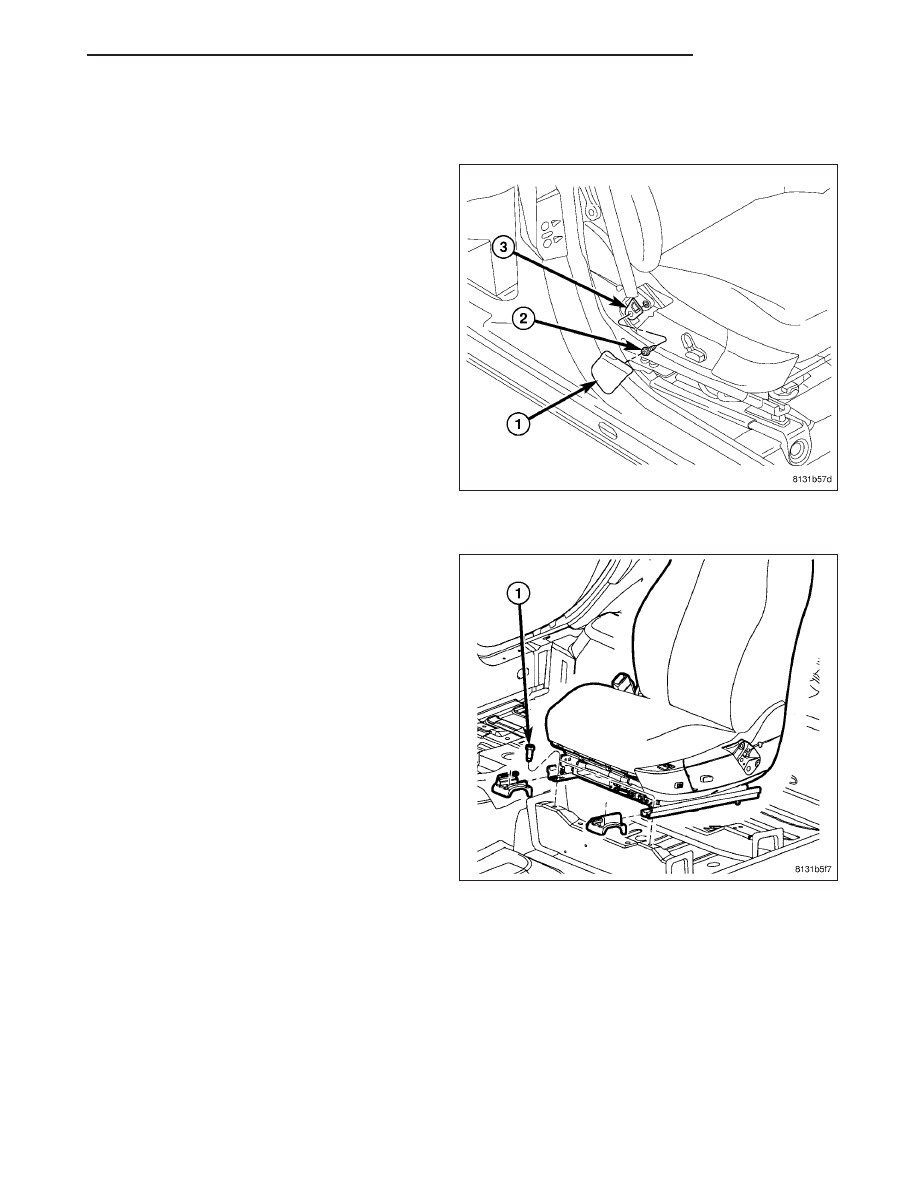

SEAT-FRONT

REMOVAL

1. Before proceeding with the following repair proce-

dure, review all warnings and cautions. (Refer to
23 - BODY/SEATS - WARNING).

2. Remove the cover (1) and lower seat belt anchor

bolt (2).

FRONT SEAT - LEFT SIDE

1. Remove the left side front seat two front attaching

bolts (1).

LX

SEATS

23 - 259
