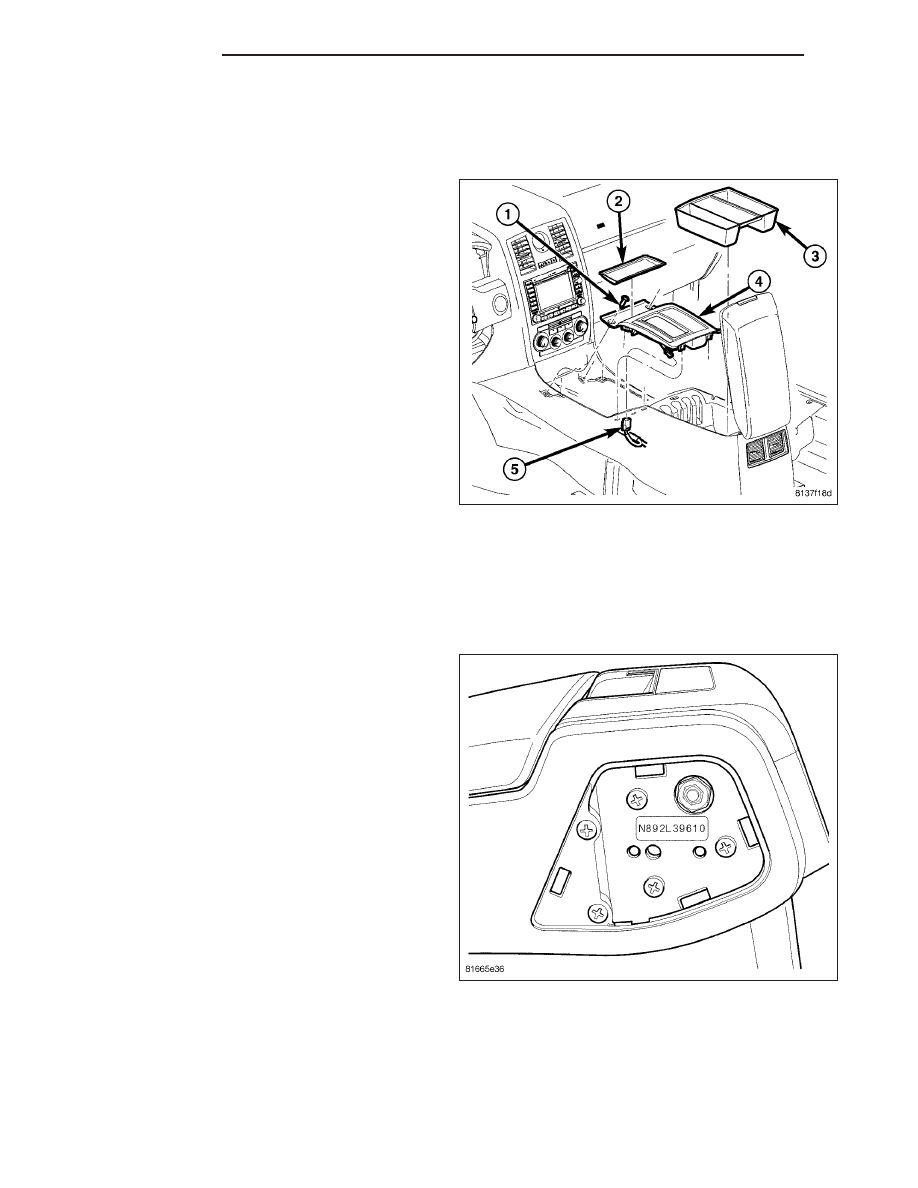

Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 2158





CONSOLE-FLOOR

REMOVAL

1. Apply the parking brake.

2. Turn the ignition switch to the On position, apply

the service brakes and place the gear selector
lever into the Neutral position.

3. Turn the ignition switch to the Off position and

release the service brakes.

NOTE: For vehicles equipped with the optional
Automatic Express Up power window feature, cal-
ibration of this feature is required whenever power
to the door module is disrupted. A battery recon-
nect procedure must be performed anytime the
battery has been disconnected. (Refer to 8 - ELEC-
TRICAL/BATTERY SYSTEM - STANDARD PROCE-
DURE).

4. Disconnect and isolate the battery negative cable.

5. Remove the mat from the cubby bin at the front of

the floor console.

6. Open the lid of the console rear bin and remove the mat from the rear bin.

7. Remove the two screws (1) that secure the front of the console shifter bezel to the console.

8. Using a trim stick unsnap the console bezel from the console

9. Remove the shifter bezel from around the gear selector lever.

10. Remove the three 8 mm bolts (2) from the rear bin that secure the console to the floor panel transmission

tunnel.

11. Remove the two screws (3) that secure the front of the console to the instrument panel.

12. Slide the console rearward far enough to access and disconnect the jumper wire connector (4) from the acces-

sory power outlet on the underside of the console.

23 - 180

INTERIOR

LX

13. Remove the floor console from the vehicle.

Center Console Cover with DVD

1. Open console lid.

2. Remove side covers.

3. Remove six screws.

4. Remove console cover.

INSTALLATION

1. Position the floor console into the vehicle rearward far enough to access and reconnect the jumper wire con-

nector (4) to the accessory power outlet on the underside of the console.

2. While holding both sides of the console at the front carefully engage the ears at the front of the console to the

slots (5) at the lower instrument panel.

3. Locate the two alignment holes at the front of the console over the two alignment pins on the instrument panel.

4. Engage the locating pin on the underside of the console rear bin into the slot in the top of the floor panel trans-

mission tunnel.

LX

INTERIOR

23 - 181

5. Install and tighten the two screws (3) that secure the front of the console to the instrument panel. Tighten the

screws to 3 N·m (23 in. lbs.).

6. Install and tighten the three 8 mm bolts (2) into the rear bin that secure the console to the floor panel transmis-

sion tunnel. Tighten the bolts to 5 N·m (40 in. lbs.).

7. Position the console shifter bezel (4) over the gear

selector lever.

8. Position the tabs on the underside of the console

shifter bezel into the holes in the floor console.

9. Install and tighten the two screws (1) that secure

the front of the console shifter bezel to the console.
Tighten the screws to 3 N·m (23 in. lbs.).

10. Position the mat (5) into the console rear bin with

the curved edge oriented forward in the vehicle.

11. Position the mat (2) into the cubby bin at the front

of the floor console.

12. Firmly push shifter trim ring (4) down the to posi-

tion it to the gear selector.

13. Place the gear selector lever into the Park posi-

tion.

NOTE: For vehicles equipped with the optional
Automatic Express Up power window feature, cal-
ibration of this feature is required whenever power
to the door module is disrupted. A battery reconnect procedure must be performed anytime the battery has
been disconnected. (Refer to 8 - ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE).

14. Reconnect the battery negative cable.

Center Console Cover with DVD

1. Install console cover.

2. Install six screws.

3. Replace side covers.

23 - 182

INTERIOR

LX

COWL TRIM

REMOVAL

UPPER

1. Insert trim stick from the outside in the direction of

arrow (2) under the middle of the part.

2. Then slide trim stick up to the upper spring clip

retainer, and pry to disengage clip.

3. Slide the trim stick down to the lower spring clip

retainer, and pry to disengage clip.

4. Remove the upper cowl trim from the vehicle.

LOWER

1. Remove the upper cowl trim from the front of the

front door opening. (Refer to 23 - BODY/INTERI-
OR/COWL TRIM - REMOVAL-UPPER).

2. Using a trim stick or another suitable wide flat-

bladed tool and starting nearest the B-pillar trim
(2), carefully pry the lower cowl trim (3) upward
from the front door opening sill far enough to dis-
engage the three spring clip retainers that secure
the trim to the slots in the sill.

3. Using a trim stick or another suitable wide flat-

bladed tool, carefully pry the lower cowl trim rear-
ward from the front of the front door opening far
enough to disengage the spring clip retainer that
secures the trim to the slot in the cowl (1).

4. Remove the lower cowl trim from the vehicle.

LX

INTERIOR

23 - 183
