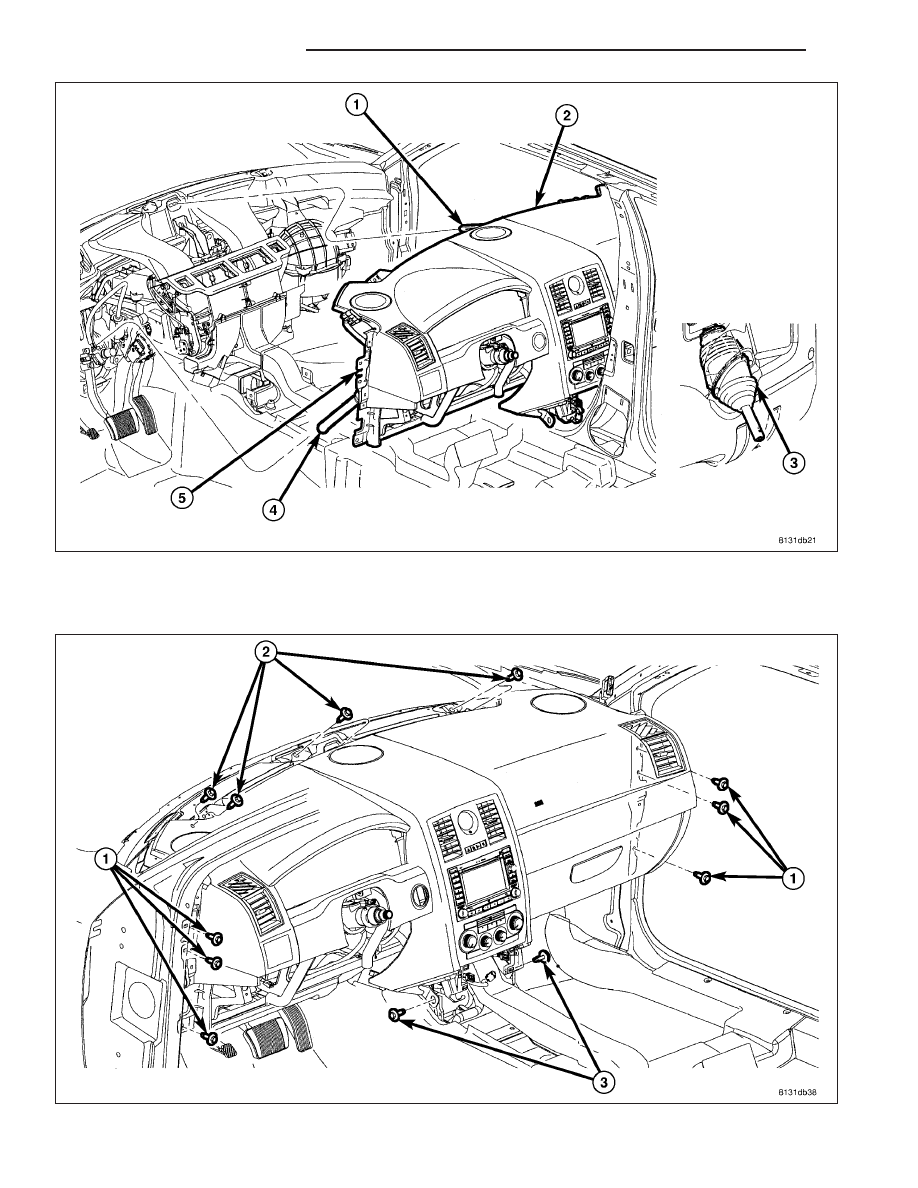

3. Position the instrument panel assembly (3) into the vehicle through the drivers side door. Guide the steering

column end (4) through the opening in the dash panel (3) and install the instrument panel onto the supports (1
and 5).

4. Loosely install all the bolts that secure the instrument panel to the body. Then tighten the bolts in the following

order:

23 - 140

INSTRUMENT PANEL

LX

Top of instrument panel (2) to 8 N·m (70 in. lbs.).

Side support bolts (1) to 27 N·m (20 ft. lbs.).

Bottom of instrument panel (3) to 6 N·m (55 in. lbs.).

5. Install the end caps to the left and right side of the instrument panel.

6. Install the defroster grille to the top of the instrument panel (Refer to 23 - BODY/INSTRUMENT PANEL/GRILLE-

DEFROSTER - INSTALLATION).

7. Connect the wire harness connectors (1 and 2) located on the A-pillars.

8. Install the A-pillar trim panels (Refer to 23 - BODY/INTERIOR/PANEL-A-PILLAR TRIM - INSTALLATION).

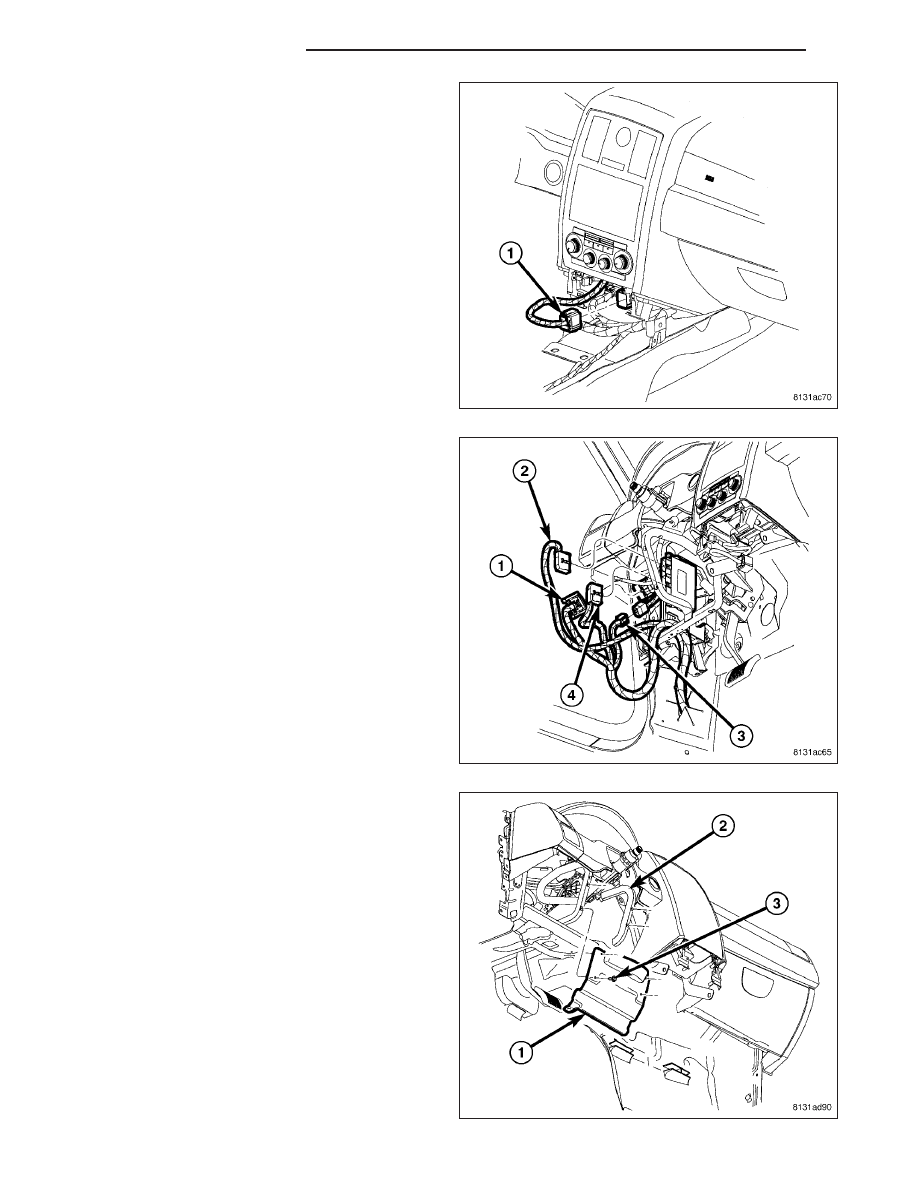

9. Connect the wire harness connectors (2, 4, 5 and

6) to the instrument panel wire harness connector
(3).

10. Connect shifter link cable to ignition (2 screws).

11. Connect the antenna coax (1) to the instrument

panel coax extension.

LX

INSTRUMENT PANEL

23 - 141

12. Connect the instrument panel wire harness con-

nector (1) to the occupant restraint controller
(ORC) module.

13. Install the ash receiver into the instrument panel

(Refer to 23 - BODY/INSTRUMENT PANEL/ASH
RECEIVER - INSTALLATION).

14. Install the center floor console and floor duct (2

scews) (Refer to 23 - BODY/INTERIOR/CON-
SOLE-FLOOR - INSTALLATION).

15. Connect the body wire harness connectors (2 and

4) to the transmission control module.

16. Connect the body wire harness connectors (1 and

3)

to

the

instrument

panel

wire

harness

connectors.

17. Position the instrument panel steering column

cover reinforcement (1) onto the bracket (2).

18. Install the screws (3) that secure the instrument

panel steering column cover reinforcement to the
bracket. Tighten the screws securely.

23 - 142

INSTRUMENT PANEL

LX

19. Position the steering column cover (1) into the vehicle.

20. Connect the hood release cable (4) to the hood release handle (5).

21. Connect the wire harness connector (3) to the trunk release switch.

22. Install the screws (2 and 6) that secure the steering column cover (1) to the instrument panel. Tighten the

screws securely.

23. Install the left and right side instrument panel silencers (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRU-

MENT PANEL SILENCER - INSTALLATION.)

24. Install key bezel and instrument cluster (2 bolts). Connect cluster connectors.

25. Raise and support the vehicle.

26. Connect the steering column to the steering coupling (Refer to 19 - STEERING/COLUMN/STEERING COU-

PLING - INSTALLATION).

27. Lower the vehicle.

CAUTION: Do not reconnect the negative battery cable at this time. The supplemental restraint system ver-
ification test procedure should be performed following service of any supplemental restraint system com-
ponent.

28. Perform the supplemental restraint system verification test (Refer to 8 - ELECTRICAL/RESTRAINTS - STAN-

DARD PROCEDURE - VERIFICATION TEST).

LX

INSTRUMENT PANEL

23 - 143
