C1032-RIGHT REAR WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE

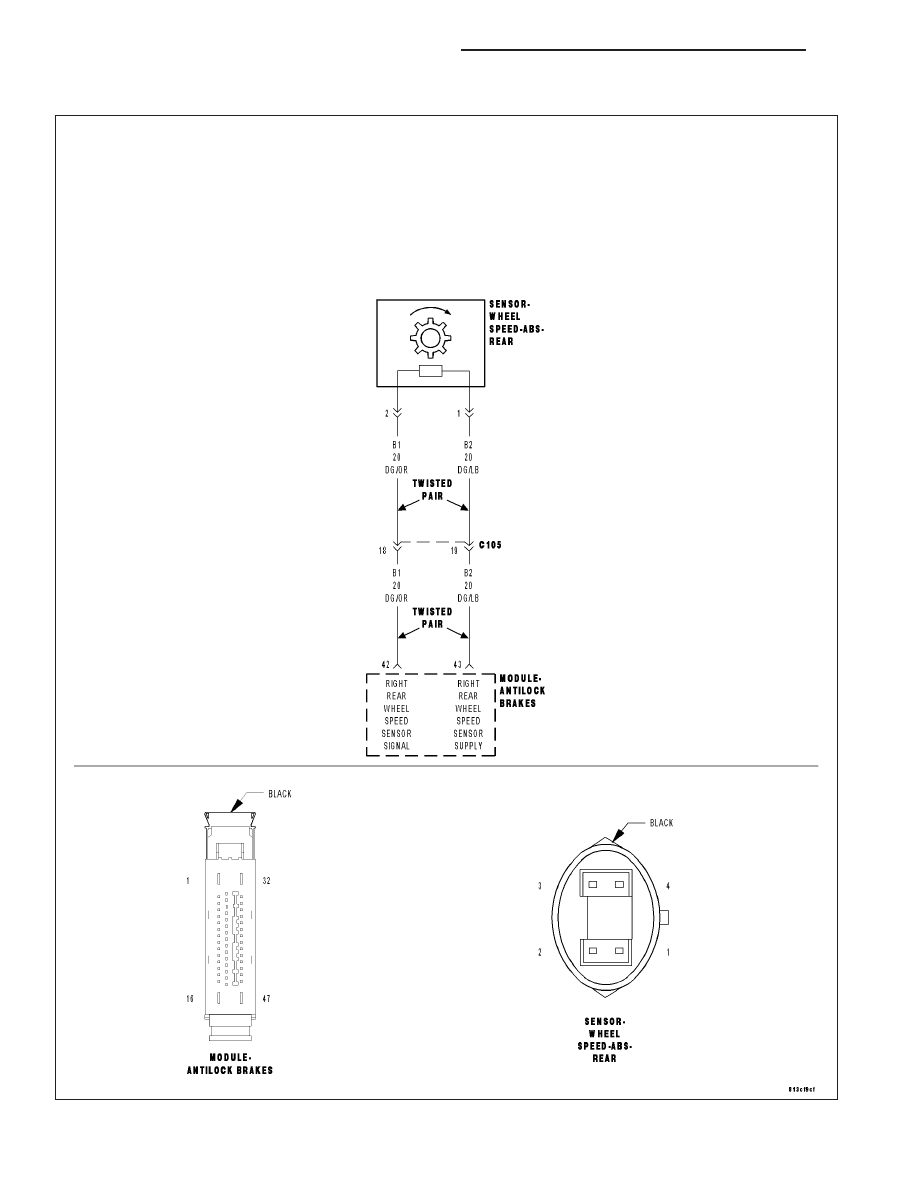

For a complete wiring diagram Refer to Section 8W.

5 - 254

BRAKES - ABS ELECTRICAL DIAGNOSTICS

LX

When Monitored:
With the ignition on.

Set Condition:
When the Right Rear WSS Signal is intermittently missing a vehicle speed above 25mph (40 kph) or erratic
wheel speed signal during acceleration or sensed wheel speed is different from other wheels.

Possible Causes

RIGHT REAR WSS AIR GAP FAULT

RIGHT REAR WSS LOOSE — B1, B2 CIRCUITS/CONNECTOR/TERMINAL DAMAGE

RIGHT REAR TONE WHEEL DAMAGE

RIGHT REAR WHEEL BEARING DAMAGE

IMPROPER RIGHT REAR TIRE PRESSURE/MISMATCHED TIRES

RIGHT REAR WSS

ANTI-LOCK BRAKE MODULE

Diagnostic Test

1.

CHECK FOR DTC C1032-RIGHT REAR WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE

NOTE: This DTC must be active for the results of this test to be valid.
Turn the ignition on.

With the scan tool, record and erase DTCs.

Road test the vehicle over 40 km/h (25 m.p.h.).

NOTE: Vehicle must be driven above 40 km/h (25 m.p.h.) for set conditions to be meet.
With the scan tool, read DTCs.

NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 12 km/h (7.5 mph) before it will extinguish
the ABS indicators.

Does the scan tool display: C1032-RIGHT REAR WHEEL SPEED SENSOR SIGNAL ERRATIC PERFOR-
MANCE?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION diagnostic procedure.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

2.

CHECK RIGHT REAR WSS AIR GAP

Turn the ignition off.

Using a feeler gauge, measure the Right Rear WSS air gap.

NOTE: Refer to the appropriate service information, if necessary, for procedures or specifications.

Is the Right Rear WSS air gap within specifications?

Yes

>> Go To 3

No

>> Repair as necessary.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

LX

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 255

3.

CHECK WHEEL SPEED SENSOR SIGNALS

Turn the ignition on.

With the scan tool, monitor and graph ALL the WSS speeds and compare graph while an assistant drives the vehi-
cle.

NOTE: If graph shows periodic dropouts pay close attention to the tone wheel.
Slowly accelerate as straight as possible from a stop to 40 km/h (25 m.p.h.).

Is the Right Rear WSS speed showing 0 km/h (0 m.p.h.) or not matching other wheel speeds?

Yes

>> Go To 4

No

>> Refer to the INTERMITTENT CONDITION diagnostic procedure.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

4.

CHECK FOR IMPROPER RIGHT REAR TIRE PRESSURE/MISMATCHED TIRES

Turn the ignition off.

Check and adjust the Right Rear Tire pressure.

Check and adjust all other tire pressures.

Inspect for mismatched tires on vehicle.

Is the Right Rear Tire improperly inflated or mismatched tires on vehicle?

Yes

>> Repair as necessary

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 5

5.

CHECK RIGHT REAR WSS LOOSENESS, INSPECT B1, B2 CIRCUITS/TERMINALS FOR DAMAGE

NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals
Inspect the Anti-Lock Brake Module harness connector, Right Rear WSS, and Right Rear WSS harness connector

Inspect the Right Rear WSS for looseness, excessive corrosion and not properly fastened.

Inspect the (B1) Right Rear WSS Signal and (B2) Right Rear WSS Supply circuits between the Right Rear WSS
and Anti-Lock Brake Module for damage.

Is the Right Rear WSS loose or any of the wiring/connectors/terminals damaged?

Yes

>> Repair as necessary

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 6

6.

CHECK RIGHT REAR TONE WHEEL FOR DAMAGE

Inspect the Right Rear Tone Wheel for damage, missing teeth, cracks, or looseness.

NOTE: The Tone Wheel teeth should be perfectly square, not bent, or nicked.

Is the Right Rear Tone Wheel damaged?

Yes

>> Repair as necessary

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 7

5 - 256

BRAKES - ABS ELECTRICAL DIAGNOSTICS

LX

7.

CHECK RIGHT REAR WHEEL BEARING FOR DAMAGE

Inspect the Right Rear wheel bearing for excessive runout or clearance.

NOTE: Refer to the appropriate service information, if necessary, for procedures or specifications.

Is the Right Rear Wheel Bearing Damaged?

Yes

>> Repair as necessary

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 8

8.

RIGHT REAR WHEEL SPEED SENSOR

Replace the Right Rear Wheel Speed Sensor in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

Road test the vehicle over 40 km/h (25 m.p.h.).

NOTE: Vehicle must be driven above 40 km/h (25 m.p.h.) for set conditions to be meet.
With the scan tool, read ABS DTCs.

NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 12 km/h (7.5 mph) before it will extinguish
the ABS indicators.

Did DTC C1032-RIGHT REAR WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE reset?

Yes

>> Replace the Anti-Lock Brakes Module in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Test Complete.

LX

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 257
