3.

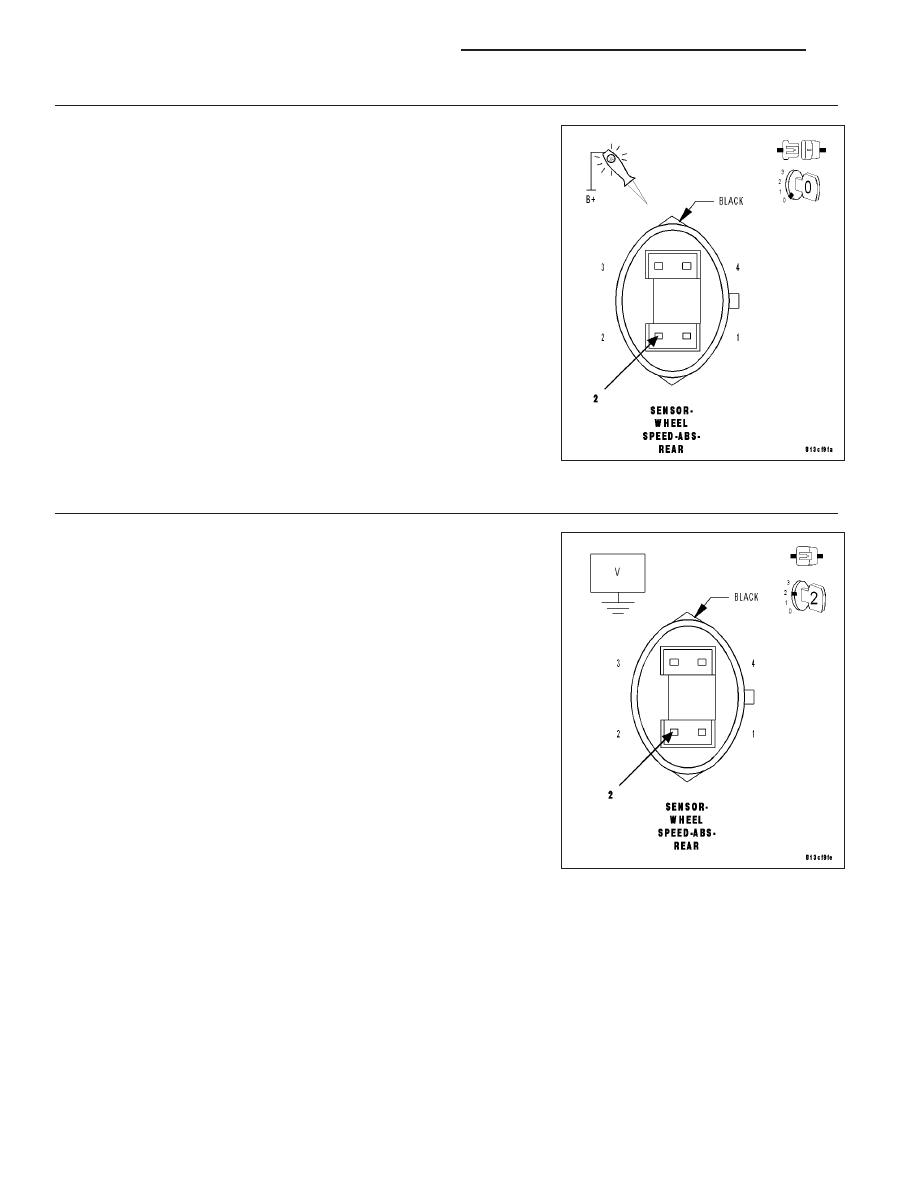

CHECK (B2) RIGHT REAR WSS 12 VOLT SUPPLY CIRCUIT VOLTAGE

Disconnect the Right Rear WSS harness connector.

Turn the ignition on.

Measure the voltage of the (B2) Right Rear WSS 12 Volt Supply circuit.

Is the voltage above 10.0 volts?

Yes

>> Go To 6

No

>> Go To 4

4.

CHECK (B2) RIGHT REAR WSS 12 VOLT SUPPLY CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the Right Rear WSS harness connector.

Disconnect the Anti-Lock Brake Module harness connector.

Using a 12-volt test light connected to 12-volts, probe the (B2) Right
Rear WSS Supply circuit.

Does the test light illuminate brightly?

Yes

>> Repair the (B2) Right Rear WSS Supply circuit for a short

to ground.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 5

5 - 250

BRAKES - ABS ELECTRICAL DIAGNOSTICS

LX

5.

CHECK (B2) RIGHT REAR WSS 12 VOLT SUPPLY CIRCUIT FOR AN OPEN

Connect a jumper wire between ground and the (B2) Right Rear WSS
Supply circuit in the Anti-Lock Brakes Module harness connector.

Using a 12-volt test light connected to 12-volts, probe the (B2) Right
Rear WSS Supply circuit.

Does the test light illuminate brightly?

Yes

>> Replace the Anti-Lock Brakes Module in accordance with

the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Repair the (B2) Right Rear WSS Supply circuit for an open.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

6.

CHECK (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO GROUND

Using a 12-volt test light connected to 12-volts, probe the (B1) Right
Rear WSS Signal circuit.

Does the test light illuminate brightly?

Yes

>> Repair the (B1) Right Rear WSS Signal circuit for a short to

ground.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 7

LX

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 251

7.

CHECK (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR AN OPEN

Connect a jumper wire between ground and the (B1) Right Rear WSS
Signal circuit in the Anti-Lock Brakes Module harness connector.

Using a 12-volt test light connected to 12-volts, probe the (B1) Right
Rear WSS Signal circuit.

Does the test light illuminate brightly?

Yes

>> Go To 8

No

>> Repair the (B1) Right Rear WSS Signal circuit for an open.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

8.

CHECK (B1) RIGHT REAR WSS SIGNAL CIRCUIT SHORT TO VOLTAGE

Turn the ignition on.

Remove all jumper wires.

Measure the voltage between the (B1) Right Rear WSS Signal circuit
and ground.

Is the voltage above one volt?

Yes

>> Repair the (B1) Right Rear WSS Signal circuit for a short to

voltage.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Go To 9

5 - 252

BRAKES - ABS ELECTRICAL DIAGNOSTICS

LX

9.

CHECK (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO (B2) RIGHT REAR WSS 12 VOLT
SUPPLY CIRCUIT

Turn the ignition off.

Measure the resistance between the (B1) Right Rear WSS Signal cir-
cuit and the (B2) Right Rear WSS Supply circuit.

Is the resistance above 5.0 ohms?

Yes

>>

Go To 10

No

>> Repair the (B1) Right Rear WSS Signal circuit and the (B2)

Right Rear WSS Supply circuit for a short together.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

10.

RIGHT REAR WHEEL SPEED SENSOR

Replace the Right Rear Wheel Speed Sensor in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

CAUTION: Ensure brake capability is available before road testing.
Road test the vehicle over 40 km/h (25 m.p.h.).

NOTE: Vehicle must be driven above 40 km/h (25 m.p.h.) for set conditions to be meet.
With the scan tool, read ABS DTCs.

NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 12 km/h (7.5 mph) before it will extinguish
the ABS indicators.

Did DTC C102B–RIGHT REAR WHEEL SPEED SENSOR CIRCUIT reset?

Yes

>> Replace the Anti-Lock Brakes Module in accordance with the Service Information.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Test Complete.

LX

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 253
