TRANSMISSION TEMPERATURE SENSOR

View repair.

Repair

Replace TRS Assembly per the Service Information.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

4.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

With the scan tool , check the EATX DTC EVENT DATA to help identify the conditions in which the DTC was set.

Were there any problems found?

Yes

>> Repair as necessary.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Test Complete.

21 - 506

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

LX

P0715-INPUT SPEED SENSOR 1 CIRCUIT

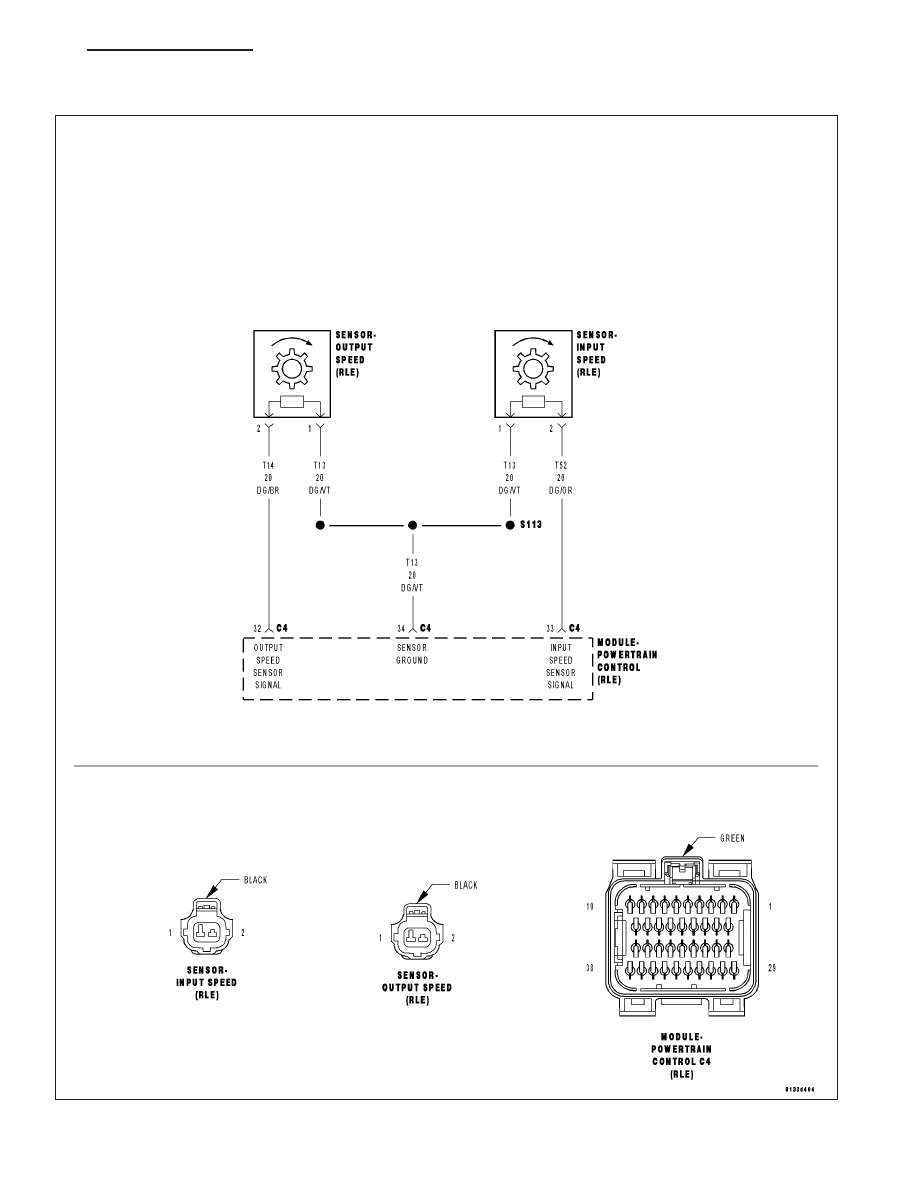

For a complete wiring diagram Refer to Section 8W.

LX

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

21 - 507

When Monitored:
The transmission gear ratio is monitored continuously while the transmission is in gear.

Set Condition:
If there is an excessive change in the Input RPM in any gear. the vehicle must be in a valid gear R, 1st, 2nd,
3rd, or 4th.

Possible Causes

(T52) INPUT SPEED SENSOR SIGNAL CIRCUIT OPEN

(T13) SPEED SENSOR GROUND CIRCUIT OPEN

(T52) INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO GROUND

(T52) INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE

(T13) SPEED SENSOR GROUND CIRCUIT SHORT TO VOLTAGE

INPUT SPEED SENSOR

POWERTRAIN CONTROL MODULE

Always perform the 42RLE Pre-Diagnostic Troubleshooting Procedure before proceeding. (Refer to 21 -
TRANSMISSION/TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

Theory of Operation

The transmission system uses two speed sensors, one to measure input RPM and one to measure output RPM.
These inputs are essential for proper transmission operation. Therefore, the integrity of this data is verified through
system checks.

Diagnostic Test

1.

CHECK TO SEE IF DTC P0715 IS CURRENT

Start the engine.

Place the shifter in park.

With the scan tool , read the Input Speed Sensor RPM.

Is the Input Speed Sensor reading below 400 RPM?

Yes

>> Go To 2

No

>> Go To 9

2.

PCM AND WIRING

Turn the ignition off to the lock position.

Remove the Starter Relay.

CAUTION: Removal of the Starter Relay is to prevent a Transmission, NO RESPONSE, condition and disable
the starter.
Install the Transmission Simulator, Miller tool #8333 and the Electronic Transmission Adapter kit 8333-1A.

Ignition on, engine not running.

With the Transmission Simulator, set the

9

Input/Output Speed

9

switch to

9

ON

9

and the rotary switch to the

9

3000/

1250

9

position.

With the scan tool, read the Input and Output RPM.

Does the Input speed read 3000 RPM and the Output speed read 1250 RPM ± 50 RPM?

Yes

>> Go To 3

No

>> Go To 4

21 - 508

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

LX

3.

INPUT SPEED SENSOR

View repair.

Repair

Replace the Input Speed Sensor per the Service Information.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

4.

(T52) INPUT SPEED SENSOR SIGNAL CIRCUIT OPEN

Turn the ignition off to the lock position.

Disconnect the PCM C4 harness connector.

Disconnect the Input Speed Sensor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller Special Tool #8815
to perform diagnosis.
Measure the resistance of the (T52) Input Speed Sensor Signal circuit
from the appropriate terminal of special tool #8815 to the Input Speed
Sensor connector.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (T52) Input Speed Sensor Signal circuit for an

open.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Go To 5

LX

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

21 - 509
