31. Rotate the transmission so that the bellhousing is

pointed upward and ensuring that the output shaft
is allowed to move freely.

32. Measure input shaft end-play.

NOTE: If end-play is incorrect, transmission is
incorrectly assembled, or the geartrain end-play
shim is incorrect. The geartrain end-play shim is
selective.

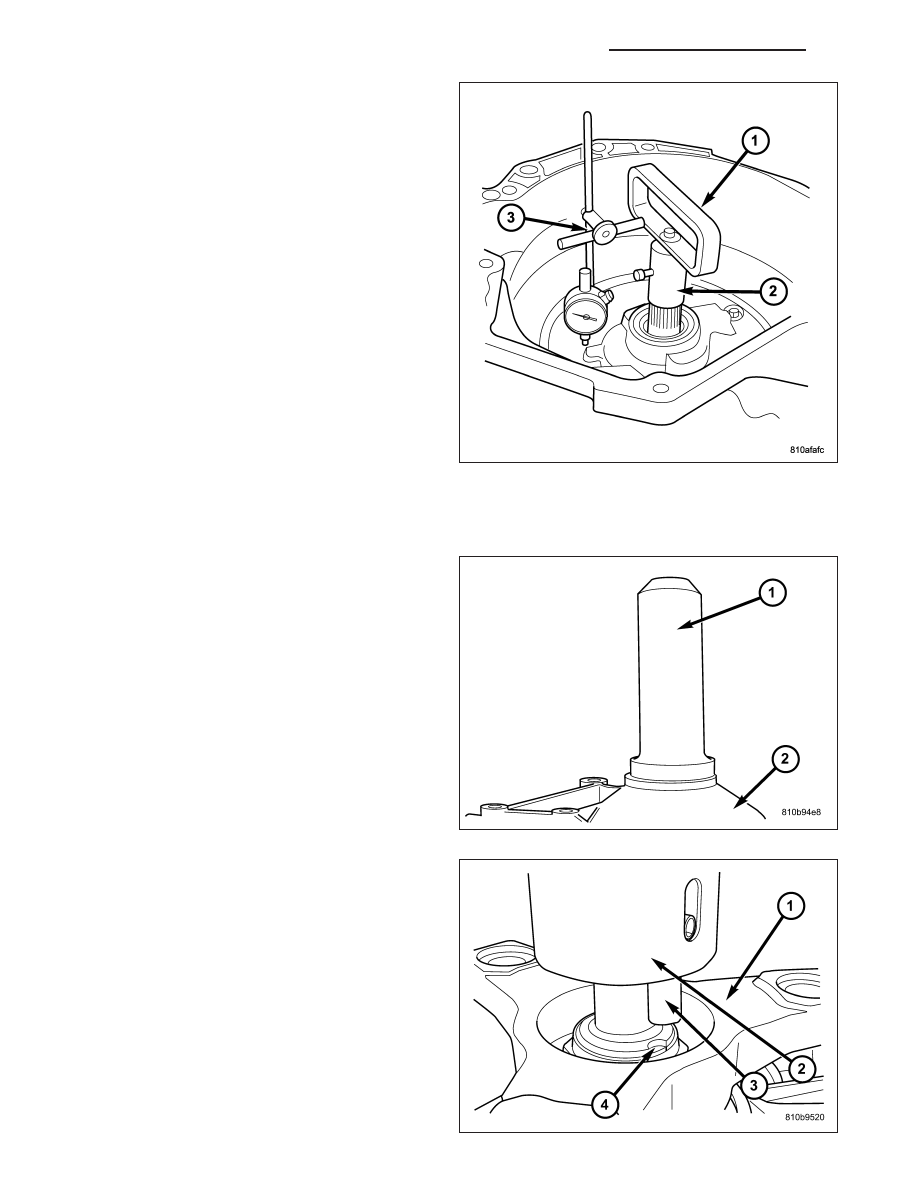

a. Attach Adapter 8266-18 (2) to Handle 8266-8

(1).

b. Attach dial indicator C-3339 (3) to Handle

8266-8 (1).

c. Install the assembled tool onto the input shaft

of the transmission and tighten the retaining
screw on Adapter 8266-18 to secure it to the
input shaft.

d. Position the dial indicator plunger against a flat

spot on the oil pump and zero the dial indica-
tor.

e. Move input shaft in and out and record reading. End play should be 0.3-0.5 mm (0.012-0.020 in.). Adjust as

necessary.

33. Install the output shaft washer onto the output

shaft.

34. Install a new transmission rear seal into the trans-

mission case with Seal Installer 8902A (1).

35. Place the transmission in PARK to prepare for the

installation of the output shaft nut.

36. Inspect the seal protector on the rear of the out-

put shaft flange. Replace the seal protector if
damaged. the seal protector can be removed
using a suitable pry tool and installed with a suit-
able tube style tool.

37. Install the propeller shaft flange onto the output

shaft and install an new flange nut. Tighten the
flange nut, with a 30 mm 12 point socket, to 200
N·m (148 ft.lbs.).

38. Place the Staking Tool 9078 (2) and Driver Handle

C-4171 onto the output shaft.

39. Rotate the Staking Tool 9078 (2) until the align-

ment pin (3) engages the output shaft notch (4).

21 - 318

AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION

LX

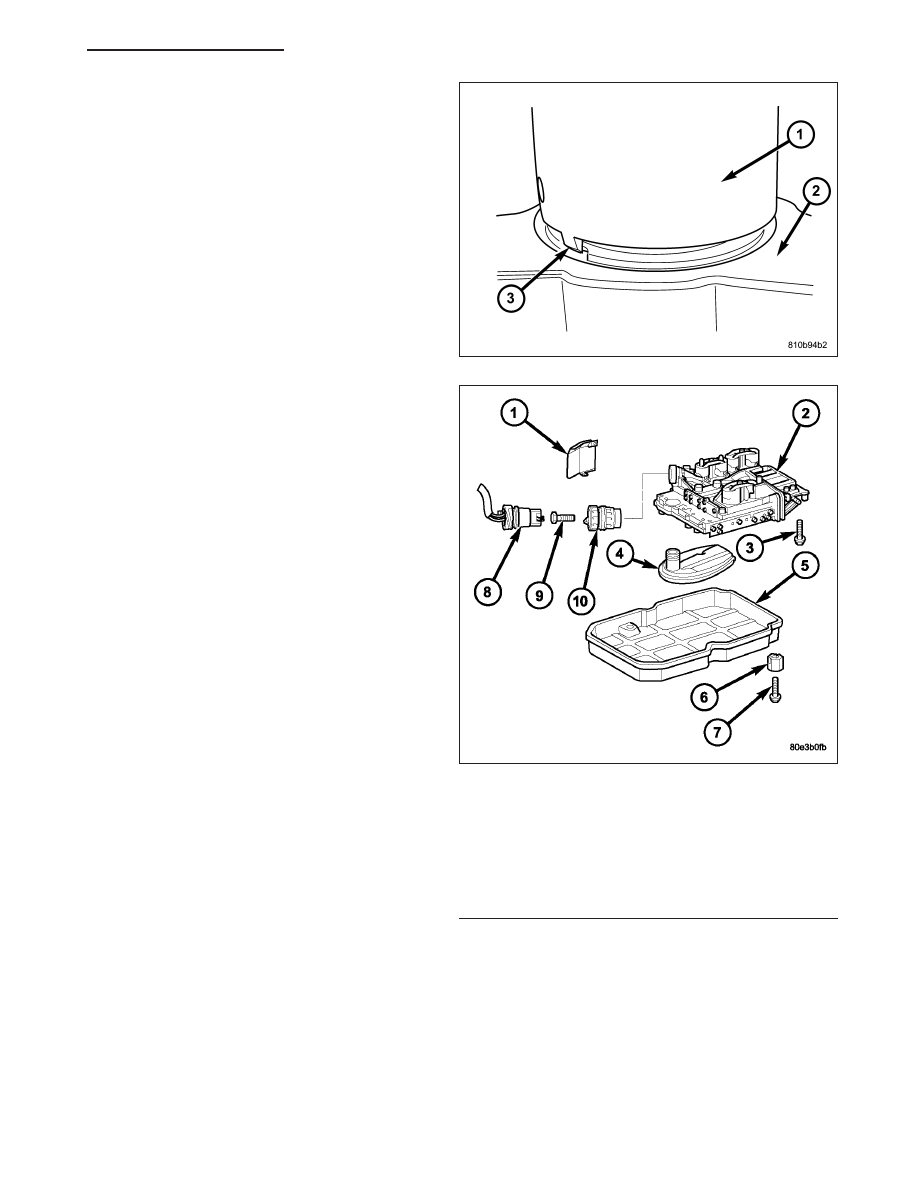

40. Press downward on the staking tool (1) until the

staking pin (3) contacts the output shaft nut flange
(2).

41. Strike the Driver handle C-4171 with a suitable

hammer until the output shaft nut is securely
staked to the output shaft.

42. Install electrohydraulic unit (2). Tighten the bolts

to 8 N·m (71 in.lbs.).

43. Install oil filter (4).

44. Install oil pan (5). Tighten the bolts to 8 N·m (71

in.lbs.).

45. Install the adapter plug (10). Tighten the bolt (9)

to 2.5 N·m ( 22 in. lbs.).

1 - HEAT SHIELD
2 - ELECTROHYDRAULIC UNIT
3 - BOLT
4 - OIL FILTER
5 - OIL PAN
6 - CLAMPING ELEMENT
7 - BOLT
8 - 13-PIN PLUG CONNECTOR
9 - BOLT
10 - ADAPTER PLUG

LX

AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION

21 - 319

46. Install the torque converter.

INSTALLATION

1. Check torque converter hub and hub drive flats for sharp edges burrs, scratches, or nicks. Polish the hub and

flats with 320/400 grit paper and crocus cloth if necessary. The hub must be smooth to avoid damaging pump
seal at installation.

2. If a replacement transmission is being installed, transfer any components necessary, such as the manual shift

lever and shift cable bracket, from the original transmission onto the replacement transmission.

3. Lubricate oil pump seal lip with transmission fluid.

4. Place torque converter (1) in position in transmis-

sion (2).

CAUTION: Do not damage oil pump seal or con-
verter hub while inserting torque converter into
the front of the transmission.

5. Align torque converter to oil pump seal opening.

6. Insert torque converter hub into oil pump.

7. While pushing torque converter inward, rotate con-

verter until converter is fully seated in the oil pump
gears.

8. Check converter seating with a scale and straight-

edge (A). Surface of converter lugs should be at
least 19 mm (3/4 in.) to rear of straightedge when
converter is fully seated.

9. If necessary, temporarily secure converter with C-clamp attached to the converter housing.

21 - 320

AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION

LX

10. Check condition of converter driveplate. Replace

the plate if cracked, distorted or damaged. Also
be sure transmission dowel pins are seated in
engine block and protrude far enough to hold
transmission in alignment.

11. Apply a light coating of Mopar

T

High Temp

Grease to the torque converter hub pocket in the
rear pocket of the engine’s crankshaft.

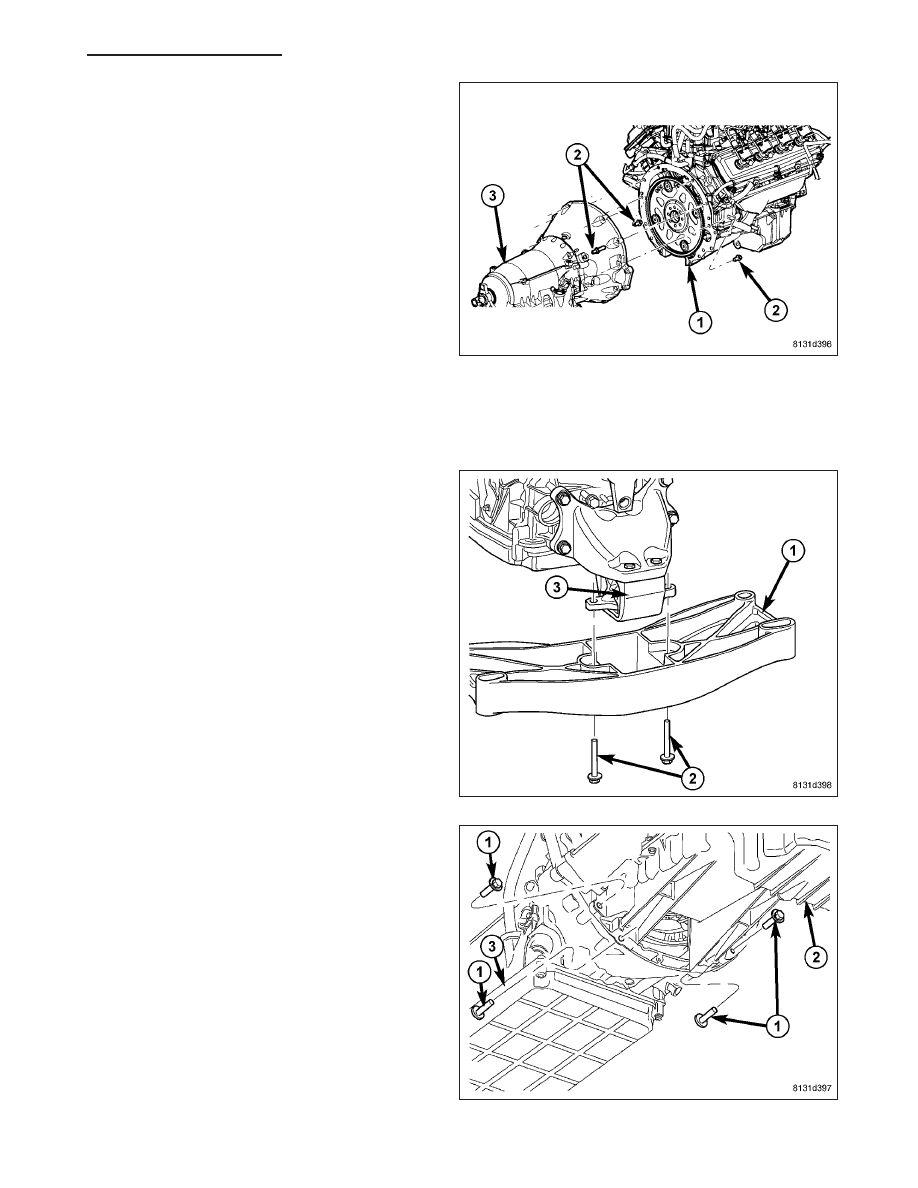

12. Raise transmission (3) and align the torque con-

verter with the drive plate and the transmission
converter housing with the engine block (1).

13. Move transmission forward. Then raise, lower, or

tilt transmission to align the converter housing
with the engine block dowels.

14. Carefully work transmission forward and over

engine block dowels until converter hub is seated in crankshaft. Verify that no wires, or the transmission vent
hose, have become trapped between the engine block and the transmission.

15. Install two bolts (2) to attach the transmission to the engine.

16. Install remaining torque converter housing to engine bolts (2). Tighten to 39 N·m (29 ft.lbs.).

17. Install rear transmission crossmember (1). Tighten

crossmember to frame bolts to 68 N·m (50 ft.lbs.).

18. Install rear support (3) to transmission. Tighten

bolts to 47 N·m (35 ft.lbs.).

19. Lower transmission onto crossmember and install

bolts attaching transmission mount to crossmem-
ber.

Tighten

clevis

bracket

to

crossmember

bolts(2) to 47 N·m (39 ft.lbs.).

20. Remove engine support fixture.

21. Install the transmission (3) to engine oil pan (2)

bolts (1). Tighten to 39 N·m (29 ft.lbs.).

LX

AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION

21 - 321
