Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1894

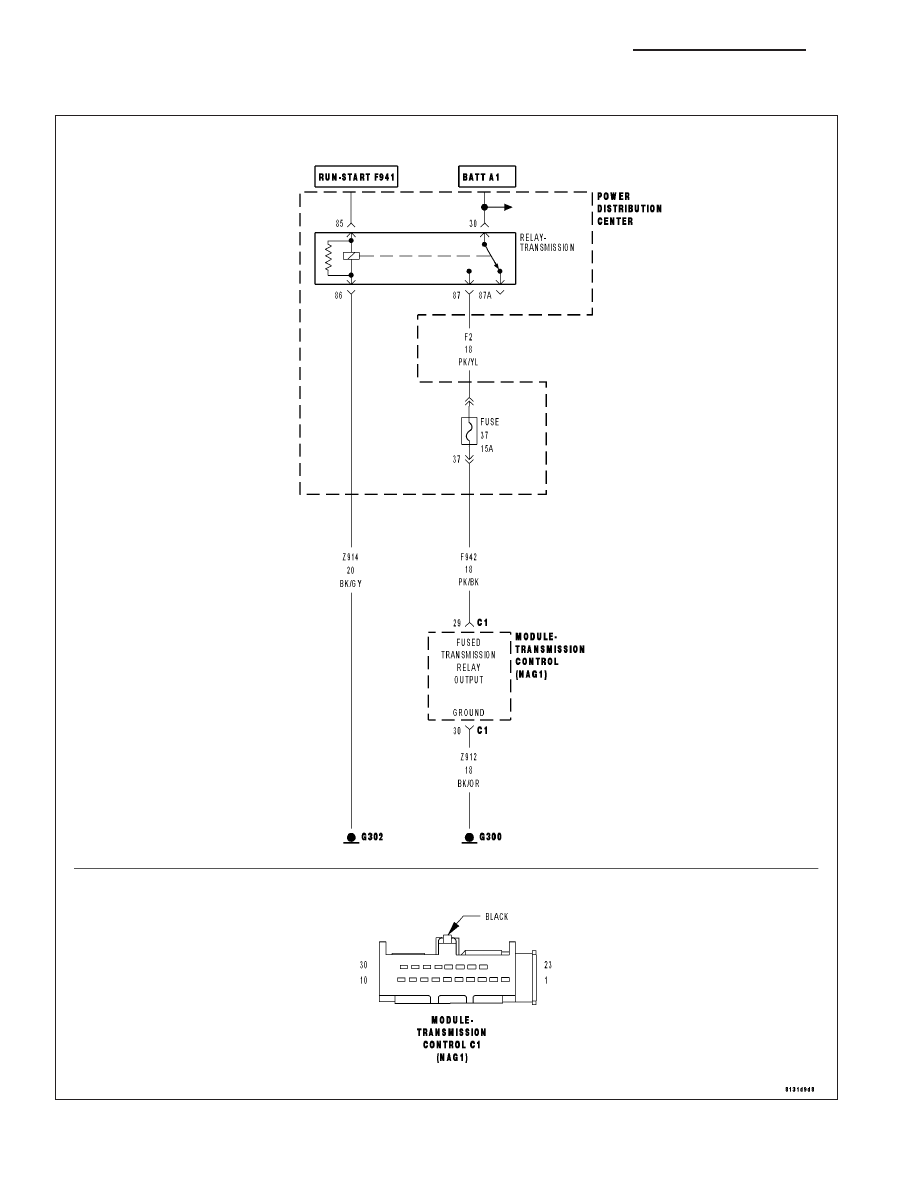

P1637-TCM INTERNAL-EEPROM PERFORMANCE

For a complete wiring diagram Refer to Section 8W

21 - 110

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

LX

Theory of Operation

The Transmission Control Module (TCM) performs various internal tests to verify proper controller operation. This
DTC indicates that there is an internal error with the controllers Random Access Memory. If detected, the controller
will enter Limp-in mode and illuminate the MIL.

When Monitored:
Continuously with the ignition on.

Set Condition:
If the TCM indicates that there is an internal error with the controllers Random Access Memory.

Possible Causes

TRANSMISSION CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - NAG1 - DIAGNOSIS AND TESTING)

Diagnostic Test

1.

TRANSMISSION CONTROL MODULE

View repair

Repair

Using the schematics as a guide, check the Transmission Control Module (TCM) terminals for corrosion,
damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems
are found, replace the TCM per the Service Information. (Refer to 8 - ELECTRICAL/ELECTRONIC
CONTROL MODULES/TRANSMISSION CONTROL MODULE - DESCRIPTION)

Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)

LX

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

21 - 111

P1638-TCM INTERNAL-CAN 1 RAM PERFORMANCE

For a complete wiring diagram Refer to Section 8W

21 - 112

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

LX

Theory of Operation

The Transmission Control Module (TCM) performs various internal tests to verify proper controller operation. This
DTC indicates that there is an internal error with the controllers Random Access Memory (RAM) on the CAN con-
troller 1 section of the microprocessor. If detected, the controller will enter Limp-in mode and illuminate the MIL.

When Monitored:
Continuously with the ignition on.

Set Condition:
If the TCM detects an internal error with the controllers Random Access Memory (RAM) on the CAN controller
1 section of the microprocessor.

Possible Causes

TRANSMISSION CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - NAG1 - DIAGNOSIS AND TESTING)

Diagnostic Test

1.

TRANSMISSION CONTROL MODULE

View repair

Repair

Using the schematics as a guide, check the Transmission Control Module (TCM) terminals for corrosion,
damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems
are found, replace the TCM per the Service Information. (Refer to 8 - ELECTRICAL/ELECTRONIC
CONTROL MODULES/TRANSMISSION CONTROL MODULE - DESCRIPTION)

Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)

LX

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

21 - 113
