Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1855





INSTALLATION

FLUID COOLER

1. Install cooler over mounting clips attached to cool-

ing module. Push cooler past clip retaining tabs
allowing it to lock into place.

NOTE: If a lengthwise paint stripe appears on the
return hose (3) near the end, position that paint
stripe at the top (12 O’clock position) when
installed on the cooler. This positioning must be
done to ensure proper hose routing.

2. Slide return hose to reservoir (3) onto left end of

cooler (2). Install clamp securing hose in place.

3. Slide return hose from gear (1) onto right end of

cooler (2). Install clamp securing hose in place.

4. Install belly pan. (Refer to 23 - BODY/EXTERIOR/

BELLY PAN - INSTALLATION)

5. Lower vehicle.

19 - 238

PUMP

LX

6. Connect battery negative cable (2) to battery post.

It is important that this is performed properly. (Refer
to 8 - ELECTRICAL/BATTERY SYSTEM - STAN-
DARD PROCEDURE)

7. Fill pump reservoir with fluid and perform pump ini-

tial operation procedure. (Refer to 19 - STEERING/
PUMP - STANDARD PROCEDURE)

FLUID COOLER - SRT8/POLICE PACKAGE

1. Install center tube of cooler over mounting clips

attached to cooling module. Push cooler past clip
retaining tabs allowing it to lock into place.

LX

PUMP

19 - 239

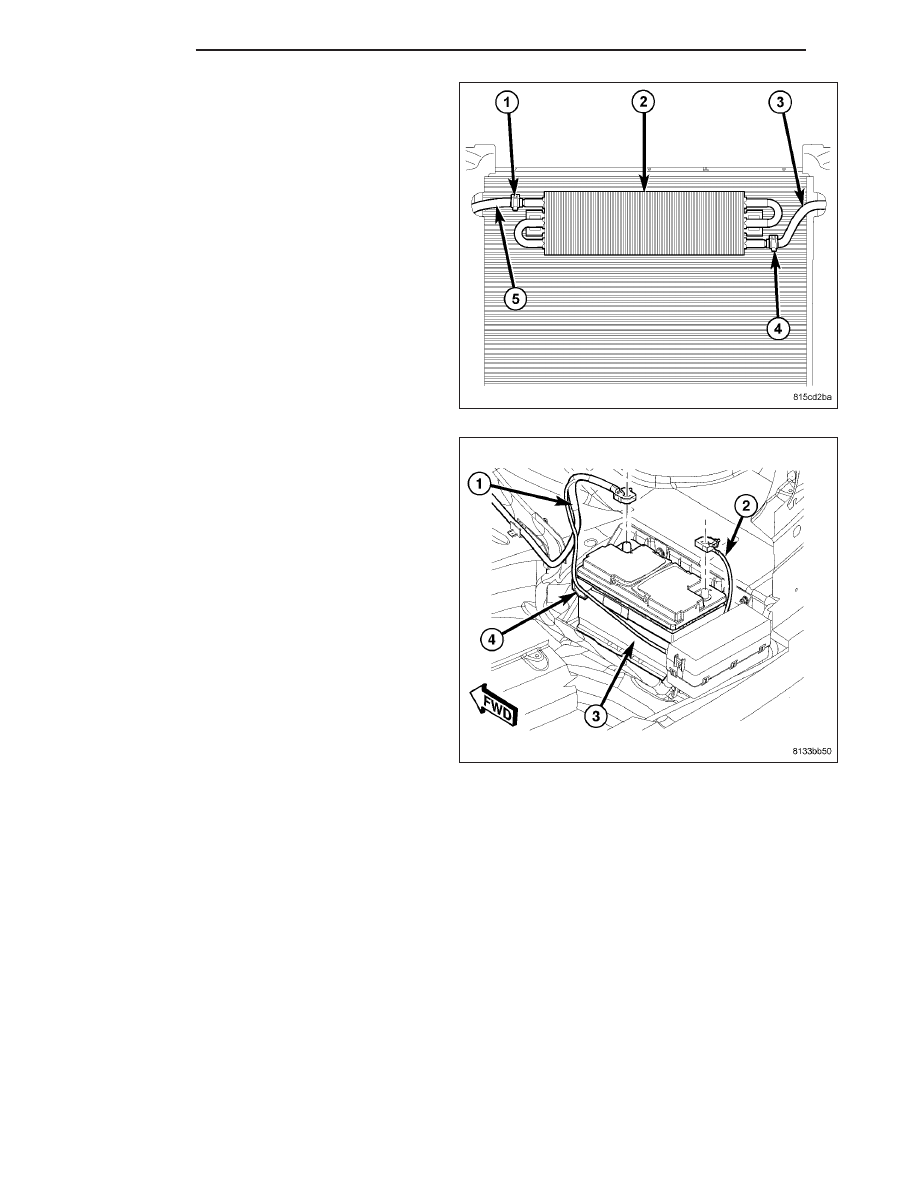

2. Slide return hose to reservoir (3) onto outlet of

cooler (2). Install clamp (4) securing hose in place.

3. Slide return hose from gear (5) onto inlet of cooler

(2). Install clamp (1) securing hose in place.

4. Install belly pan. (Refer to 23 - BODY/EXTERIOR/

BELLY PAN - INSTALLATION)

5. Lower vehicle.

6. Connect battery negative cable (2) to battery post.

It is important that this is performed properly. (Refer
to 8 - ELECTRICAL/BATTERY SYSTEM - STAN-
DARD PROCEDURE)

7. Fill pump reservoir with fluid and perform pump ini-

tial operation procedure. (Refer to 19 - STEERING/
PUMP - STANDARD PROCEDURE)

19 - 240

PUMP

LX

HOSE - PRESSURE

REMOVAL

AWD

1. Disconnect and isolate battery negative cable (2)

from battery post.

2. Siphon power steering fluid from pump reservoir.

3. Remove air cleaner housing and inlet tube to throt-

tle body. (Refer to 9 - ENGINE/AIR INTAKE SYS-
TEM/AIR CLEANER HOUSING - REMOVAL)

4. 3.5L Engine – Unthread tube nut, then remove

pressure hose (2) from pump (1).

LX

PUMP

19 - 241
