7.

(G914) SENSOR RETURN CIRCUIT SHORT TO VOLTAGE

Turn the ignition on.

Measure the voltage of the (G914) Sensor Return circuit.

Is there any voltage present?

Yes

>> Repair the (G914) Sensor Return circuit for a short to volt-

age.

No

>> Go to 9

8.

STEERING COLUMN TELESCOPE MOTOR

Thoroughly inspect the wiring and connectors between the Memory Seat Module harness connector and the Steer-
ing Telescope Motor for a short to voltage or to any other circuit. If any problems are found, repair as necessary. If
no other problems are found, view repair.

Repair

Replace the Steering Column Telescope Motor in accordance with the Service Information.

9.

MEMORY SEAT MODULE (MSM)

Thoroughly inspect the wiring and connectors between the Memory Seat Module harness connector and the Steer-
ing Telescope Motor harness connector for a short to voltage or to any other circuit. If any problems are found,
repair as necessary. If no other problems are found, view repair.

Repair

Replace the Memory Seat Module (MSM) in accordance with the Service Information.

10.

INTERMITTENT STEERING COLUMN TELESCOPE POSITION SENSOR CIRCUIT HIGH DTC

The conditions necessary to set this DTC are not present at this time.

While monitoring the scan tool data relative to this circuit, wiggle test the component and connectors and move the
switch to each position.

Look for the data to change other than as expected or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

>> Repair as necessary.

No

>> Test complete.

19 - 70

COLUMN ELECTRICAL DIAGNOSIS

LX

B1D91-STEERING COLUMN TILT POSITION SENSOR CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

LX

COLUMN ELECTRICAL DIAGNOSIS

19 - 71

Theory of Operation

The MSM input signal from the Steering Column Tilt Sensor is recognized in a specified voltage area. The input
channel is an analog to digital converter input and the sensor is a hall sensor.

When Monitored:
The hall supply voltage is switched on when the motor becomes activated.

Set Condition:
The sensed input is less than 1.7 volts (at the controller input, not at the module input) for more than 14 mS

Possible Causes

INTERMITTENT STEERING COLUMN TILT POSITION SENSOR CIRCUIT LOW DTC

(P151) TILT STEERING UP/DOWN POSITION SENSE CIRCUIT SHORT TO GROUND

STEERING COLUMN TILT MOTOR

MEMORY SEAT MODULE (MSM)

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

With the Scan Tool, select Clear Stored DTCs in the Memory Seat Module.

Move the Steering Column Tilt Switch to the Up and Down positions several times, holding the switch in position for
at least 2 seconds each time.

With the Scan Tool, select View DTCs in the Memory Seat Module.

Does the DTC reset and/or remain active?

Yes

>> Go to 2

No

>> Go to 6

2.

CHECK DTC WITH HARNESS DISCONNECTED

Turn the ignition off.

Disconnect the Steering Column Tilt Motor connector.

Turn the ignition on.

Move the Steering Column Tilt Switch to the Up and Down positions several times.

With the Scan Tool, select Clear Stored DTCs in the Memory Seat Module.

Move the Steering Column Tilt Switch to the Up and Down positions several times, holding the switch in position for
at least 2 seconds each time.

With the Scan Tool, select View DTCs in the Memory Seat Module.

Does the DTC reset and/or remain active?

Yes

>> Go to 4

No

>> Go to 3

19 - 72

COLUMN ELECTRICAL DIAGNOSIS

LX

3.

STEERING COLUMN TILT MOTOR

View repair.

Repair

Inspect the wiring between the Steering Column Tilt Motor and the harness connector (on the motor
side) for a short to ground or to any other circuit. If any problems are found, repair as necessary. If no
problems are found, replace the Steering Column Tilt Motor in accordance with the Service Information.

4.

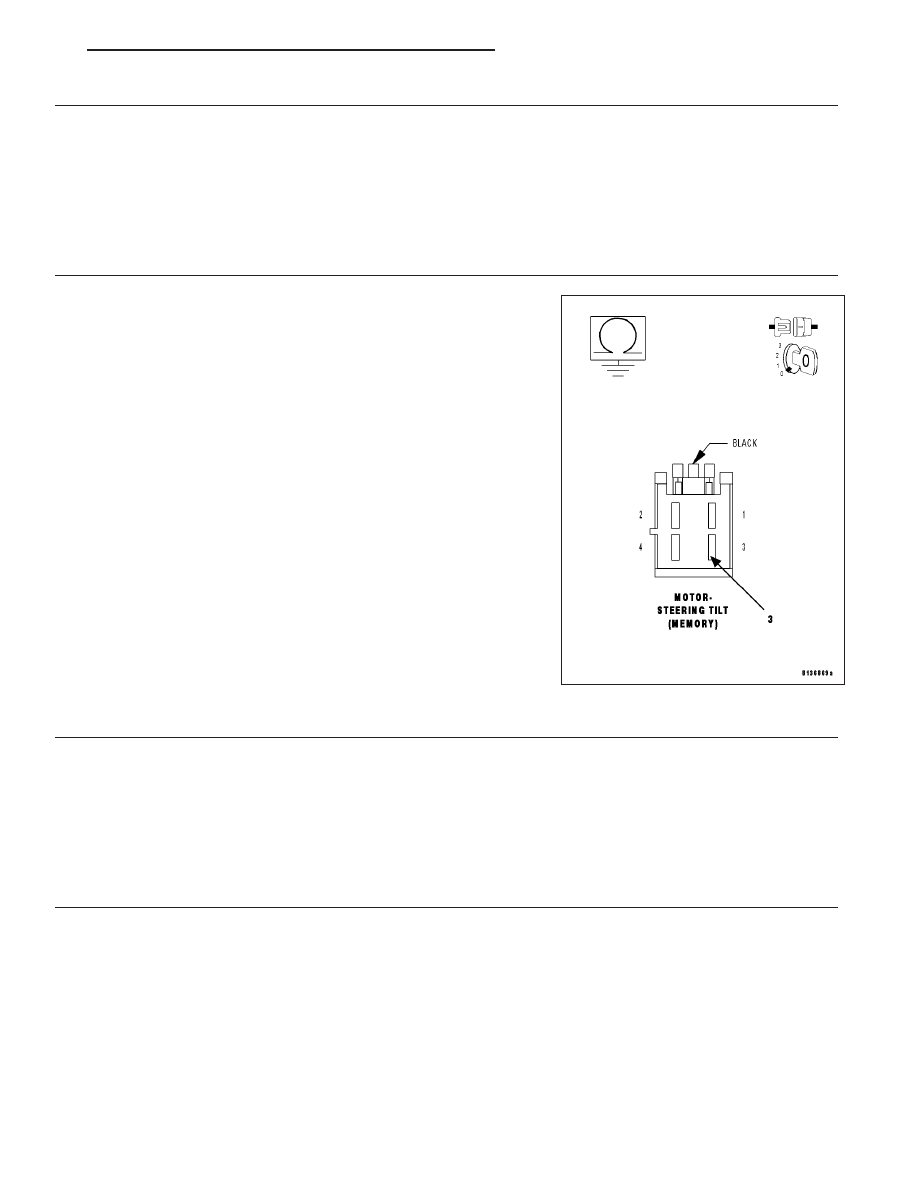

(P151) TILT STEERING UP/DOWN POSITION SENSE CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Memory Seat Module (MSM) C1 connector.

Measure the resistance between ground and the (P151) Tilt Steering
Up/Down Position Sense circuit at the Steering Column Tilt Motor con-
nector (harness side).

Is the resistance below 5.0 ohms?

Yes

>> Repair the (P151) Tilt Steering Up/Down Position Sense cir-

cuit for a short to ground.

No

>> Go to 5

5.

MEMORY SEAT MODULE (MSM)

Inspect the wiring between the Memory Seat Module harness connector and the Steering Column Tilt Motor harness
connector for a short to ground or to any other circuit. If any problems are found, repair as necessary. If no prob-
lems are found, view repair.

Repair

Replace the Memory Seat Module (MSM) in accordance with the Service Information.

6.

INTERMITTENT STEERING COLUMN TILT POSITION SENSOR CIRCUIT LOW DTC

The conditions necessary to set this DTC are not present at this time.

While monitoring the scan tool data relative to this circuit, wiggle test the component and connectors and move the
switch to each position.

Look for the data to change other than as expected or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

>> Repair as necessary.

No

>> Test complete.

LX

COLUMN ELECTRICAL DIAGNOSIS

19 - 73
