Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 174

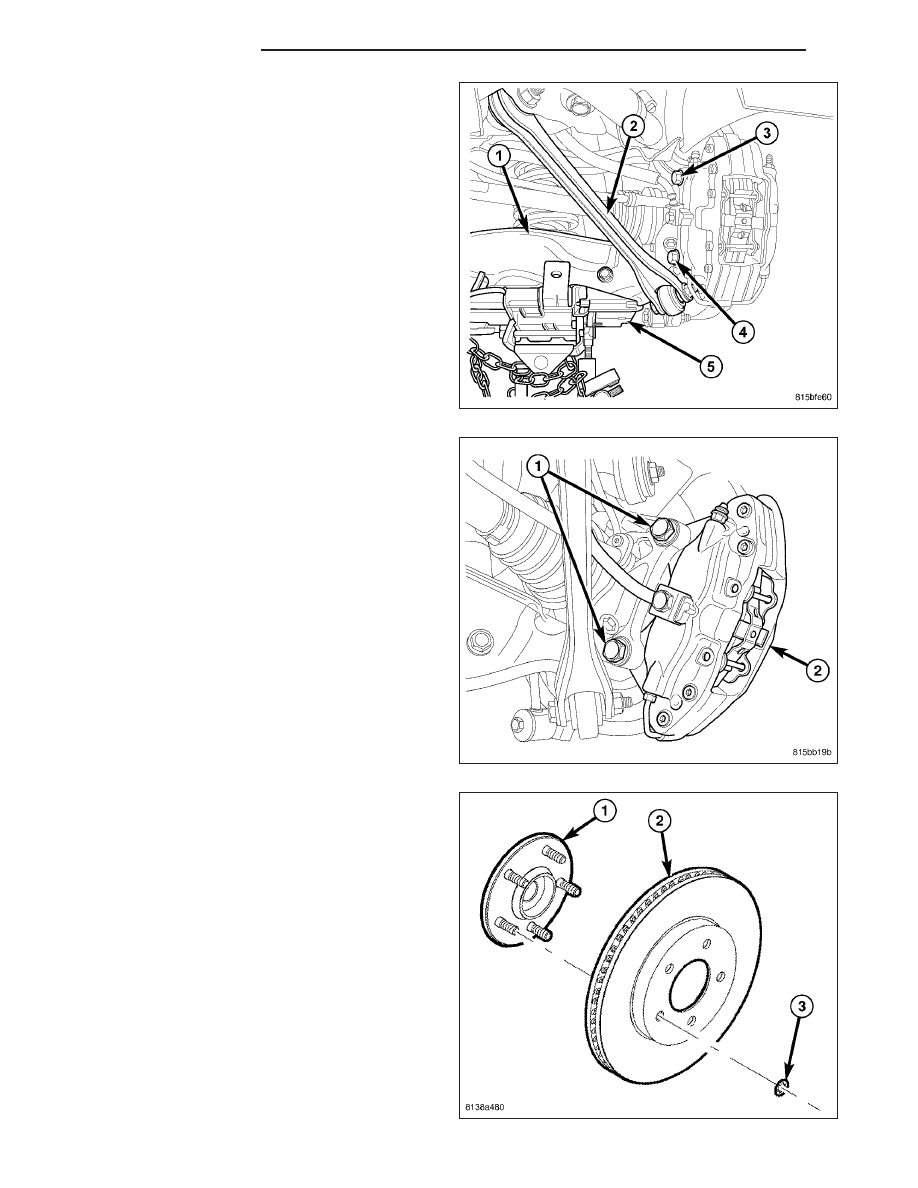

5. Support spring link (1) using a transmission jack (5)

or other appropriate jack. Raise spring link just
enough to access brake caliper lower mounting bolt
(4) from above compression link (2).

6. Remove the lower and upper caliper mounting

bolts (1).

7. Remove brake caliper (2) with pads from knuckle

and brake rotor. Hang assembly out of way using
wire or a bungee cord. Use care not to overextend
brake hose when doing this.

8. Remove any clips (3) retaining brake rotor (2) to

wheel mounting studs.

9. Slide brake rotor (2) off hub and bearing (1).

5 - 138

BRAKES - BASE

LX

INSTALLATION

FRONT

NOTE: Inspect brake pads before installation. (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/BRAKE
PADS/SHOES - INSPECTION)

1. Clean hub face (1) to remove any dirt or corrosion

where rotor mounts.

2. Install brake rotor (2) over studs on hub and

bearing.

3. AWD – Install disc brake caliper and adapter

assembly (2) over brake rotor.

4. AWD – Install mounting bolts (1) securing caliper

adapter (2) to knuckle (3). Tighten bolts to 95 N·m
(70 ft. lbs.) torque.

LX

BRAKES - BASE

5 - 139

5. RWD – Install disc brake caliper and adapter

assembly (3) over brake rotor.

6. RWD – Install mounting bolts (2) securing caliper

adapter (3) to knuckle (1). Tighten bolts to 95 N·m
(70 ft. lbs.) torque.

7. Install tire and wheel assembly (1) (Refer to 22 -

TIRES/WHEELS - INSTALLATION). Tighten wheel
mounting nuts (3) to 150 N·m (110 ft. lbs.) torque.

8. Lower vehicle.

9. Pump brake pedal several times to ensure vehicle

has a firm brake pedal before moving vehicle.

10. Check and adjust brake fluid level in reservoir (1)

as necessary.

CAUTION: If NEW brake rotors or pads have been
installed, keep in mind that braking effectiveness
might be somewhat reduced during the first brake
applications following installation.

11. Road test vehicle and make several stops to wear

off any foreign material on brakes and to seat
brake shoes.

5 - 140

BRAKES - BASE

LX

REAR

NOTE: Inspect disc brake pads and parking brake shoes before installation. (Refer to 5 - BRAKES/HYDRAU-
LIC/MECHANICAL/BRAKE PADS/SHOES - INSPECTION)

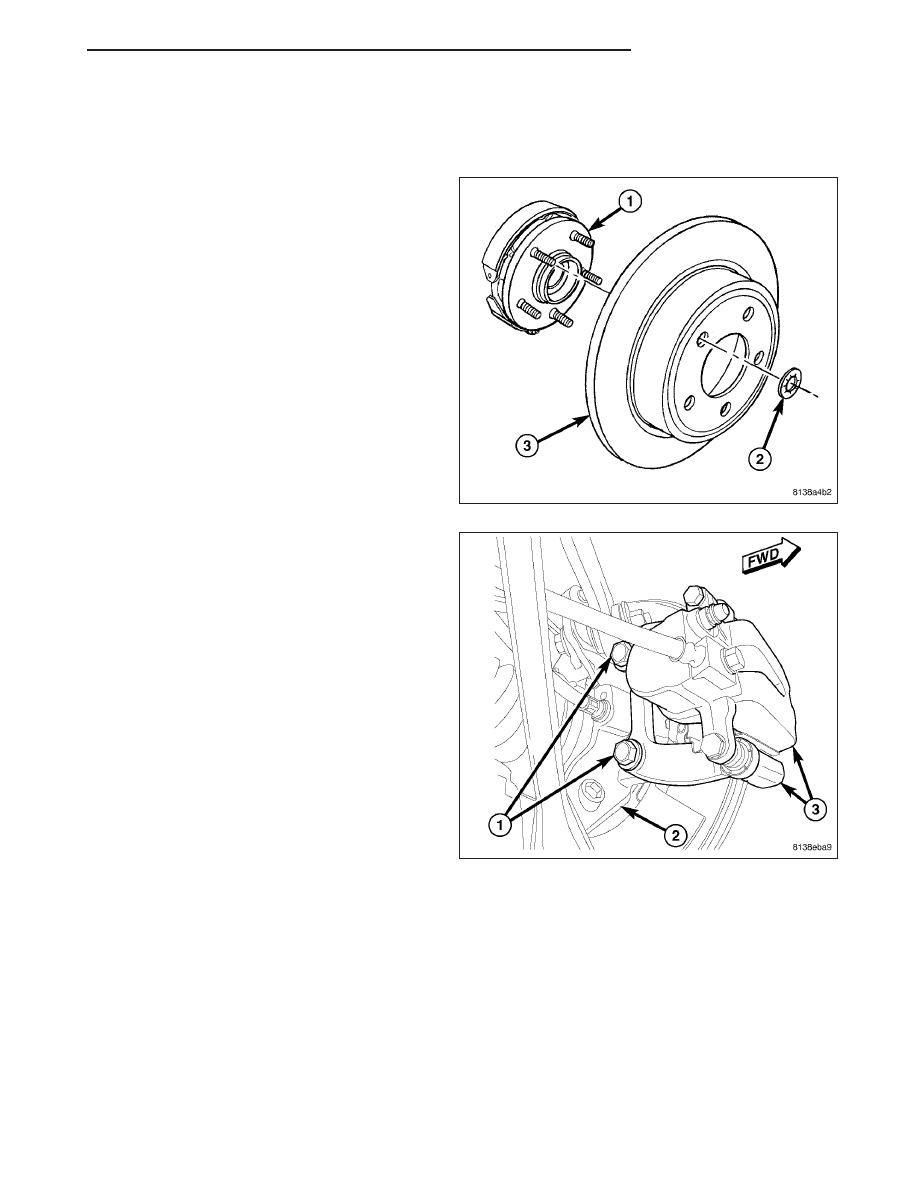

1. Clean hub face to remove any dirt or corrosion

where brake rotor mounts (1).

2. Install brake rotor (3) over wheel mounting studs

and onto hub (1).

3. Install disc brake caliper and adapter assembly (3)

over brake rotor.

4. Install mounting bolts (1) securing caliper adapter

(3) to knuckle (2). Tighten bolts to 115 N·m (85 ft.
lbs.) torque.

LX

BRAKES - BASE

5 - 141
