10. Remove screw (2) fastening front parking brake

cable (1) routing bracket to rear crossmember
front flange (3). Remove J-nut from crossmember.

11. If equipped with standard or premium disc brakes,

on each rear disc brake:

a. While holding guide pins from turning, remove

disc brake caliper guide pin bolts (2).

b. Remove brake caliper (1) from brake adapter

(3) and pads.

c. Guide brake caliper up through suspension, fol-

lowing brake hose path. Support caliper above
rear suspension using with bungee cord or wire
to keep caliper from overextending brake hose
when crossmember is lowered.

CAUTION: When pushing pistons back into caliper
bores, use only a trim stick as shown or other
suitable soft tool. Never use a screwdriver or other
metal pry bar due to potential damage to braking
surface of rotor, caliper, pistons or dust boots.

12. If equipped with SRT8 disc brakes, on each rear

disc brake, place trim stick (4) between brake pad
(2) and outer edge of rotor (3).

13. If equipped with SRT8 disc brakes, on each rear

disc brake, using trim stick, slowly apply pressure
against brake pad (2) until both pistons (on that
side of caliper) are completely bottomed in bores
of caliper half.

NOTE: Repeat above procedure to opposite brake
pad (1) and pistons as necessary.

13 - 100

FRAME & BUMPERS

LX

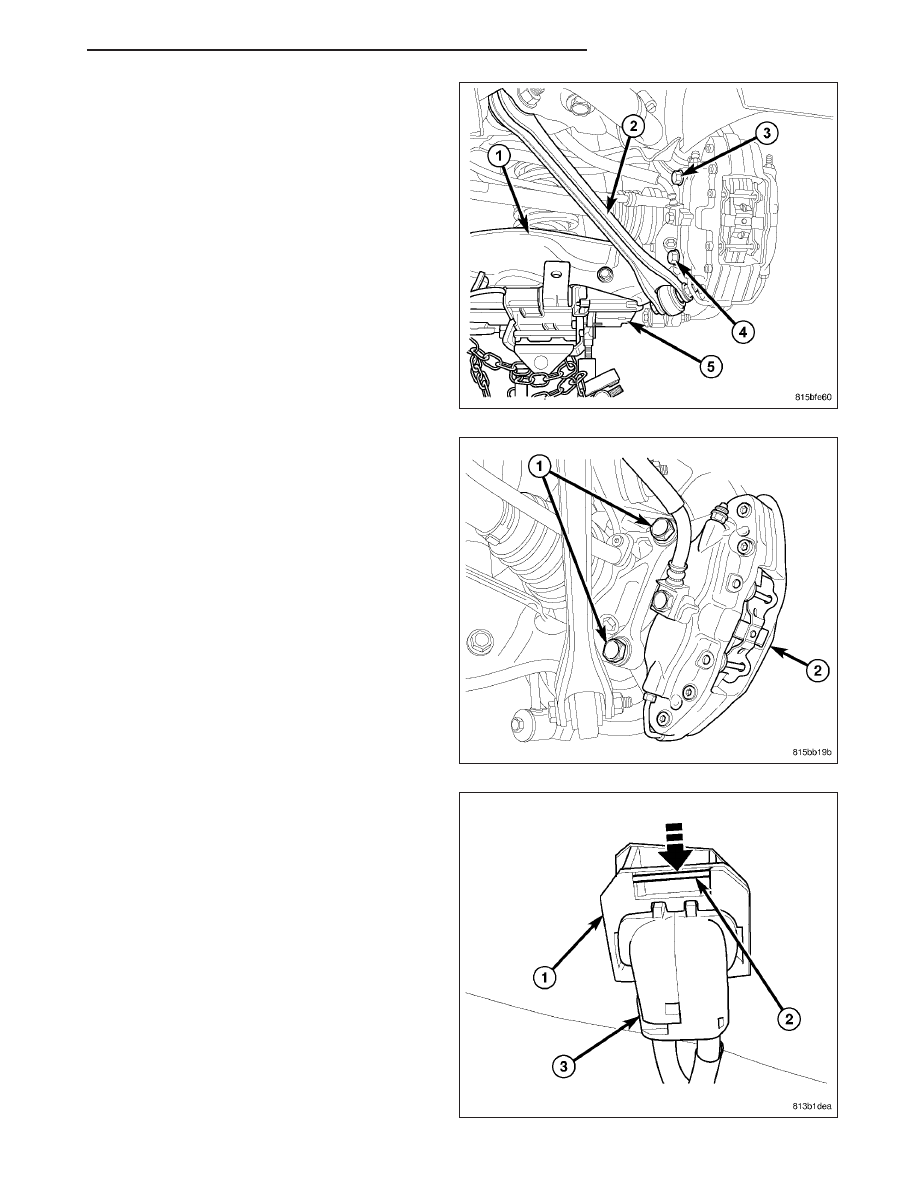

14. If equipped with SRT8 disc brakes, on each rear

disc brake, support spring link (1) using a trans-
mission jack (5) or other appropriate jack. Raise
spring link just enough to access brake caliper
lower mounting bolt (4) from above compression
link (2).

15. If equipped with SRT8 disc brakes, on each rear

disc brake, remove the lower and upper caliper
mounting bolts (1).

16. If equipped with SRT8 disc brakes, on each rear

disc brake, remove brake caliper (2) with pads
from knuckle and brake rotor. Hang assembly out
of way using wire or a bungee cord. Use care not
to overextend brake hose when doing this.

17. If equipped with SRT8 disc brakes, remove jack

from under spring link.

NOTE: To remove wheel speed sensor connector
from body wiring harness connector, move retain-
ing clip (2) and pull sensor connector outward.

LX

FRAME & BUMPERS

13 - 101

18. Remove wheel speed sensor connectors (3 and

4) from body wiring harness connector (1) located
in luggage compartment floor pan (2).

19. Unclip left wheel speed sensor cable (3) from

routing clip (1) near body connector.

20. Unclip left sensor cable (1) from routing clips (2)

along rear of crossmember near rear differential
(3).

13 - 102

FRAME & BUMPERS

LX

21. Unclip left sensor cable (2) from routing clip (1)

above toe link mount on rear crossmember.

22. On each side of vehicle, remove shock absorber

(1) lower mounting bolt (2) and nut (4).

23. Carefully mark location of rear crossmember on

body at all four mount (bushing) locations using a
marker or crayon. Do not use a scratch awl to
mark location.

24. Position an extra pair of jack stands under and

support forward end of engine cradle to help sta-
bilize

vehicle

during

rear

suspension

removal/installation.

LX

FRAME & BUMPERS

13 - 103
