Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1560





6. Connect heater hose to rear lower intake manifold.

7. Connect coolant container hose to the rear lower

intake manifold.

8. Connect electrical connectors to fuel injectors and coolant temperature sensor.

9. Install power steering fluid reservoir and bracket.

10. Install upper intake manifold (Refer to 9 - ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION).

11. Connect the upper radiator hose to the thermostat housing.

12. Fill the cooling system (Refer to 7 - COOLING/ENGINE/COOLANT - STANDARD PROCEDURE).

9 - 2264

ENGINE - 3.5L - SERVICE INFORMATION

LX

MANIFOLD-EXHAUST LEFT

REMOVAL

LEFT EXHAUST MANIFOLD

1. Disconnect and isolate the negative battery cable.

2. Raise and support the vehicle.

3. Separate the front exhaust pipe to manifold union

(2).

4. Lower the vehicle.

5. Disconnect and remove the oxygen sensor from

the exhaust manifold (7)

6. Remove the exhaust manifold shield (5) retaining

bolts, exhaust manifold (7) , and discard gasket (1).

LX

ENGINE - 3.5L - SERVICE INFORMATION

9 - 2265

INSPECTION

1. Inspect exhaust manifolds for damage or cracks.

2. Check manifold flatness.

3. Inspect the exhaust manifold gasket for obvious discoloration or distortion.

4. Check distortion of the cylinder head mounting surface with a straightedge and thickness gauge.

INSTALLATION

LEFT EXHAUST MANIFOLD

NOTE: If replacing the exhaust manifold, tighen
the exhaust outlet studs to manifold to 40N·m (350
in.lbs.).

1. Position the exhaust manifold (7) and gasket (1).

Install the retaining bolts (2). Tighten 4 bolts start-
ing at the center working outward to 23 N.m (200
in. lbs.).

2. Install the exhaust manifold heat shields (5,6).

Tighten the bolts to 12N·m (105 in. lbs.).

3. Tighten the out most stud nuts to 8N·m (73 in.lbs.).

4. Connect the oxygen sensor.

5. Raise and support the vehicle.

6. Connect the exhaust pipe to manifold union (3).

Tighten the exhaust stud nuts to 34N·m (300
in.lbs.).

7. Connect the negative battery cable.

9 - 2266

ENGINE - 3.5L - SERVICE INFORMATION

LX

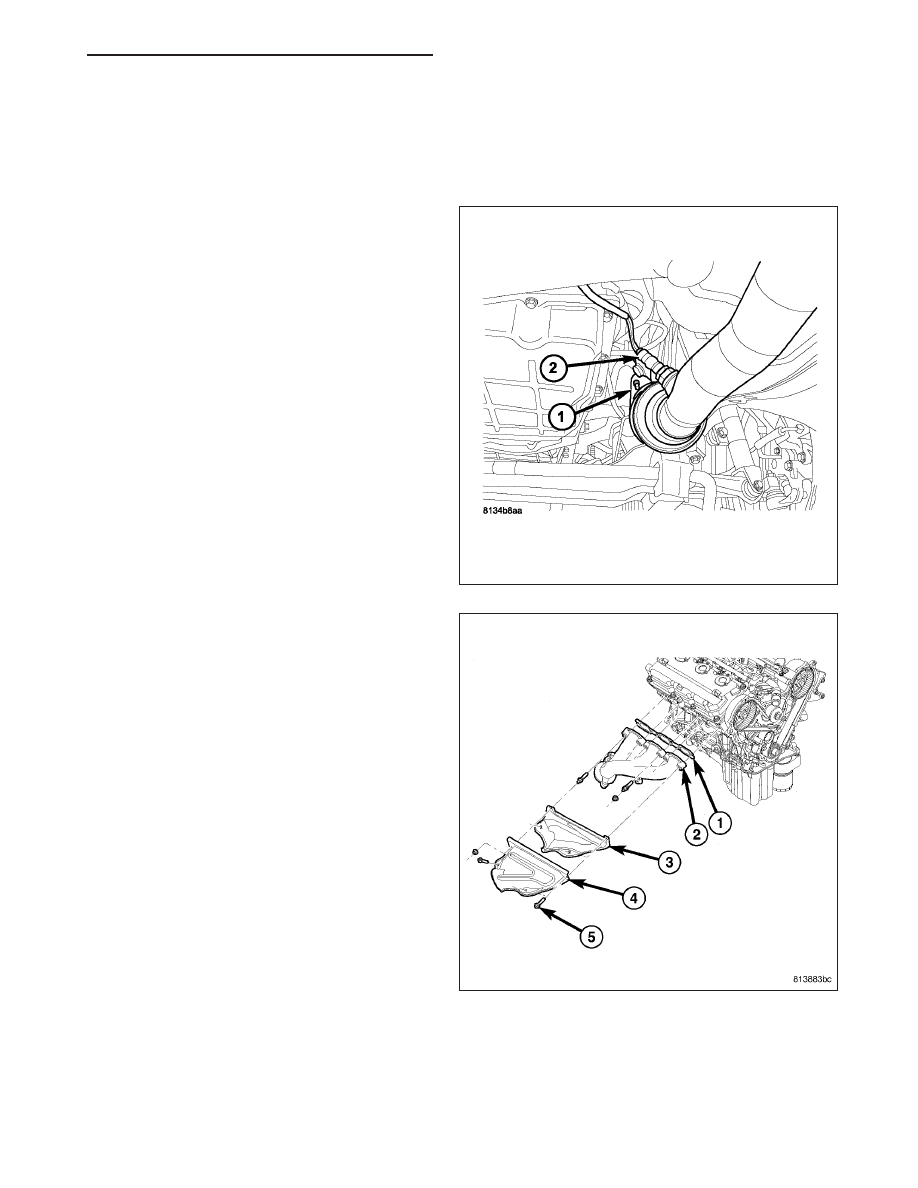

MANIFOLD-EXHAUST RIGHT

REMOVAL

RIGHT EXHAUST MANIFOLD

1. Disconnect the negative battery cable.

2. Disconnect the upstream oxygen sensor electrical

connector.

3. Raise and support the vehicle.

4. Remove the exhaust manifold to exhaust pipe

flange retaining bolts (1).

5. Lower the vehicle.

6. Remove the exhaust manifold heat shield and

manifold.

7. Remove the oxygen sensor from the exhaust

manifold.

LX

ENGINE - 3.5L - SERVICE INFORMATION

9 - 2267
