Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1544





INSTALLATION

Bearing caps are not interchangeable and are marked
to insure correct assembly. Upper and lower bearing
halves are NOT interchangeable.

CAUTION: Main bearings are select fit. (Refer to 9
-

ENGINE/ENGINE

BLOCK/CRANKSHAFT

MAIN

BEARINGS - STANDARD PROCEDURE)

NOTE: Only one main bearing should be selec-
tively fitted while all other main bearing caps are
properly tightened.

When installing a new upper bearing shell, slightly
chamber the sharp edges from the plain side.

1. Lubricate main bearing (4) with clean engine oil.

2. Start bearing (4) in place, and insert Main Bearing

Tool C-3059 (3) into oil hole of crankshaft.

3.

Slowly rotate crankshaft counterclockwise sliding

the bearing into position. Remove Main Bearing
Tool C-3059.

NOTE: Lubricate main bearing cap bolts with
engine oil before installation.

4. Lubricate and install lower bearing half and main

cap Tighten bolts finger tight.

9 - 2200

ENGINE - 3.5L - SERVICE INFORMATION

LX

5. For installing thrust washers (1) at the No. 2 main

bearing location, use the following procedure:

a.

Move crankshaft forward to limit of travel.

Lubricate and install the front thrust washer (1)
by rolling the washer onto the machined shelf
between the No. 2 upper main bulk head and
crankshaft thrust surface.

b.

Move crankshaft rearward to limit of travel.

Lubricate and install the rear thrust washer by
rolling the washer onto the machined shelf
between the No. 2 upper main bulk head and
crankshaft thrust surface.

The main bearing cap bolts (2) must be tightened in
the proper sequence. First the inner main cap bolts,
secondly the windage tray bolts, lastly the main cap
tie (horizontal) bolts.

6. Install each main bearing cap (1) and tighten inner

bolts finger tight.

7. Tighten inner main bearing cap bolts (2) to 20 N·m

+ 1/4 turn (15 ft. lbs. + 1/4 turn).

8. Measure

crankshaft

end

play.

(Refer

to

9

-

ENGINE/ENGINE BLOCK/CRANKSHAFT - STAN-
DARD PROCEDURE)

9. Install windage tray. Lubricate bolts with engine oil

and tighten to 27 N·m + 1/4 turn (20 ft. lbs. + 1/4
turn).

LX

ENGINE - 3.5L - SERVICE INFORMATION

9 - 2201

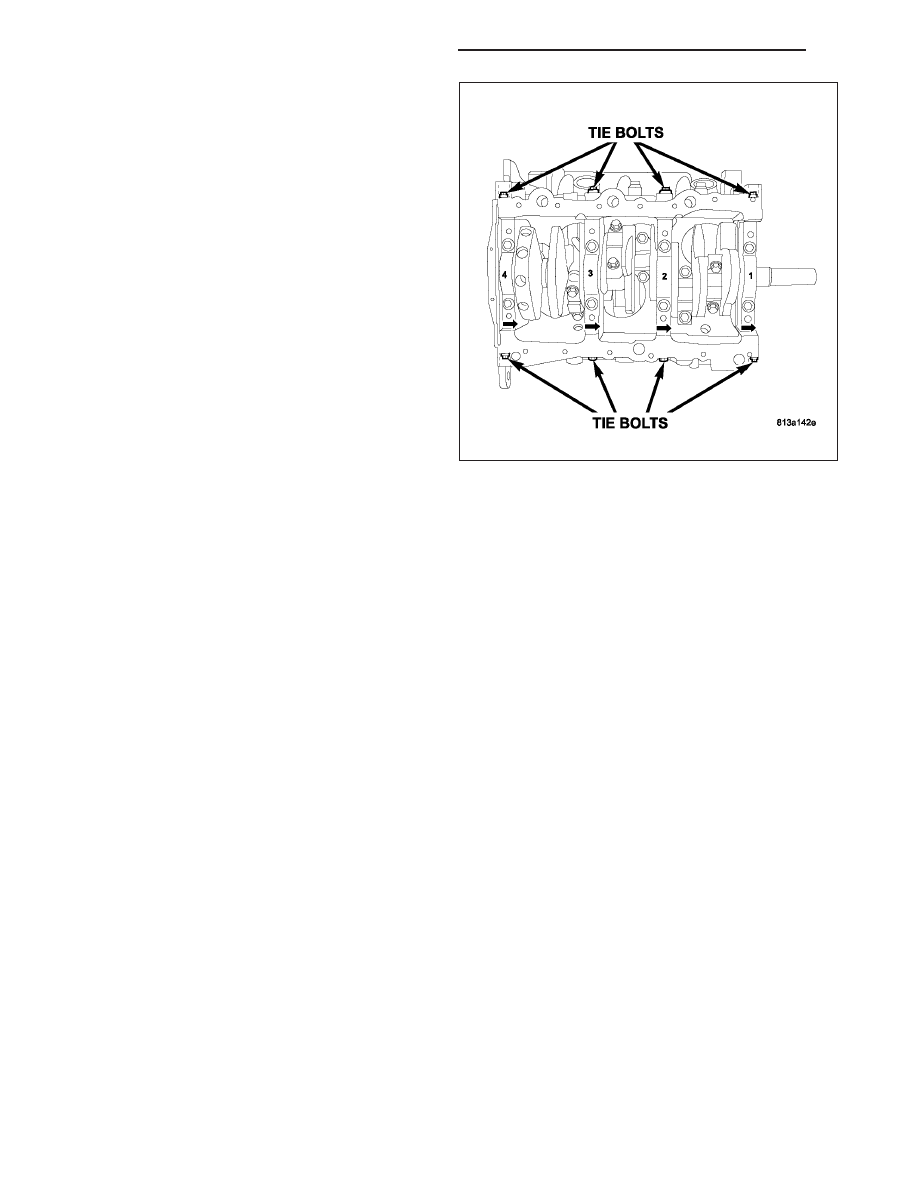

10. Install the main cap tie (horizontal) bolts and

tighten to 28 N·m (250 in. lbs.)

11. Install oil pick-up tube.

12. Install oil pan. (Refer to 9 - ENGINE/LUBRICA-

TION/OIL PAN - INSTALLATION)

13. Fill engine crankcase with proper oil to correct

level.

9 - 2202

ENGINE - 3.5L - SERVICE INFORMATION

LX

SEAL -CRANKSHAFT OIL FRONT

REMOVAL

1. Remove the crankshaft sprocket. (Refer to 9 -

ENGINE/VALVE

TIMING/TIMING

BELT/CHAIN

AND SPROCKETS - REMOVAL)

2. Tap the dowel pin (2) out of the crankshaft.

3. Remove crankshaft seal using Tool 6341A (1).

CAUTION: Do not nick shaft seal surface or seal
bore.

4. Shaft seal lip surface must be free of varnish, dirt

or nicks. Polish with 400 grit paper if necessary.

INSTALLATION

1. Install crankshaft seal using Special Tool 6342 (1).

2. Install the dowel pin into the crankshaft to 1.2 mm

(0.047 in.) protrusion.

3. Install the crankshaft sprocket (Refer to 9 -

ENGINE/VALVE

TIMING/TIMING

BELT/CHAIN

AND SPROCKETS - INSTALLATION.)

LX

ENGINE - 3.5L - SERVICE INFORMATION

9 - 2203
