Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1482





COVER(S)-CYLINDER HEAD

REMOVAL

LEFT

1. Disconnect negative battery (1) cable located in

trunk.

2. Remove upper intake manifold (Refer to 9 -

ENGINE/MANIFOLDS/INTAKE

MANIFOLD

-

REMOVAL).

3. Disconnect electrical connectors from ignition coils

(1).

9 - 1952

ENGINE - 2.7L DOHC - SERVICE INFORMATION

LX

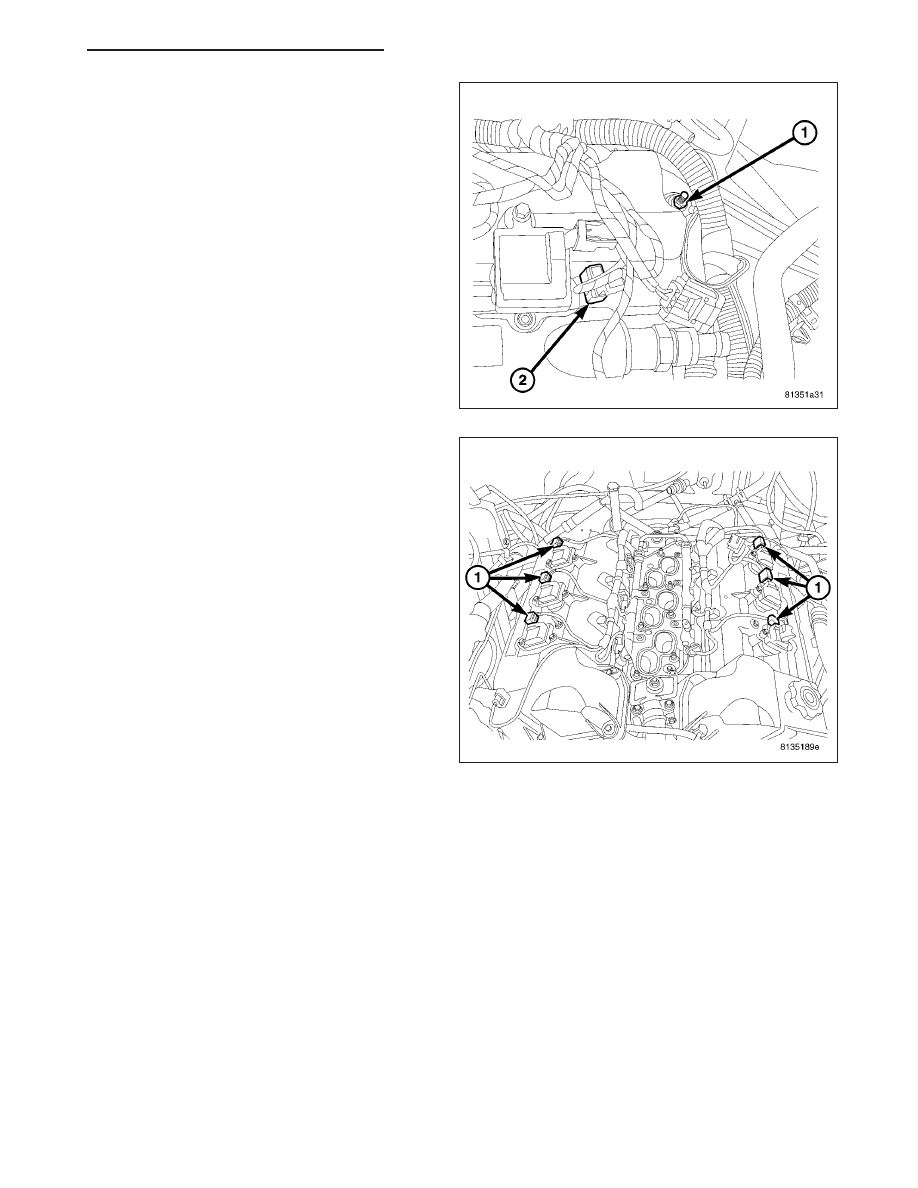

4. Remove ground strap from cylinder head cover

stud (1) and disconnect capacitor connector (2).
Reposition electrical harness.

5. Disconnect electrical harness retaining clips from

cylinder head cover studs. Reposition electrical
harness.

6. Remove make up air hose.

7. Remove fastener attaching ignition coil capacitor.

8. Remove ignition coils (1).

LX

ENGINE - 2.7L DOHC - SERVICE INFORMATION

9 - 1953

9. Loosen all cylinder head cover fasteners (1)&(2).

NOTE: Cylinder head cover attaching bolts are
captured to the cover.

CAUTION: Make certain the double ended studs
(1) in the center of the cylinder head cover are
loose before attempting to remove cover.

10. Remove cylinder head cover.

RIGHT

1. Disconnect negative battery (1) cable.

9 - 1954

ENGINE - 2.7L DOHC - SERVICE INFORMATION

LX

2. Remove upper intake manifold (Refer to 9 -

ENGINE/MANIFOLDS/INTAKE

MANIFOLD

-

REMOVAL).

3. Disconnect electrical connectors from ignition coils

(1).

4.

Disconnect capacitor electrical connector (2).

5. Remove PCV hose from cylinder head cover grom-

met.

6. Remove ground strap from cylinder head cover

stud (1).

7. Disconnect electrical harness retaining clips from

cylinder head cover studs. Reposition electrical
harness.

8. Remove fastener attaching ignition coil capacitor.

9. Remove ignition coils.

10. Remove foam insulator (1).

LX

ENGINE - 2.7L DOHC - SERVICE INFORMATION

9 - 1955
