P0118-ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT HIGH

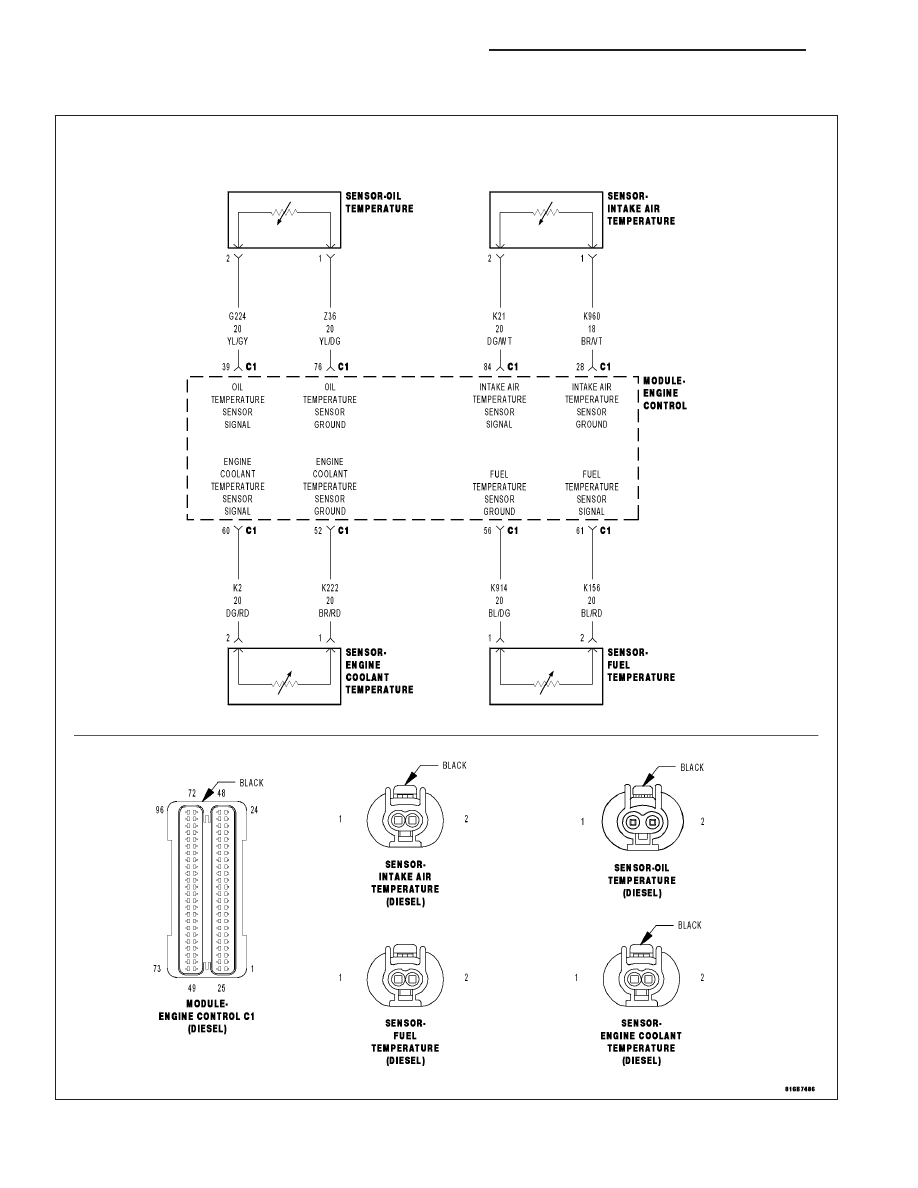

For a complete wiring diagram Refer to Section 8W

9 - 1156

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

When Monitored:
With the ignition on.

Set Condition:
The (K2) Engine Coolant Temperature Sensor Signal circuit voltage is above 4.97 volts for 0.5 second.

Possible Causes

INTERMITTENT DTC

(K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

(K222) ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

(K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(K222) ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

ENGINE COOLANT TEMPERATURE SENSOR

ENGINE CONTROL MODULE (ECM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, Clear DTCs in the Engine Control Module (ECM).

Monitor the scan tool for at least two minutes.

Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.

Start the engine.

Allow the engine to reach normal operating temperature.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

(K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Engine Coolant Temperature Sensor connector.

Disconnect the Engine Control Module (ECM) connector.

Remove the ASD Relay from the IPM.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay Connector.

Turn the ignition on.

Measure the voltage of the (K2) Engine Coolant Temperature Sensor
Signal circuit in the Engine Coolant Temperature Sensor connector.

Is there any voltage present?

Yes

>> Repair the (K2) Engine Coolant Temperature Sensor Signal

circuit for a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 3

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1157

3.

(K222) ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

NOTE: The jumper wire should still be in place.
Measure the voltage of the (K222) Engine Coolant Temperature Sensor
Ground circuit in the Engine Coolant Temperature Sensor connector.

Is there any voltage present?

Yes

>> Repair the (K222) Engine Coolant Temperature Sensor

Ground circuit for a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 4

4.

ENGINE COOLANT TEMPERATURE SENSOR

Turn the ignition off.

Connect the Engine Control Module (ECM) connector.

Connect a jumper wire between the (K222) Engine Coolant Temperature Sensor Ground circuit and the (K2) Engine
Coolant Temperature Sensor Signal circuit in the Engine Coolant Temperature Sensor connector.

Turn the ignition on.

With the scan tool, Clear DTCs.

With the scan tool, select View DTCs.

NOTE: The scan tool should display an Engine Coolant Temperature Sensor low voltage or short to ground
DTC with the jumper wire in place.

Does the scan tool display the DTC(s) as described above?

Yes

>> Replace the Engine Coolant Temperature Sensor in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 5

9 - 1158

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

5.

(K2) ENGINE COOLANT TEMPERATURE SENSOR SIGNAL OPEN OR HIGH RESISTANCE

Turn the ignition off.

Disconnect the Engine Control Module (ECM) connector.

Measure the resistance of the (K2) Engine Coolant Temperature Sensor
Signal circuit between the Engine Coolant Temperature Sensor connec-
tor and the Engine Control Module (ECM) connector.

Is the resistance below 10.0 ohms?

Yes

>> Go to 6

No

>> Repair the (K2) Engine Coolant Temperature Sensor Signal

circuit for an open circuit or high resistance.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

6.

(K222) ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K222) Engine Coolant Temperature Sen-
sor Ground circuit between the Engine Coolant Temperature Sensor
connector and the Engine Control Module (ECM) connector.

Is the resistance below 10.0 ohms?

Yes

>> Go to 7

No

>> Repair the (K222) Engine Coolant Temperature Sensor

Ground circuit for an open circuit or high resistance.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1159
