NOTE: The scan tool should display an Intake Air Temperature Sensor high voltage or open circuit DTC with
the Intake Air Temperature Sensor connector disconnected.

Does the scan tool display the DTC(s) as described above?

Yes

>> Replace the Intake Air Temperature Sensor in accordance with the service information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 6

6.

ENGINE CONTROL MODULE (ECM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Intake Air Temper-
ature Sensor and the Engine Control Module (ECM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Replace the Engine Control Module (ECM) in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

9 - 1140

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

P0113-INTAKE AIR TEMPERATURE SENSOR CIRCUIT HIGH

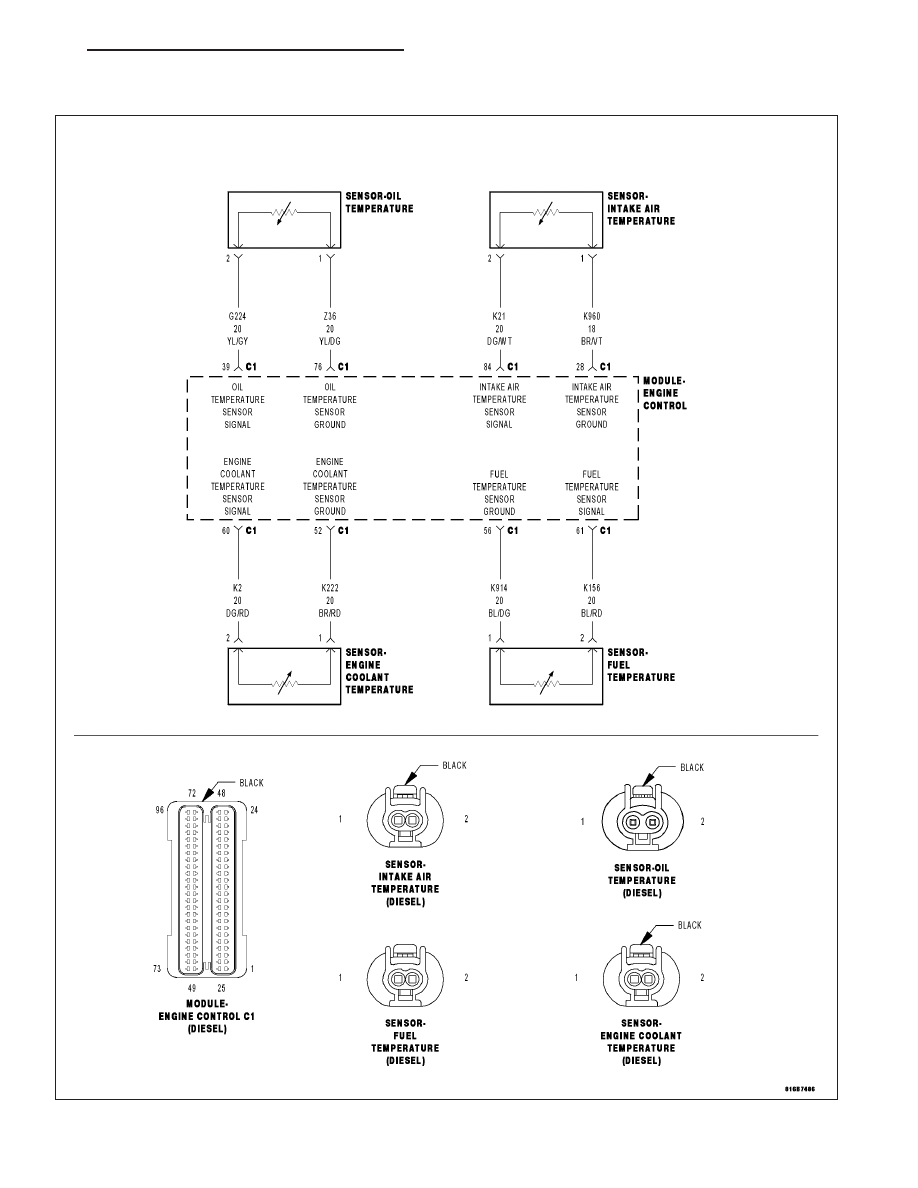

For a complete wiring diagram Refer to Section 8W

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1141

When Monitored:
With the ignition on.

Set Condition:
The (K21) Intake Air Temperature Sensor Signal circuit voltage is above 4.96 volts for 2.0 seconds.

Possible Causes

INTERMITTENT DTC

(K21) INTAKE AIR TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

(K960) INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

(K21) INTAKE AIR TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(K960) INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

INTAKE AIR TEMPERATURE SENSOR

ENGINE CONTROL MODULE (ECM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, Clear DTCs in the Engine Control Module (ECM).

Monitor the scan tool for at least two minutes.

Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.

Start the engine.

Allow the engine to reach normal operating temperature.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

(K21) INTAKE AIR TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Intake Air Temperature Sensor connector.

Disconnect the Engine Control Module (ECM) connector.

Remove the ASD Relay from the IPM.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay Connector.

Turn the ignition on.

Measure the voltage of the (K21) Intake Air Temperature Sensor Signal
circuit in the Intake Air Temperature Sensor connector.

Is there any voltage present?

Yes

>> Repair the (K21) Intake Air Temperature Sensor Signal cir-

cuit for a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 3

9 - 1142

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

3.

(K960) INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

NOTE: The jumper wire should still be in place.
Measure the voltage of the (K960) Intake Air Temperature Sensor
Ground circuit in the Intake Air Temperature Sensor connector.

Is there any voltage present?

Yes

>> Repair the (K960) Intake Air Temperature Sensor Ground

circuit for a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 4

4.

INTAKE AIR TEMPERATURE SENSOR

Turn the ignition off.

Connect the Engine Control Module (ECM) connector.

Connect a jumper wire between the (K960) Intake Air Temperature Sensor Ground circuit and the (K21) Intake Air
Temperature Sensor Signal circuit in the Intake Air Temperature Sensor connector.

Turn the ignition on.

With the scan tool, Clear DTCs.

With the scan tool, select View DTCs.

NOTE: The scan tool should display an Intake Air Temperature Sensor low voltage or short to ground DTC
with the jumper wire in place.

Does the scan tool display the DTC(s) as described above?

Yes

>> Replace the Intake Air Temperature Sensor in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 5
