P0103-MASS AIR FLOW SENSOR CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W

9 - 1132

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

When Monitored:
With the ignition on.

Set Condition:
The Mass Air Flow Sensor Signal is above the valid operating range.

Possible Causes

INTERMITTENT DTC

(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO THE (K362) INLET AIR TEMPERATURE
SENSOR SIGNAL CIRCUIT

(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

MASS AIR FLOW SENSOR

ENGINE CONTROL MODULE (ECM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, Clear DTCs in the Engine Control Module (ECM).

Start the engine and allow it to reach normal operating temperature.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure.

2.

(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

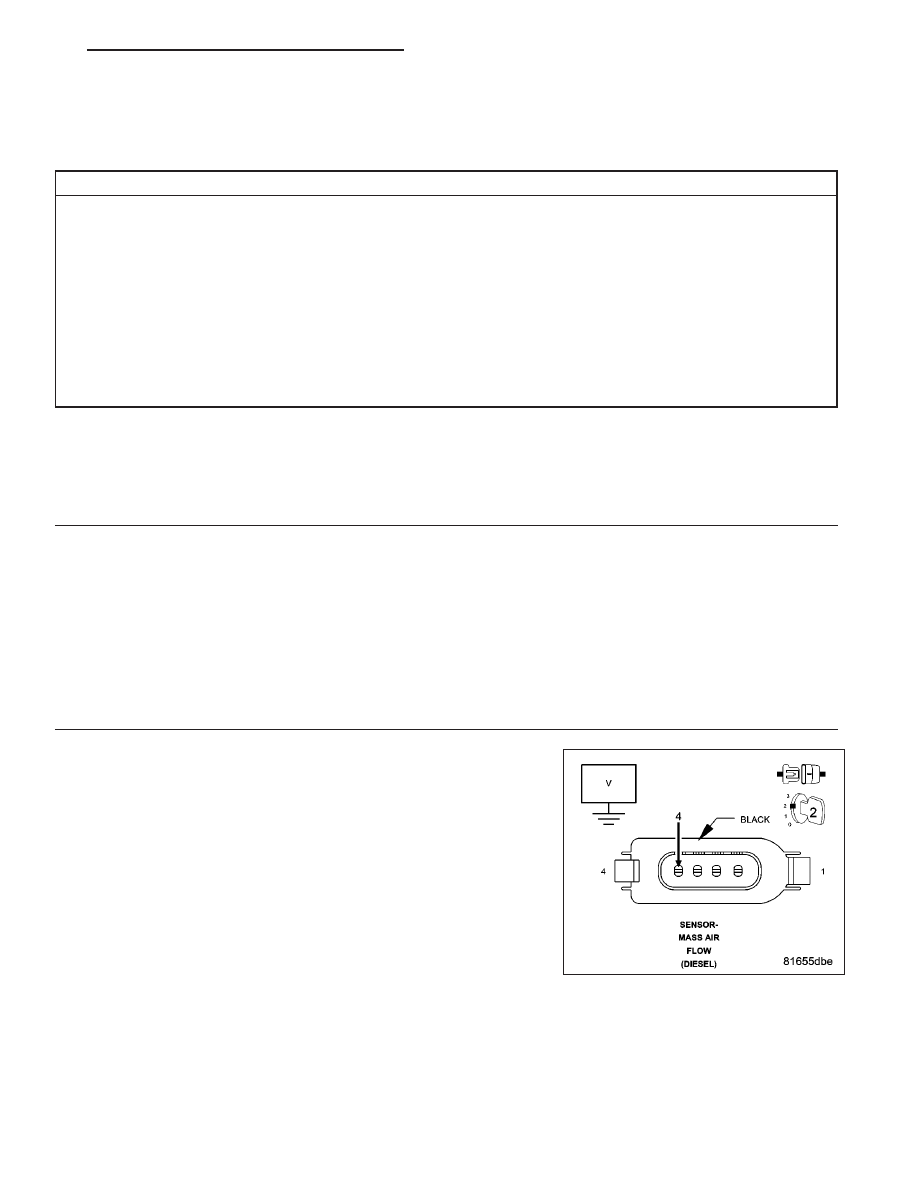

Measure the voltage of the (K157) Mass Air Flow Sensor Signal circuit
in the Mass Air Flow Sensor connector.

Is there any voltage present?

Yes

>> Repair the (K157) Mass Air Flow Sensor Signal circuit for a

short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 3

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1133

3.

(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

Measure the voltage of the (K957) Mass Air Flow Sensor Ground circuit
in the Mass Air Flow Sensor connector.

Is there any voltage present?

Yes

>> Repair the (K957) Mass Air Flow Sensor Ground circuit for

a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 4

4.

(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT SHORTED TO THE (K362) INLET AIR
TEMPERATURE SENSOR SIGNAL CIRCUIT

Turn the ignition off.

Remove the jumper wire between cavity 30 and cavity 87 of the ASD
Relay Connector.

Measure the resistance between the (K157) Mass Air Flow Sensor Sig-
nal circuit and the (K362) Inlet Air Temperature Sensor Signal circuit in
the Mass Air Flow Sensor connector.

Is the resistance above 10.0 ohms?

Yes

>> Go to 5

No

>> Repair the (K157) Mass Air Flow Sensor Signal circuit for a

short to the (K362) Inlet Air Temperature Sensor Signal cir-
cuit.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

9 - 1134

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

5.

(K157) MASS AIR FLOW SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K157) Mass Air Flow Sensor Signal cir-
cuit between the Mass Air Flow Sensor connector and the Engine Con-
trol Module (ECM) connector.

Is the resistance below 10.0 ohms?

Yes

>> Go to 6

No

>> Repair the (K157) Mass Air Flow Sensor Signal circuit for

an open circuit or high resistance.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

6.

(K957) MASS AIR FLOW SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K957) Mass Air Flow Sensor Ground cir-
cuit between the Mass Air Flow Sensor connector and the Engine Con-
trol Module (ECM) connector.

Is the resistance below 10.0 ohms?

Yes

>> Go to 7

No

>> Repair the (K957) Mass Air Flow Sensor Ground circuit for

an open circuit or high resistance.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1135
