Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1170





P2066-FUEL LEVEL SENSOR 2 PERFORMANCE

For a complete wiring diagram Refer to Section 8W.

9 - 704

ENGINE ELECTRICAL DIAGNOSTICS

LX

When Monitored:
TEST No.1: With the ignition on, the fuel level is compared to the previous key down after a 20 second delay.
TEST No.2: The PCM monitors the fuel level at ignition on.

Set Condition:
TEST No.1: If the PCM does not see a difference in fuel level of greater than 0.1 volt the test will fail. TEST
No.2: If the PCM does not see a change in the fuel level of .1765 over a set amount of miles the test will fail.
Three good trips to turn off the MIL.

Possible Causes

(N5) FUEL LEVEL SIGNAL CIRCUIT OPEN

(N5) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO GROUND

(Z210) FUEL LEVEL SENSOR GROUND CIRCUIT OPEN

FUEL TANK

FUEL LEVEL SENSOR

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

ACTIVE DTC

NOTE: Diagnose any CAN - C or CAN - B Communication DTCs before continuing.

NOTE: Diagnose P2067 or P2068 first, if set along with P2066.
Ignition on, engine not running.

With a scan tool, read DTCs.

Is the DTC active at this time?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5. (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - DIAGNOSIS AND TESTING)

2.

VISUALLY INSPECT FUEL TANK

Visually inspect the Fuel Tank for damage that may restrict the Fuel Sending Unit float from moving.

Is the Fuel Tank OK?

Yes

>> Go To 3

No

>> Replace the Fuel Tank as necessary.

Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5. (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - DIAGNOSIS AND TESTING)

LX

ENGINE ELECTRICAL DIAGNOSTICS

9 - 705

3.

(N5) FUEL LEVEL SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the Fuel Pump Module harness connector.

Disconnect the C2 Cluster harness connectors.

Measure the resistance of the (N5) Fuel Level Signal circuit from the
Fuel Pump Module harness connector to the C2 Cluster harness con-
nector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the open in the (N5) Fuel Level Signal circuit.

Perform BODY VERIFICATION TEST-VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING)

4.

(N5) FUEL LEVEL SIGNAL CIRCUIT SHORTED TO GROUND

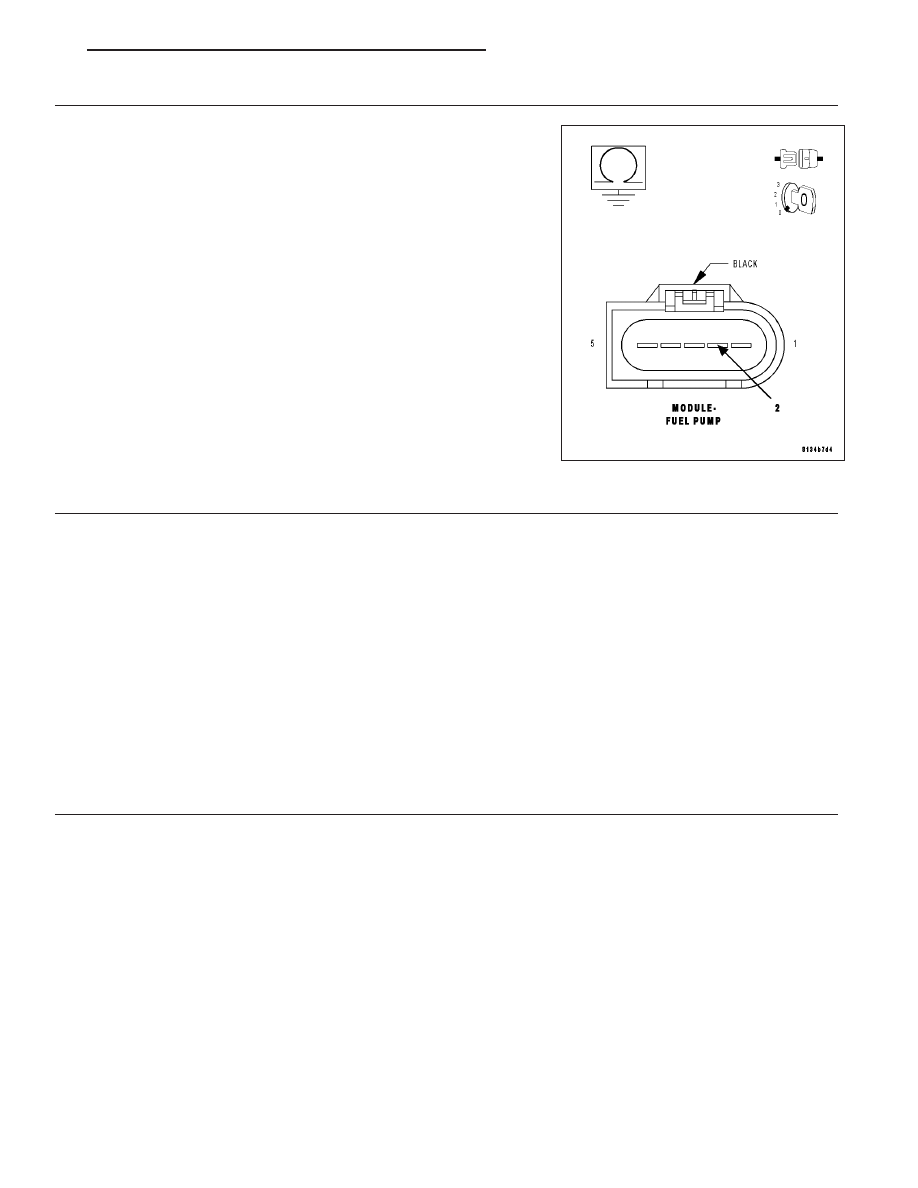

Measure the resistance between ground and the (N5) Fuel Level Signal
circuit in the Fuel Pump Module harness connector.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (N5) Fuel Level Signal cir-

cuit.

Perform BODY VERIFICATION TEST-VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING)

No

>> Go To 5

9 - 706

ENGINE ELECTRICAL DIAGNOSTICS

LX

5.

(Z210) FUEL LEVEL SENSOR GROUND CIRCUIT OPEN

Measure the resistance of the (Z210) Fuel Level Sensor Ground circuit
from the Fuel Pump Module harness connector to the C2 Cluster har-
ness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 6

No

>> Repair the open in the (Z210) Fuel Level Sensor Ground

circuit.

Perform BODY VERIFICATION TEST-VER 1. (Refer to 8 -
ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING)

6.

INTERNAL INSPECTION OF THE FUEL TANK

WARNING: The fuel system is under a constant pressure (even with the engine off). Before testing or ser-
vicing any fuel system hose, fitting or line, the fuel system pressure must be released. Failure to follow
these instructions can result in personal injury or death.
Remove the Fuel Tank per Service Information.

Remove the Fuel Pump Module.

Visually inspect the inside of the Fuel Tank for any obstructions or deformities.

Inspect the Fuel Pump Module Float arm for damage.

Were any problems found?

Yes

>> Repair or replace as necessary.

Perform (NGC) POWERTRAIN VERIFICATION TEST VER - 5. (Refer to 8 - ELECTRICAL/ELEC-
TRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - DIAGNOSIS AND TESTING)

No

>> Go To 7

7.

FUEL LEVEL SENSOR

If there are no possible causes remaining, view repair.

Repair

Replace the Fuel Level Sensor.

Perform BODY VERIFICATION TEST-VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/FRONT CONTROL MODULE - DIAGNOSIS AND TESTING)

LX

ENGINE ELECTRICAL DIAGNOSTICS

9 - 707
