Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 113





9. Remove rear axle forward mount isolator (1) bolt/

nut (2).

10. Remove two rear axle-to-crossmember bolts (1).

11. Carefully lower rear axle. While lowering axle,

separate propeller shaft from axle and support
with suitable rope or wire (1).

3 - 184

REAR AXLE - 210RII

LX

12. Lower axle just enough to remove both halfshafts

one at a time. Shift axle assembly in one direc-
tion, compressing one halfshaft while removing
the other (1). Use caution to protect axle seal and
journal.

13. Remove axle assembly from vehicle and transfer

to bench.

14. Using suitable screwdriver, remove axle seals and

discard.

LX

REAR AXLE - 210RII

3 - 185

INSTALLATION

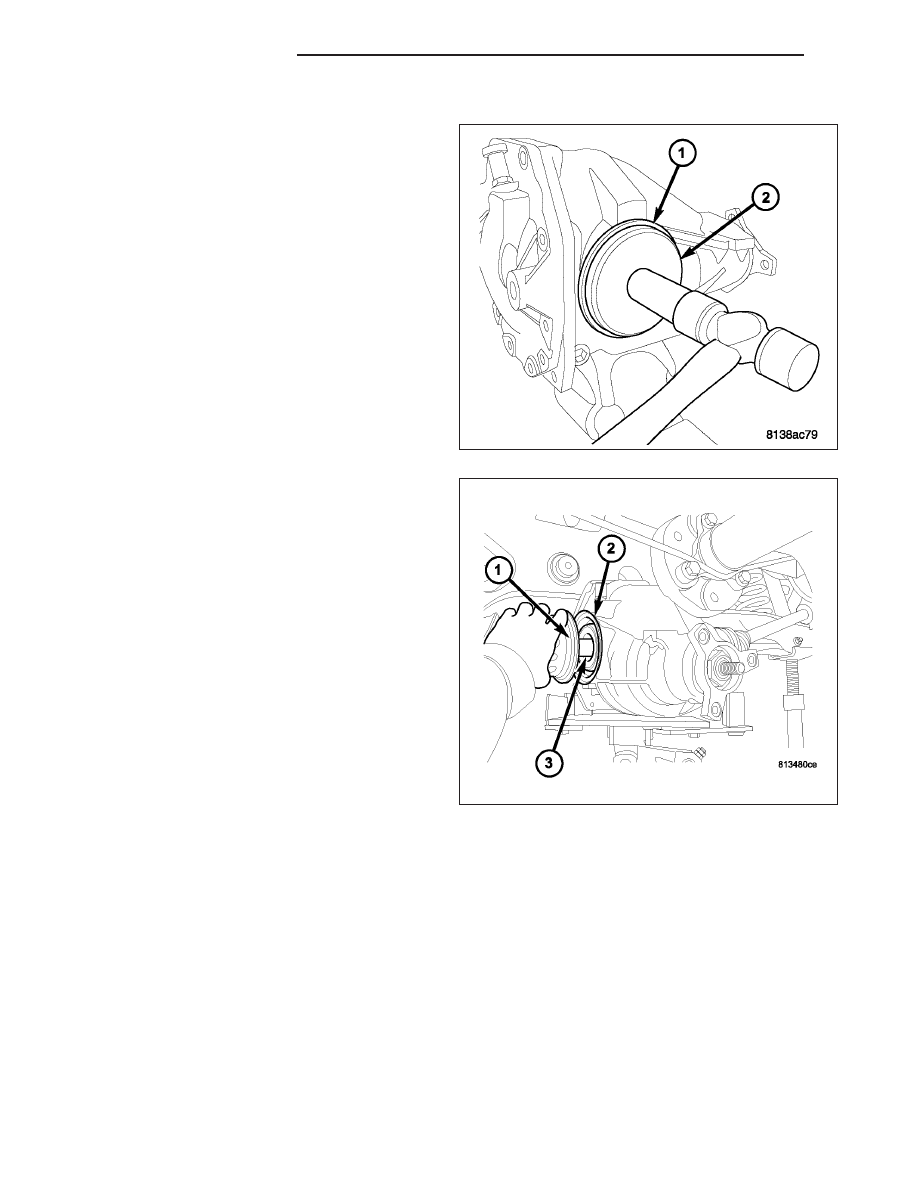

1. Install new axle seal(s) (1) using Tool 9223 (2).

NOTE: Use care when installing halfshaft to axle
assembly. The halfshaft installation angle should
be minimized to avoid damage to seal upon instal-
lation.

2. Using new circlip(s), install halfshaft (1) to rear axle

assembly. Use care not to damage axle seals(2).
Verify proper installation by pulling outward on joint
by hand.

3 - 186

REAR AXLE - 210RII

LX

3. Raise rear axle assembly into position. Align pro-

peller shaft index marks (3) and start propeller
shaft coupler-to-axle bolt/nuts by hand.

4. Install two rear axle-to-crossmember bolts (1) and

torque to 220 N·m (162 ft. lbs.).

5. Install rear axle front mount isolator (1) as shown

and torque bolt/nut to 65 N·m (48 ft. lbs.).

LX

REAR AXLE - 210RII

3 - 187
