INSTALLATION

INSTALLATION - RIGHT AXLE SEAL

1. Using Tool C-4193-A (1), install new axle shaft

seal.

2. Install right halfshaft assembly. (Refer to 3 - DIF-

FERENTIAL

&

DRIVELINE/HALF

SHAFT

-

INSTALLATION)

INSTALLATION - LEFT AXLE SEAL

1. Using Tool L-4507, install left (inboard) axle seal (2).

2. Install differential (3). Install cover (5) with new o-ring seal (4).

3. Install and torque cover-to-housing bolts to:

M10x40 — 65 N·m (48 ft. lbs.)

M8x25 — 34 N·m (25 ft. lbs.)

3 - 100

FRONT AXLE - 175 FIA

LX

4. Install axle assembly into vehicle. (Refer to 3 - DIF-

FERENTIAL

&

DRIVELINE/FRONT

AXLE

-

INSTALLATION)

5. Fill axle with 600ml (0.64 qts.) Mopar

T

75W-90

Synthetic Gear Lubricant. Torque fill plug (1) to 30
N·m (22 ft. lbs.)

LX

FRONT AXLE - 175 FIA

3 - 101

FLUID

STANDARD PROCEDURE - FLUID FILL

NOTE: The 175MM FIA Front Axle assembly is designed for ’fill for life’ and is not manufactured with a fluid
drain plug.

1. Raise and support vehicle. (Refer to LUBRICATION

& MAINTENANCE/HOISTING - STANDARD PRO-
CEDURE)

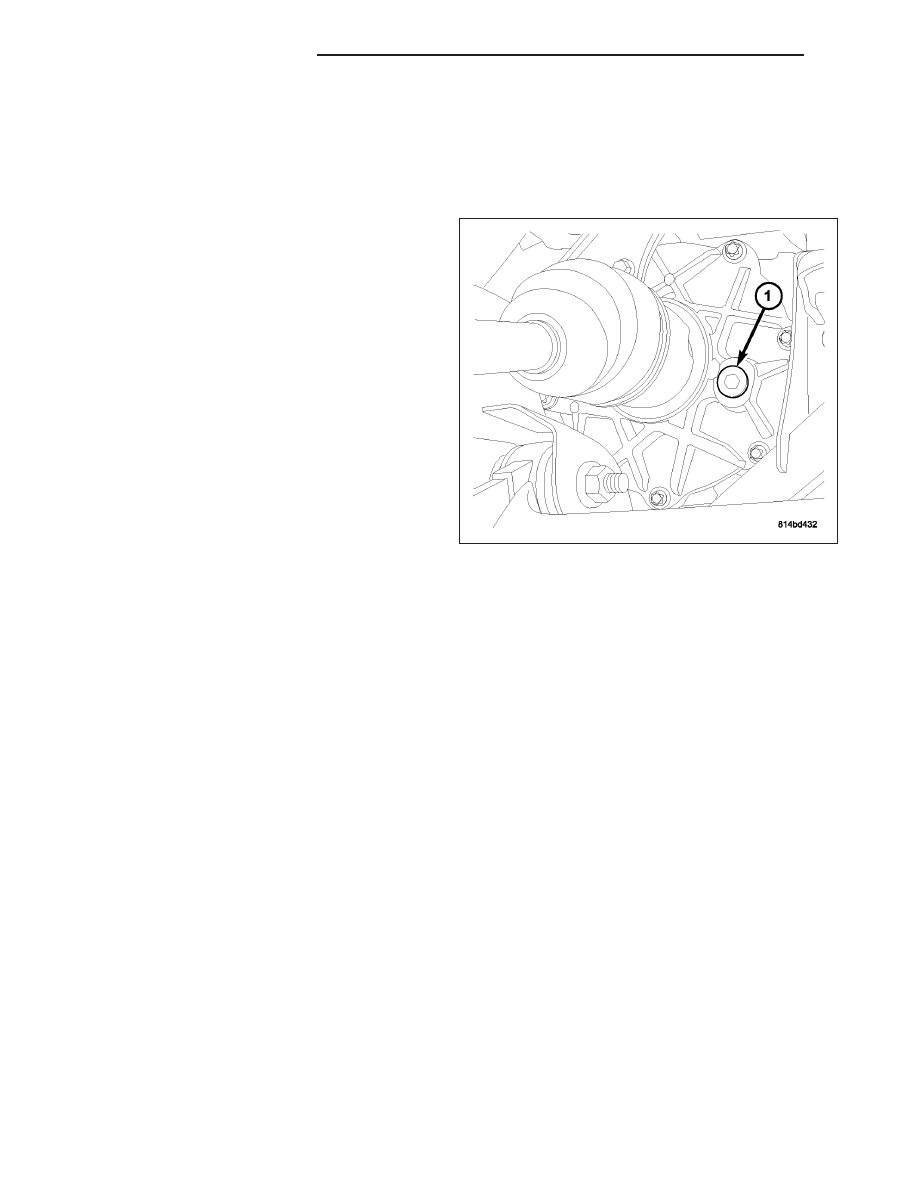

2. Remove axle fill plug (1).

3. Fill axle with 600ml (0.64 qts.) of Mopar

T

75W-90

Synthetic Gear Lubricant. Fluid should be within
3/16” of bottom of fill hole.

3 - 102

FRONT AXLE - 175 FIA

LX

SEAL-PINION

REMOVAL

1. Remove propeller shaft and heat shield. (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT -

REMOVAL)

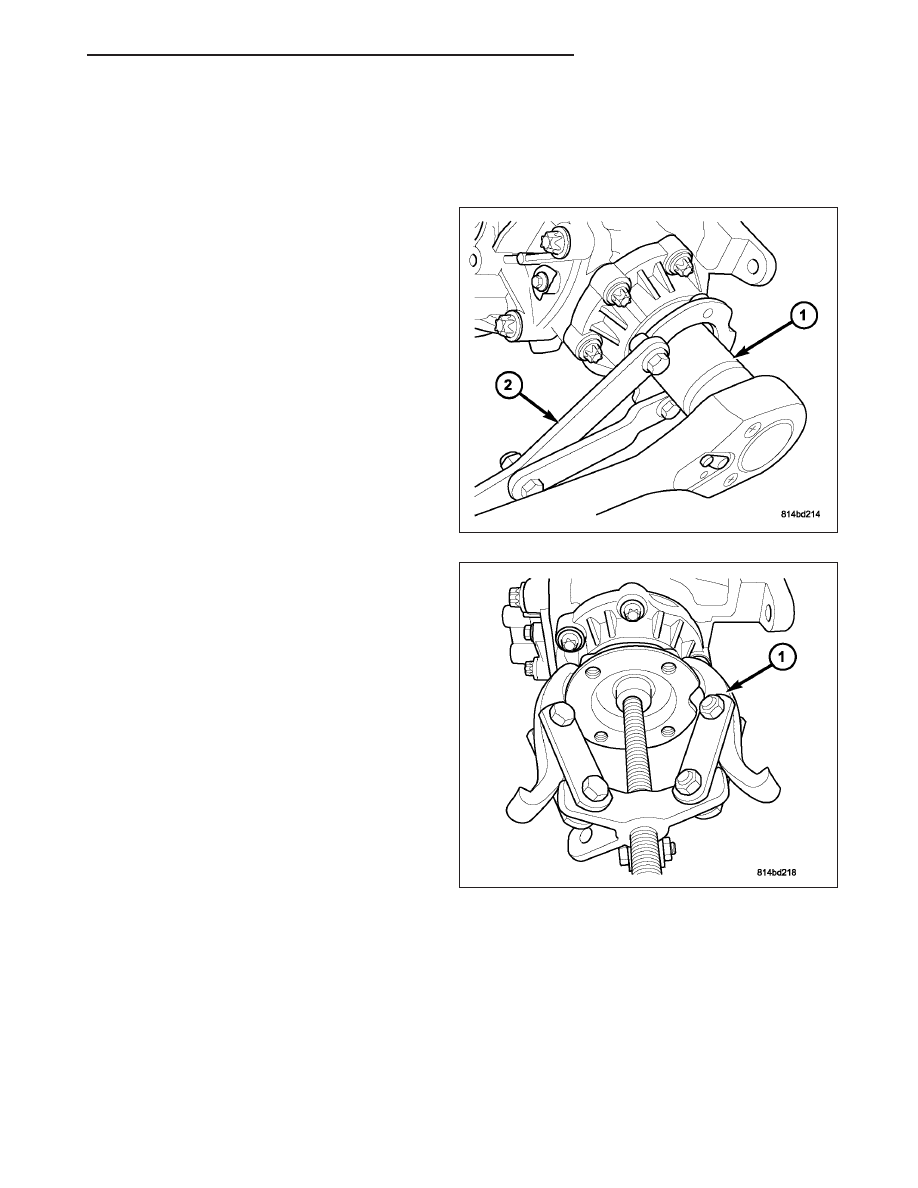

2. Using Tool 6958 (2), remove pinion flange nut.

3. Using Puller 1026 (1), remove pinion flange.

LX

FRONT AXLE - 175 FIA

3 - 103
