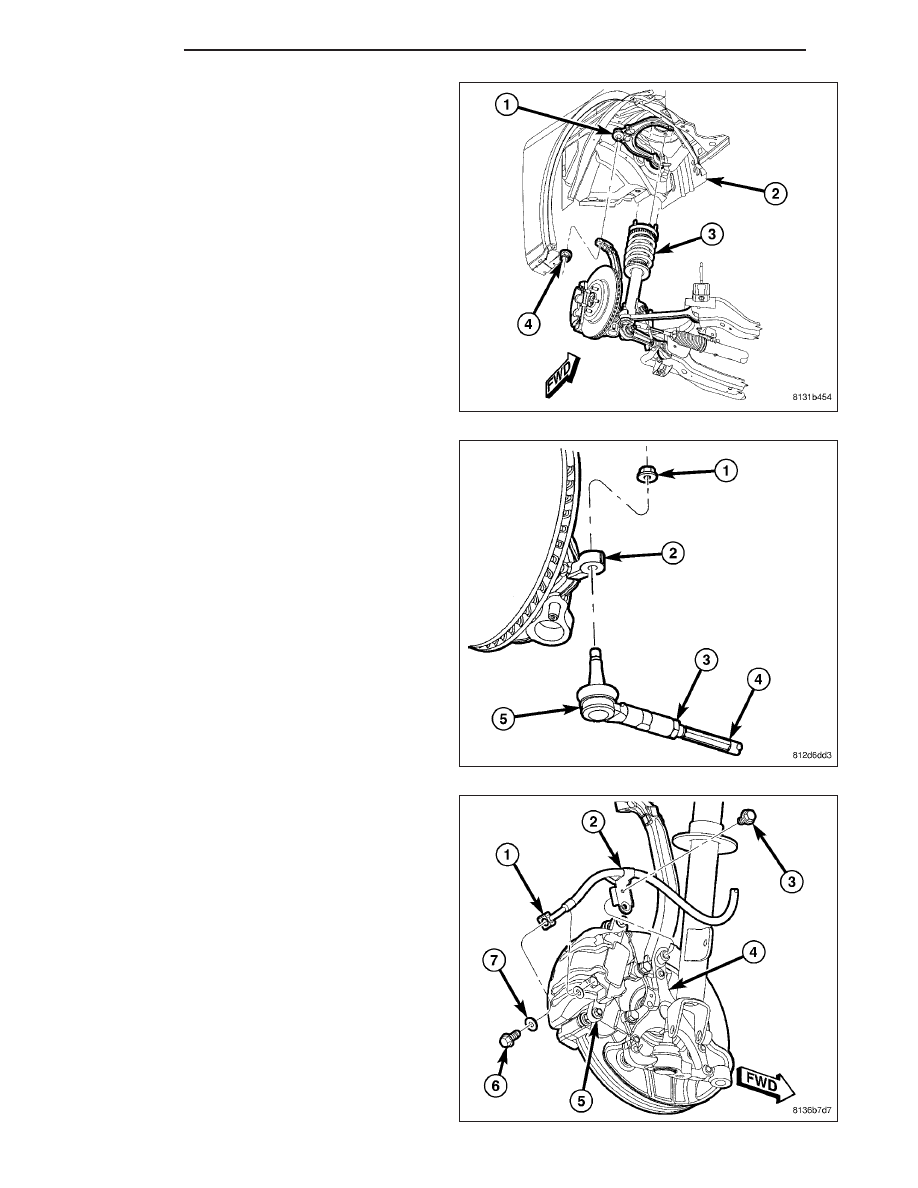

CAUTION: It is important to tighten nut as described in following step to avoid damaging ball 6. Place upper ball joint stud (1) through hole in top of knuckle and install nut (4). Tighten nut by holding CAUTION: It is important to tighten nut as described in following step to avoid damaging ball 7. Place outer tie rod stud through hole in knuckle (2) and install nut (1). Tighten nut by holding stud with 8. Install brake rotor, then disc brake caliper and adapter assembly. (Refer to 5 - BRAKES/HYDRAU- 9. Install screw (3) fastening brake flex hose routing bracket (2) to knuckle (4). Tighten screw to 12 N·m 2 - 34 FRONT LX |
