ALTERNATOR/POWER STEERING PUMP BELT

The Poly-V alternator/power steering pump belt is

provided with a dynamic tensioner (Fig. 5) to maintain

proper belt tension. To remove or install this belt, apply
force in a clockwise direction to the tensioner pulley
bolt (Fig. 5).

3.3L ENGINE ACCESSORY DRIVE BELT
REMOVE/INSTALL

ALTERNATOR, POWER STEERING PUMP, AIR
CONDITIONING COMPRESSOR AND WATER
PUMP DRIVE BELT

The Poly-V Drive belt is provided with a dynamic

tensioner (Fig. 6) to maintain proper belt tension. To
remove or install this belt.

(1) Raise vehicle on hoist.
(2) Remove right front splash shield.
(3) Release tension by rotating the tensioner clock-

wise (Fig. 6).

(4) Reverse above procedure to install.

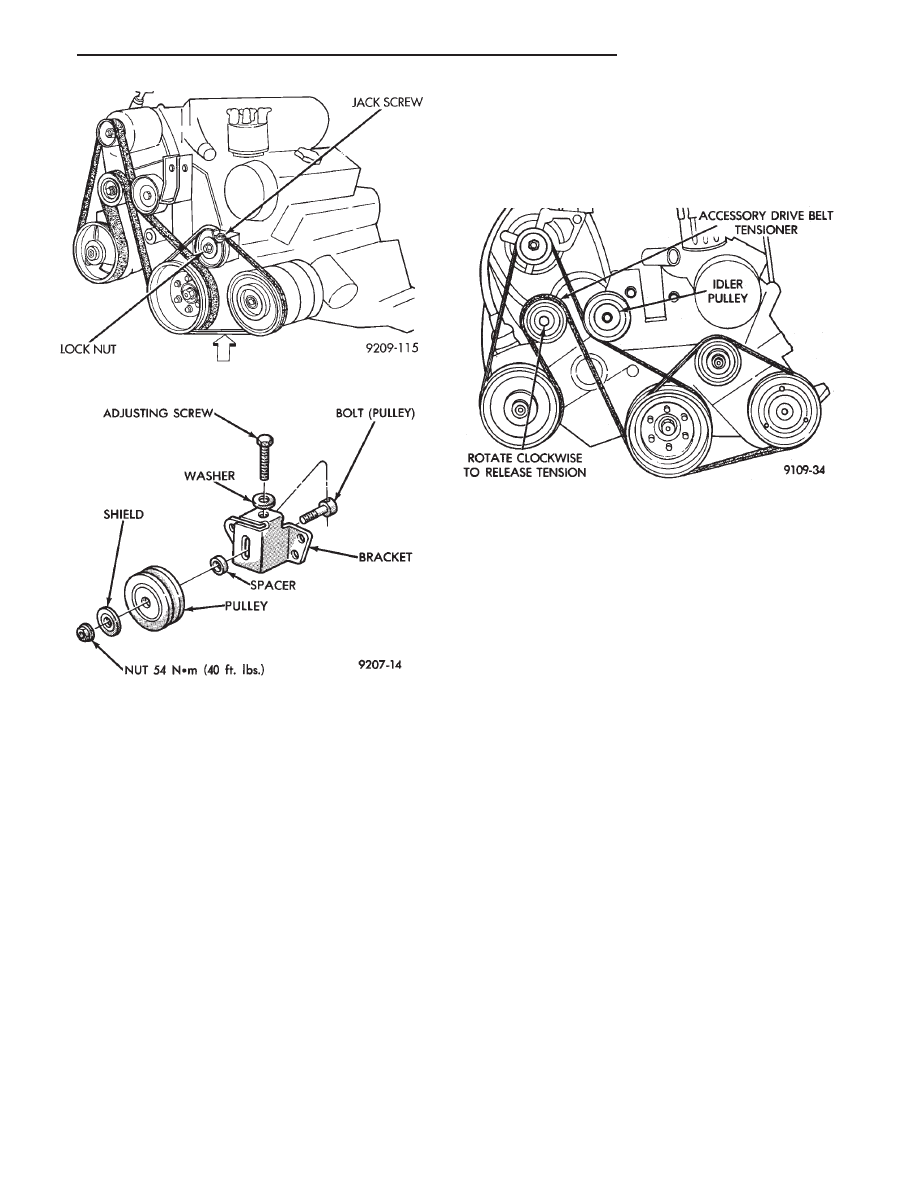

Fig. 3 Accessory Drive Belts—3.0L Engine

Fig. 4 Air Conditioning Belt Idler

Fig. 5 Release Belt Tensioner

.

COOLING SYSTEM

7 - 25

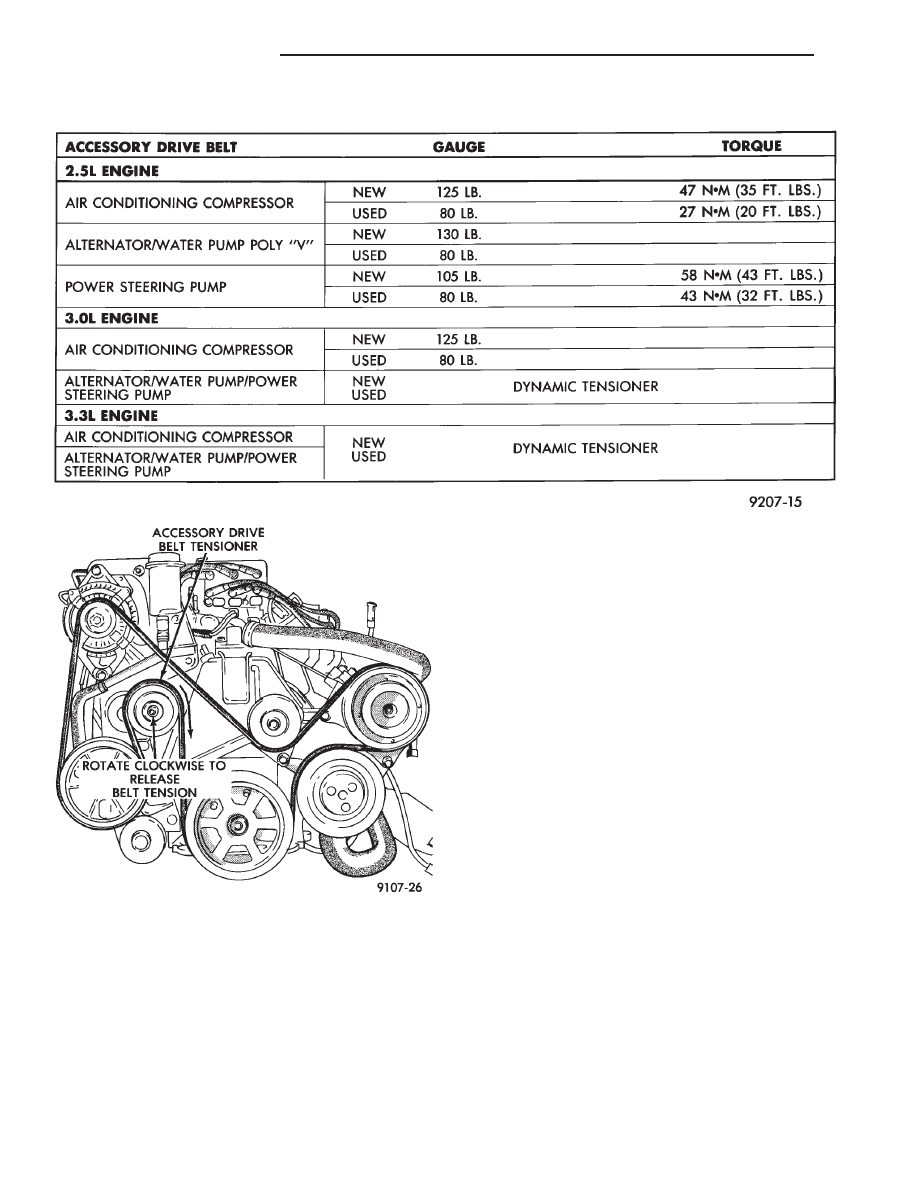

BELT TENSION CHART

Fig. 6 Accessory Drive Belt—3.3L Engine

7 - 26

COOLING SYSTEM

.

ENGINE BLOCK HEATER

DESCRIPTION AND OPERATION

On all models an engine block heater is available as

an optional accessory. The heater is operated by ordi-
nary house current (110 Volt A.C.) through a power
cord located behind the radiator grille. This provides
easier engine starting and faster warm-up when ve-
hicle is operated in areas having extremely low tem-
peratures. The heater is mounted in a core hole (in
place of a core hole plug) in the engine block, with the
heating element immersed in coolant (Fig. 7).

The power cord must be secured in its retainer

clips, and not positioned so it could contact link-
ages or exhaust manifolds and become damaged.

If unit does not operate, trouble can be in either the

power cord or the heater element. Test power cord for
continuity with a 110-volt voltmeter or 110-volt test
light; test heater element continuity with an ohmmeter
or 12-volt test light.

REMOVAL

(1) Drain coolant from radiator and cylinder block.

Refer to Cooling System Drain, Clean, Flush and Refill
of this section for procedure.

(2) Detach power cord plug from heater.
(3) Loosen screw in center of heater. Remove heater

assembly.

INSTALLATION

(1) Thoroughly clean core hole and heater seat.
(2) Insert heater assembly with element loop posi-

tioned upward.

(3) With heater seated, tighten center screw securely

to assure a positive seal.

(4) Fill cooling system with coolant to the proper

level, vent air, and inspect for leaks. Pressurize system
with Radiator Pressure Tool before looking for leaks.

.

COOLING SYSTEM

7 - 27

Fig.

7

2.5L,

3.0L

and

3.3L

Engines

Block

Heater

Assembly

7 - 28

COOLING SYSTEM

.
