(2) Remove screw holding hood release handle to

mechanism. Separate handle from mechanism.

(3) Remove screws holding release mechanism to

seat riser. Separate mechanism from riser.

(4) Disengage cable casing from slot on mechanism.
(5) Remove nut holding cable end to fuel fill opening.
(6) Remove cable from vehicle.

FUEL FILL DOOR CABLE INSTALLATION

Reverse the preceding operation.

REAR WINDOW GLASS

The rear window glass is serviced using the same

method as servicing the windshield. Refer to Wind-
shield section of this group for proper service proce-
dures.

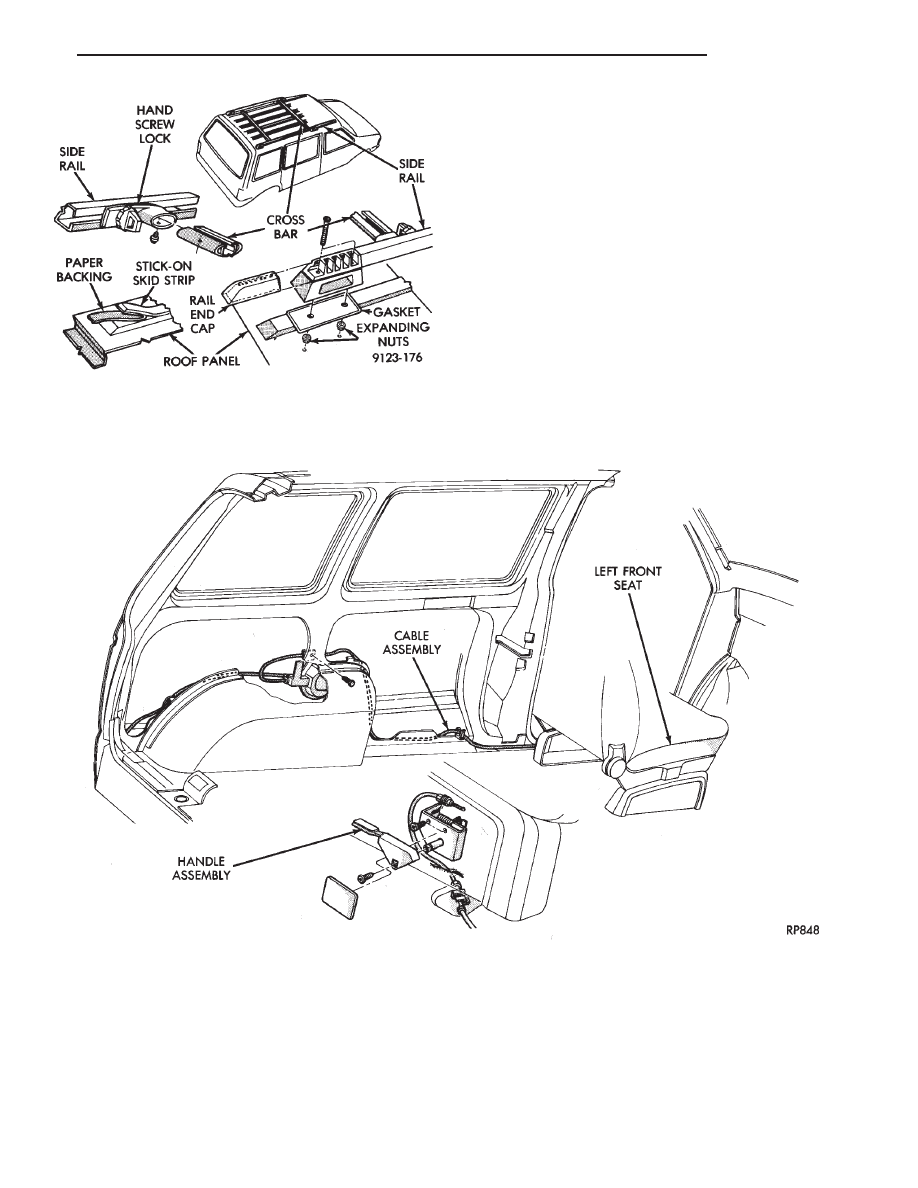

Fig. 53 Roof Top Luggage Rack

Fig. 54 Fuel Fill Door Release Cable

.

BODY

23 - 43

HEATING AND AIR CONDITIONING

CONTENTS

page

page

AUXILIARY REAR HEATING OR HEATING-AIR/

CONDITIONING

. . . . . . . . . . . . . . . . . . . . . . . 50

COMPONENT DIAGNOSIS PROCEDURES

. . . . 38

COMPONENT SERVICE PROCEDURES . . . . . . . 41
FIXED DISPLACEMENT COMPRESSOR AND

COMPONENTS DIAGNOSTIC PROCEDURES

13

FIXED DISPLACEMENT COMPRESSOR SERVICE

PROCEDURES

. . . . . . . . . . . . . . . . . . . . . . . . 32

GENERAL INFORMATION

. . . . . . . . . . . . . . . . . . 1

HEATER AND A/C PERFORMANCE TESTS

. . . . 19

REFRIGERANT SERVICE PROCEDURES . . . . . . 22
VACUUM CONTROL SYSTEM DIAGNOSIS . . . . 18
VARIABLE COMPRESSOR AND COMPONENTS

DIAGNOSTIC PROCEDURES

. . . . . . . . . . . . . . 4

VARIABLE DISPLACEMENT COMPRESSOR SER-

VICE PROCEDURES

. . . . . . . . . . . . . . . . . . . . 27

GENERAL INFORMATION

INDEX

page

page

A/C System Identification

. . . . . . . . . . . . . . . . . . . . 1

Cooling System Precautions

. . . . . . . . . . . . . . . . . . 3

Description and Operation

. . . . . . . . . . . . . . . . . . . 1

Engine Cooling System Requirements

. . . . . . . . . . 2

Handling Tubing and Fittings

. . . . . . . . . . . . . . . . . 3

Safety Precautions and Warnings

. . . . . . . . . . . . . . 2

Side Window Demisters

. . . . . . . . . . . . . . . . . . . . . 2

System Airflow

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

A/C SYSTEM IDENTIFICATION

The terms Fixed Displacement Compressor and Vari-

able Displacement Compressor are used to describe the
two types of A/C systems used throughout this Group.
Refer to (Figs. 1 and 2).

The Variable Displacement Compressor can be iden-

tified by the location of the high pressure line. It is
mounted to the end of the compressor case (Fig. 2).

DESCRIPTION AND OPERATION

Both the heater and the heater/air conditioning sys-

tems share many of the same components. This Group
will deal with both systems together when component
function is common, and separately when they are not.

For proper operation of the instrument panel con-

trols, refer to the Owner’s Manual provided with the
vehicle.

All vehicles are equipped with a common A/C-heater

unit housing assembly. When the vehicle has only a
heater system, the evaporator and recirculating air
door are omitted from the heater unit housing assem-
bly (Fig. 3).

SYSTEM AIRFLOW

The system pulls outside (ambient) air through the

cowl opening at the base of the windshield. Then it goes
into the plenum chamber above the A/C-heater unit

housing. On air-conditioned vehicles, the air passes
through

the

evaporator. At

this

point

the

air

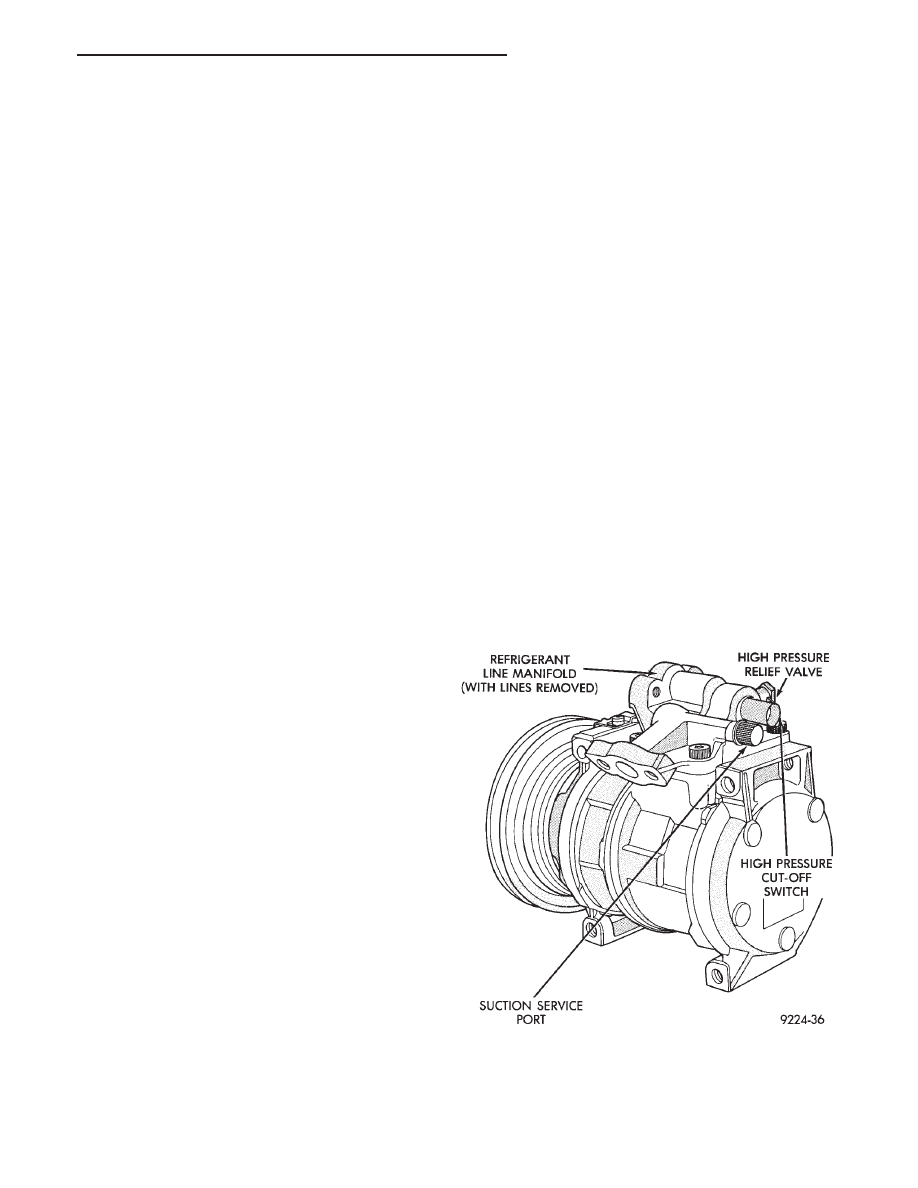

Fig. 1 Fixed Displacement Compressor—Model

10PA17

.

HEATING AND AIR CONDITIONING

24 - 1

flow can be directed either through or around the
heater core. This is done by adjusting the blend-air
door with the TEMP control on the instrument panel.
The air flow can then be directed from the PANEL,
BI-LEVEL (panel and floor), and FLOOR-DEFROST
outlets. Air flow velocity can be adjusted with the
blower speed selector switch on the instrument panel
(Fig. 4).

On air-conditioned vehicles, ambient air intake can

be shut off by closing the recirculating air door to
recirculate the air that is already inside the vehicle.
This is done by moving the TEMP control into the
RECIRC position. Depressing the DEFROST or A/C
button will engage the compressor. This will send
refrigerant through the evaporator, and will remove
heat and humidity from the air before it is directed
through or around the heater core.

SIDE WINDOW DEMISTERS

The side window demisters direct air from the heater

assembly. The outlets are located on the top outboard
corners of the instrument panel. The Demisters oper-
ate when the A/C control mode selector is on FLOOR,
DEFROST or BI-LEVEL setting.

ENGINE COOLING SYSTEM REQUIREMENTS

To maintain adequate temperature levels from the

heating/air-conditioning system, the engine cooling
system must be in proper working order. Refer to
Group 0, Lubrication and Maintenance, or Group 7,
Cooling System of this manual.

The use of a bug screen is not recommended. Any

obstructions forward of the radiator or condenser can
reduce the effectiveness of the air-conditioning or en-
gine cooling system.

SAFETY PRECAUTIONS AND WARNINGS

WARNING: WEAR EYE PROTECTION WHEN SERVIC-
ING THE AIR-CONDITIONING REFRIGERANT SYS-
TEM. SERIOUS EYE INJURY CAN RESULT FROM EYE
CONTACT WITH REFRIGERANT. IF EYE CONTACT IS
MADE, SEEK MEDICAL ATTENTION IMMEDIATELY.

DO NOT EXPOSE REFRIGERANT TO OPEN FLAME.

POISONOUS GAS IS CREATED WHEN REFRIGER-
ANT IS BURNED. AN ELECTRONIC TYPE LEAK DE-
TECTOR IS RECOMMENDED.

LARGE AMOUNTS OF REFRIGERANT RELEASED

IN A CLOSED WORK AREA WILL DISPLACE THE
OXYGEN AND CAUSE SUFFOCATION.

THE EVAPORATION RATE OF (R-12) REFRIGER-

ANT AT AVERAGE TEMPERATURE AND ALTITUDE IS
EXTREMELY HIGH. AS A RESULT, ANYTHING THAT
COMES IN CONTACT WITH THE REFRIGERANT WILL
FREEZE. ALWAYS PROTECT SKIN OR DELICATE
OBJECTS FROM DIRECT CONTACT WITH REFRIG-
ERANT.

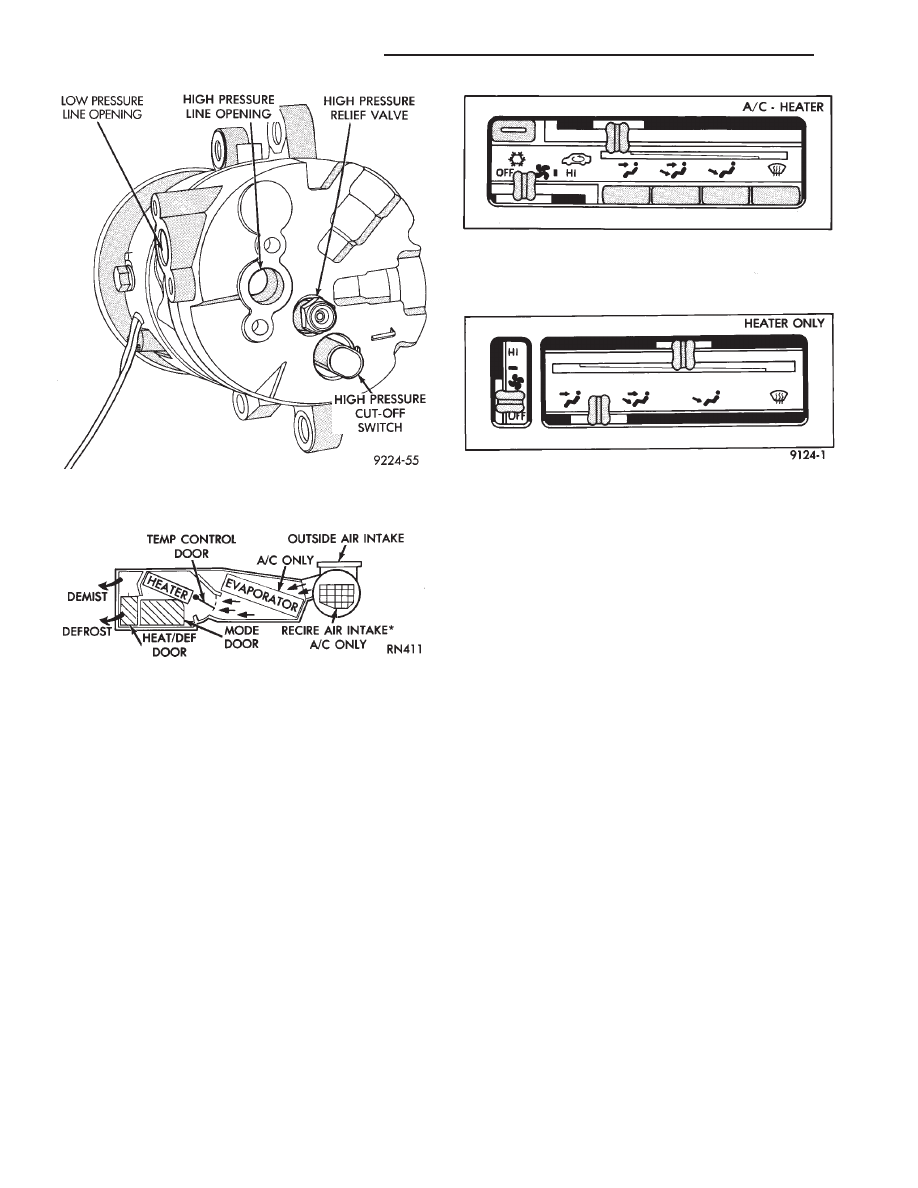

Fig. 2 Variable Displacement Compressor—Model

6C17

Fig. 3 Common Blend-Air Heater A/C System

Fig. 4 Heater only or Heater—A/C Controls

24 - 2
