(2) Remove windshield wiper arms. Refer to Group

8K, Electrical/Windshield Wipers and Washers for
proper procedures.

(3) Remove screws holding cowl cover to cowl panel

below windshield.

(4) Separate cowl cover from vehicle.

COWL COVER INSTALLATION

Reverse the preceding operation.

FRONT END SPLASH SHIELDS

FRONT WHEELHOUSE SPLASH SHIELD RE-
MOVAL (FIG. 10)

(1) Remove rear engine compartment splash shield.
(2) Remove bolts holding wheelhouse splash shield

to front frame member.

(3) Remove push-in fasteners holding wheelhouse

splash shield to front fender wheel lip and upper
suspension tower.

(4) Separate wheelhouse splash shield from vehicle.

FRONT WHEELHOUSE SPLASH SHIELD IN-
STALLATION

Reverse the preceding operation.

ENGINE DRIVE BELT SPLASH SHIELD RE-
MOVAL (FIG. 10)

(1) Remove wheelhouse splash shield as necessary

to gain access to engine drive belt splash shield.

(2) Remove screws holding engine drive belt splash

shield to front frame member.

(3) Separate splash shield from vehicle.

ENGINE DRIVE BELT SPLASH SHIELD INSTAL-
LATION

Reverse the preceding operation.

REAR ENGINE COMPARTMENT SPLASH SHIELD

REAR ENGINE COMPARTMENT SPLASH
SHIELD REMOVAL (FIG. 10)

(1) Remove bolt holding rear engine compartment

splash shield to frame side member.

(2) Remove push-in fastener holding rear engine

compartment splash shield to wheelhouse splash
shield.

(3) Separate splash shield from vehicle.

REAR ENGINE COMPARTMENT SPLASH
SHIELD INSTALLATION

Reverse the preceding operation.

TRANSAXLE SPLASH SHIELD

REMOVAL (FIG. 11)

(1) Remove front wheelhouse splash shield as neces-

sary to gain access to transaxle splash shield.

(2) Remove screws holding transaxle splash shield

to front frame member.

(3) Separate splash shield from vehicle.

INSTALLATION

Reverse the preceding operation.

FRONT FENDER

REMOVAL (FIG. 12)

(1) Remove grille and headlamp assembly.
(2) Remove wheelhouse splash shield.
(3) Remove bolts holding jack hoisting pad to under

body and separate pad from vehicle.

(4) Remove bolts holding fender to hinge pillar from

inside wheel opening.

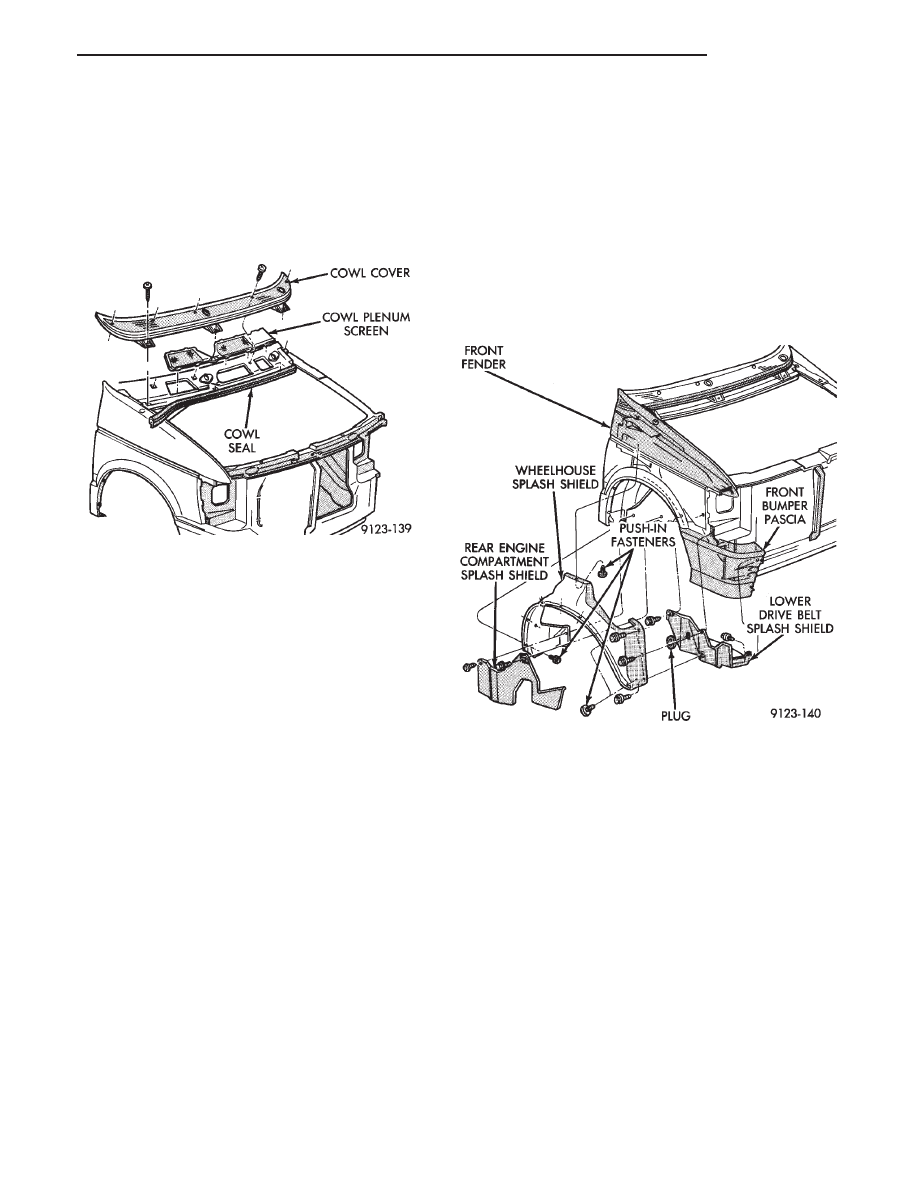

Fig. 9 Cowl Cover and Seal

Fig. 10 Front End Splash Shields

.

BODY

23 - 23

(5) Remove bolt holding fender to rocker panel.
(6) Remove bolts holding fender to lower radiator

closure panel.

(7) Remove bolts holding fender to cowl side panel.
(8) Cut adhesive holding support brace to fender

near upper door hinge, if equipped.

(9) Separate fender from vehicle.

FRONT FENDER INSTALLATION

Reverse the preceding operation. Align front fender

to 6 mm (0.240 in.) to forward edge of door and 4 mm
(0.160) to edge of hood. All surfaces across gaps should
be flush.

FRONT DOOR TRIM PANEL

REMOVAL (FIG. 13)

(1) Lower door glass.
(2) Disconnect battery negative cable if equipped

with power windows.

(3) Remove screw holding door latch handle bezel to

door trim panel. Separate bezel from door.

(4) Remove screw holding upper door trim to side

view mirror frame.

(5) Remove plugs and screws holding trim to door

from above map pocket.

(6) Remove plug and screw holding bottom rearward

edge of trim to door.

(7) Remove plugs and screws holding arm rest to

door panel.

(8) Remove screw holding window crank to regulator

and separate crank from door, if equipped.

(9) Disengage trim clips holding trim panel to perim-

eter door inner panel.

(10) Lift trim panel upward to disengage barb clips

at top of trim panel.

(11) Disconnect courtesy lamp, power lock switch

and power window switch wire connectors, if equipped.

(12) Separate trim panel from door.

FRONT DOOR TRIM PANEL INSTALLATION

Reverse the preceding operation.

FRONT DOOR AND HINGE

The front door hinge is welded to the door and bolted

to the hinge pillar. The door half of the hinge pivots on
a removable hinge pin. The hinge pin is driven in from
the bottom on the top hinge and from the top on the
bottom hinge. All adjustments to the hinge are per-
formed on the hinge pillar half of the hinge. If the
welded half of the hinge must be bent to align door,
consult an authorized body repair facility.

FRONT DOOR REMOVAL (FIG. 14)

(1) Remove door trim panel, silencer pad, and water

shield.

(2) Disconnect all wire connectors and wire harness

hold downs inside door and push wire harness through
access hole in front of door into hinge pillar opening.

(3) Open door and support door on a suitable lifting

device.

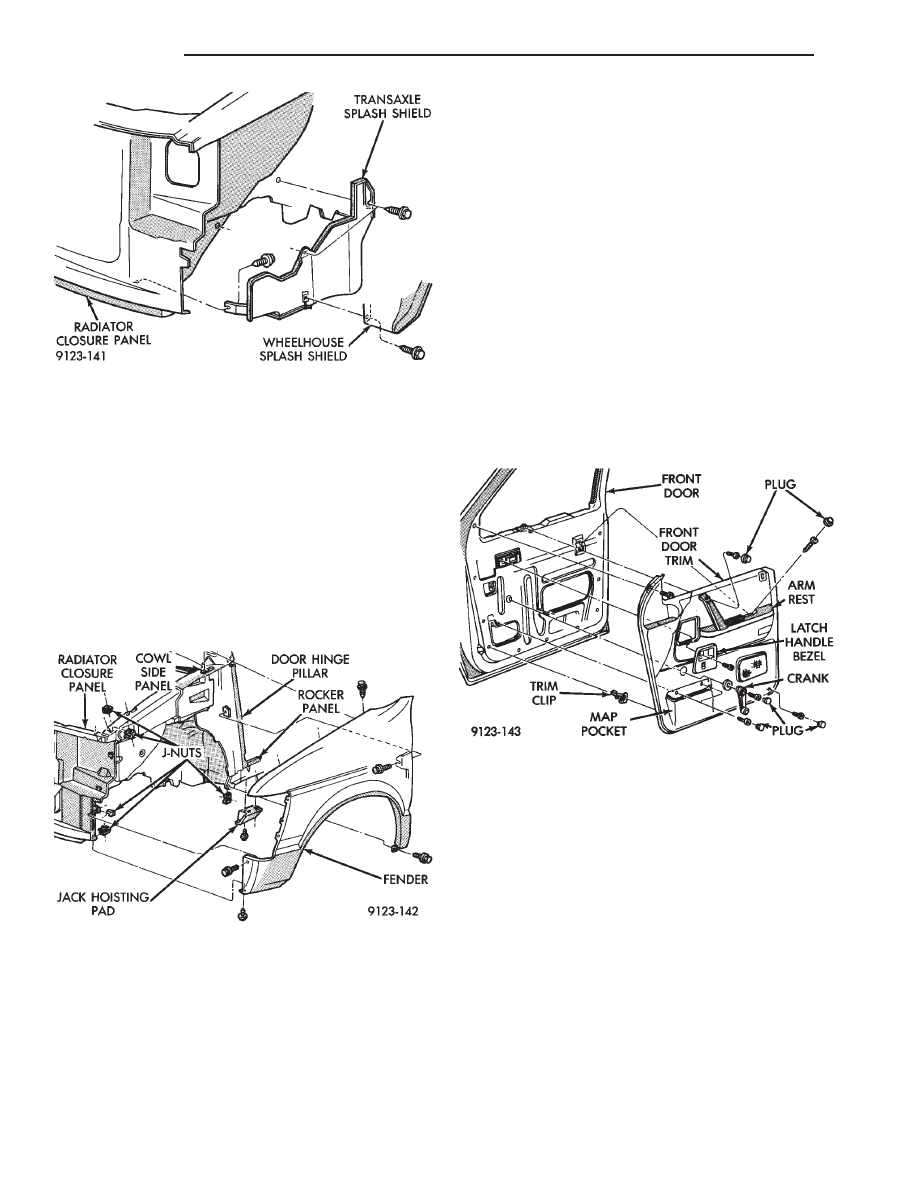

Fig. 11 Transaxle Splash Shield

Fig. 12 Front Fender

Fig. 13 Front Door Trim Panel

23 - 24

BODY

.

(4) Drive bottom hinge pin upward and remove pin

from hinge.

(5) Drive top hinge pin downward and remove pin

from hinge.

(6) Separate door from vehicle.

FRONT DOOR INSTALLATION

Reverse the preceding operation. The door should not

require re-alignment. If door does need alignment,
refer to Front Door Hinge Installation paragraph in
this section.

FRONT DOOR HINGE REMOVAL (FIG. 14)

(1) Remove front fender wheelhouse splash shield.

Refer to Front Wheelhouse Splash Shield Removal
paragraph in this section.

(2) Support door on a suitable lifting device.
(3) Drive out hinge pin on the effected hinge.
(4) Remove bolts holding hinge to hinge pillar and

separate hinge form vehicle.

FRONT DOOR HINGE INSTALLATION

Reverse the preceding operation. Align door to

achieve 6 mm (0.240 in.) gap to all surrounding panels
and flush across gaps.

OUTSIDE FRONT DOOR LATCH RELEASE HANDLE

REMOVAL (FIG. 15)

(1) Remove door trim panel and water shield as

necessary to gain access to outside door handle.

(2) Disconnect lock cylinder linkage from door latch.
(3) Disconnect latch release linkage from door latch.
(4) Disconnect illuminated entry switch wire connec-

tor.

(5) Remove nut holding outside handle retaining

bracket to door panel and separate bracket from door.

(6) Lift lock cylinder linkage upward to parallel back

of outside handle.

(7) Separate outside handle from door.

INSTALLATION

Reverse the preceding operation.

FRONT DOOR LATCH

REMOVAL (FIG. 16)

(1) Remove door trim panel and water shield as

necessary to gain access to door latch.

(2) Disconnect all linkage rods from latch.
(3) Disconnect power door lock actuator wire connec-

tor.

(4) Remove screws holding latch to door end frame.
(5) Separate door latch from door.

INSTALLATION

Reverse the preceding operation.

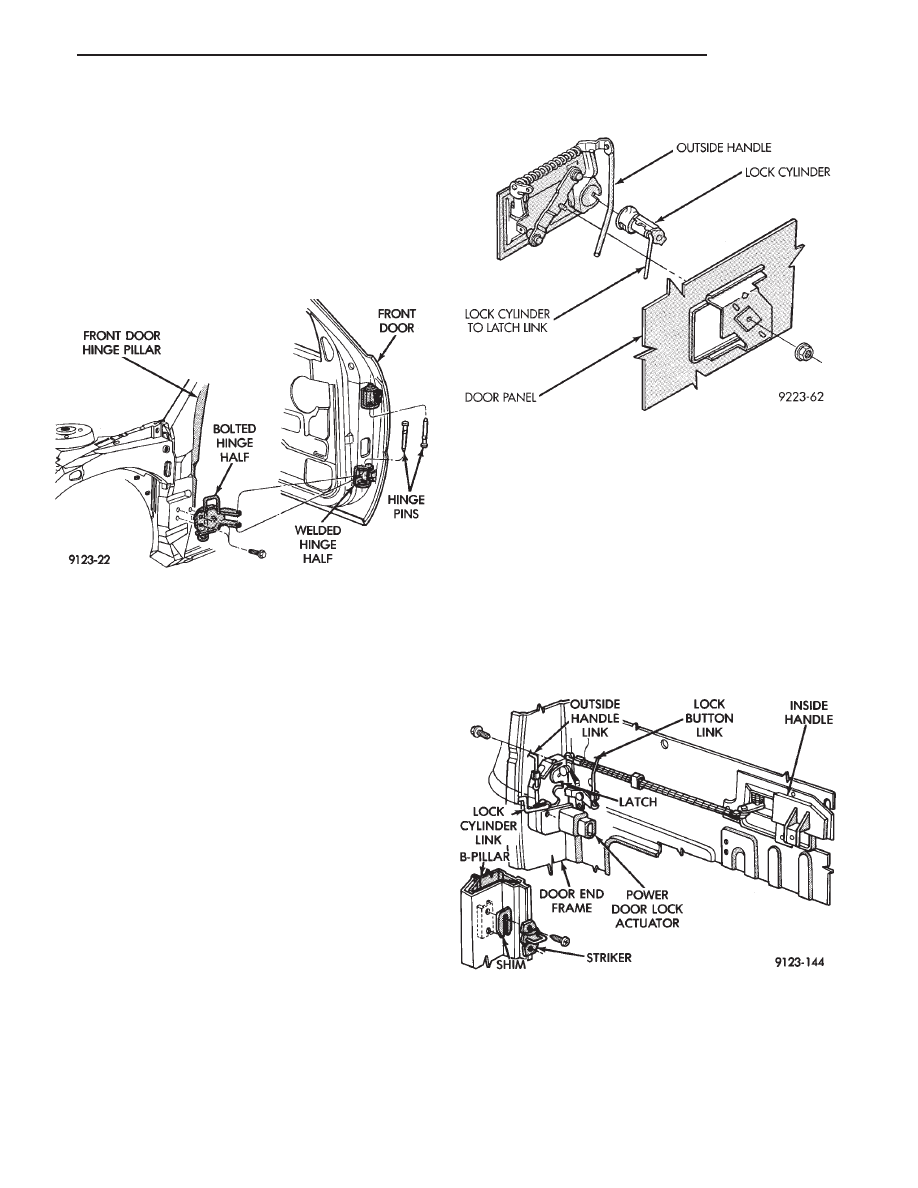

Fig. 14 Front Door—Typical

Fig. 15 Outside Door Latch Release Handle

Fig. 16 Front Door Latch

.

BODY

23 - 25

FRONT DOOR SIDE VIEW MIRROR

REMOVAL (FIG. 17)

(1) Remove door trim panel and water shield as

necessary to gain access to side view mirror.

(2) Disconnect power side view mirror wire connec-

tor, if equipped.

(3) Remove nuts holding side view mirror to door

frame.

(4) Separate mirror from door.

INSTALLATION

Reverse the preceding operation.

FRONT DOOR GLASS

REMOVAL (FIG. 18)

(1) Remove front door trim panel and water shield.
(2) Raise glass to align attaching nuts to access holes

in inner door panel.

(3) Remove nuts holding door glass to window regu-

lator lift plate.

(4) Separate glass from lift plate.
(5) Lift glass upward through opening at top of door.

INSTALLATION

Reverse the preceding operation. To align glass,

install attaching nuts hand tight allowing glass to slide
on lift plate. Raise glass to full up position. Secure
glass attaching nuts.

FRONT DOOR BELT MOLDING AND
WEATHERSTRIP—VAN

REMOVAL (FIG. 19)

(1) Remove door glass.
(2) Remove side view mirror.
(3) Remove screws holding belt molding and weath-

erstrip to door panel.

(4) Separate belt molding and weatherstrip from

door.

INSTALLATION

Reverse the preceding operation.

FRONT DOOR FRAME REAR MOLDING—VAN

REMOVAL (FIG. 19)

(1) Remove belt molding and weatherstrip as neces-

sary to clear door frame molding removal path.

(2) Remove glass run weatherstrip to gain access to

molding clips.

(3) Disengage clips holding door frame molding to

door frame.

(4) Separate molding from door.

INSTALLATION

Reverse the preceding operation.

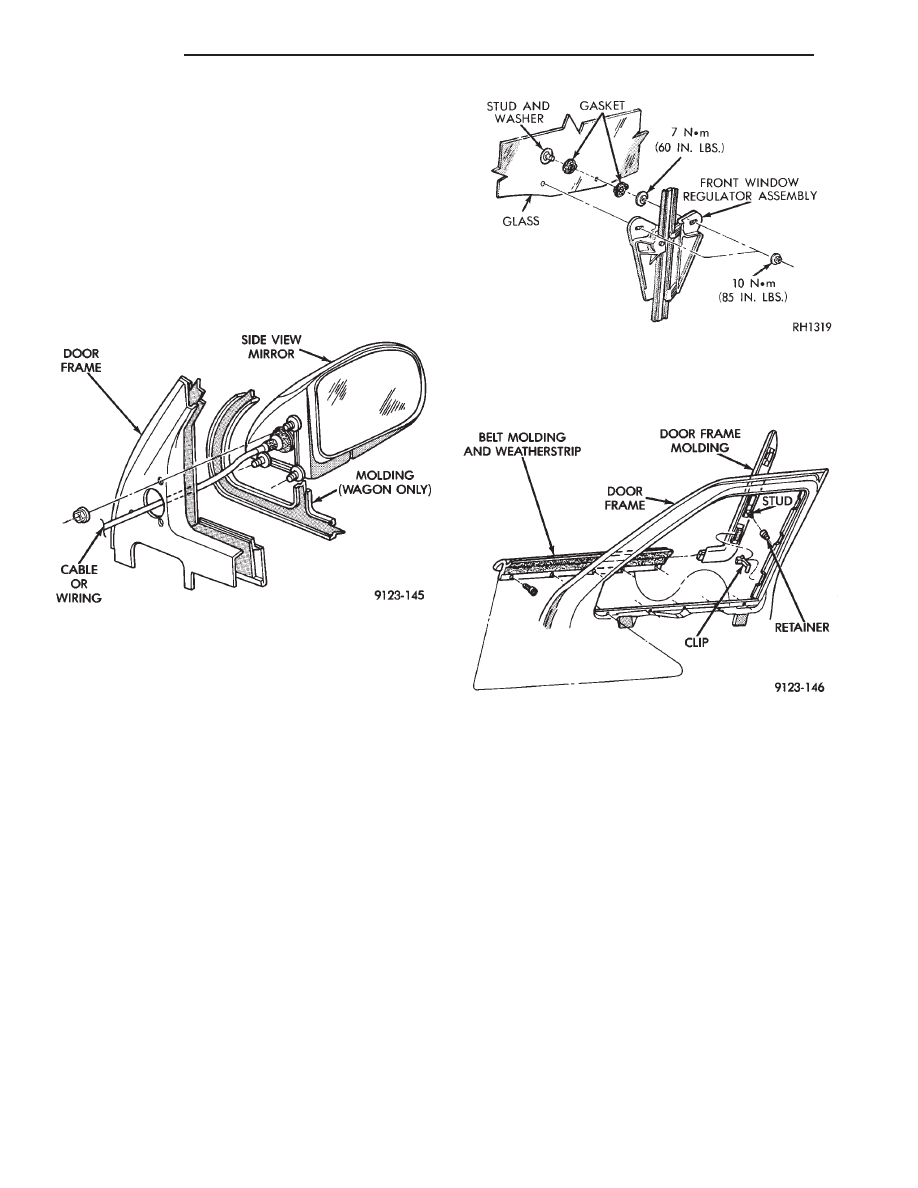

Fig. 17 Side View Mirror

Fig. 18 Front Door Glass

Fig. 19 Belt Molding and Weatherstrip—Van Only
