Chevrolet Silverado / GMC Sierra. Manual - part 943

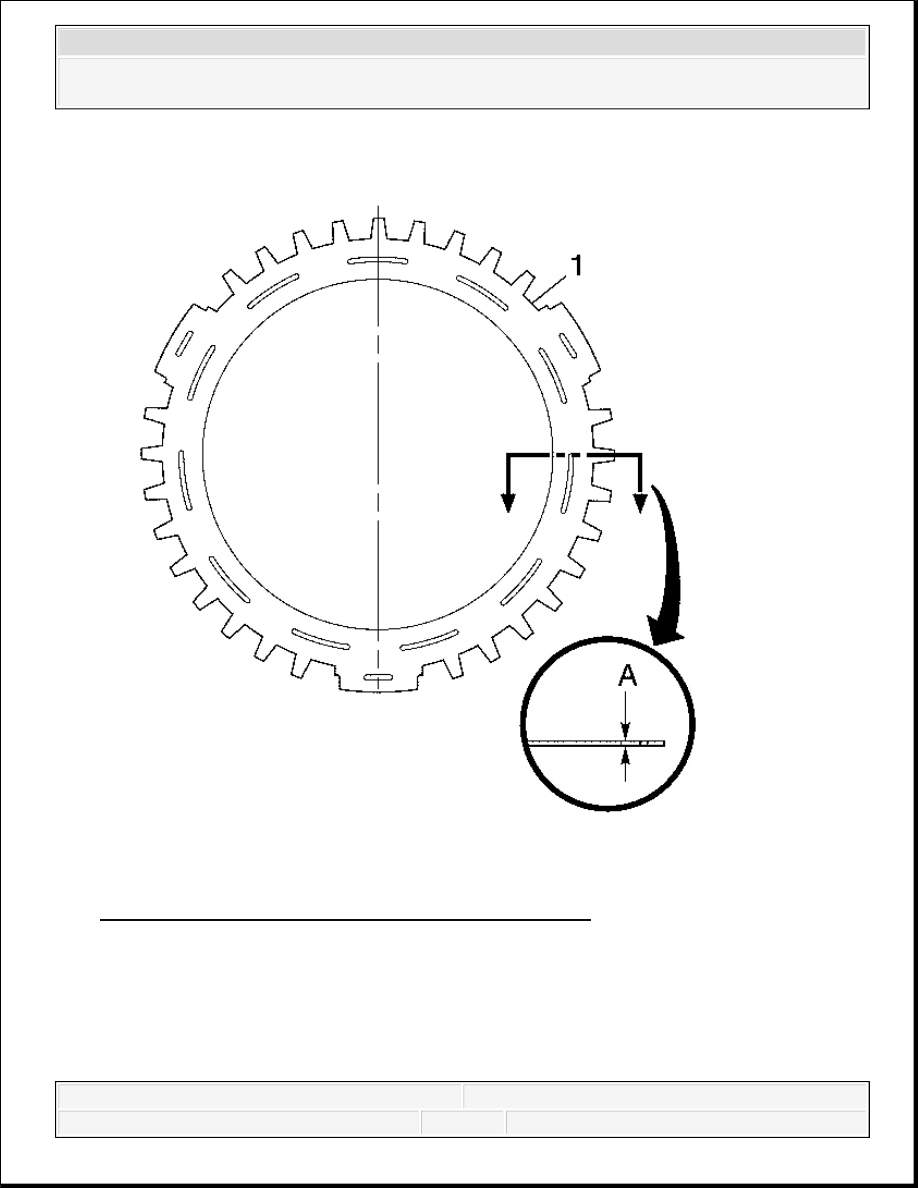

Fig. 345: Measuring Thickness Of Clutch Steel Plate
Courtesy of GENERAL MOTORS CORP.
4. Measure the thickness of each 2-6 clutch steel plate (1) at dimension A.
Specification: The 2-6 clutch steel plate minimum thickness is 2.44 mm (0.096 in).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

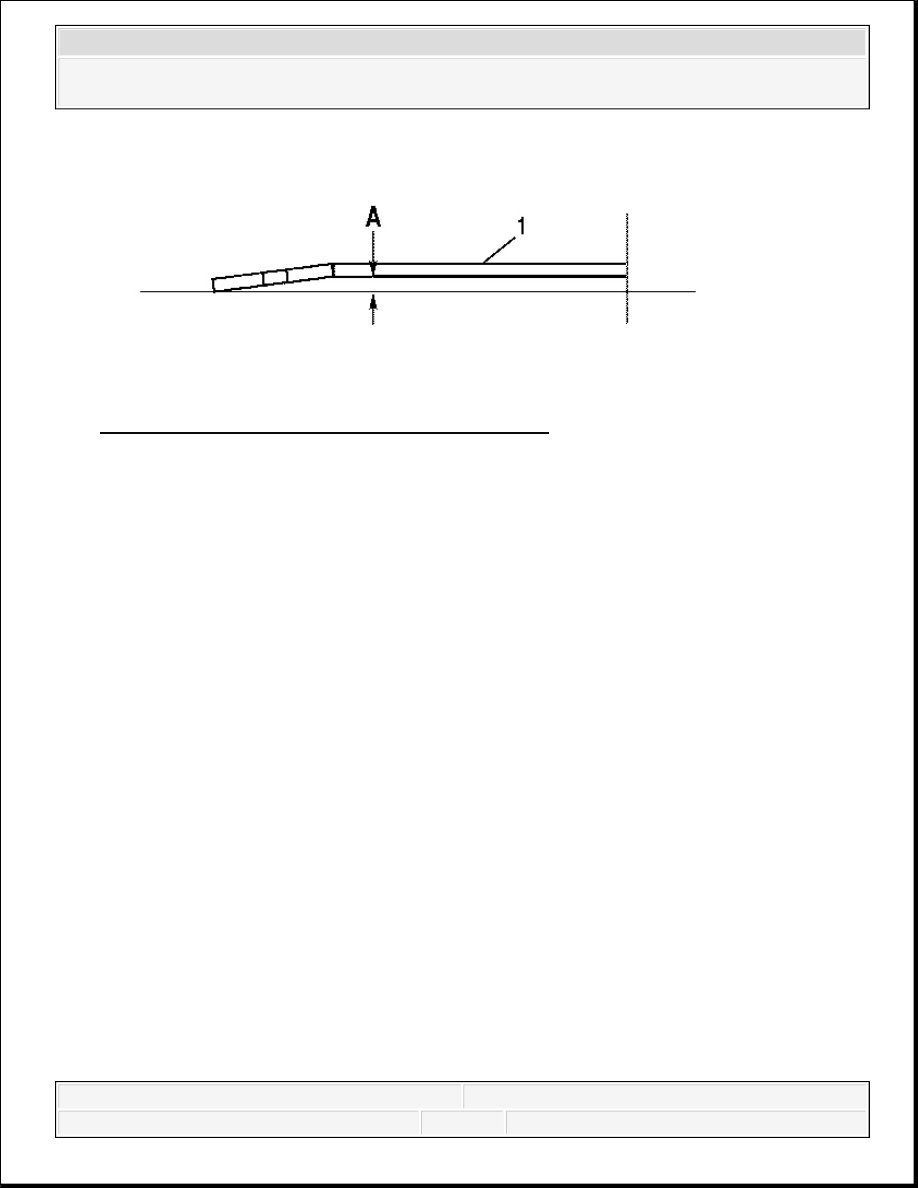

Fig. 346: Measuring Cone Of Clutch Steel Plate
Courtesy of GENERAL MOTORS CORP.
5. Measure the cone of each 2-6 clutch steel plate (1) at dimension A.
Specification: The 2-6 clutch steel plate maximum cone is 0.4 mm (0.0157 in).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

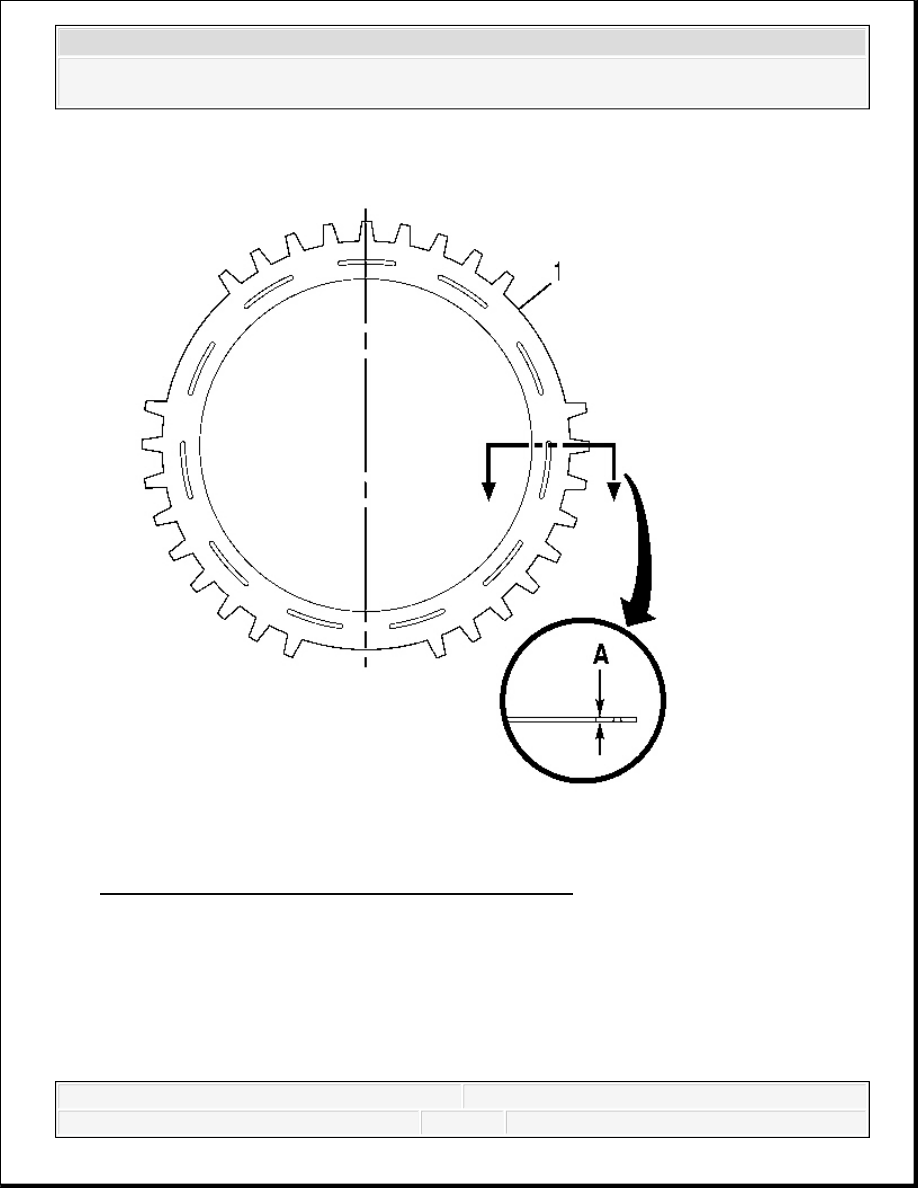

Fig. 347: Measuring Thickness Of Clutch Spring Plate
Courtesy of GENERAL MOTORS CORP.
6. Measure the thickness of the 2-6 clutch spring plate (1) at dimension A.
Specification: The 2-6 clutch spring plate minimum thickness is 3.11 mm (0.1224 in).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 348: Measuring Cone Of Clutch Spring Plate
Courtesy of GENERAL MOTORS CORP.
7. Measure the cone of the 2-6 clutch spring plate (1) at dimension A.
Specification: The 2-6 clutch spring plate maximum cone is 0.4 mm (0.0157 in).
2-6 CLUTCH BACKING PLATE INSPECTION
