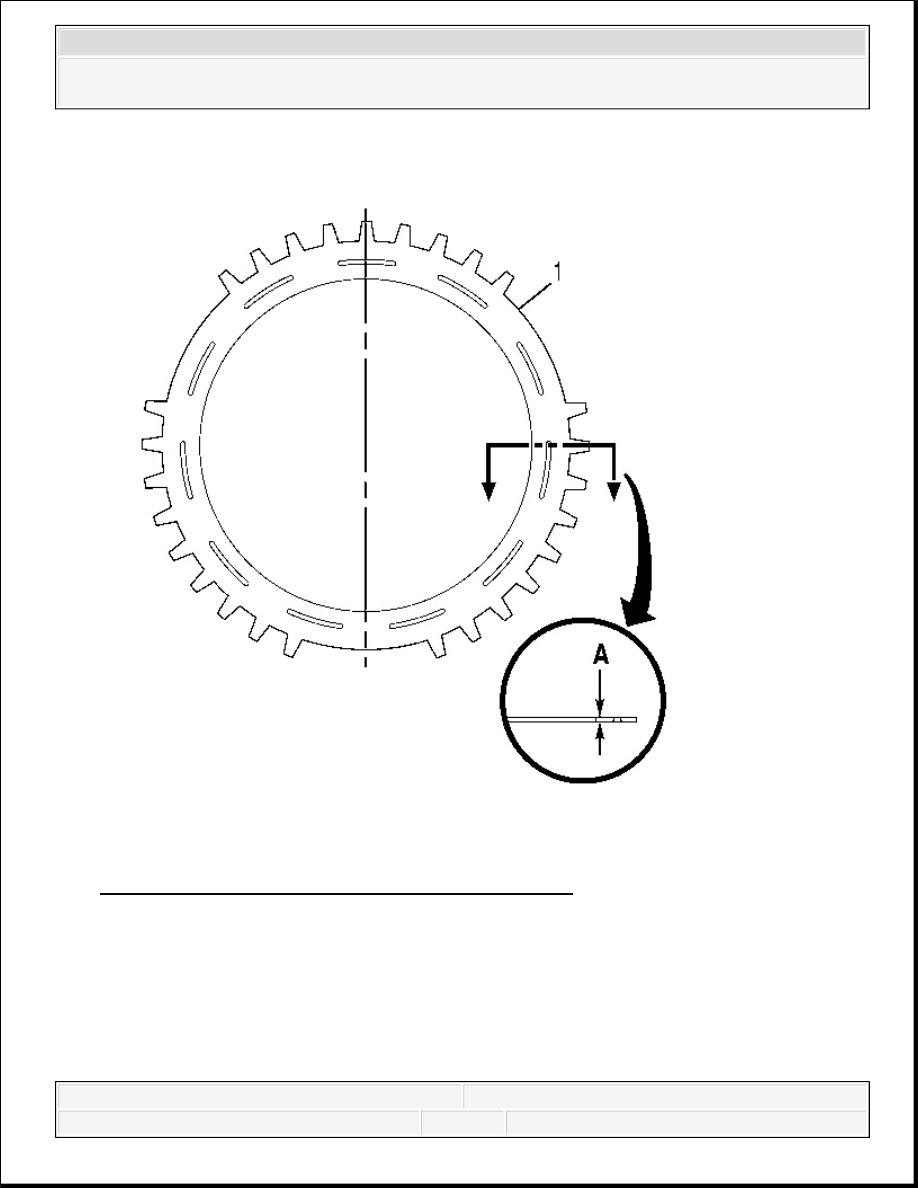

Fig. 338: Measuring Thickness Of Clutch Steel Plate
Courtesy of GENERAL MOTORS CORP.
4. Measure the thickness of each 3rd, 5th, and reverse clutch steel plate (1) at dimension A.
Specification: The 3rd, 5th, and reverse clutch steel plate minimum thickness is 2.440 mm
(0.096 in).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

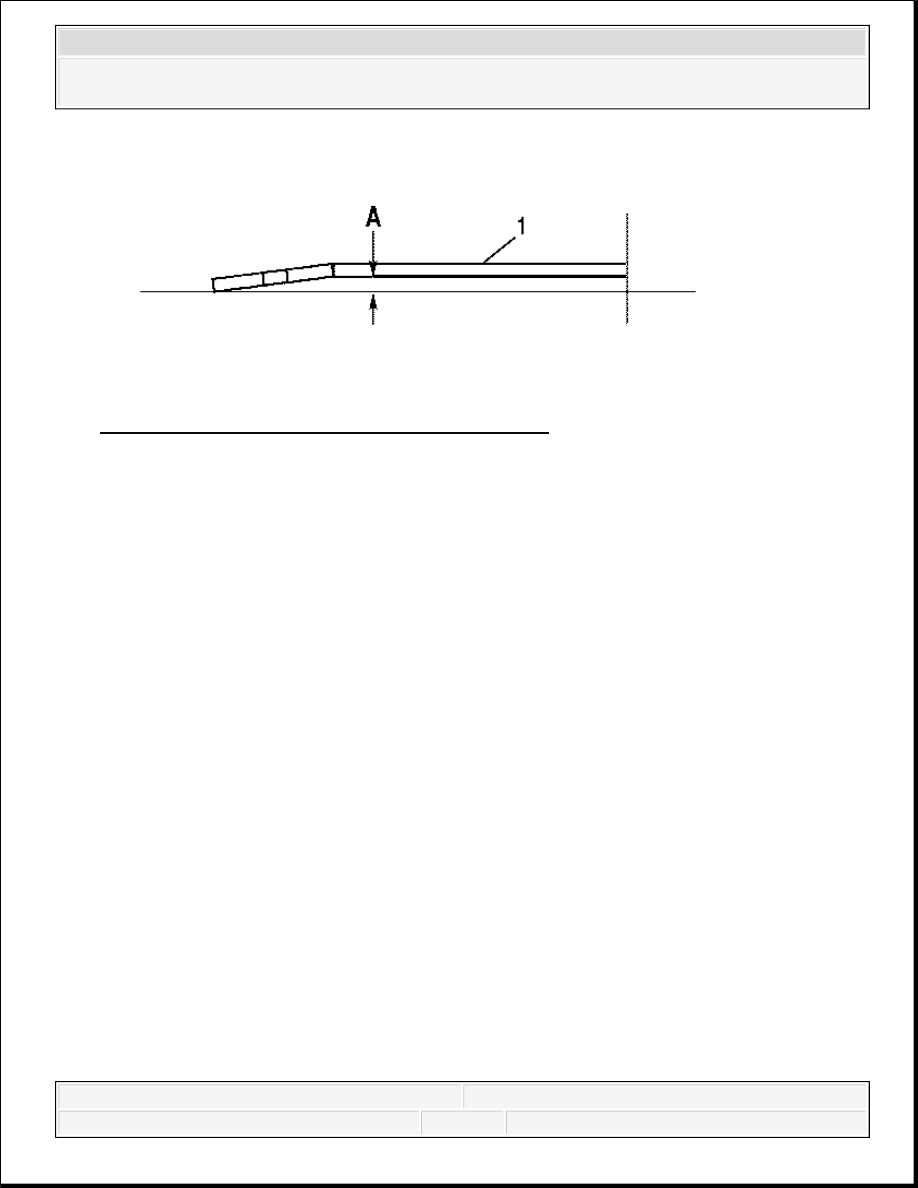

Fig. 339: Measuring Cone Of Clutch Steel Plate
Courtesy of GENERAL MOTORS CORP.
5. Measure the cone of each 3rd, 5th, and reverse clutch steel plate (1) at dimension A.
Specification: The 3rd, 5th, and reverse clutch steel plate maximum cone is 0.400 mm
(0.015 in).
IMPORTANT: Check the plates for coning on a level surface.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

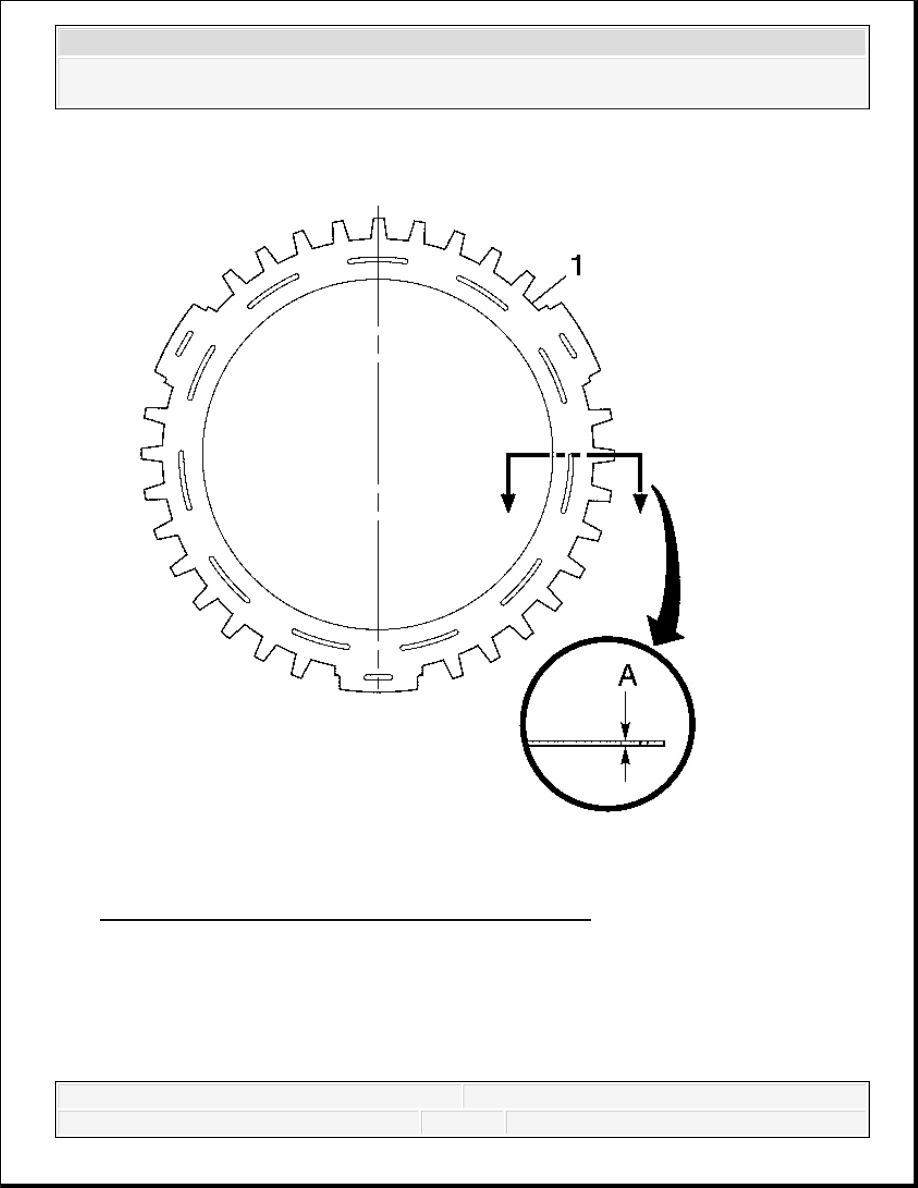

Fig. 340: Measuring Thickness Of Clutch Spring Plate
Courtesy of GENERAL MOTORS CORP.
6. Measure the thickness of the 3rd, 5th, and reverse clutch spring plate (1) at dimension A.
Specification: The 3rd, 5th, and reverse clutch spring plate minimum thickness is 3.110 mm
(0.1224 in).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 341: Measuring Cone Of Clutch Spring Plate
Courtesy of GENERAL MOTORS CORP.
7. Measure the cone of the 3rd, 5th, and reverse clutch spring plate (1) at dimension A.
Specification: The 3rd, 5th, and reverse clutch spring plate maximum cone is 0.400 mm
(0.0157 in).
