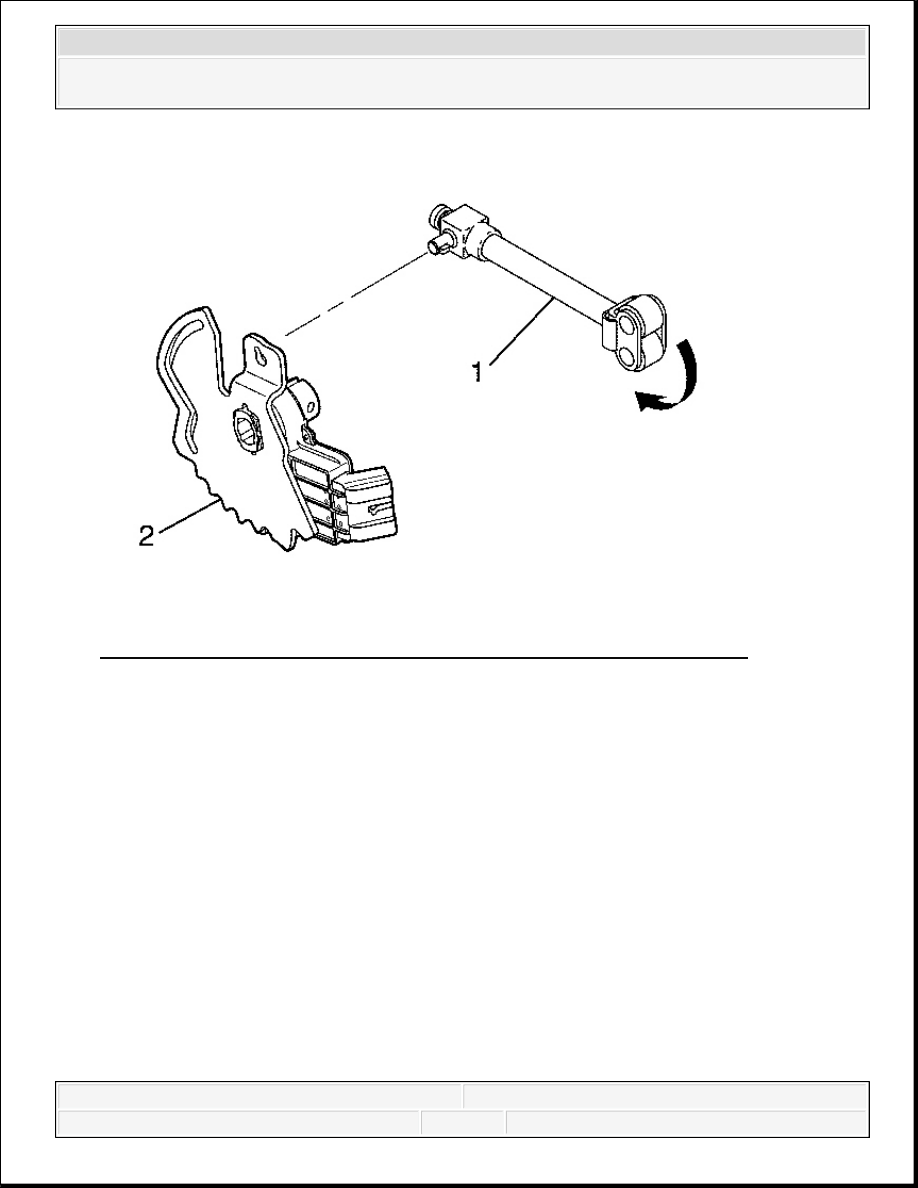

Fig. 331: View of Detent Lever/IMS Assembly And Park Pawl Assembly 4. Install the nib of the park pawl assembly (1) through the keyhole in the detent lever/internal mode switch (IMS) assembly (2). 5. Rotate the park pawl assembly 180 degrees.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

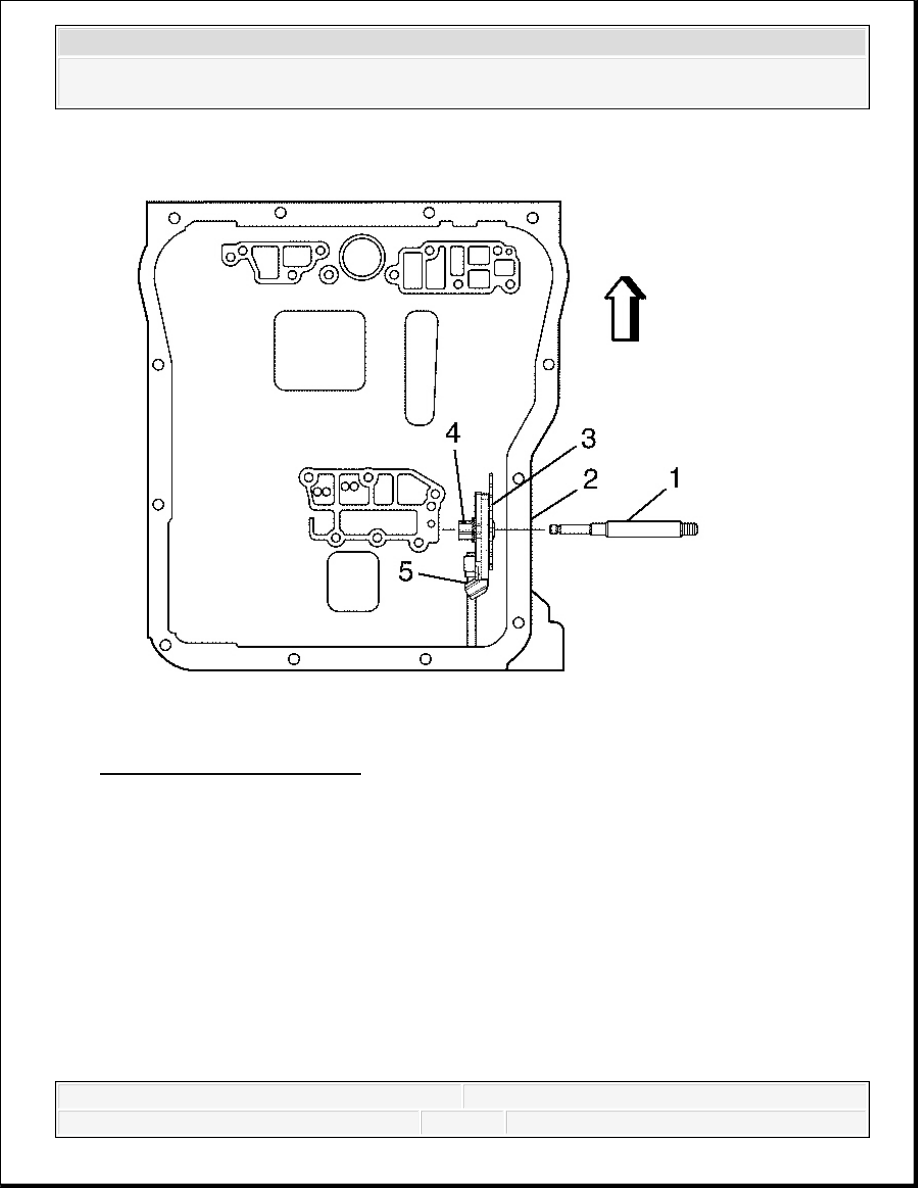

Fig. 332: Manual Shift Shaft 6. Place the roller end of the park pawl assembly (5) into the transmission case. 7. Align the detent lever/IMS assembly (3) so that: The detent notches of the detent lever are facing up. The IMS connector is facing towards the rear of the transmission. The guide hole for the manual valve pin is facing forward. The manual shift shaft hole in the detent lever is aligned with the manual shift shaft seal 8. Slide the manual shift shaft (1) through the following components: Transmission case
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

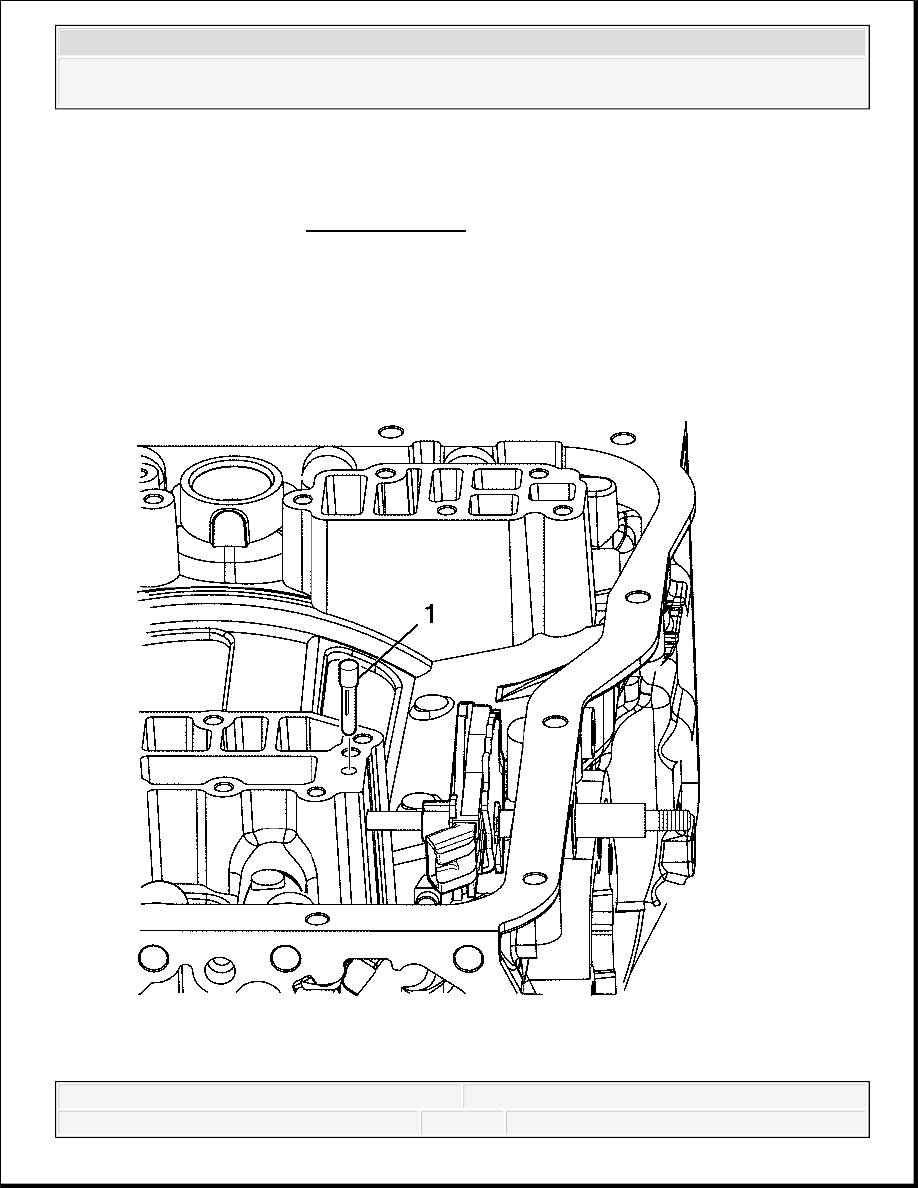

Manual shift shaft seal (2) Detent lever/IMS assembly (3) Fig. 333: Detent Lever/IMS Assembly Retaining Bolt IMPORTANT: The detent lever/IMS assembly retaining bolt contains patch lock material on the threads. Do not reuse the retaining bolt.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

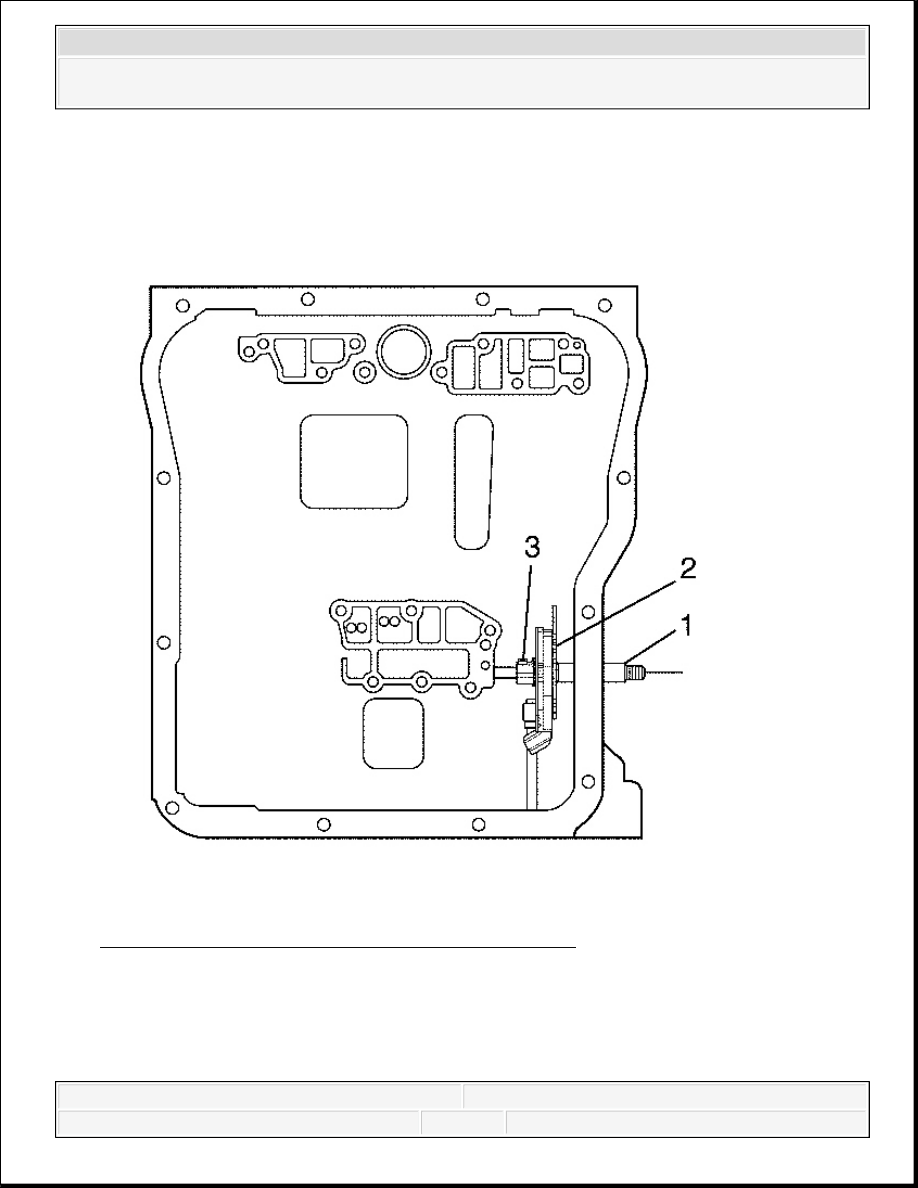

9. Install the detent lever/IMS assembly (2) onto the manual shift shaft (1). 10. Install the detent lever/IMS assembly retaining bolt (3). 11. Using a T27 Torx® bit, tighten the detent lever/IMS assembly retaining bolt (3). Tighten: Tighten the bolt to 10 N.m (89 lb in). NOTE: Refer to Fastener Notice .
