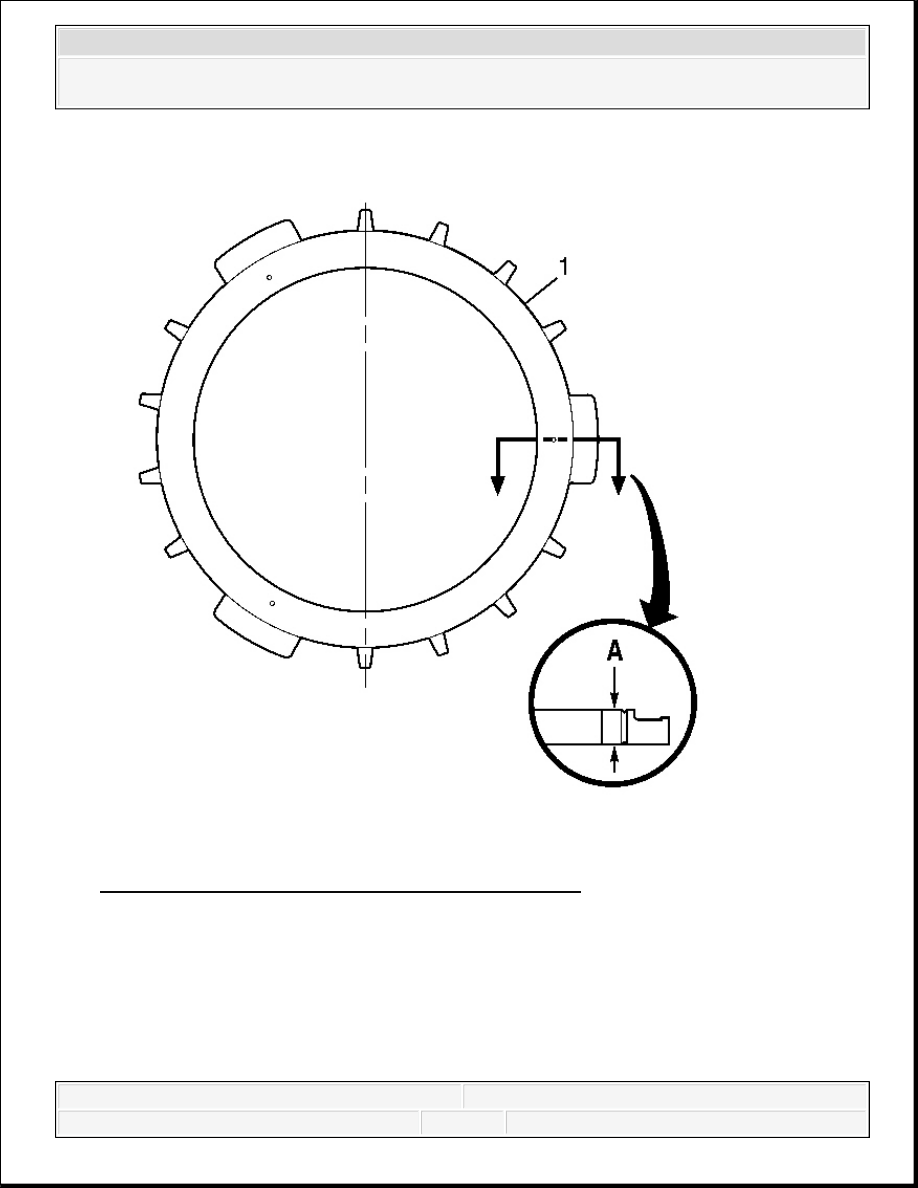

Fig. 349: Measuring Clutch Backing Plate Dimension 1. Measure the thickness of the 2-6 clutch backing plate at dimension A. Specification: The 2-6 clutch backing plate minimum thickness is 15.400 mm (0.6063 in). IMPORTANT: Perform the following measurements at 3 or more locations.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2. Measure the cone of the 2-6 clutch backing plate. 3. Replace the backing plate (1) if any cone is present. LOW AND REVERSE CLUTCH PLATE INSPECTION Fig. 350: Low and Reverse Clutch Plate Measurements
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
1. Measure the thickness of each low and reverse clutch fiber plate (1) at dimension A. Specification: The low and reverse clutch fiber plate minimum thickness is 2.375 mm 2. Measure the oil groove depth of each low and reverse clutch fiber plate (1) at dimension B. Specification: The low and reverse clutch fiber plate minimum groove depth is 0.200 mm Fig. 351: Checking Low And Reverse Clutch Fiber Plate Cone 3. Measure the cone of each low and reverse clutch fiber plate (1) at dimension A. Specification: The low and reverse clutch fiber plate maximum cone is 0.225 mm (0.0089 IMPORTANT: Perform the following measurements at 3 or more Check the plates for coning on a level surface. Replace any parts not meeting specifications.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

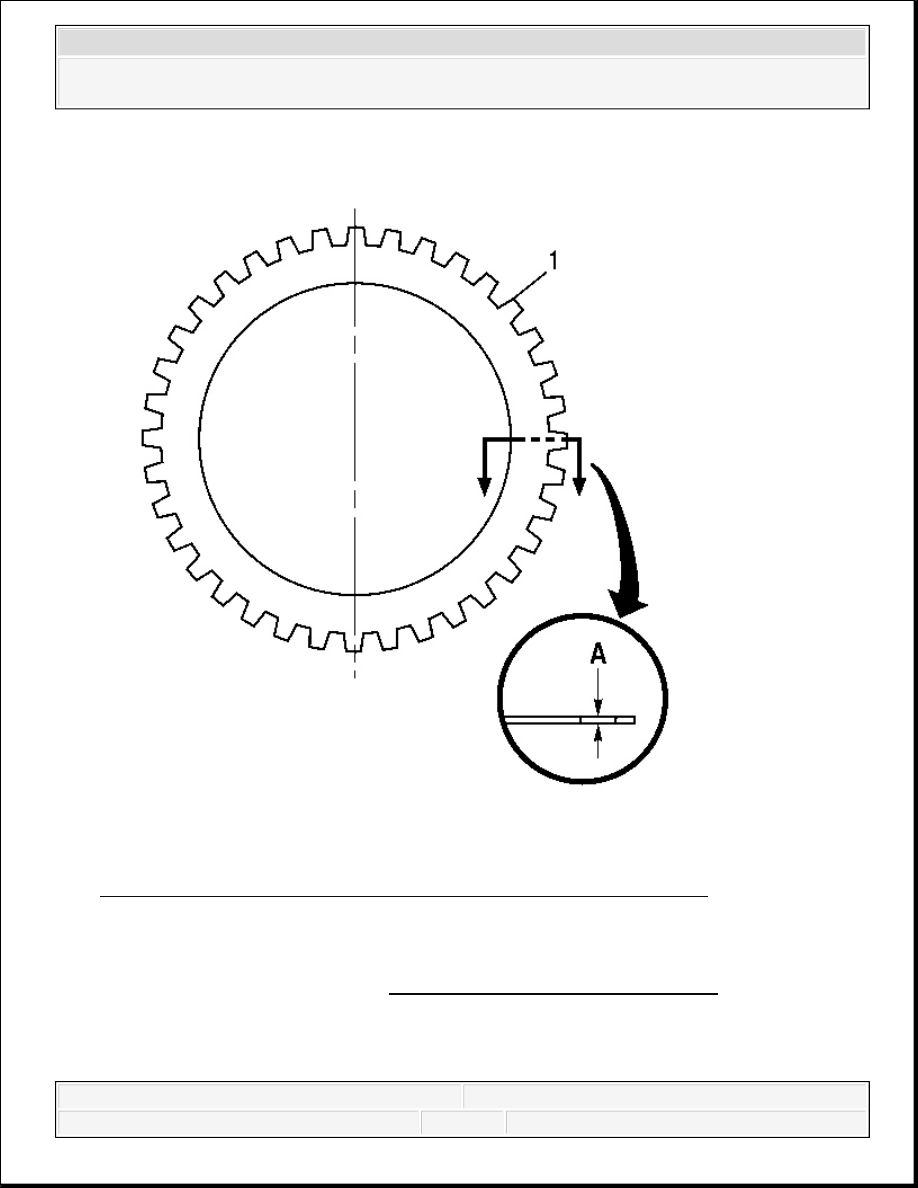

Fig. 352: Measuring Low And Reverse Clutch Steel Plate Thickness 4. Measure the thickness of each low and reverse clutch steel plate (1) at dimension A. 5. The minimum thickness is listed in Selective Components Specifications . LOW AND REVERSE CLUTCH BACKING PLATE INSPECTION
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
|
|
