1-2-3-4 Clutch Piston Installation 1-2-3-4 CLUTCH PLATE INSTALLATION Callout Component Name 1 1-2-3-4 Clutch Piston 2 1-2-3-4 Clutch Spring NOTE: Ensure the clutch spring is centered on the piston 3 1-2-3-4 Clutch Piston Dam Assembly 4 1-2-3-4 Clutch Piston Dam Retaining Ring NOTE: Use care when compressing the 1-2-3-4 clutch NOTE: Refer to Retaining Ring Reuse Notice .
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

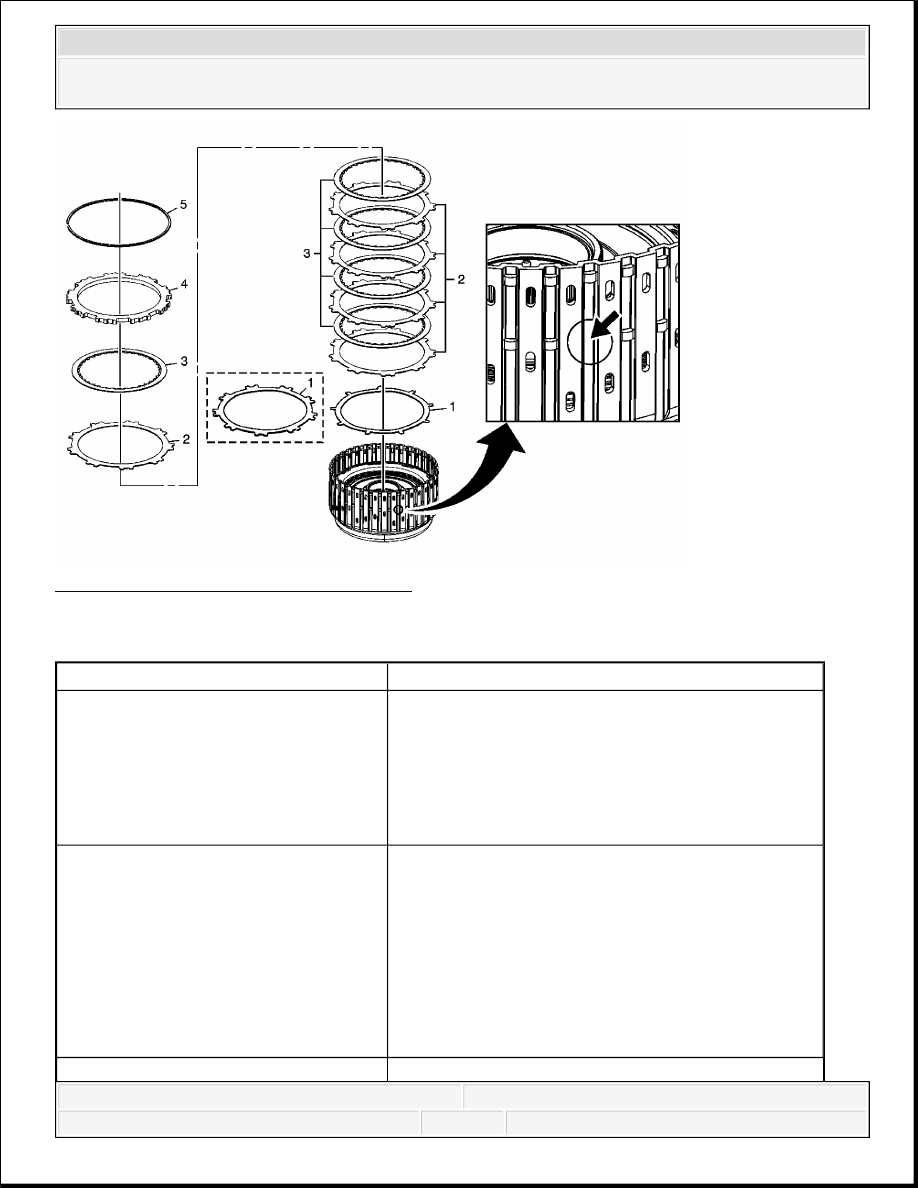

Fig. 154: Installing 1-2-3-4 Clutch Plate 1-2-3-4 Clutch Plate Installation Callout Component Name 1 1-2-3-4 Clutch (Waved) Plate NOTE: Ensure an opening between the external splines of the 2 1-2-3-4 Clutch Plate (Qty: 5) NOTE: Ensure all clutch plates are centered in the housing.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
3-5 AND REVERSE CLUTCH PLATE INSTALLATION 3 1-2-3-4 Clutch Plate Assembly (Qty: 5) 4 1-2-3-4 Clutch Backing Plate NOTE: Align the external splines of the backing plate with the 5 1-2-3-4 Clutch Backing Plate Retaining Ring NOTE: Depending on the housing configuration, align the
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

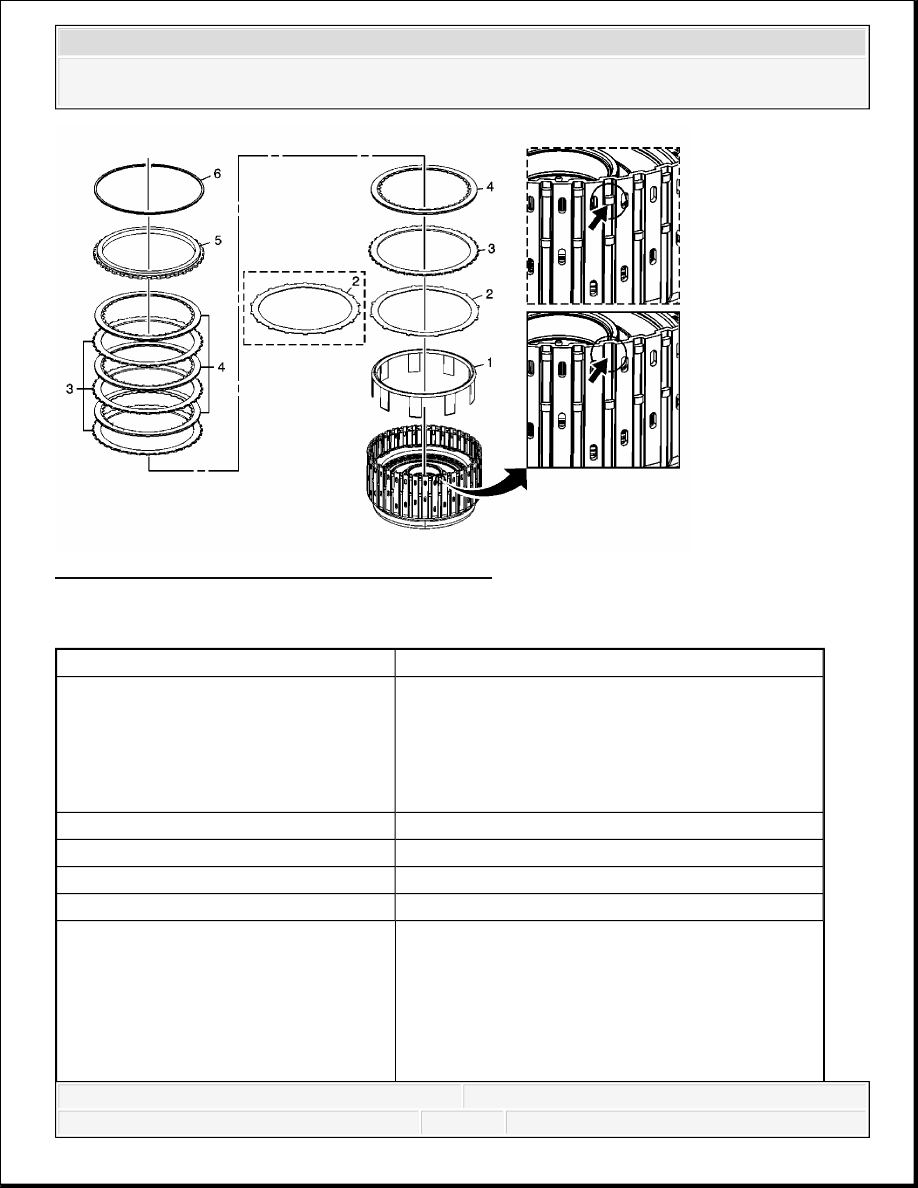

Fig. 155: Installing 3-5 and Reverse Clutch Plate 3-5 and Reverse Clutch Plate Installation Callout Component Name 1 3-5 Reverse Clutch Apply Ring NOTE: Ensure apply ring legs are positioned into the 3-5 2 3-5 Reverse Clutch (Waved) Plate 3 3-5 Reverse Clutch Plate (Qty: 4) 4 3-5 Reverse Clutch Plate Assembly (Qty: 4) 5 3-5 Reverse Clutch Backing Plate 3-5 Reverse Clutch Backing Plate Retaining Ring NOTE: Depending on the housing configuration, align the
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
|
|
