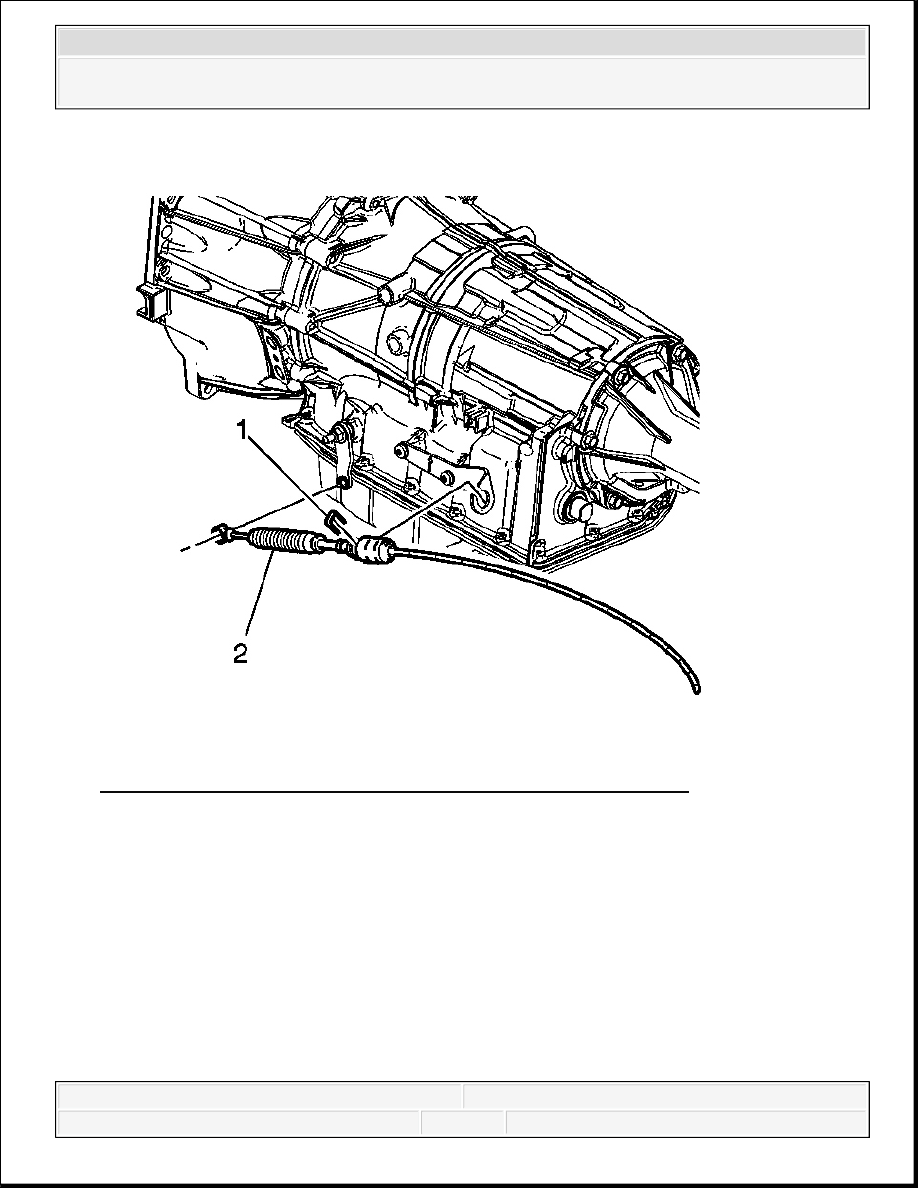

Fig. 35: View Of Range Selector Cable & Cable Bracket Retainer
Courtesy of GENERAL MOTORS CORP.
2. Ensure that the transmission manual shaft lever is in the mechanical park position.
3. Align and install the range selector cable (2) to the bracket.
4. Install the retainer (1) that secures the cable to the bracket.
5. Install the range selector cable end to the transmission range selector lever ball stud.
6. Install the cable clip on the transfer case, if equipped.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

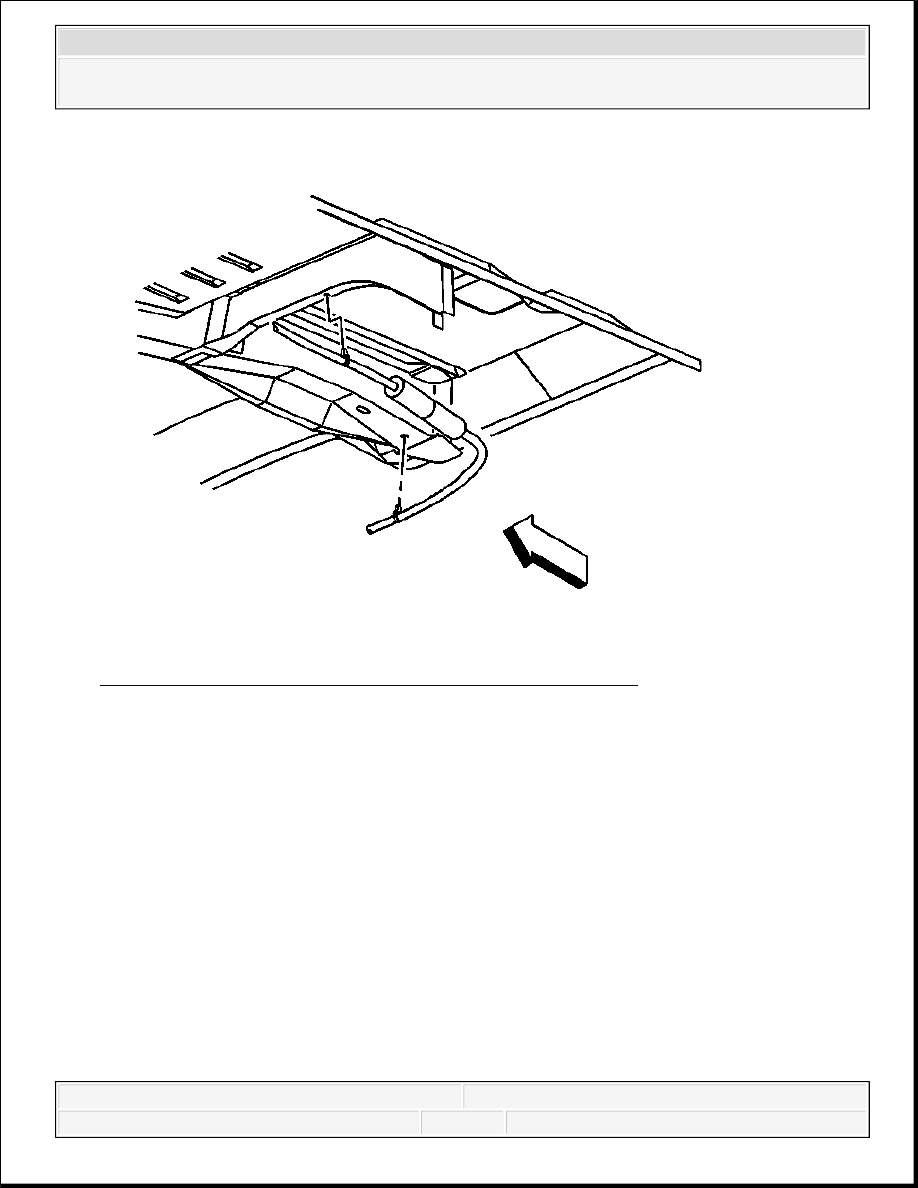

Fig. 36: View Of Cable Clips At Floor Panel Reinforcement
Courtesy of GENERAL MOTORS CORP.
7. Install the clips on the cable to the floor panel reinforcement.
8. Lower the vehicle and ensure that the steering column shift lever is still in the park position.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

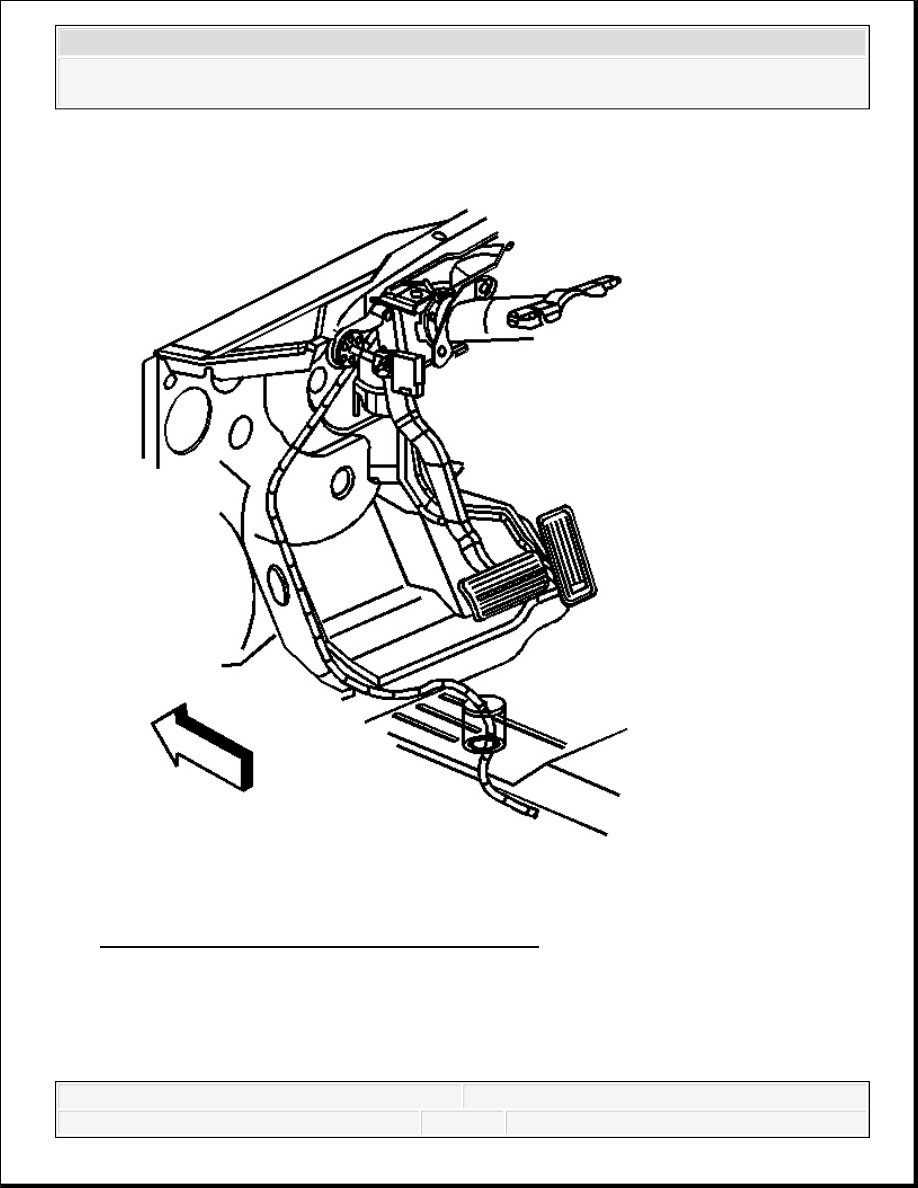

Fig. 37: View Of Cable Grommet At Floor Panel
Courtesy of GENERAL MOTORS CORP.
9. Install the cable grommet to the floor panel.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

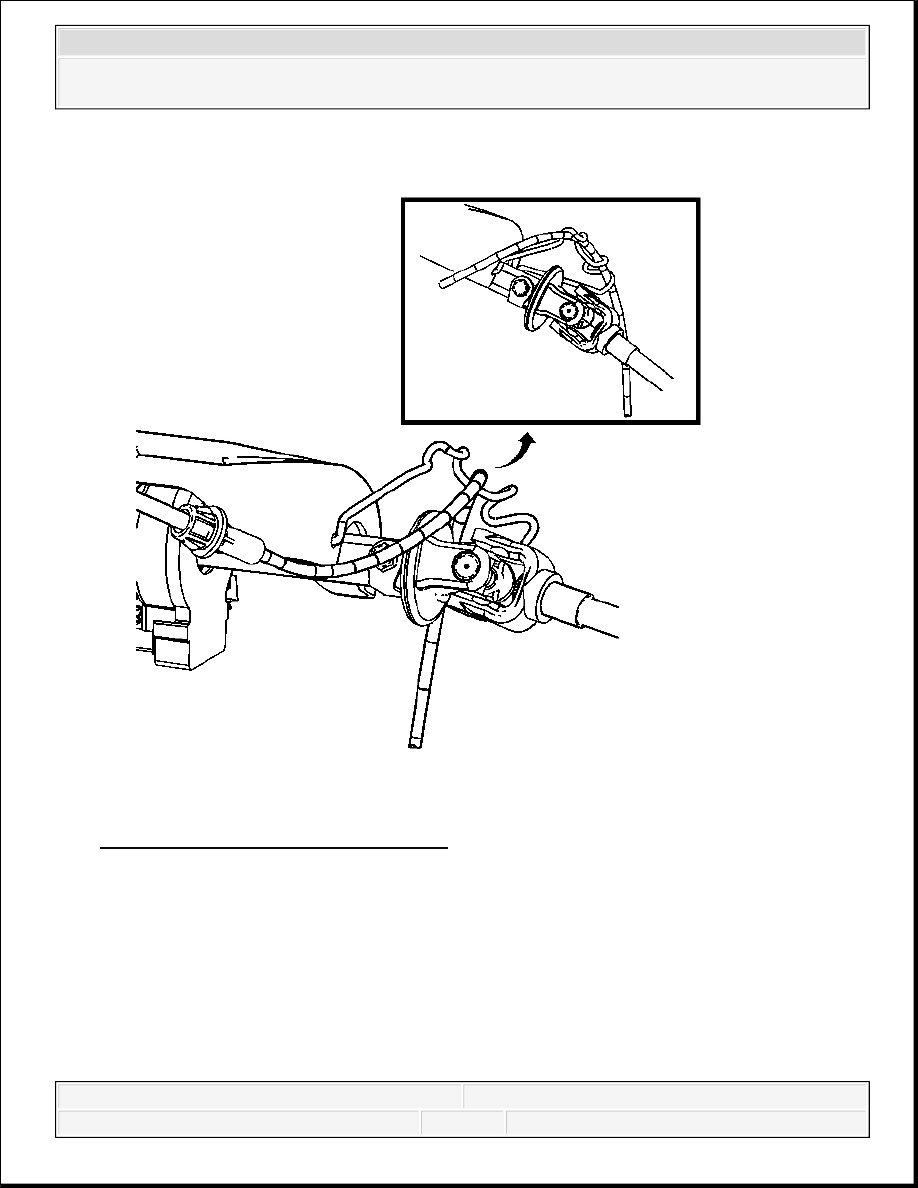

Fig. 38: View Of Range Selector Cable
Courtesy of GENERAL MOTORS CORP.
10. Install the range selector cable to the support.
IMPORTANT: Avoid unnecessary twisting/bending of the range selector
cable when installing the cable to the support.
