Fig. 31: View Of Range Selector Cable
Courtesy of GENERAL MOTORS CORP.
8. Remove the range selector cable from the support.
IMPORTANT: Avoid unnecessary twisting/bending of the range selector
cable when removing the cable from the support.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

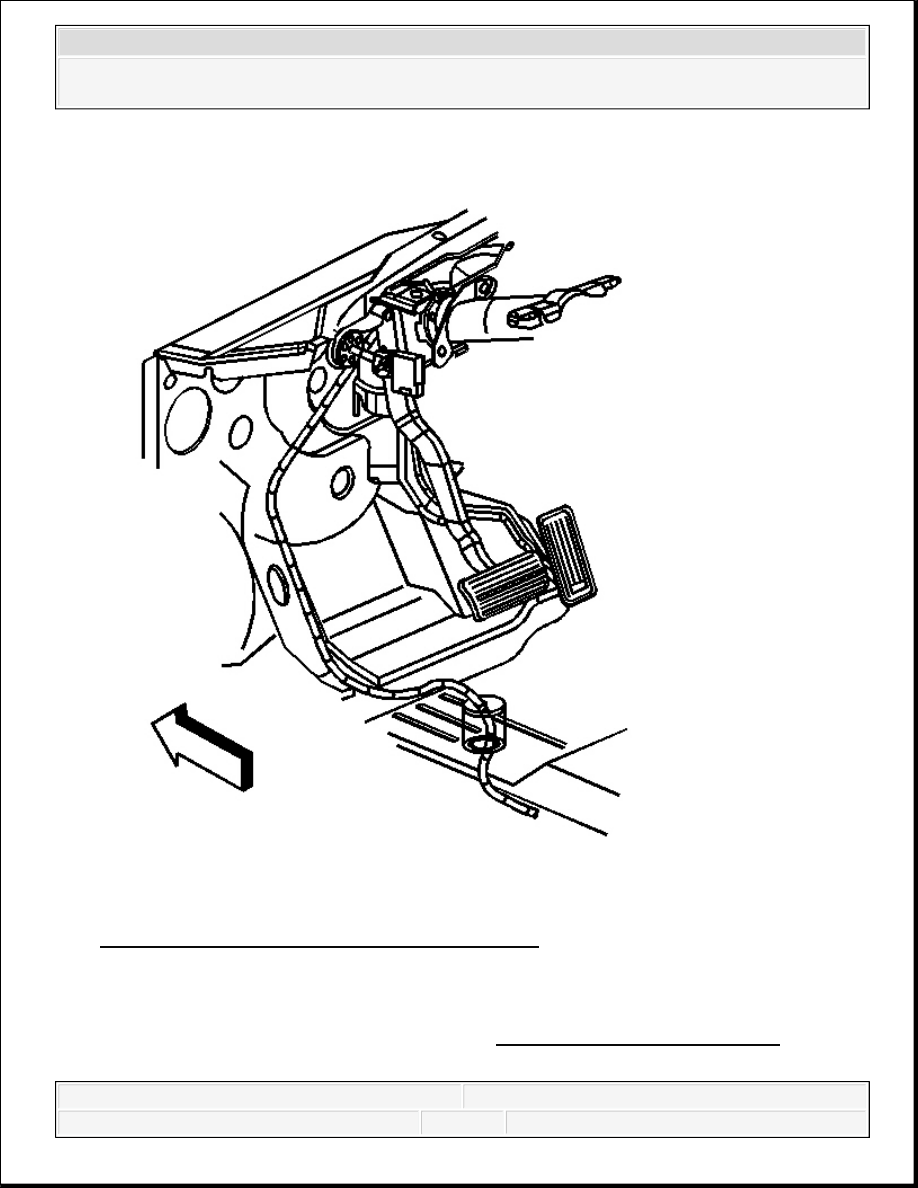

Fig. 32: View Of Cable Grommet At Floor Panel
Courtesy of GENERAL MOTORS CORP.
9. Remove the cable grommet from the floor panel.
10. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

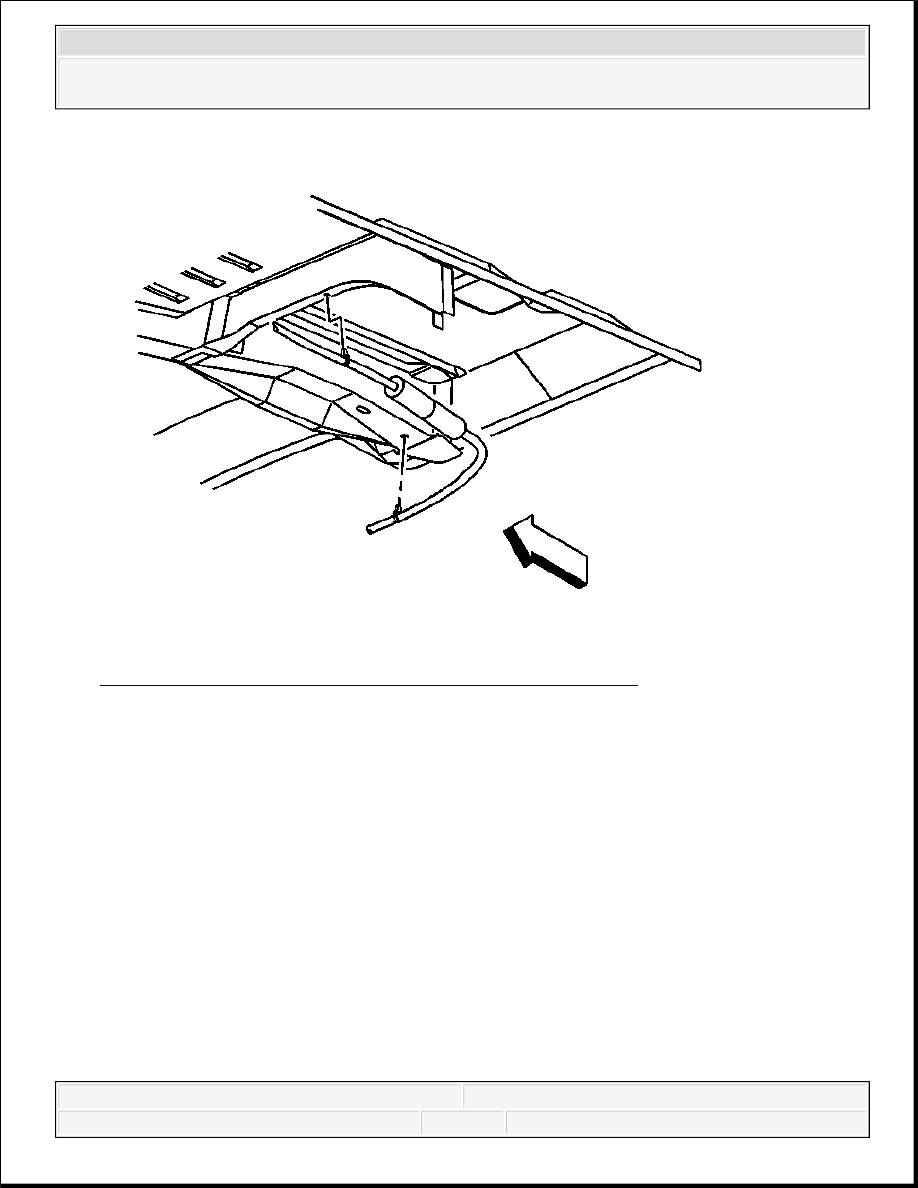

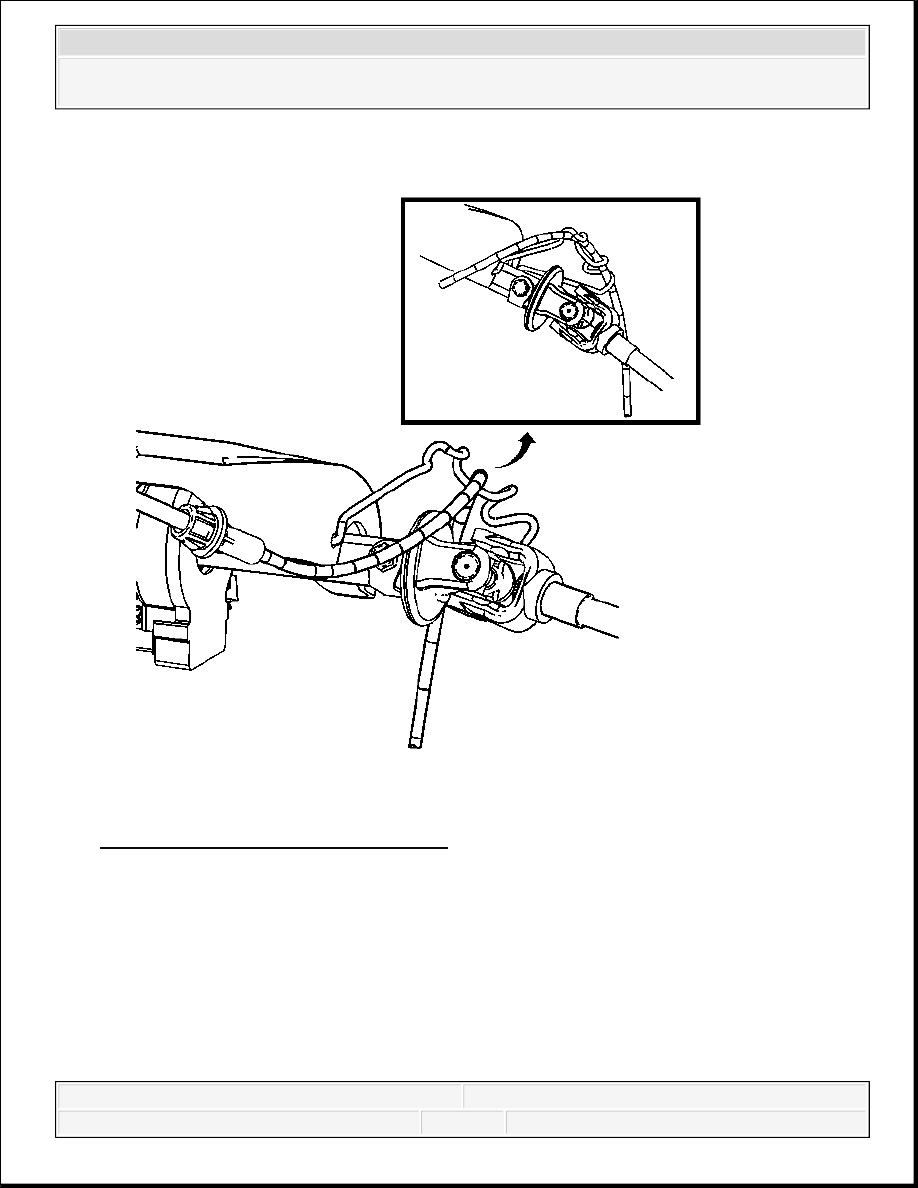

Fig. 33: View Of Cable Clips At Floor Panel Reinforcement
Courtesy of GENERAL MOTORS CORP.
11. Remove the clips on the cable from the floor panel reinforcement.
12. Ensure the transmission manual shaft is positioned in mechanical park.
13. Remove the cable clip on the transfer case, if equipped.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

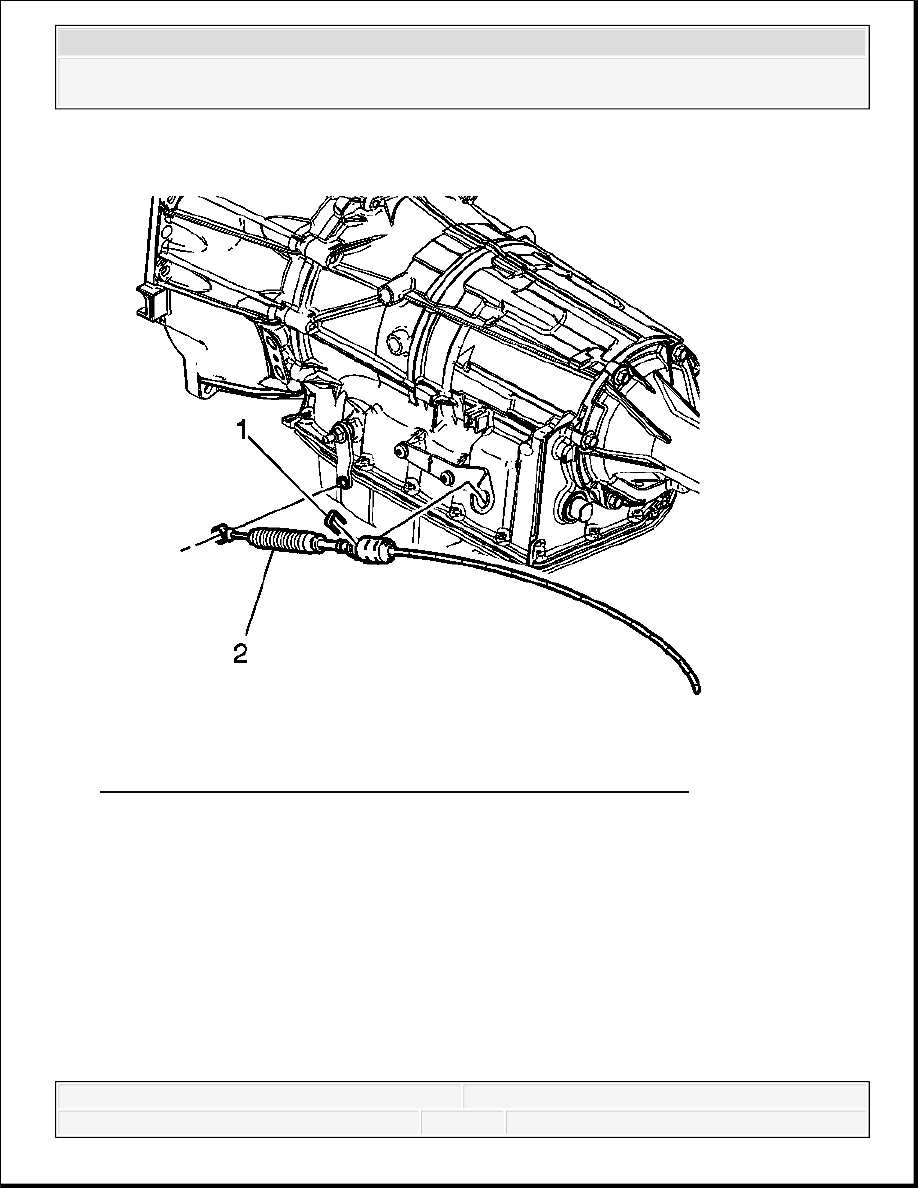

Fig. 34: View Of Range Selector Cable & Cable Bracket Retainer
Courtesy of GENERAL MOTORS CORP.
14. Remove the range selector cable (2) from the transmission range selector lever ball stud.
15. Remove the retainer (1) that secures the cable to the bracket.
16. Depress the tangs and remove the cable from the bracket.
17. Remove the transmission range selector cable from the vehicle.
INSTALLATION PROCEDURE
1. Install the transmission range selector cable to the vehicle.
