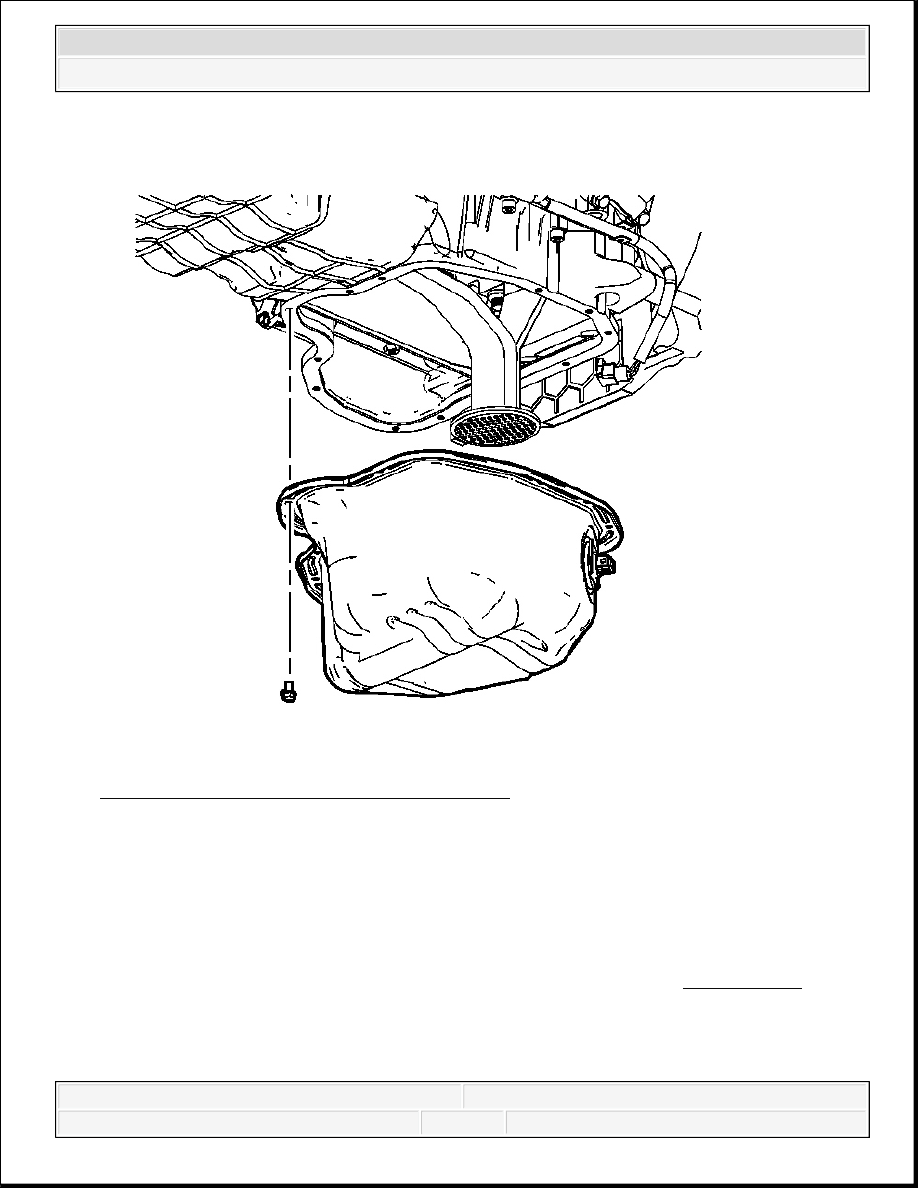

Fig. 15: View Of Lower Oil Pan & Bolts/Nuts
Courtesy of GENERAL MOTORS CORP.
2. Remove the lower oil pan bolts.
3. Separate the lower oil pan from the upper oil pan using J 37228 . See Special Tools .
4. Remove the lower oil pan.
UPPER OIL PAN REMOVAL
IMPORTANT: Do not damage the sealing surfaces when separating the
lower oil pan from the upper oil pan.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tools Required
J 37228 Seal Cutter. See Special Tools .
Removal

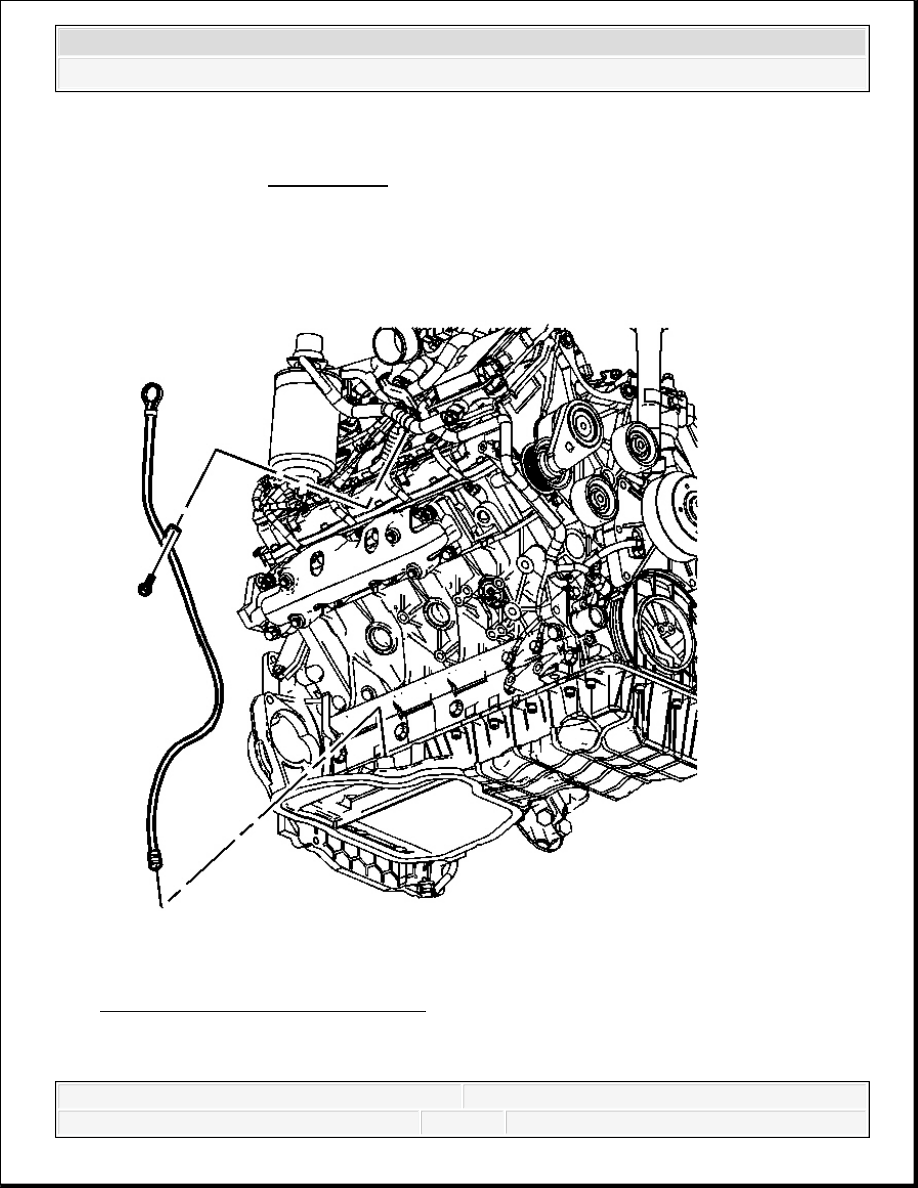

Fig. 16: View Of Oil Level Indicator
Courtesy of GENERAL MOTORS CORP.
1. Remove the oil level indicator tube bracket bolt.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2. Remove the oil level indicator tube.

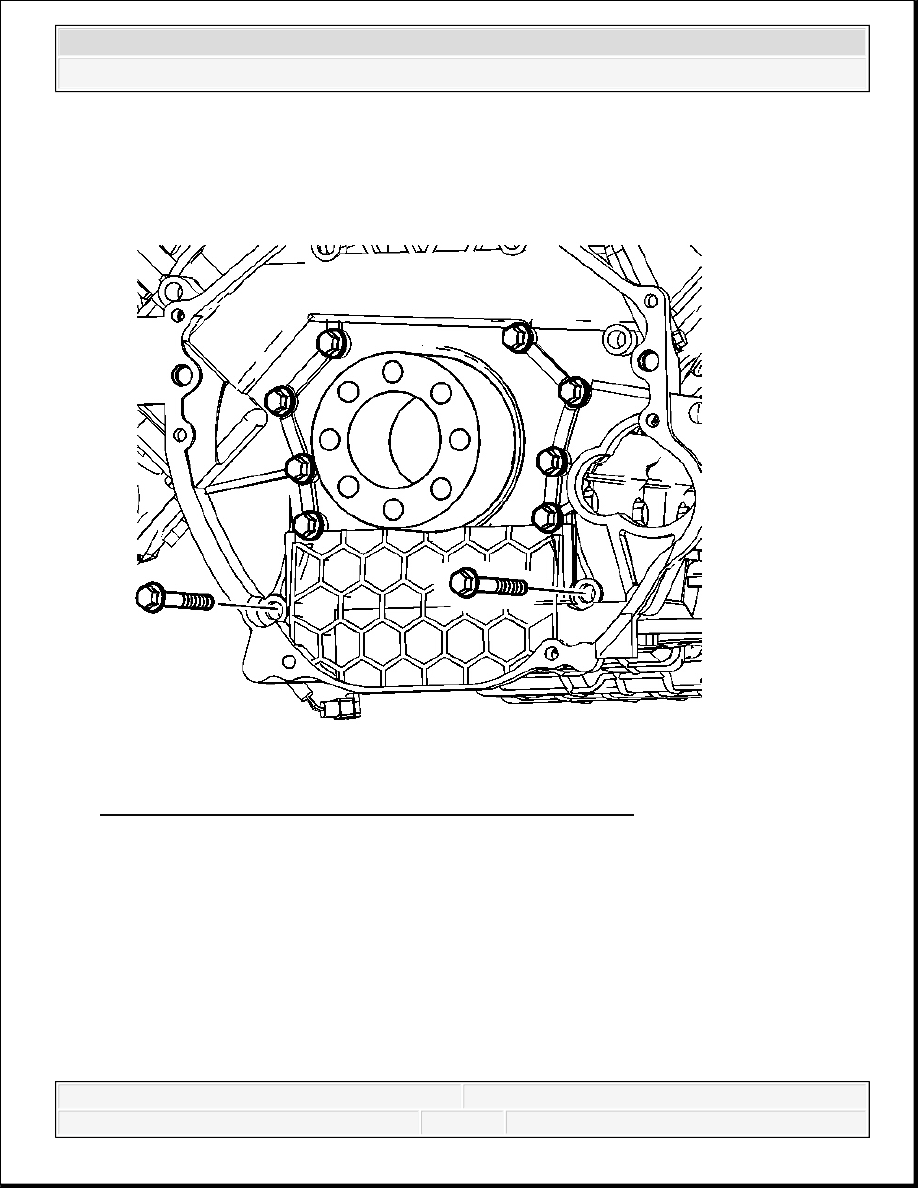

Fig. 17: View Of Flywheel Housing To Upper Oil Pan Bolts
Courtesy of GENERAL MOTORS CORP.
3. Remove the two oil pan to flywheel housing bolts.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

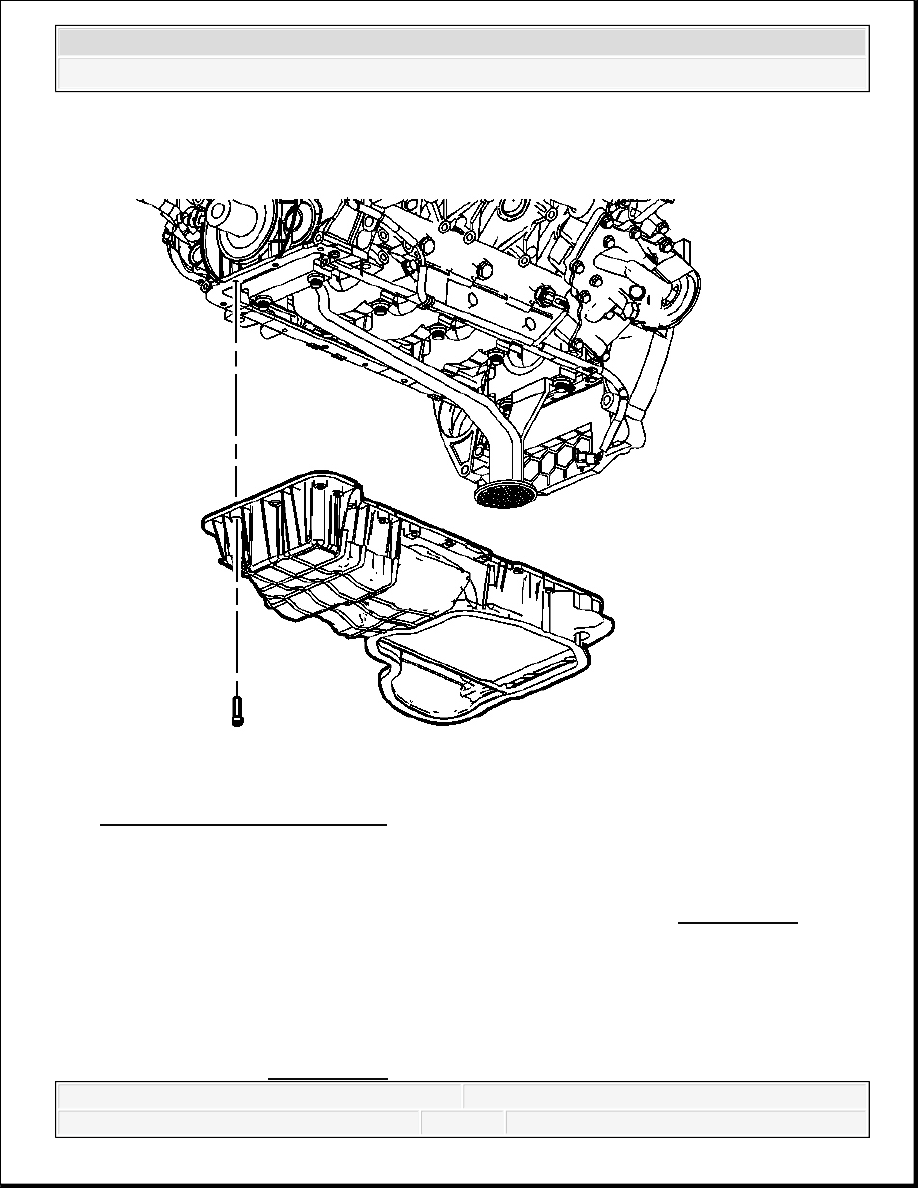

Fig. 18: View Of Upper Oil Pan
Courtesy of GENERAL MOTORS CORP.
4. Remove the 24 upper oil pan bolts using a long bit 6 mm hex driver.
5. Seperate the upper oil pan from the engine block using J 37228 . See Special Tools .
6. Remove the upper oil pan.
ENGINE FLYWHEEL HOUSING REMOVAL
Tools Required
J 37228 Seal Cutter. See Special Tools .
