Chevrolet Silverado / GMC Sierra. Manual - part 506

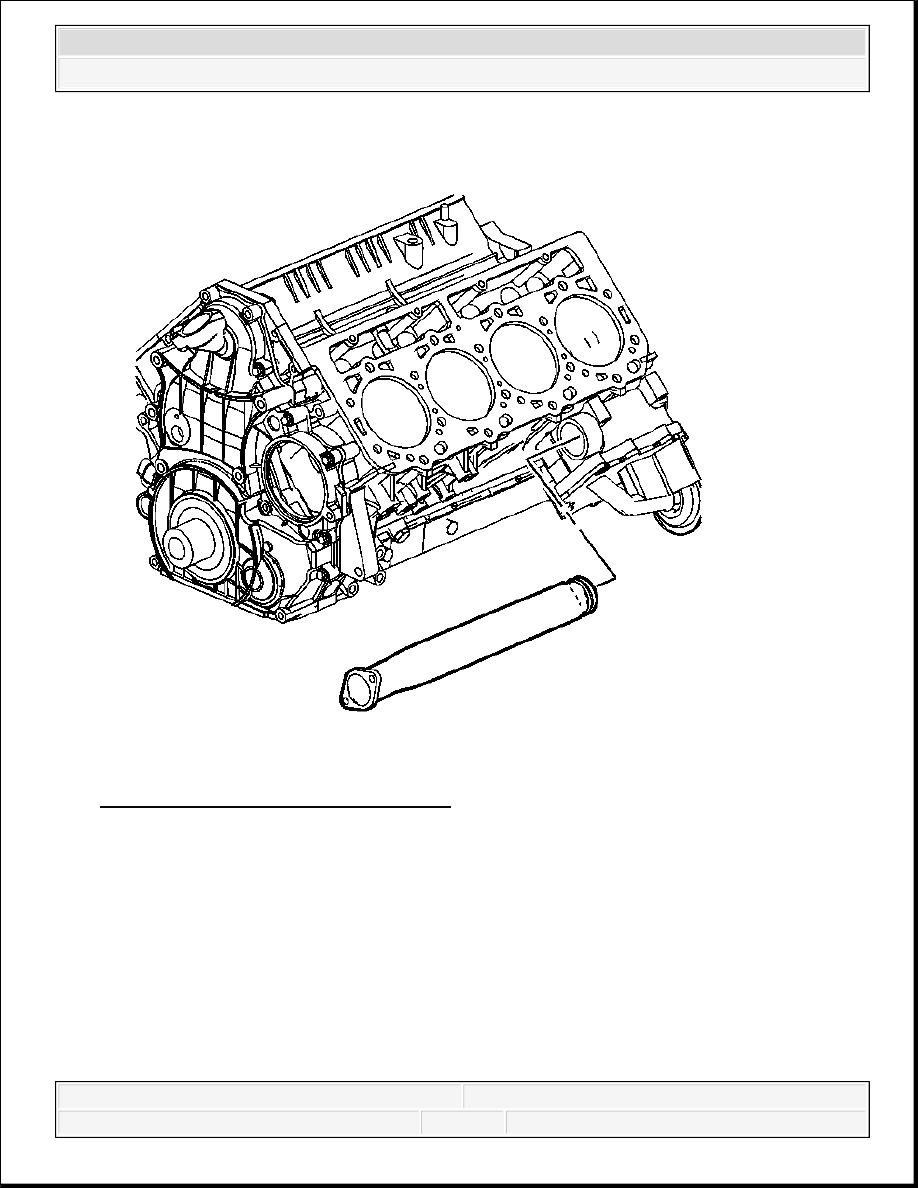

Fig. 327: View Of Engine Coolant Pipe
Courtesy of GENERAL MOTORS CORP.
1. Install new coolant pipe O-ring and gasket.
2. Install new oil filter adapter/oil cooler O-ring seals.
3. Install the coolant pipe.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

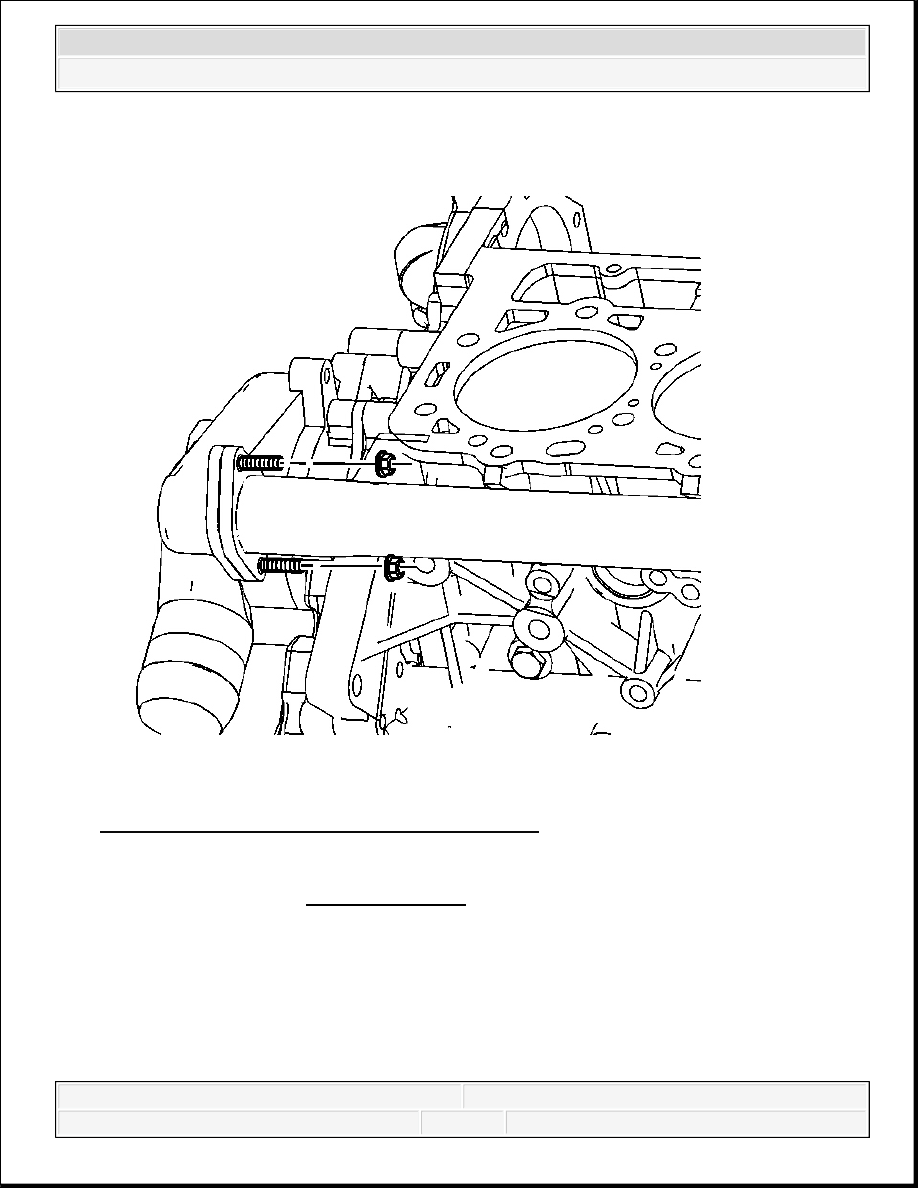

Fig. 328: View Of Water Pump Outlet Pipe Nuts
Courtesy of GENERAL MOTORS CORP.
4. Install the coolant pipe nuts.
Tighten: Tighten the coolant pipe nuts to 25 N.m (18 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

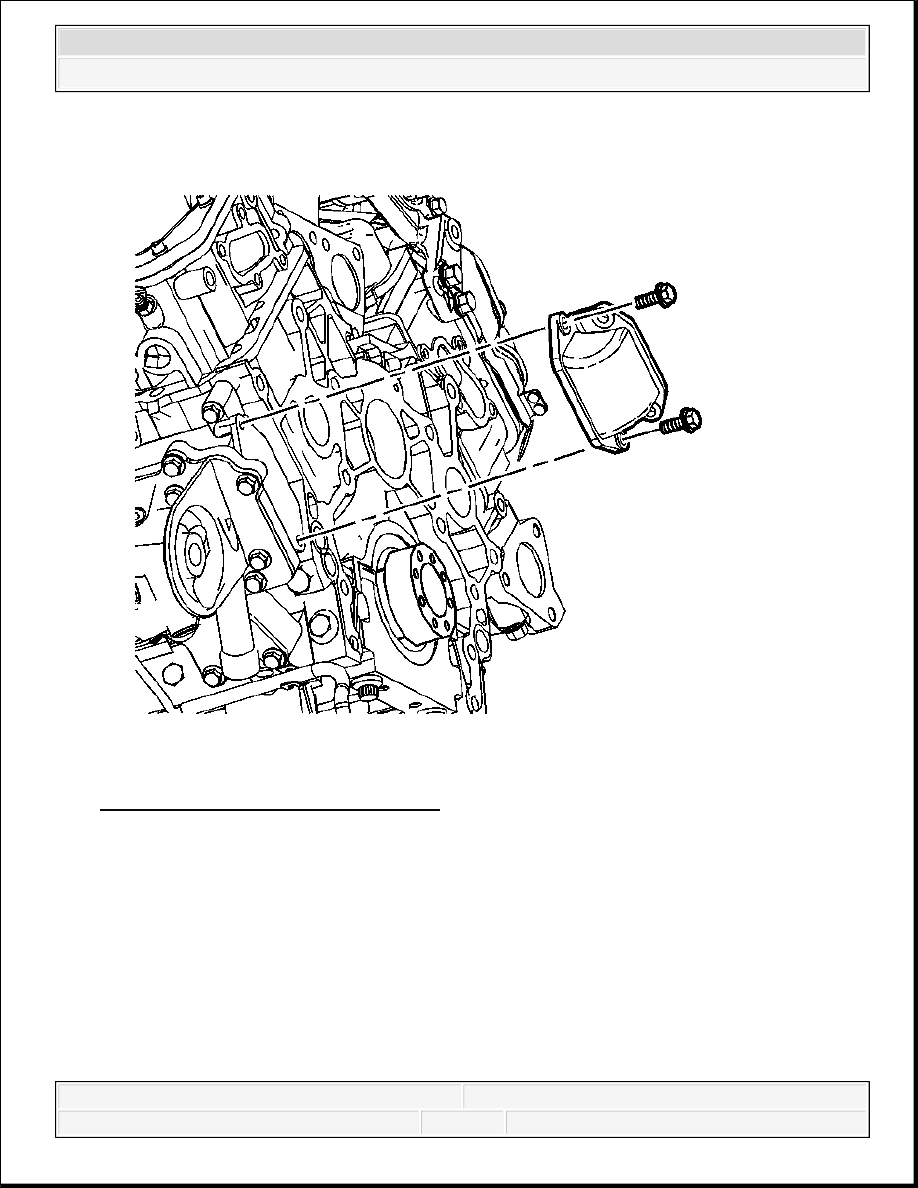

Fig. 329: View Of Oil Cooler Adapter
Courtesy of GENERAL MOTORS CORP.
5. Install the oil cooler and adapter.
6. Install the oil cooler adapter bolts to the oil filter adapter/oil cooler.
Tighten: Tighten the oil cooler adapter bolts to 25 N.m (18 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

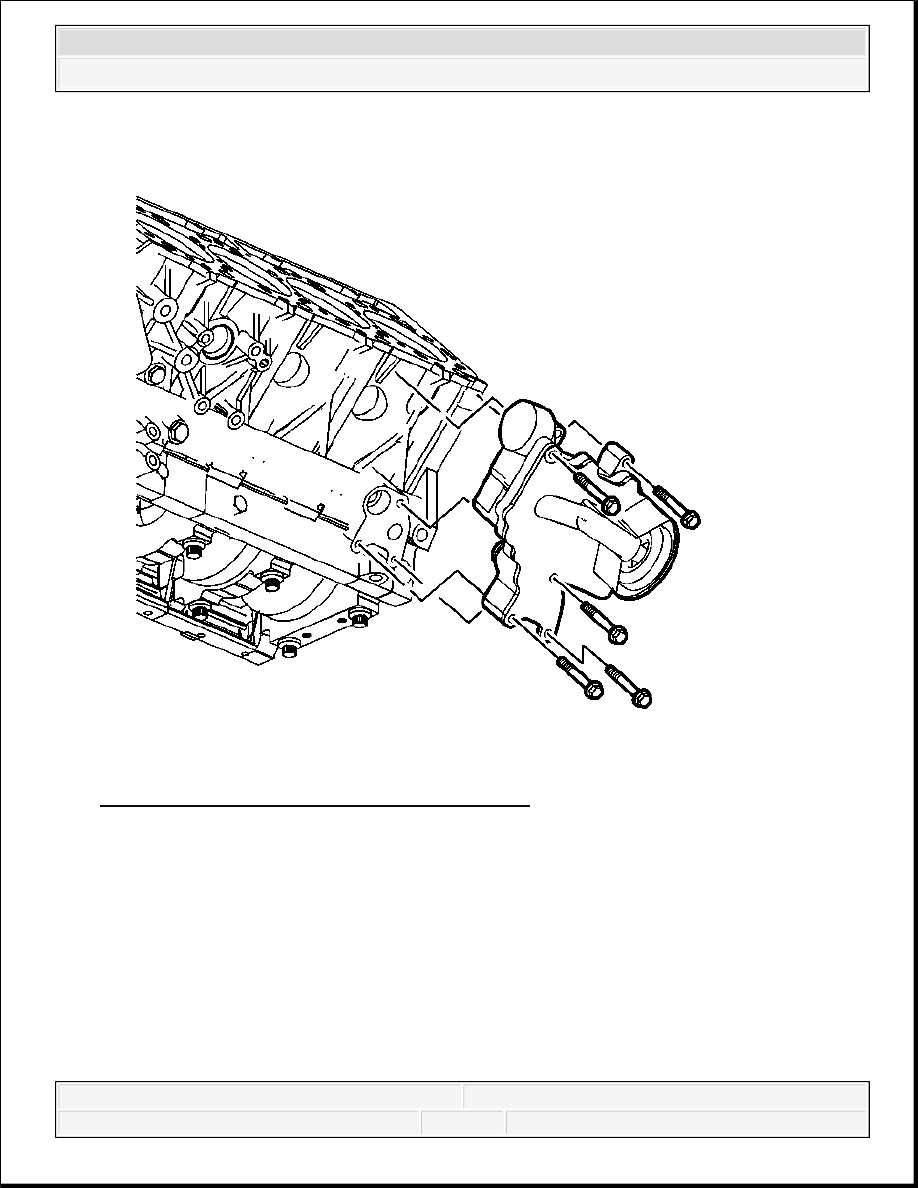

Fig. 330: View Of Oil Filter Adapter/Oil Cooler
Courtesy of GENERAL MOTORS CORP.
7. Install the oil cooler assembly bolts.
Tighten: Tighten the oil cooler assembly bolts to 25 N.m (18 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
