Chevrolet Silverado / GMC Sierra. Manual - part 507
Fig. 331: View Of Turbocharger Oil Return Pipe Nuts
Courtesy of GENERAL MOTORS CORP.
8. Install the oil cooler adapter nuts and studs to the flywheel housing.
Tighten:
Tighten the oil cooler adapter nuts to 25 N.m (18 lb ft).
Tighten the oil cooler adapter studs to 10 N.m (89 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

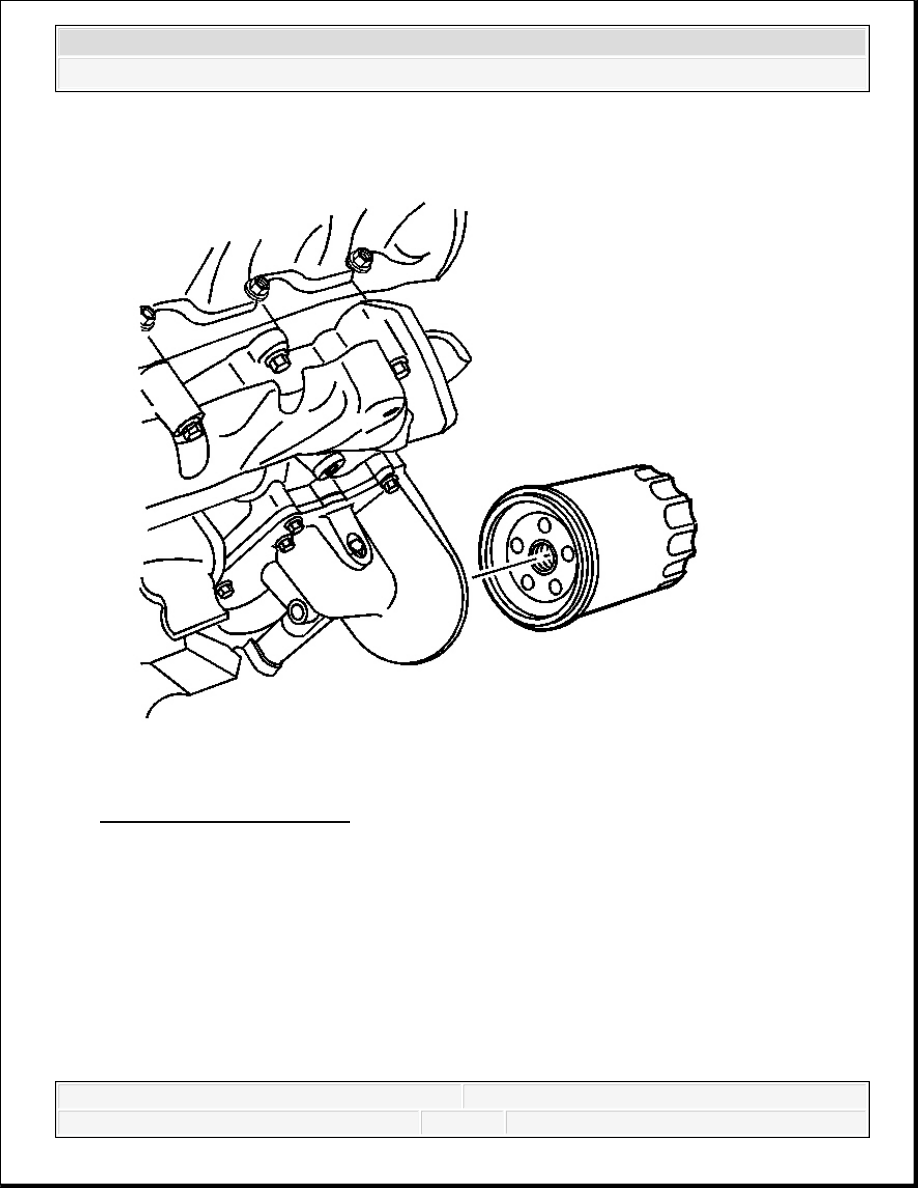

Fig. 332: View Of Oil Filter
Courtesy of GENERAL MOTORS CORP.
9. Install the oil filter.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

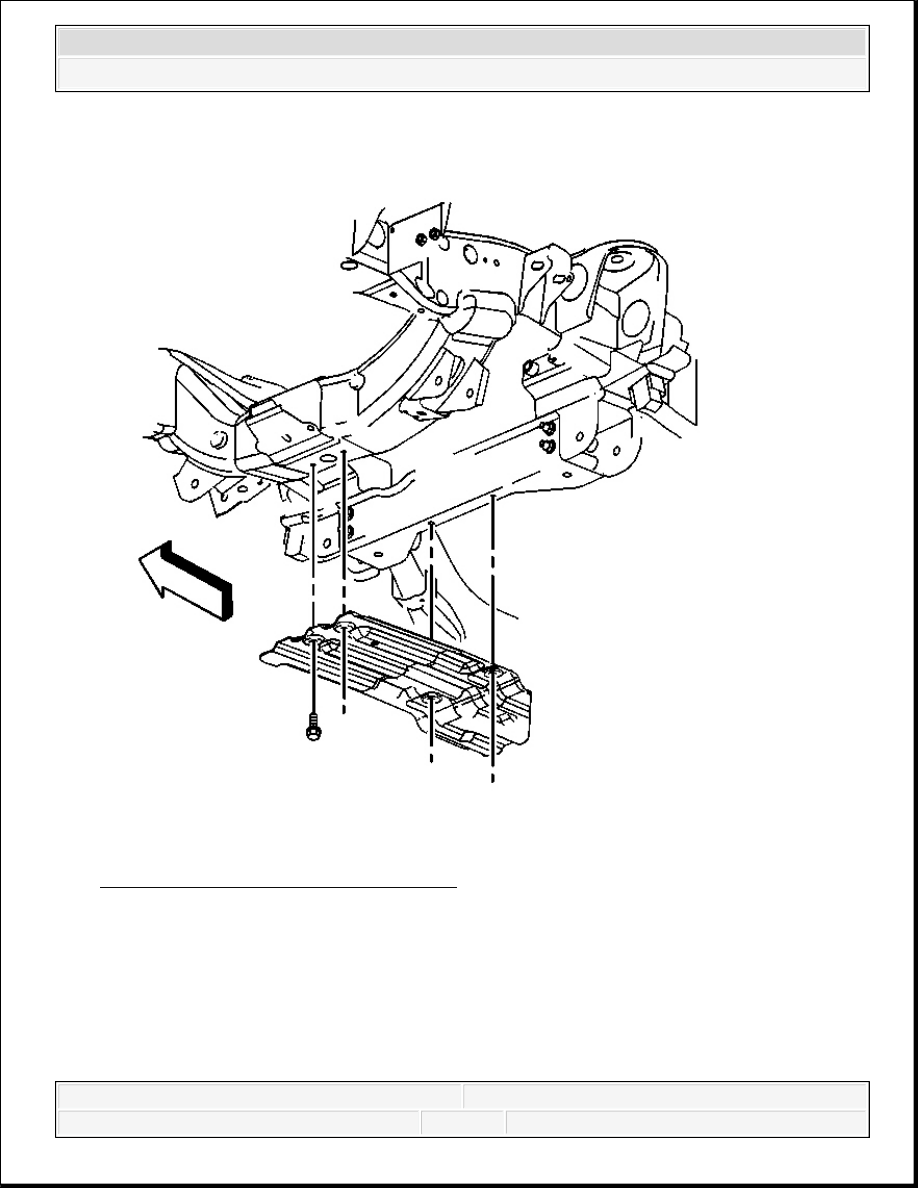

Fig. 333: Identifying Oil Pan Skid Plate
Courtesy of GENERAL MOTORS CORP.
10. If removed, install the oil pan skid plate bolts and plate.
Tighten: Tighten the bolts to 20 N.m (15 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

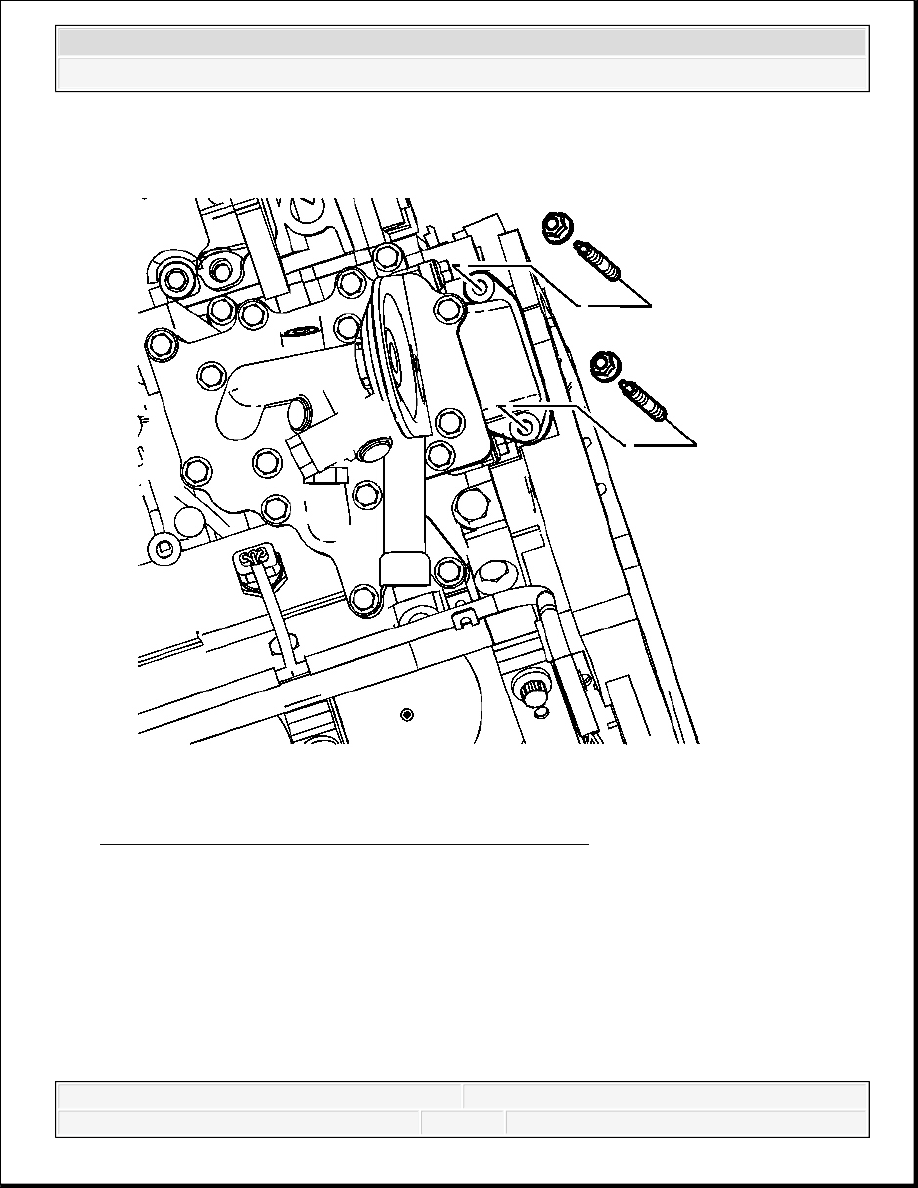

Fig. 334: View Of Water Pump Outlet Pipe Nuts
Courtesy of GENERAL MOTORS CORP.
11. Install the water pump outlet pipe nuts at the coolant pipe.
Tighten: Tighten the nuts to 25 N.m (18 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
