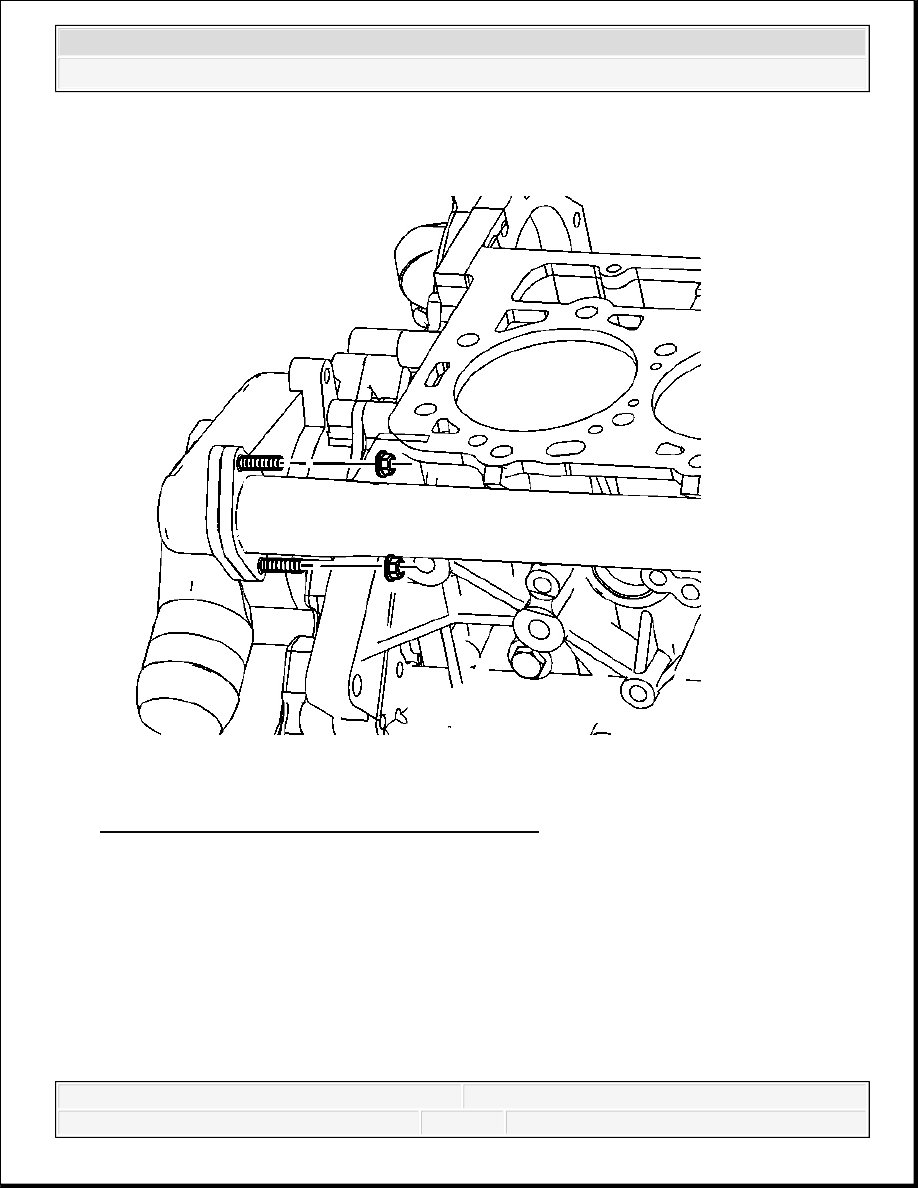

Fig. 319: View Of Water Pump Outlet Pipe Nuts
Courtesy of GENERAL MOTORS CORP.
5. Loosen the water pump outlet pipe nuts at the coolant pipe.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

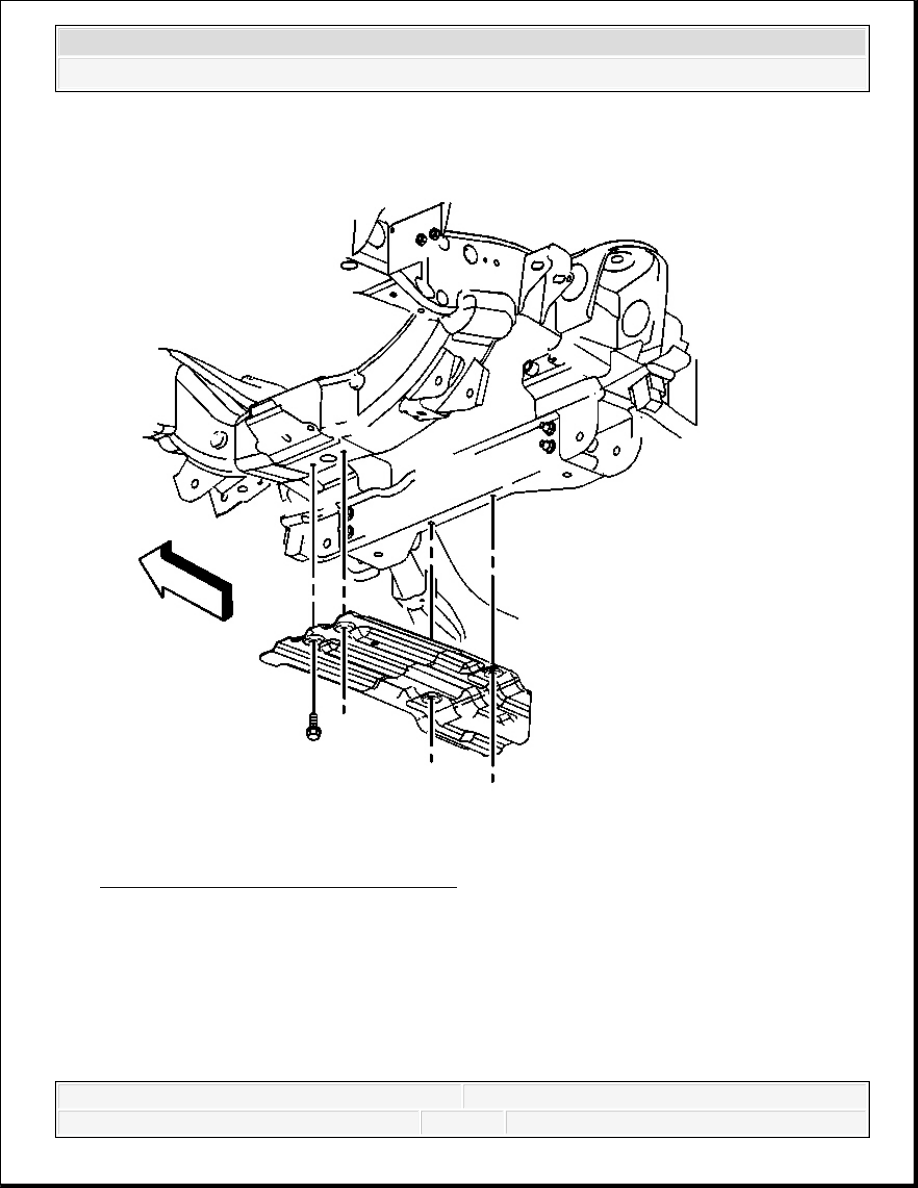

Fig. 320: Identifying Oil Pan Skid Plate
Courtesy of GENERAL MOTORS CORP.
6. If equipped, remove the oil pan skid plate bolts and plate.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

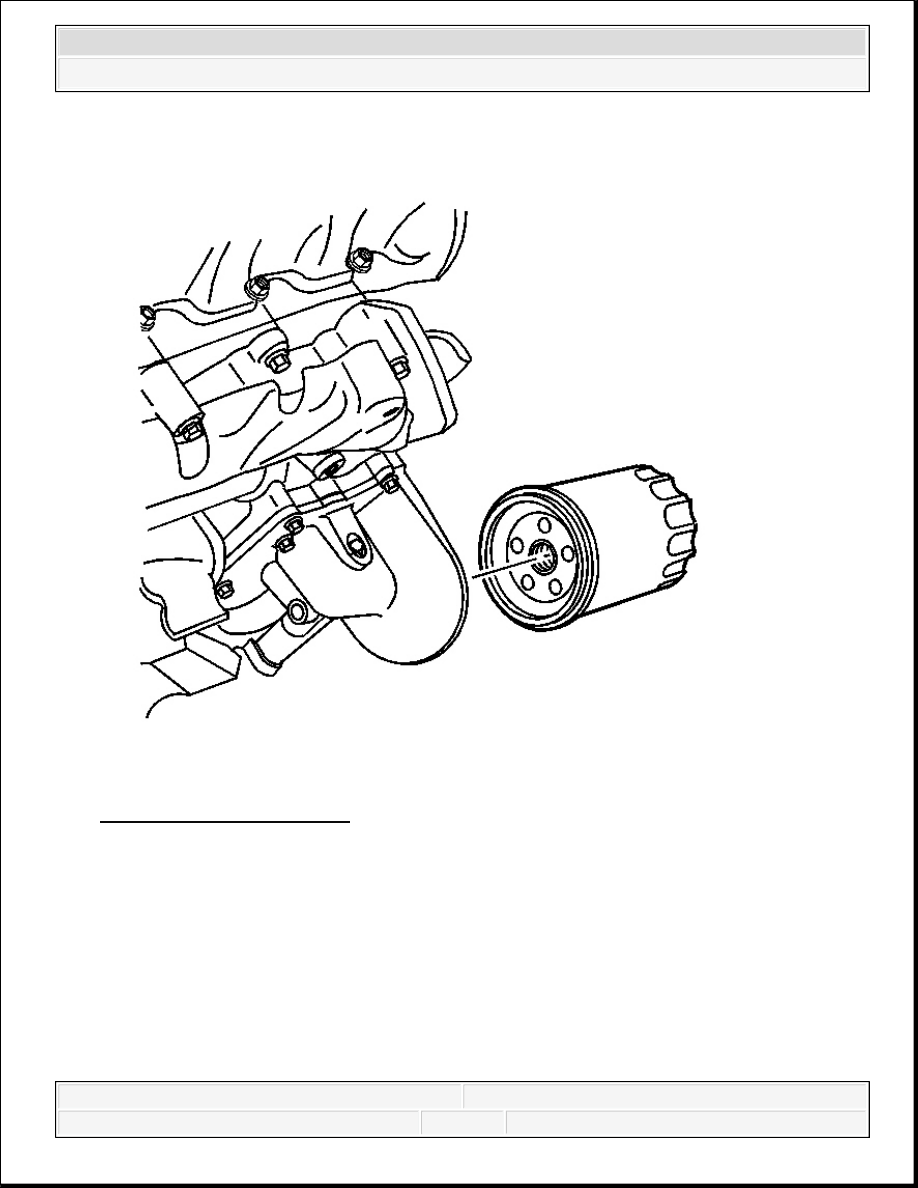

Fig. 321: View Of Oil Filter
Courtesy of GENERAL MOTORS CORP.
7. Remove the oil filter.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

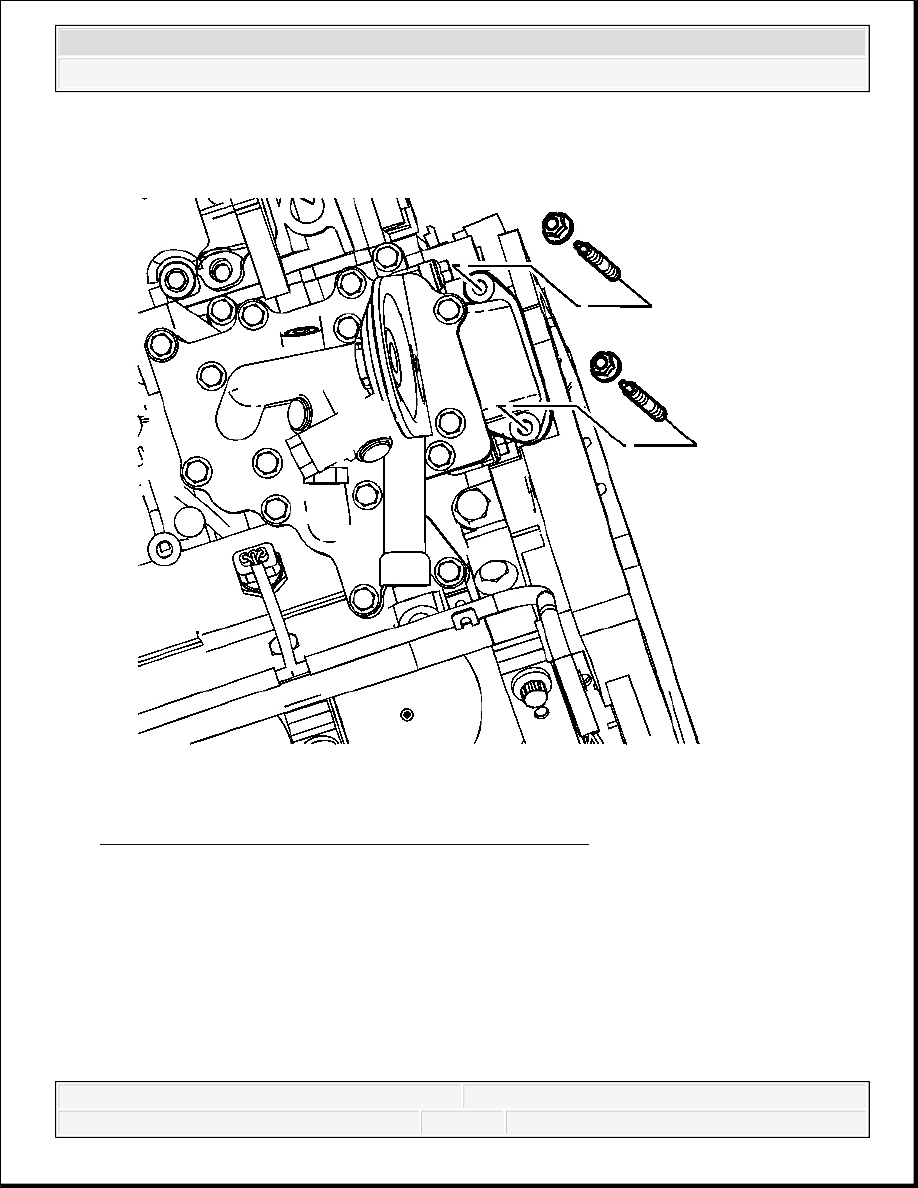

Fig. 322: View Of Turbocharger Oil Return Pipe Nuts
Courtesy of GENERAL MOTORS CORP.
8. Remove the oil cooler adapter nuts and studs from the flywheel housing.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
