Chevrolet Silverado / GMC Sierra. Manual - part 502

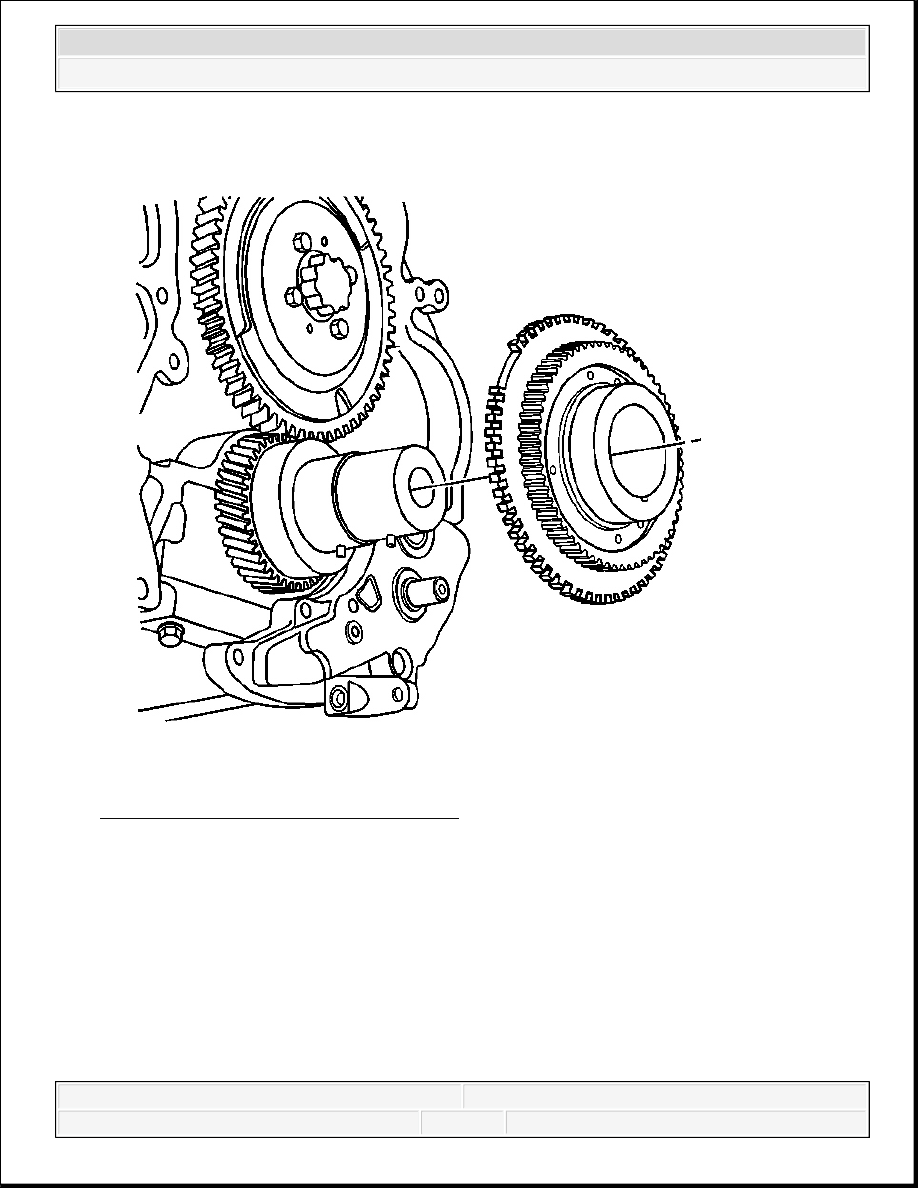

Fig. 311: View Of Oil Pump Drive Gear
Courtesy of GENERAL MOTORS CORP.
10. Remove the oil pump drive gear and crankshaft reluctor.
Use a brass drift.
Tap on the back as close to the center of the reluctor.
IMPORTANT: Do not damage the crankshaft reluctor. Do not remove the
crankshaft reluctor to oil pump drive bolts.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

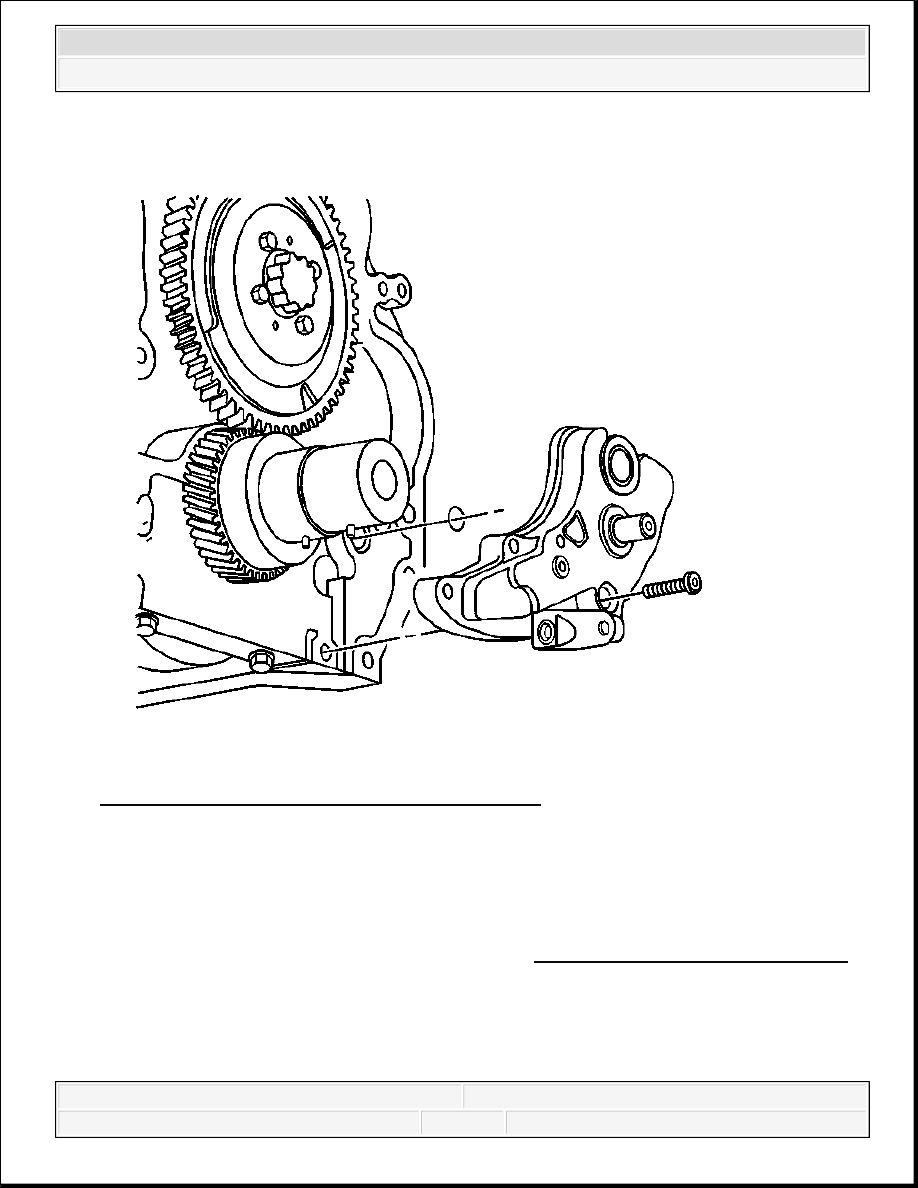

Fig. 312: View Of Oil Pump, O-Ring Seal & Bolt
Courtesy of GENERAL MOTORS CORP.
11. Remove the hex head and the allen head bolt in order to remove the oil pump.
12. Remove the oil pump.
13. Remove the O-ring seal for the oil pump.
14. If required, clean and inspect the oil pump. Refer to Oil Pump Cleaning and Inspection .
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

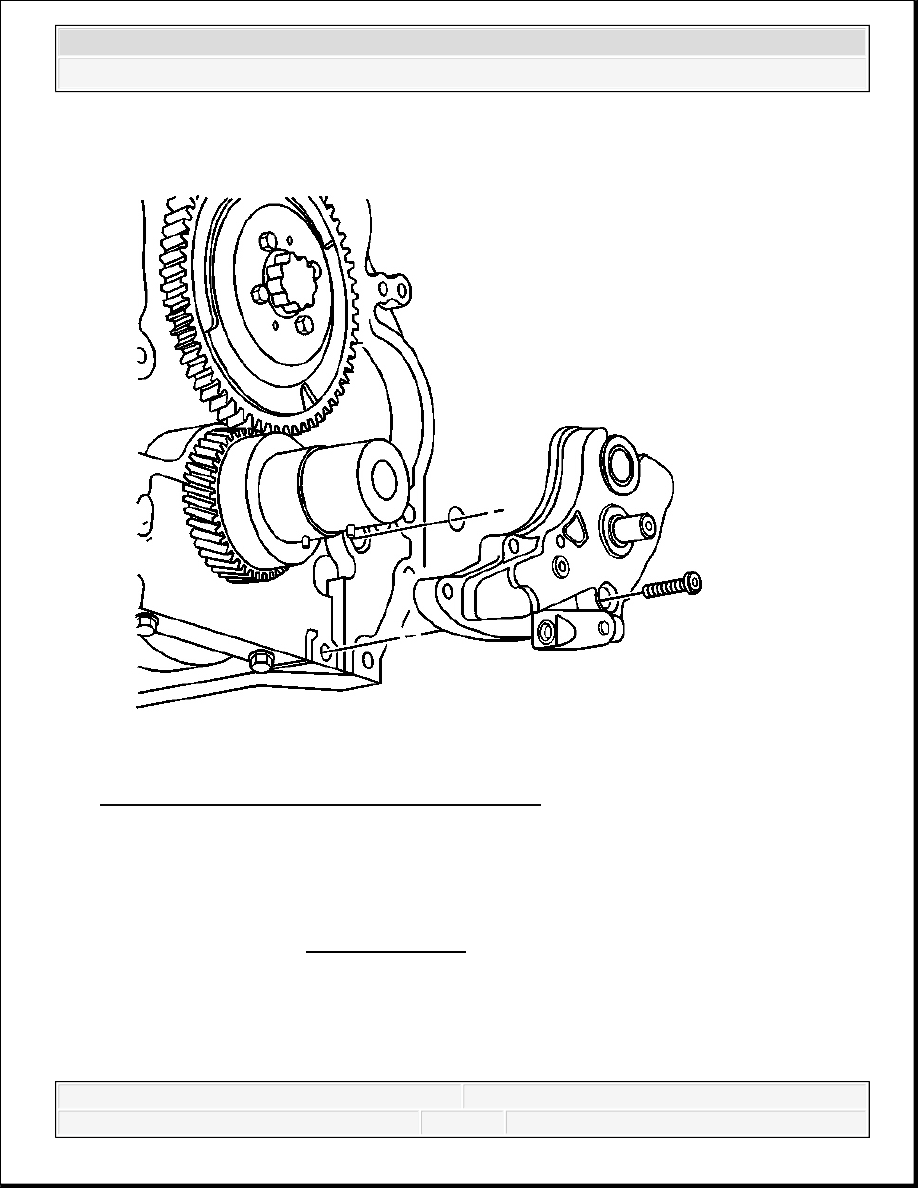

Fig. 313: View Of Oil Pump, O-Ring Seal & Bolt
Courtesy of GENERAL MOTORS CORP.
1. Install a NEW oil pump O-ring seal.
2. Install the oil pump.
3. Install the oil pump bolts.
Tighten: Tighten the bolts to 21 N.m (15 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
4. Inspect the oil pump drive gear for wear.
5. Replace the oil pump drive gear pin if worn.

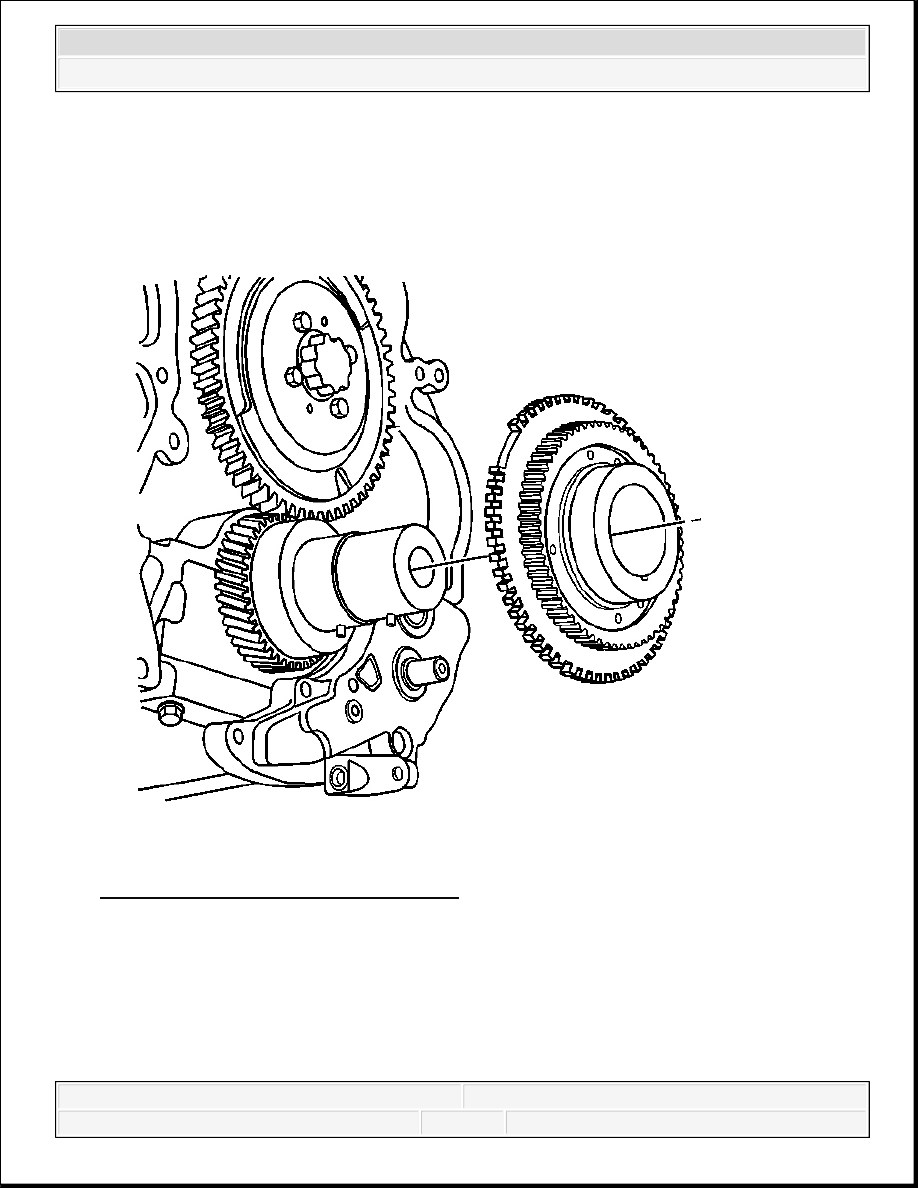

Fig. 314: View Of Oil Pump Drive Gear
Courtesy of GENERAL MOTORS CORP.
6. Install the oil pump drive gear and reluctor to the crankshaft.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
