Fig. 192: A/C Compressor And Power Steering Pump Bracket
Courtesy of GENERAL MOTORS CORP.
16. Remove the A/C compressor and power steering pump bracket bolts.
17. Remove the A/C compressor and power steering pump bracket.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

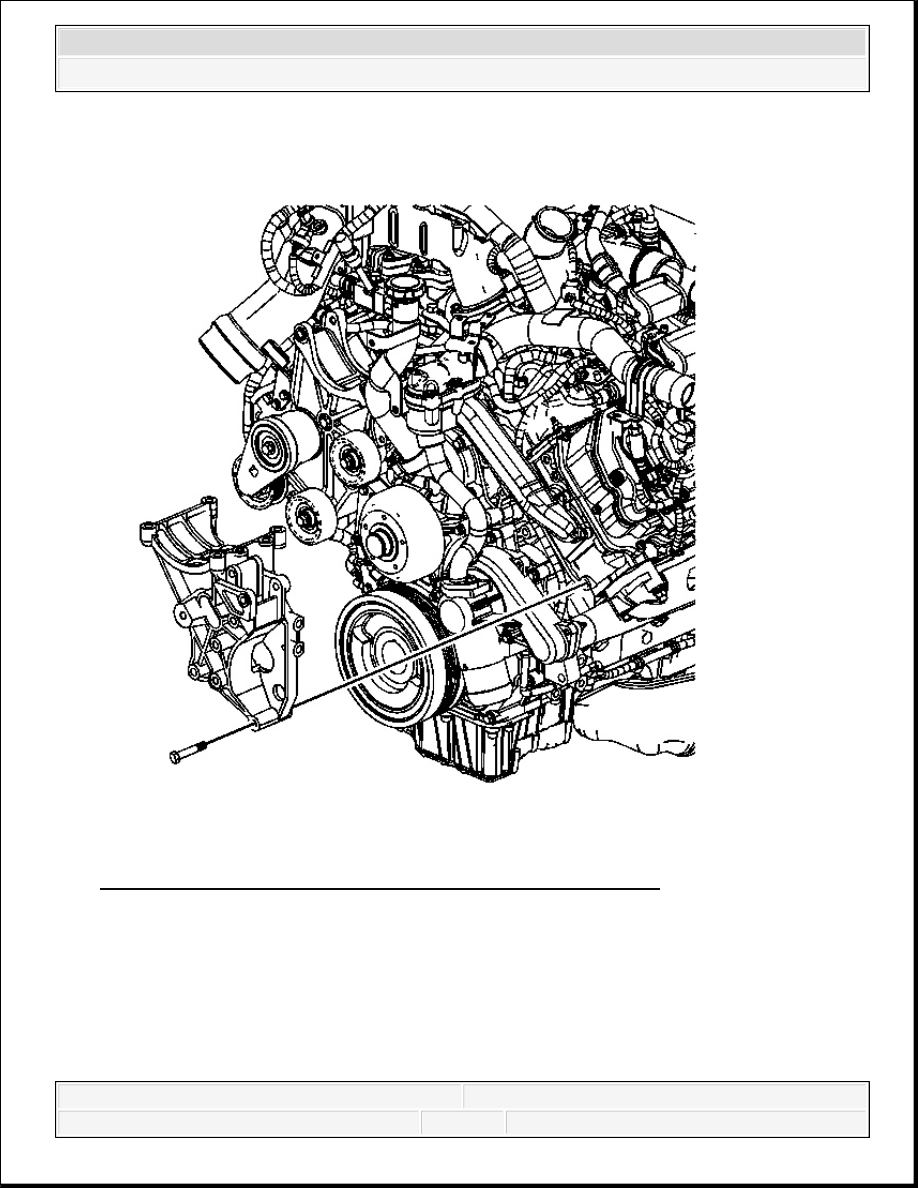

Fig. 193: A/C Compressor And Power Steering Pump Bracket
Courtesy of GENERAL MOTORS CORP.
1. Position the A/C compressor and power steering pump bracket.
2. Install the A/C compressor and power steering pump bracket bolts.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Tighten: Tighten the bolts to 46 N.m (34 lb ft).

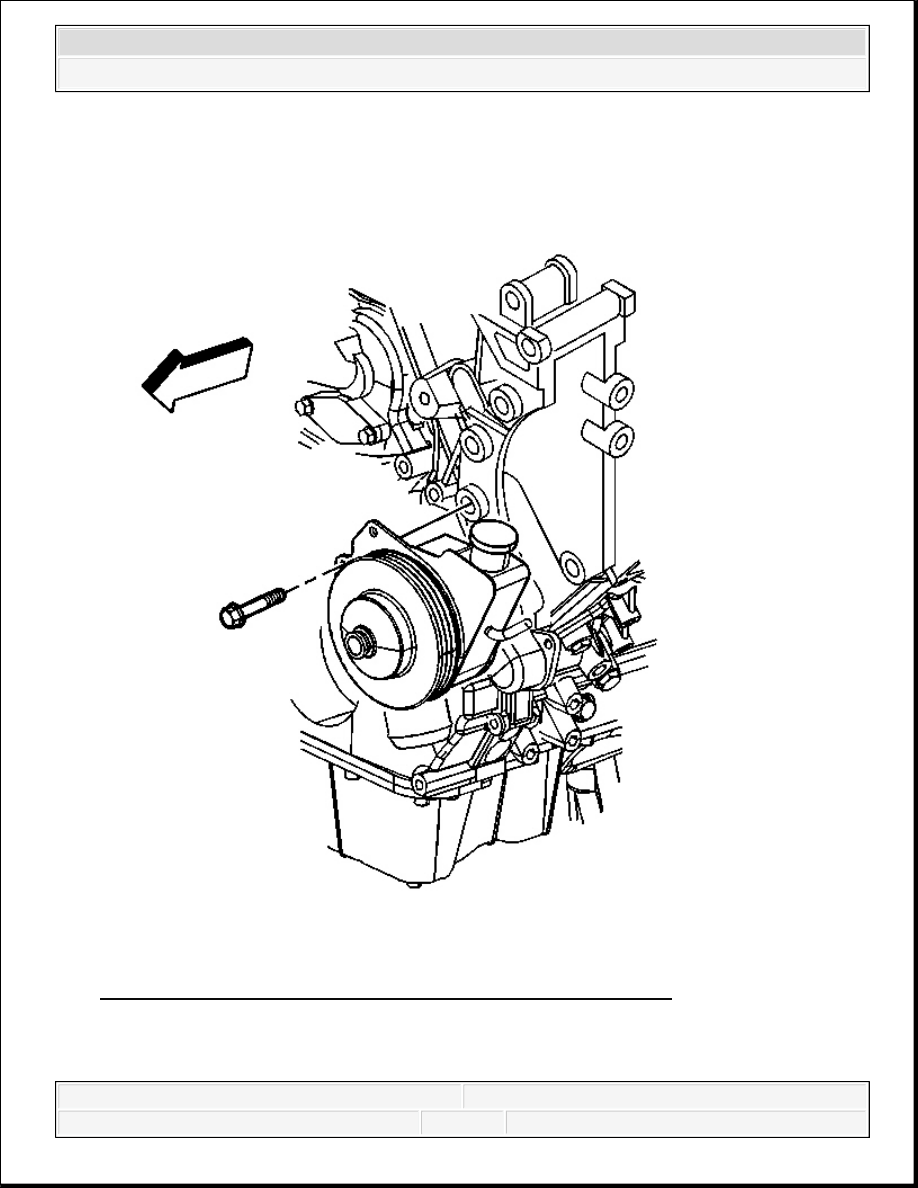

Fig. 194: View Of Power Steering Pump Front Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
3. Install the power steering pump and loosely install the front bracket bolts.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

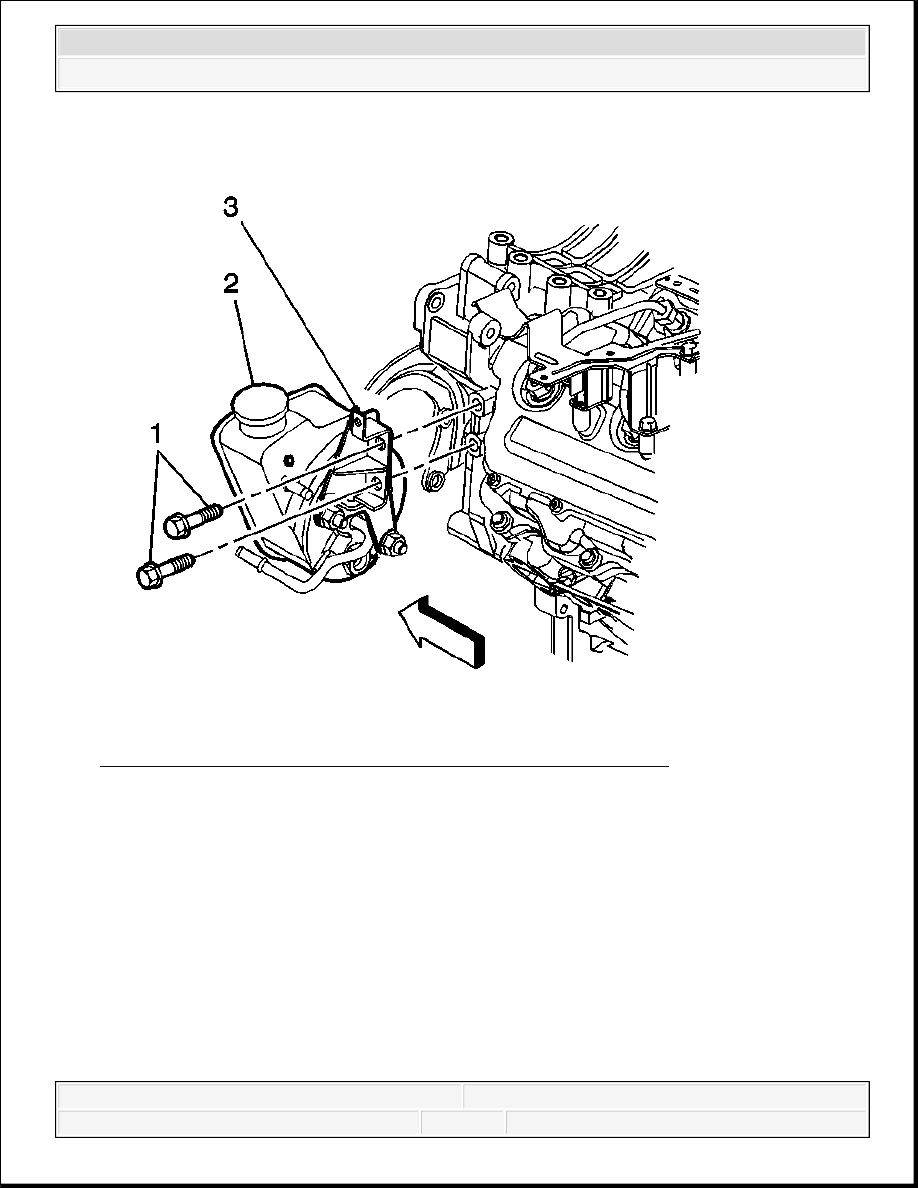

Fig. 195: View Of Rear Power Steering Pump, Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
4. Loosely install the rear power steering pump bracket bolts (1).
Tighten:
1. Tighten the front bracket bolts to 50 N.m (37 lb ft).
2. Tighten the rear bracket bolts to 50 N.m (37 lb ft).
IMPORTANT: Tighten the front bracket bolts before the rear bracket bolts
to ensure pulley alignment.
