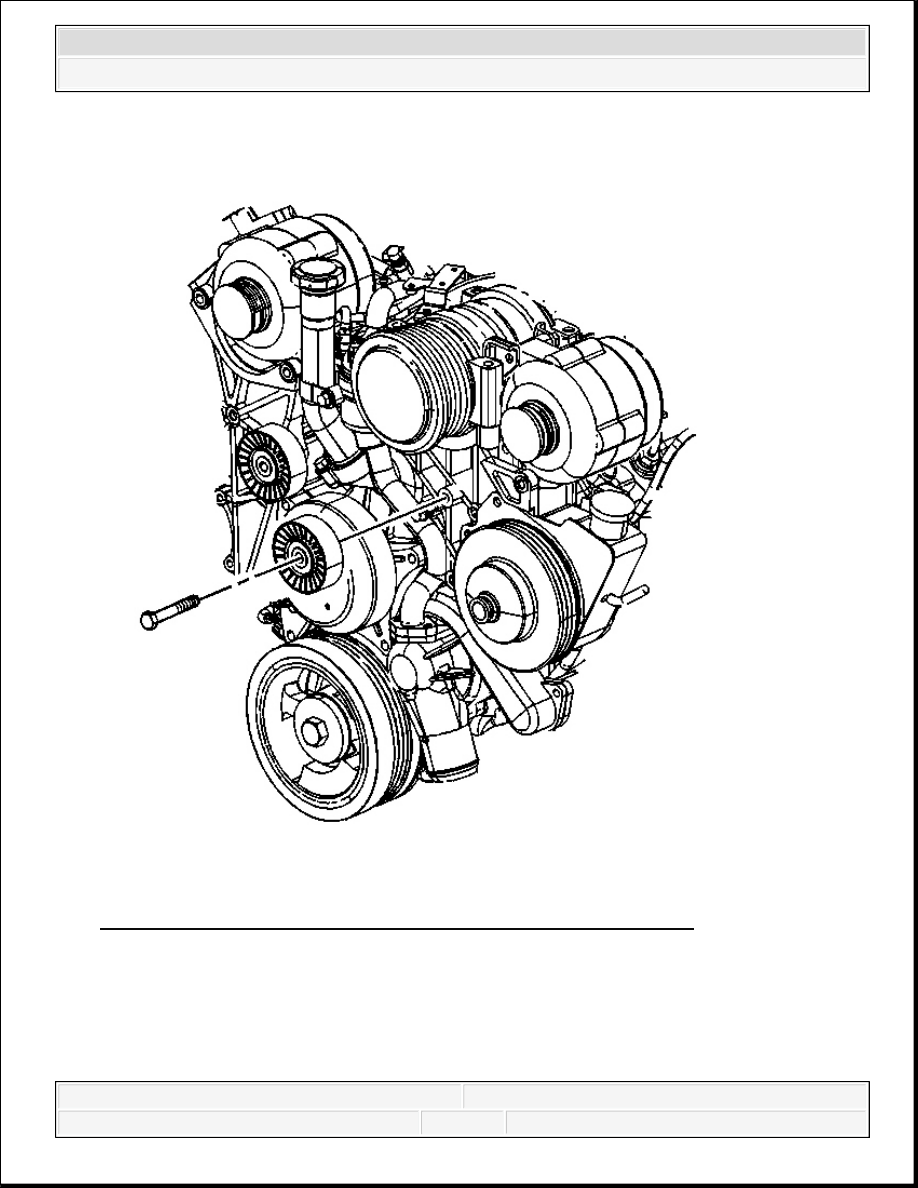

Fig. 196: View Of Left Side Idler Pulley & Bolt (Dual Generators) 5. If equipped with dual generators, install the left side idler pulley and bolt. Tighten: Tighten the bolt to 43 N.m (32 lb ft)
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

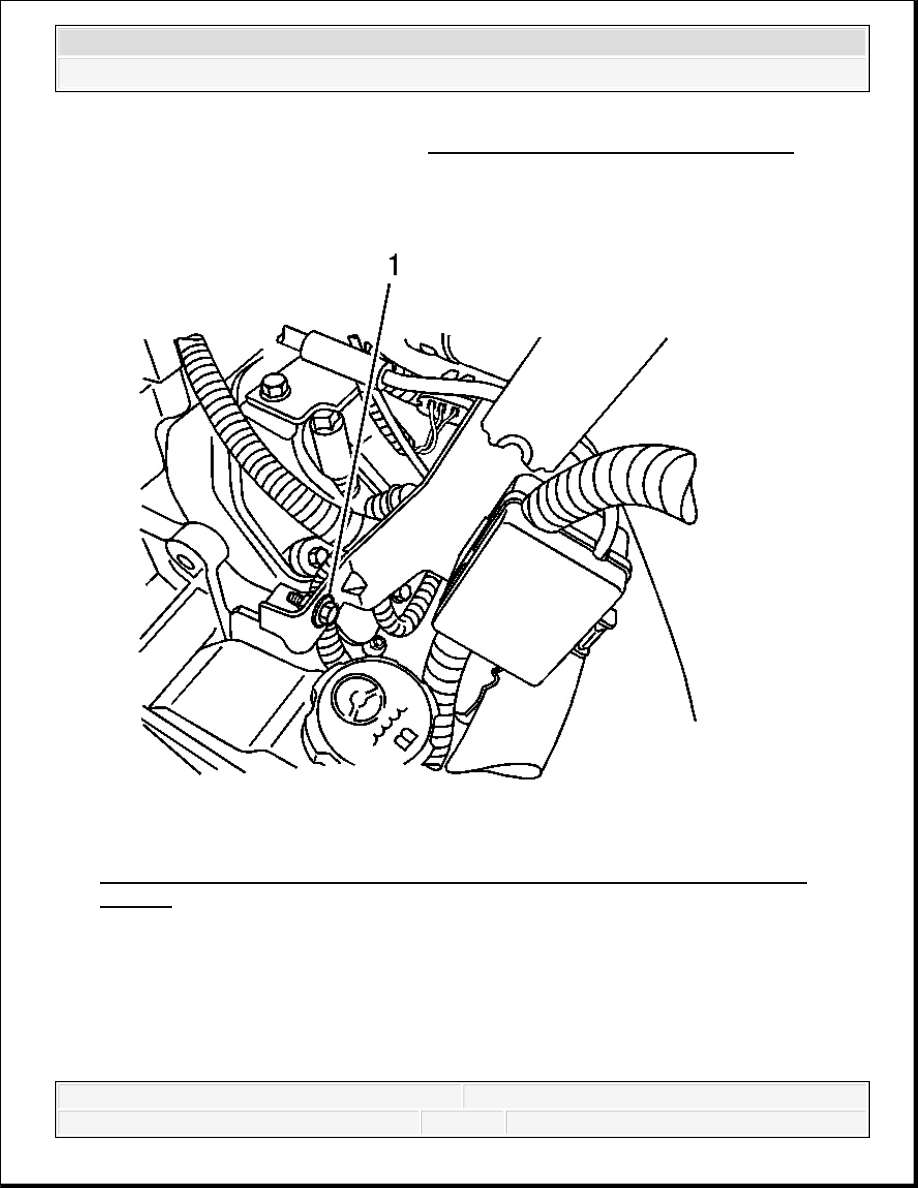

6. Install the auxiliary generator. Refer to Auxiliary Generator Replacement (6.6L) . Fig. 197: View Of Battery Cable Junction Block Bolt At Power Steering Pump 7. Install the battery cable junction block and bolt (1). Tighten: Tighten the bolt to 9 N.m (80 lb in).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

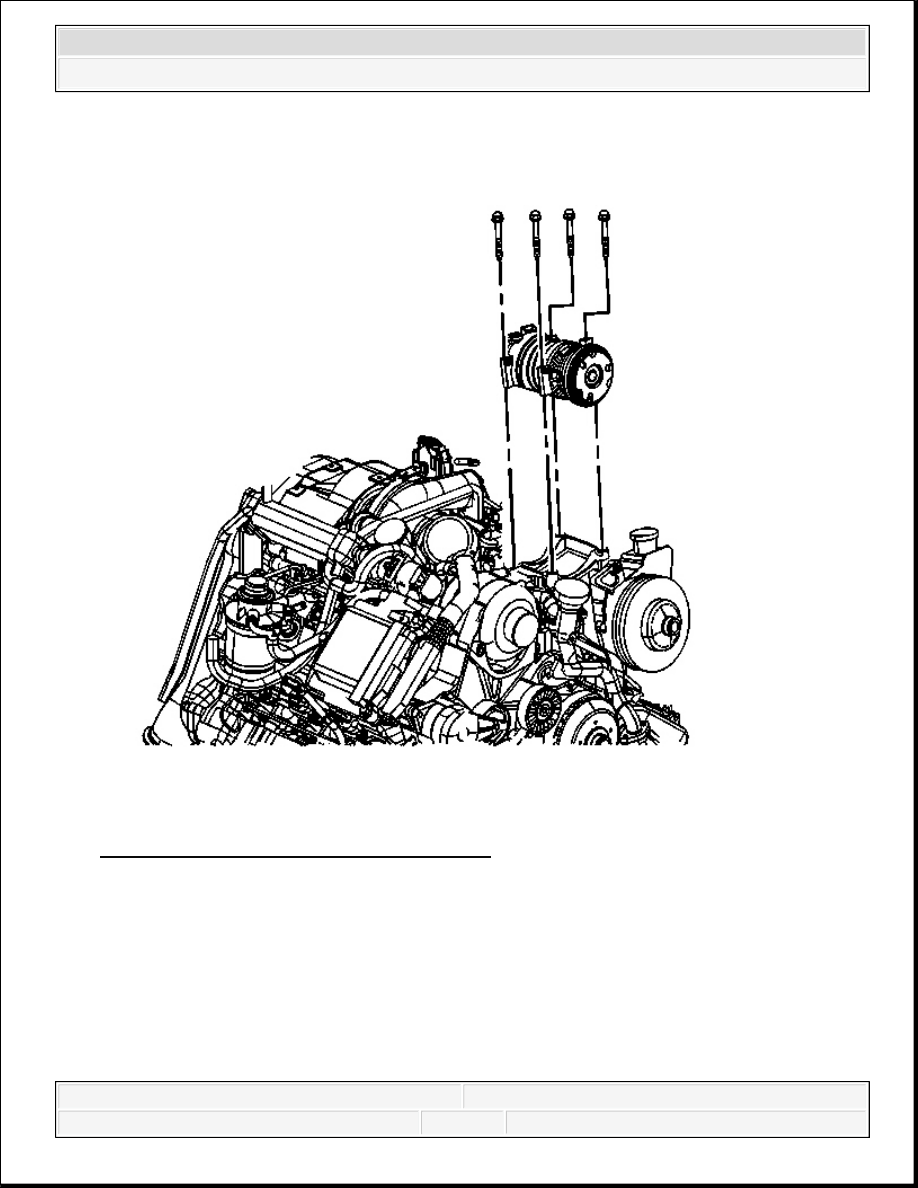

Fig. 198: View Of A/C Compressor & Bolts 8. Position the A/C compressor. 9. Install the A/C compressor bolts. Tighten: Tighten the bolts to 50 N.m (37 lb ft). 10. Connect the A/C cut out switch electrical connector. 11. Connect the A/C clutch electrical connector.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

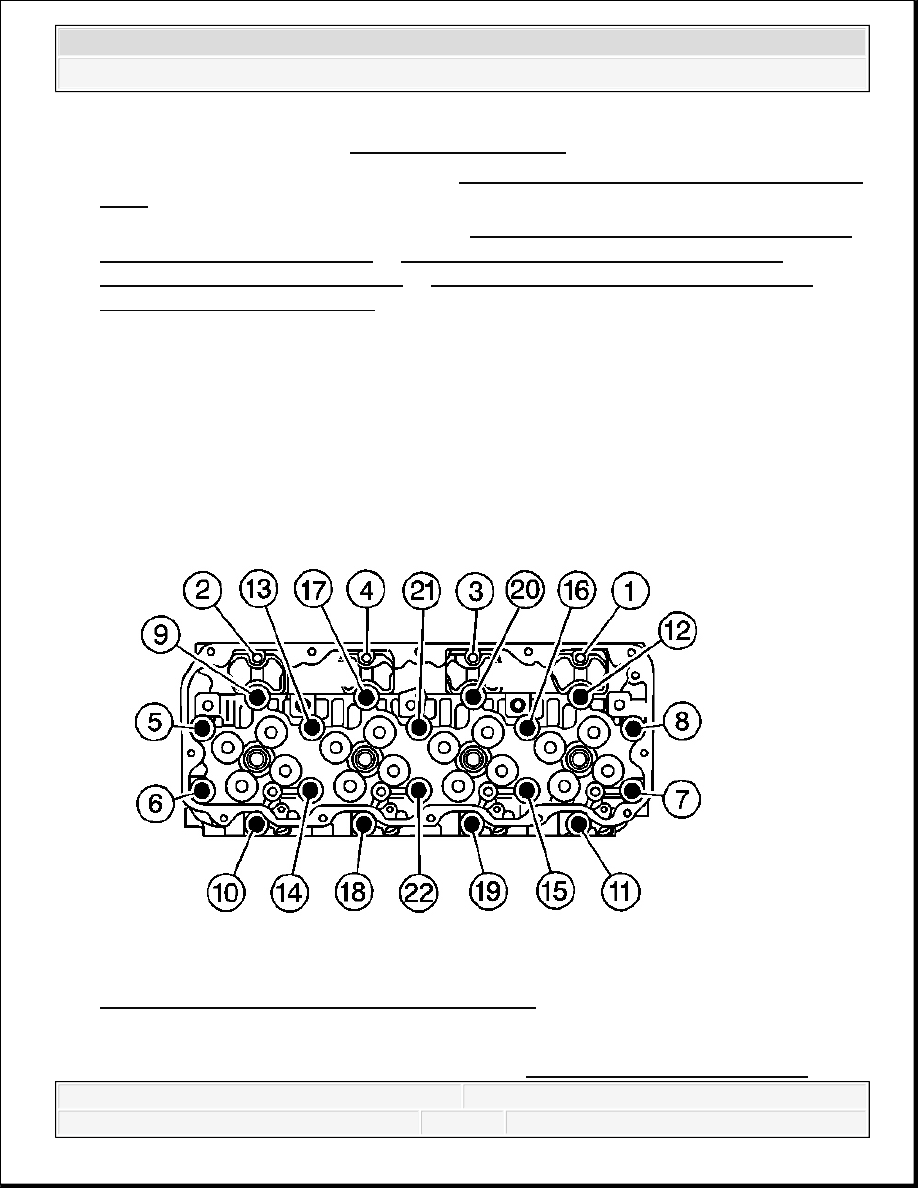

12. Install the drive belt. Refer to Drive Belt Replacement. 13. Install the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement (Non- HP2) . 14. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and CYLINDER HEAD REPLACEMENT - LEFT SIDE Tools Required J 45059 Angle Meter Removal Procedure Fig. 199: Cylinder Head Bolt Removal Sequence 1. Remove the thermostat housing crossover. Refer to Thermostat Housing Crossover
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
|
|
