Chevrolet Silverado / GMC Sierra. Manual - part 439

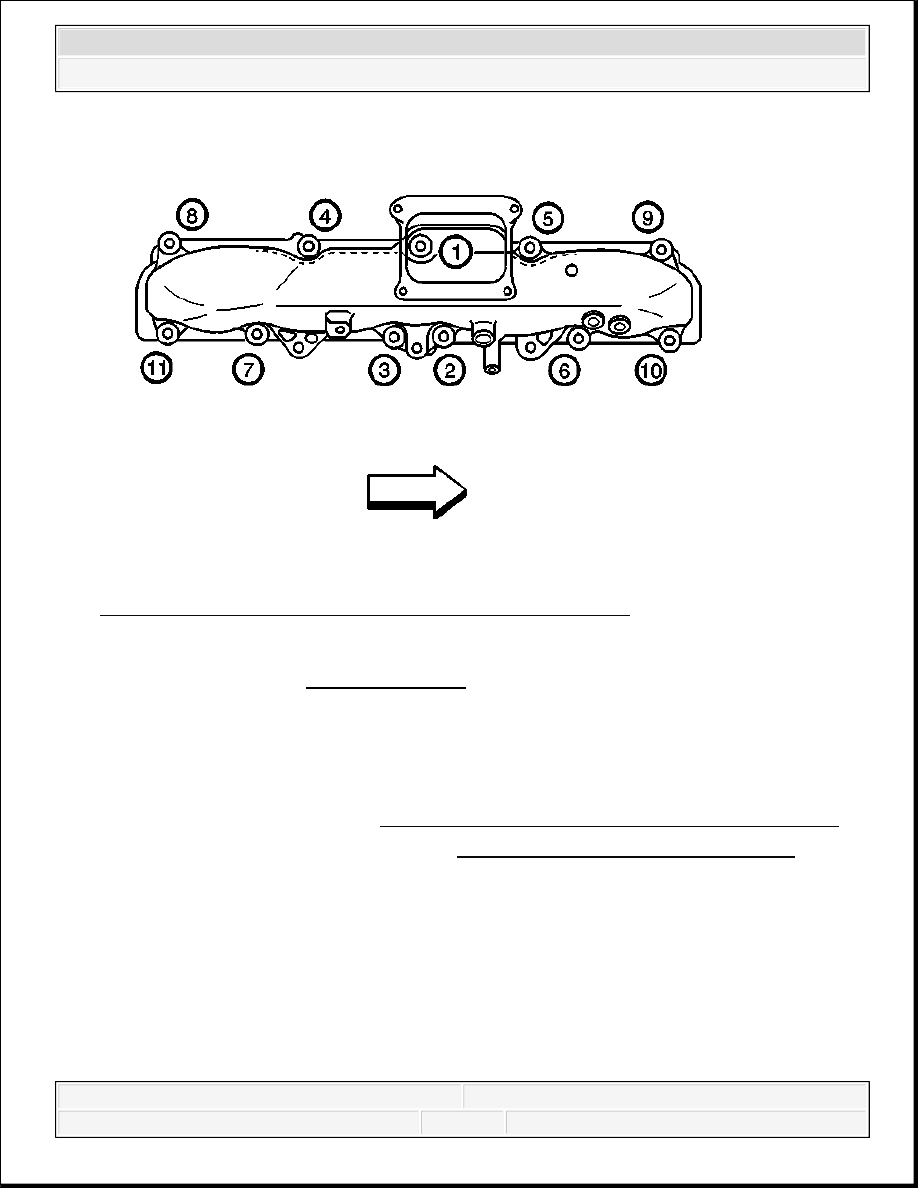

Fig. 84: Intake Manifold Bolt Tightening Sequence (Right)
Courtesy of GENERAL MOTORS CORP.
4. Tighten the intake manifold bolts/nuts in the sequence shown.
Tighten: Tighten the bolts/nuts to 21 N.m (15 lb ft).
5. Install the right fuel rail. Refer to Fuel Rail Fuel Feed Pipe Replacement - Right Side .
6. Install the center intake manifold. Refer to Center Intake Manifold Replacement.
OIL FILLER TUBE REPLACEMENT
Removal Procedure
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

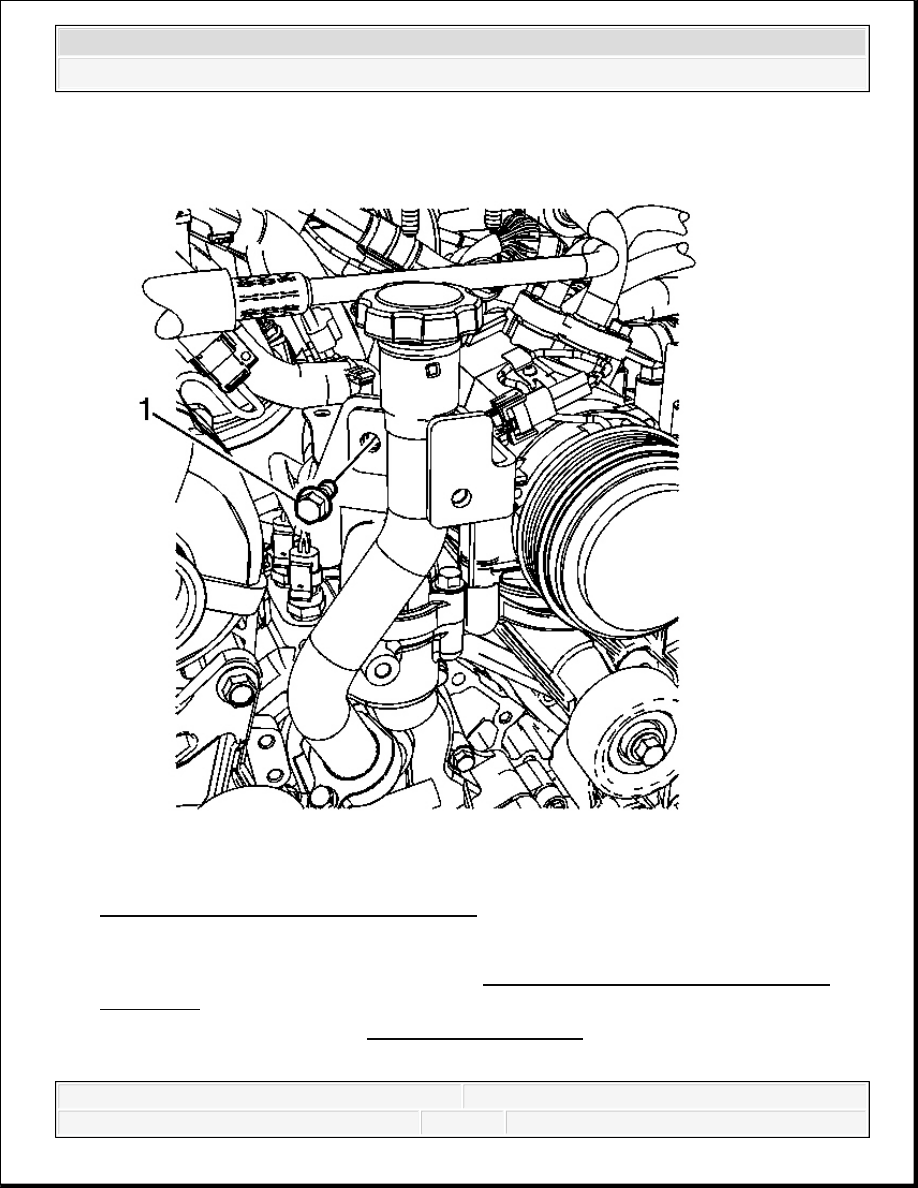

Fig. 85: View Of Upper Oil Fill Tube Bolt
Courtesy of GENERAL MOTORS CORP.
1. Remove the fan and clutch assembly. Refer to Cooling Fan and Shroud Replacement
(Non-HP2) .
2. Remove the drive belt. Refer to Drive Belt Replacement.
3. Remove the upper oil fill tube bolt (1).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

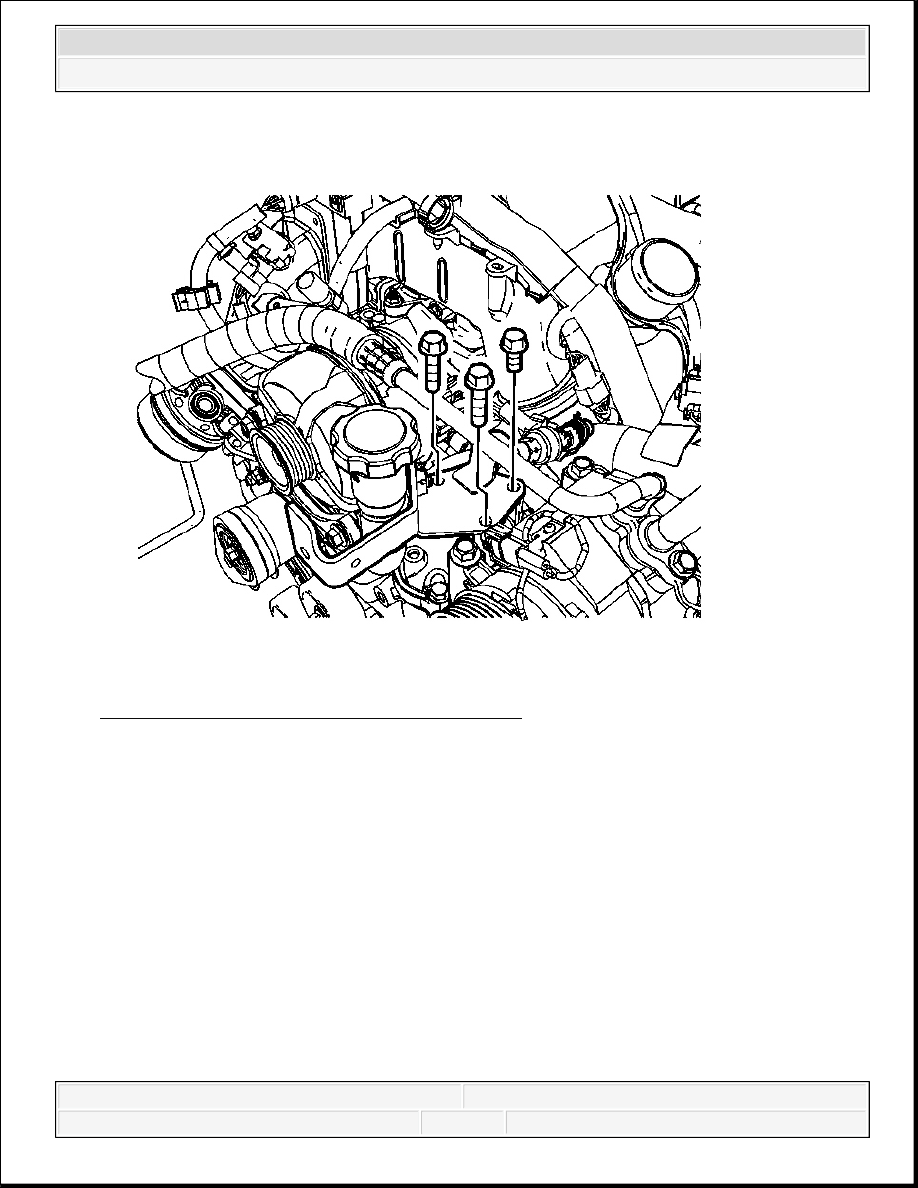

Fig. 86: View Of Oil Fill Tube Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
4. Remove the oil filler tube bracket bolts.
5. Remove the oil fill tube bracket.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
