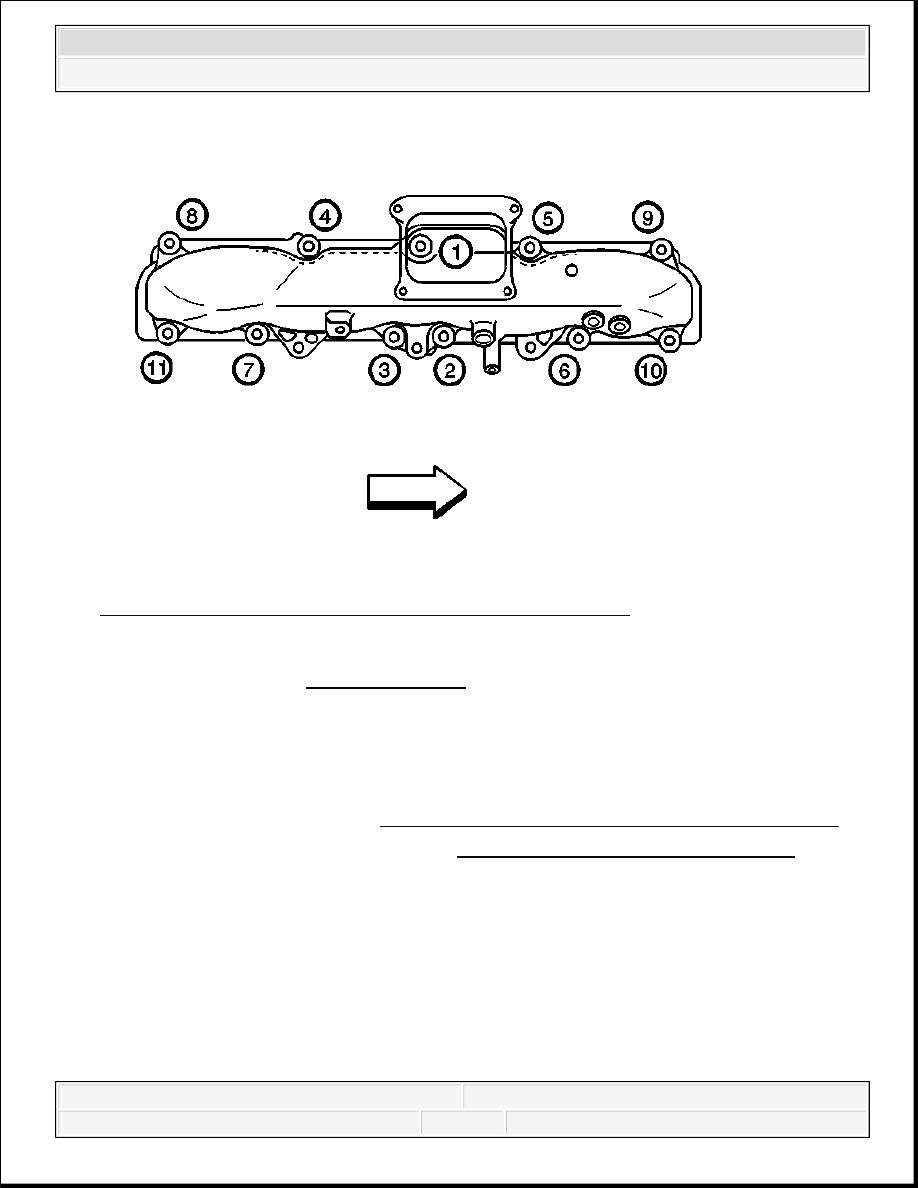

Fig. 80: Intake Manifold Bolt Tightening Sequence (Right) 4. Tighten the intake manifold bolts/nuts in the sequence shown. Tighten: Tighten the bolts/nuts to 21 N.m (15 lb ft). 5. Install the right fuel rail. Refer to Fuel Rail Fuel Feed Pipe Replacement - Right Side . 6. Install the center intake manifold. Refer to Center Intake Manifold Replacement. INTAKE MANIFOLD REPLACEMENT - RIGHT SIDE Removal Procedure NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

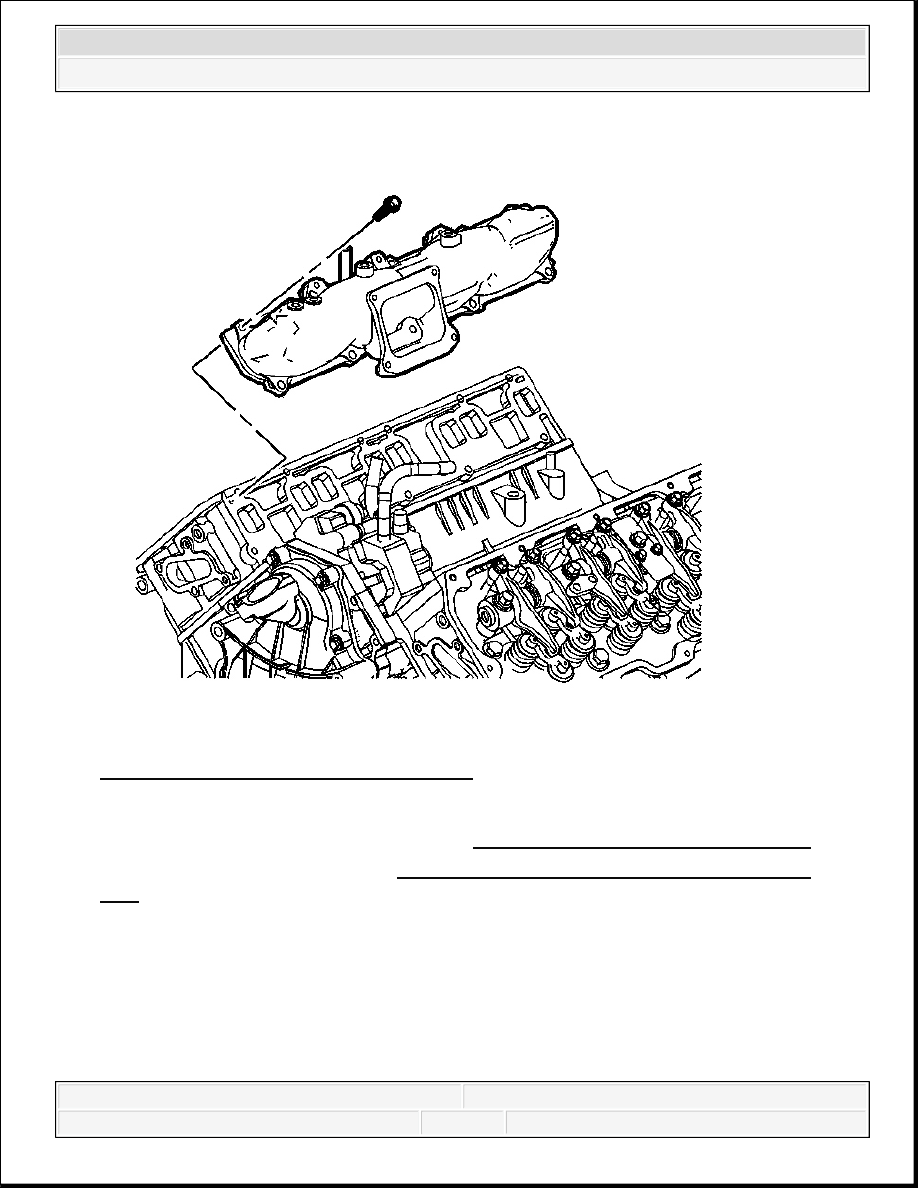

Fig. 81: View Of Intake Manifold (Right) 1. Remove the center intake manifold. Refer to Center Intake Manifold Replacement. 2. Remove the right fuel rail. Refer to Fuel Rail Fuel Feed Pipe Replacement - Right Side . 3. Remove the intake manifold bolts/nuts. 4. Remove the intake manifold. IMPORTANT: The intake manifold uses sealer. Pry at the area by the fuel rail bolt holes in order to avoid damage to the sealing
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

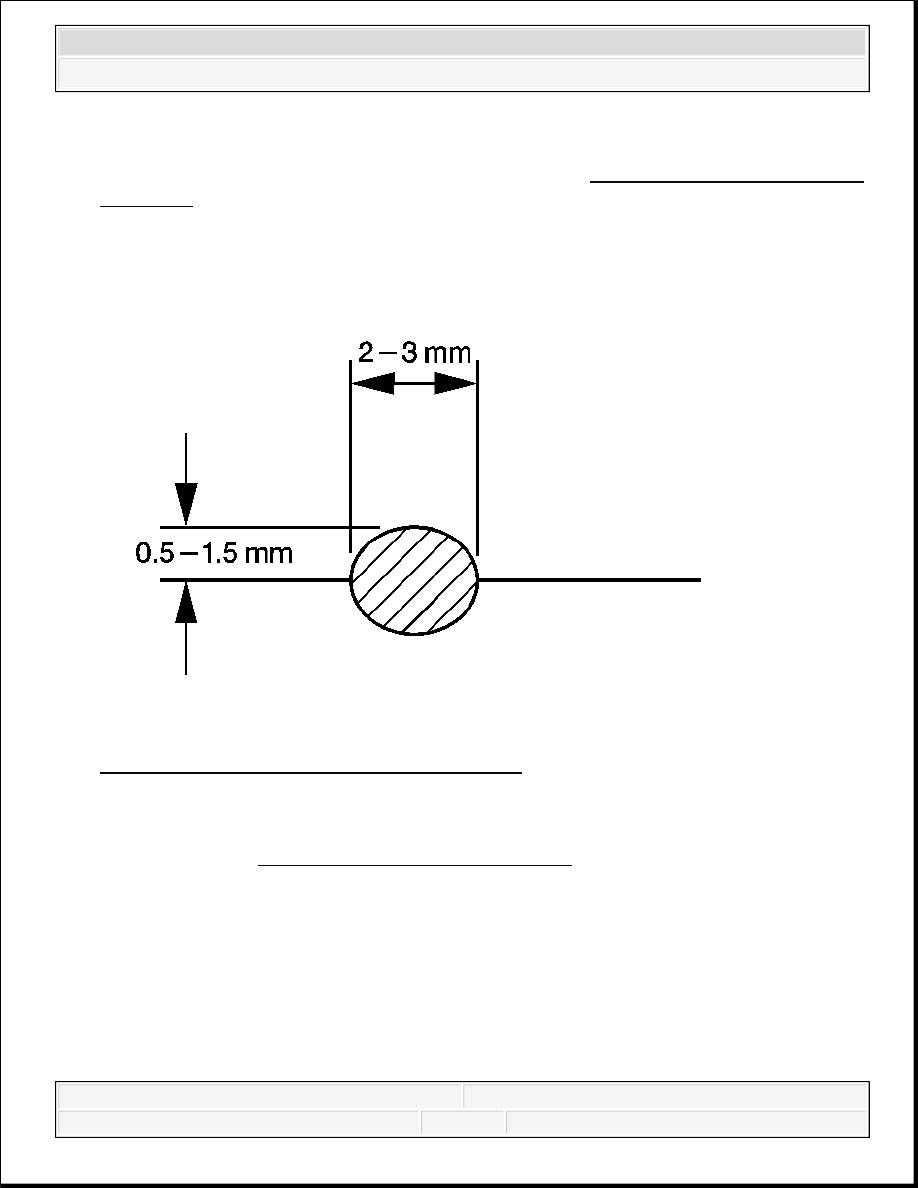

5. To prevent entry of debris in the cylinder head tape the openings. 6. If required, clean and inspect the intake manifold. Refer to Intake Manifold Cleaning and Inspection . Installation Procedure Fig. 82: Determining Sealant Bead Dimensions 1. Apply a 2-3 mm (1/8 in) wide, by 0.5-1.5 mm (1/16 in) high bead of sealant to the intake manifold. Refer to Sealers, Adhesives, and Lubricants for the correct part number.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

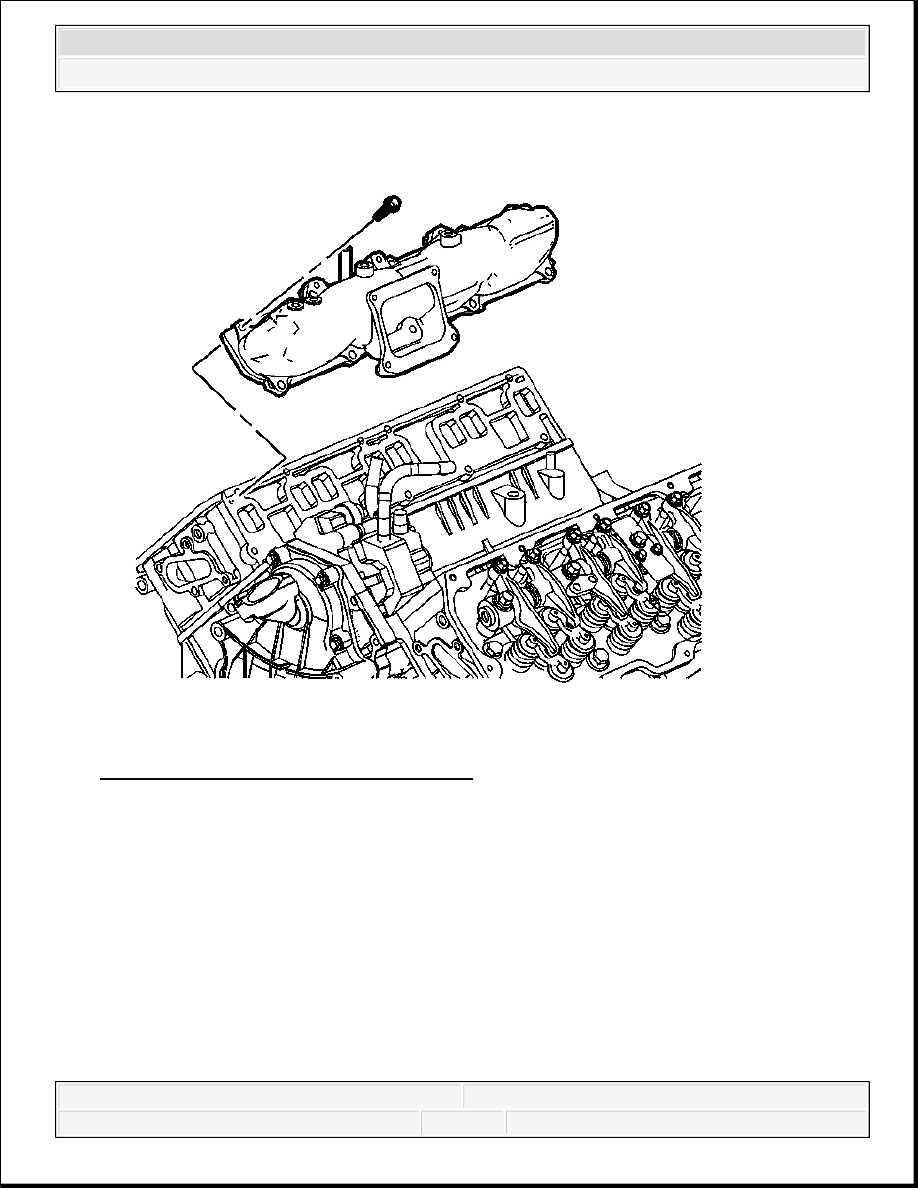

Fig. 83: View Of Intake Manifold (Right) 2. Install the intake manifold. 3. Install the intake manifold bolts/nuts.
